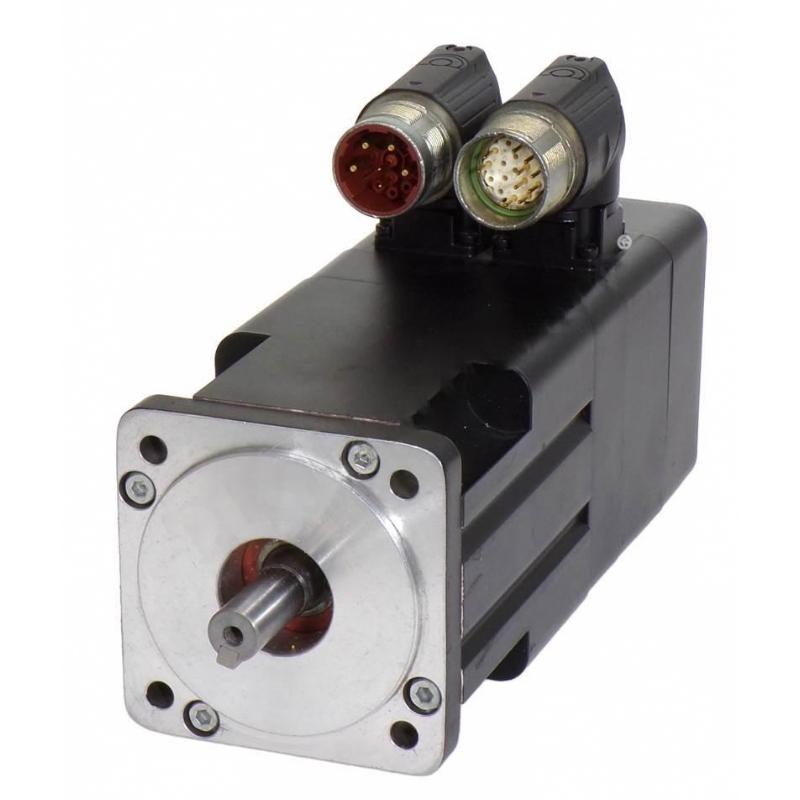

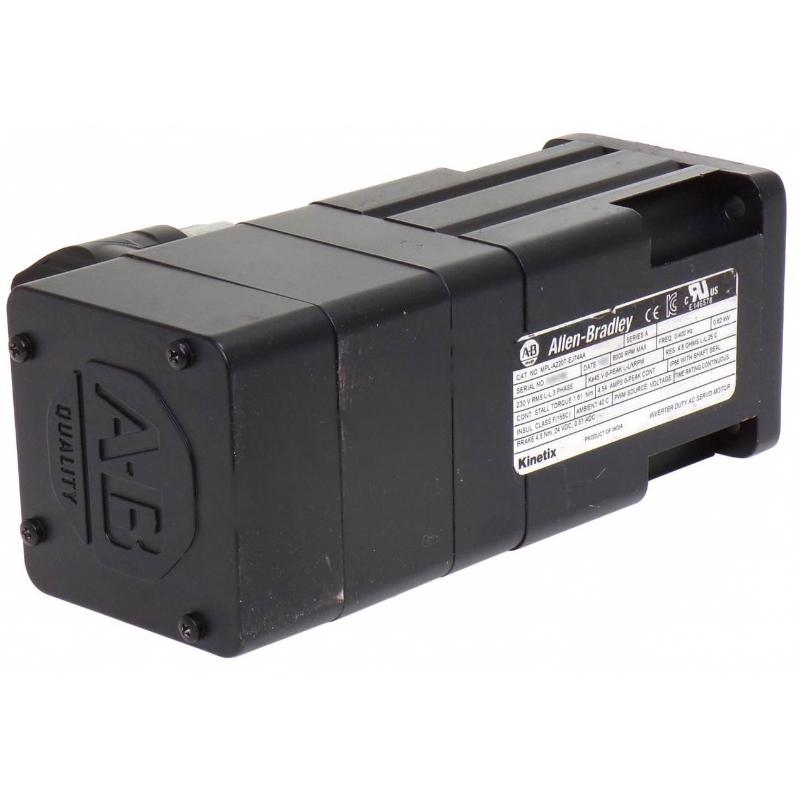

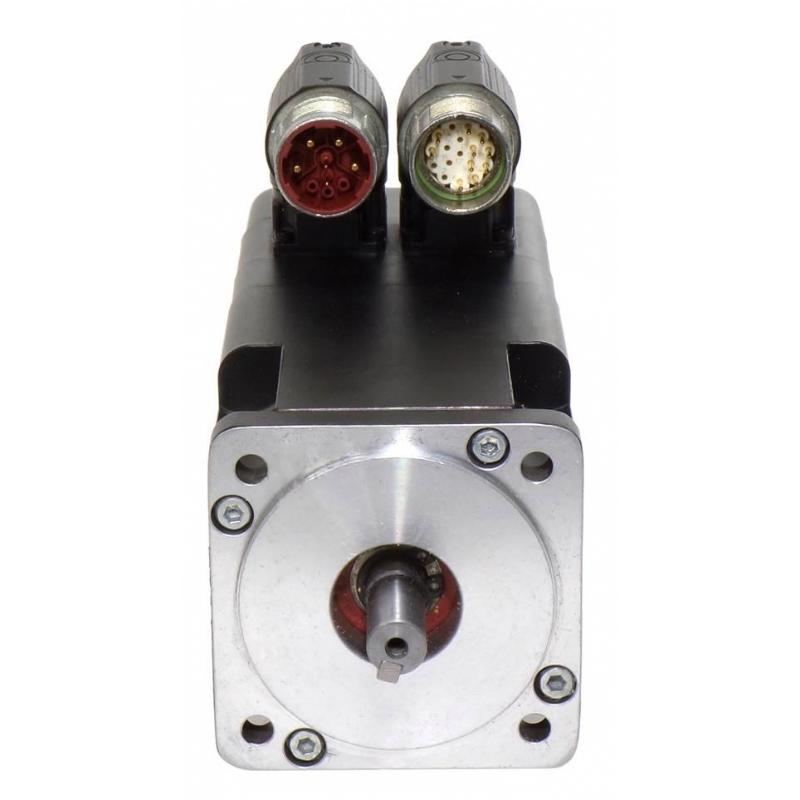

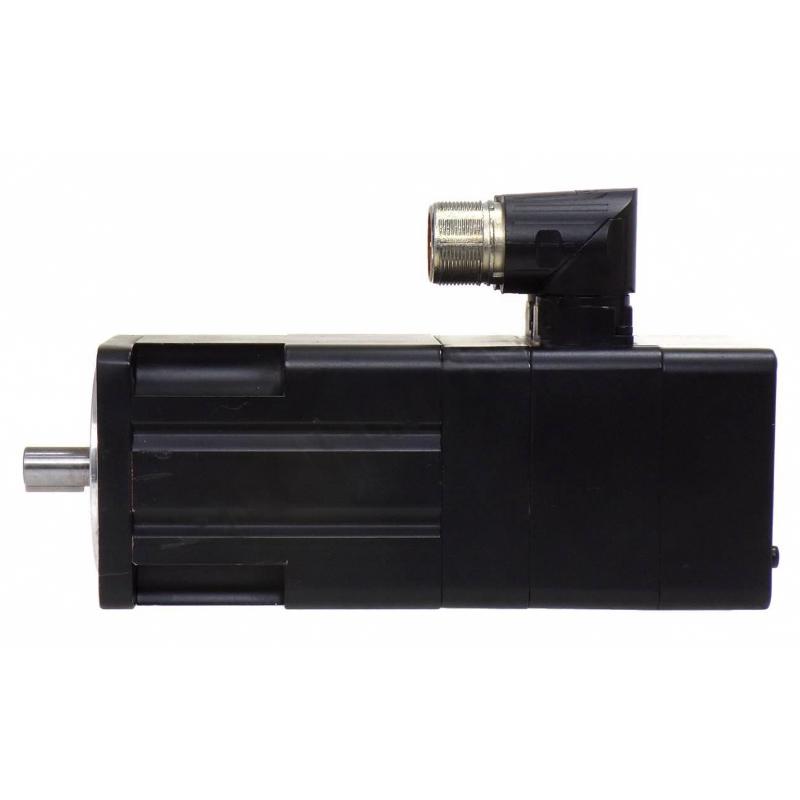

Allen Bradley MPL-A220T-EJ74AA Servo Motor

Overview

The Allen Bradley MPL-A220T-EJ74AA is a low-inertia brushless AC servo motor from the MP-Series MPL family. It is designed for precise motion control applications requiring fast response, accurate positioning, and reliable performance in industrial automation systems.

General Information

Part Number: MPL-A220T-EJ74AA

Manufacturer: Allen Bradley

Series: MP-Series MPL

Product Type: Low-Inertia Servo Motor

Motor Type: Brushless AC Servo Motor

Frame Size: 75 mm

Brand: Allen Bradley

Country of Origin: India

Mounting: Flange mounting

Shaft Type: Keyed shaft

Brake: No brake

Power Specifications

Rated Voltage: 230 V AC

Voltage Class: 200 V

Rated Speed: 6000 rpm

Continuous Torque: Approx. 2.2 Nm

Peak Torque: Approx. 6.0 Nm

Motor Design: Permanent-magnet brushless

The motor provides responsive torque output and smooth operation for high-speed positioning and precision motion applications.

Communication & Interface

Feedback: High-resolution single-turn encoder

Feedback Protocol: Hiperface

Connector: SpeedTEC DIN connector

Drive Compatibility: Kinetix servo drive systems

Feedback Function: Closed-loop position and speed control

The integrated feedback system supports accurate position monitoring and reliable synchronization with the motion controller.

Environmental

Operating Temperature: 0 to +40 °C

Storage Temperature: −30 to +70 °C

Relative Humidity: 5% to 95%, non-condensing

Protection Rating: IP50

Installation Environment: Industrial control cabinet or suitable protected equipment

Dimensions & Weight

Frame Size: 75 mm

Weight: 2 kg
