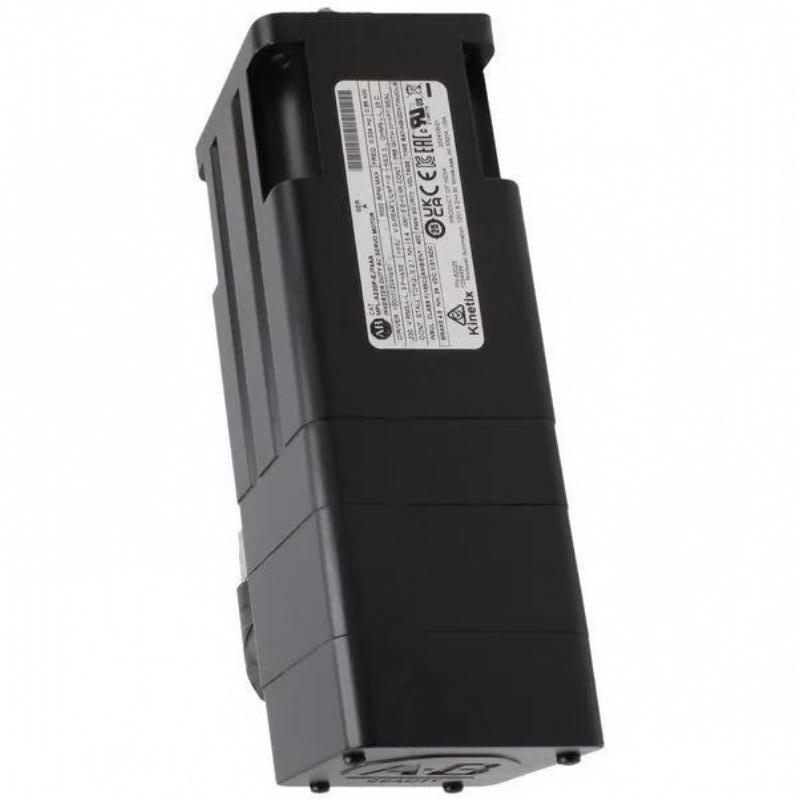

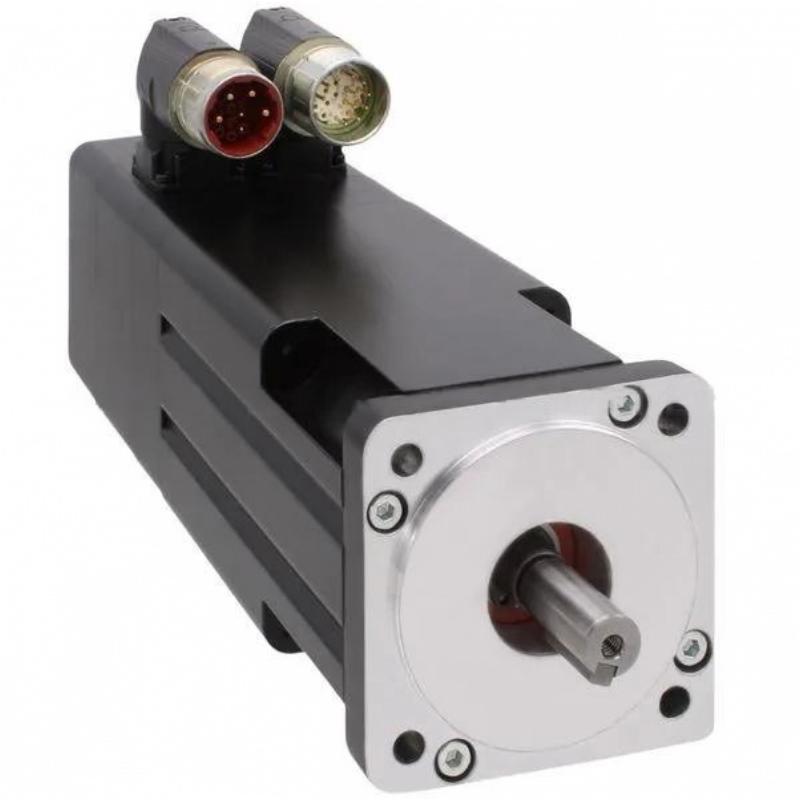

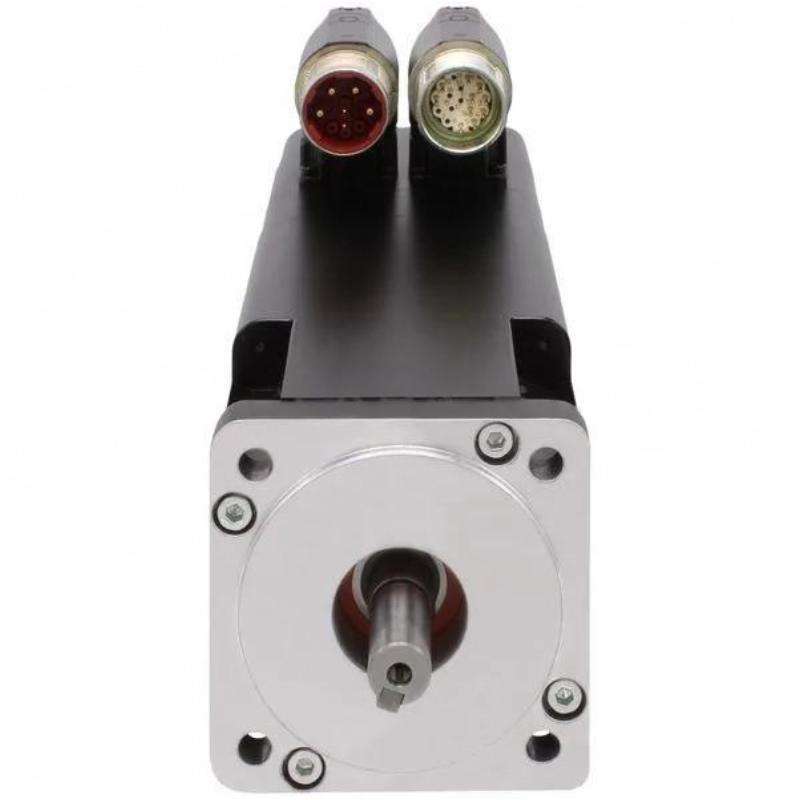

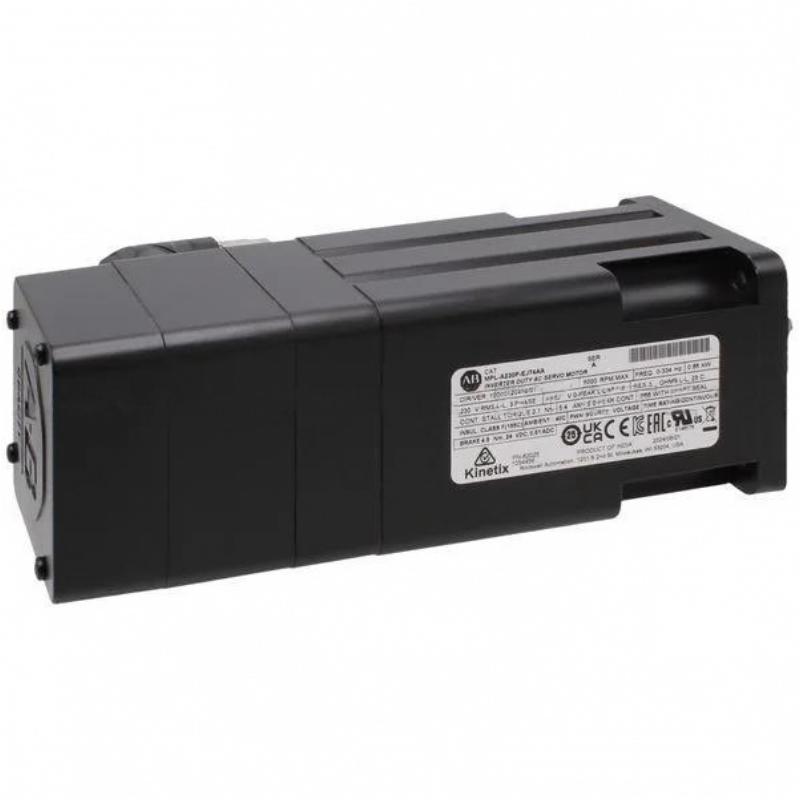

Allen Bradley MPL-A230P-EJ74AA Servo Motor

Overview

The Allen Bradley MPL-A230P-EJ74AA is a low-inertia brushless AC servo motor from the MP-Series MPL family. It is designed for precision motion control applications that require fast response, smooth operation, and accurate positioning. Its compact 75 mm frame is well suited for industrial automation equipment and high-performance motion systems.

General Information

Part Number: MPL-A230P-EJ74AA

Manufacturer: Allen Bradley

Series: MP-Series MPL

Product Type: Low-Inertia Servo Motor

Motor Type: Brushless AC Servo Motor

Frame Size: 75 mm

Brand: Allen Bradley

Country of Origin: India

Mounting: Flange mounting

Shaft Type: Keyed shaft

Brake: No brake

Power Specifications

Rated Voltage: 230 V AC

Voltage Class: 200 V

Rated Speed: 6000 rpm

Continuous Torque: Approx. 3.0 Nm

Peak Torque: Approx. 8.0 Nm

Motor Design: Permanent-magnet brushless

The motor provides responsive torque output and smooth operation for high-speed positioning and demanding motion control applications.

Communication & Interface

Feedback: High-resolution single-turn encoder

Feedback Protocol: Hiperface

Connector: SpeedTEC DIN connector

Drive Compatibility: Kinetix servo drive systems

Feedback Function: Closed-loop position and speed control

The integrated feedback system supports accurate position monitoring and reliable synchronization with the motion controller.

Environmental

Operating Temperature: 0 to +40 °C

Storage Temperature: −30 to +70 °C

Relative Humidity: 5% to 95%, non-condensing

Protection Rating: IP50

Installation Environment: Industrial control cabinet or suitable protected equipment

Dimensions & Weight

Frame Size: 75 mm

Weight: 2.6 kg
