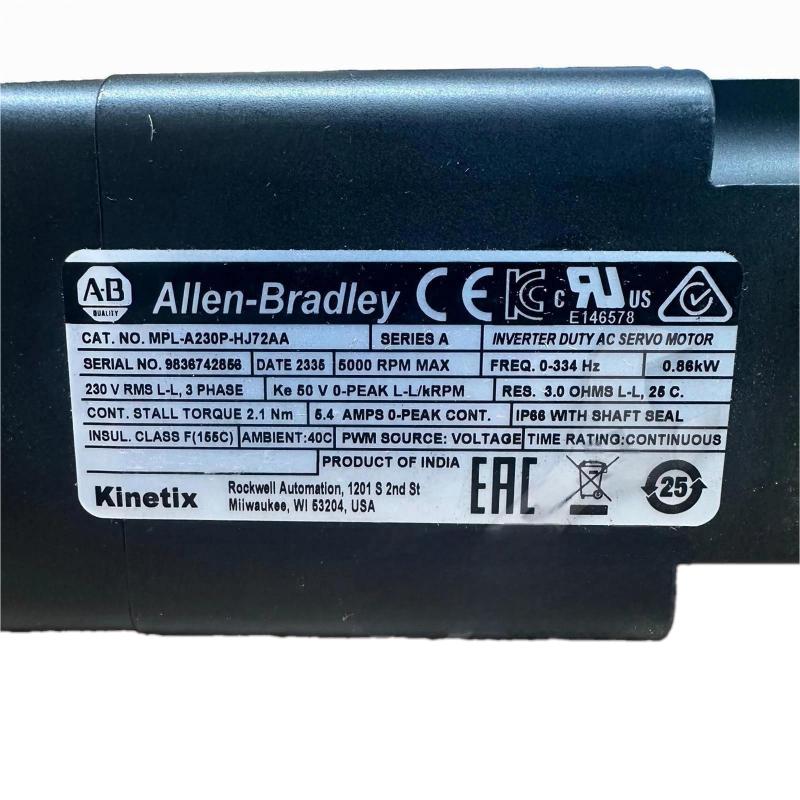

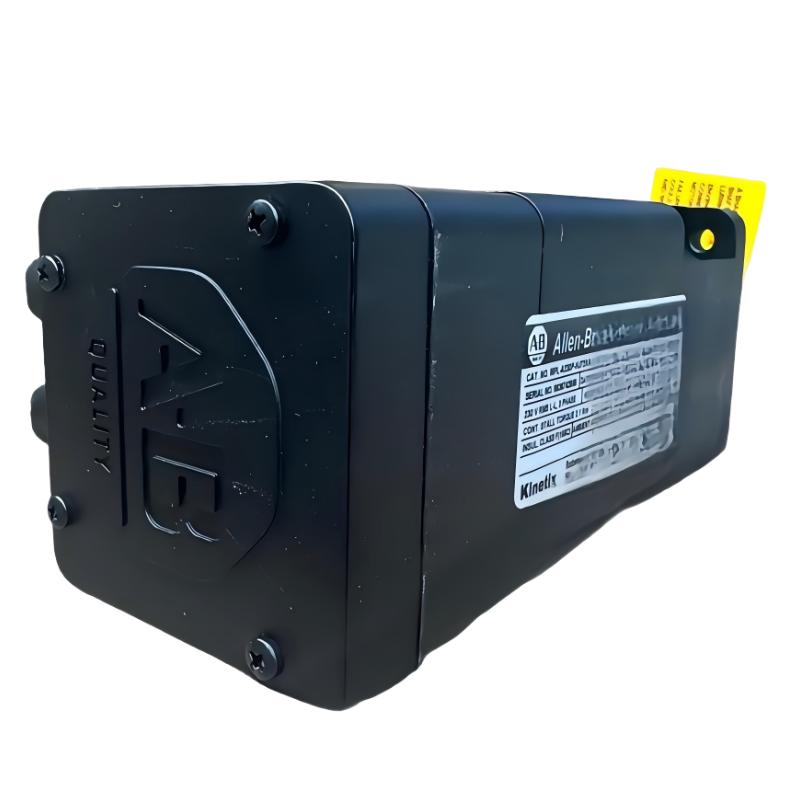

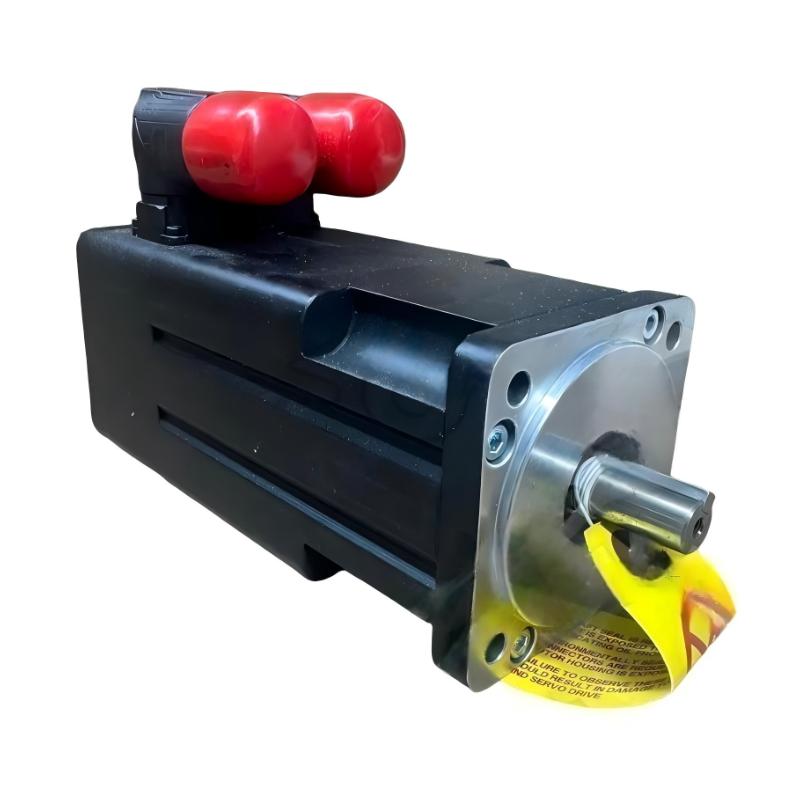

Allen Bradley MPL-A230P-HJ72AA Servo Motor

Overview

The Allen Bradley MPL-A230P-HJ72AA is a low-inertia brushless AC servo motor from the MP-Series MPL family. It is designed for precision motion control applications requiring fast response, accurate positioning, and stable operation. The compact 75 mm frame makes it suitable for industrial automation systems and space-conscious machine designs.

General Information

Part Number: MPL-A230P-HJ72AA

Manufacturer: Allen Bradley

Series: MP-Series MPL

Product Type: Low-Inertia Servo Motor

Motor Type: Brushless AC Servo Motor

Frame Size: 75 mm

Brand: Allen Bradley

Country of Origin: India

Mounting: Flange mounting

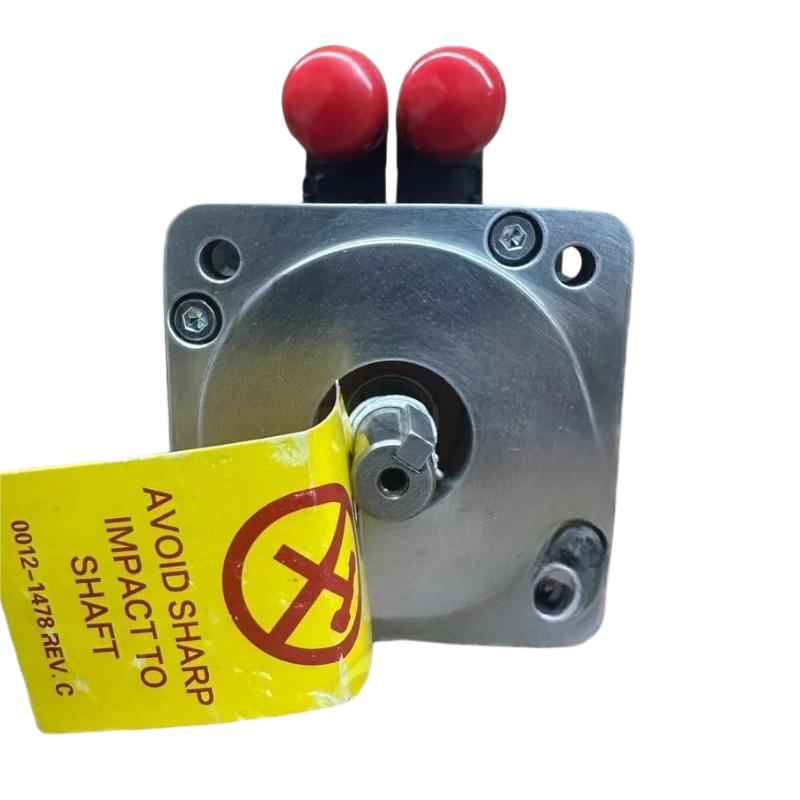

Shaft Type: Keyed shaft

Brake: No brake

Power Specifications

Rated Voltage: 230 V AC

Voltage Class: 200 V

Rated Speed: 6000 rpm

Continuous Torque: Approx. 3.0 Nm

Peak Torque: Approx. 8.0 Nm

Motor Design: Permanent-magnet brushless

The motor delivers responsive torque and smooth operation for high-speed positioning and demanding motion control applications.

Communication & Interface

Feedback: High-resolution single-turn encoder

Feedback Protocol: Hiperface

Connector: SpeedTEC DIN connector

Drive Compatibility: Kinetix servo drive systems

Feedback Function: Closed-loop position and speed control

The integrated feedback system provides accurate position and speed monitoring for reliable closed-loop motion control.

Environmental

Operating Temperature: 0 to +40 °C

Storage Temperature: −30 to +70 °C

Relative Humidity: 5% to 95%, non-condensing

Protection Rating: IP50

Installation Environment: Industrial control cabinet or suitable protected equipment

Dimensions & Weight

Frame Size: 75 mm

Weight: 2.6 kg
