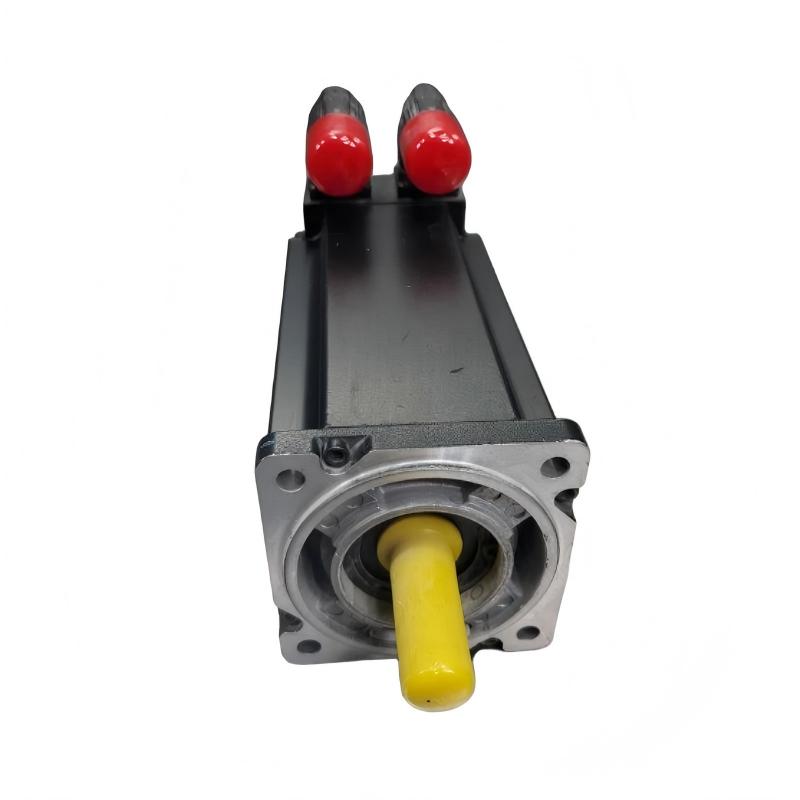

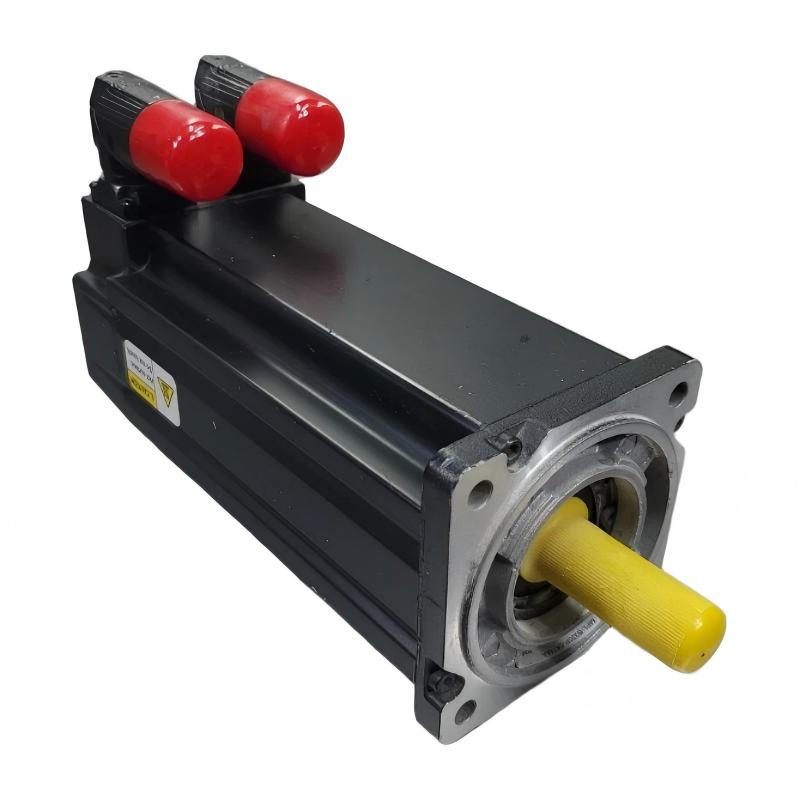

Allen Bradley MPL-B330P-SK74AA Servo Motor

Overview

The Allen Bradley MPL-B330P-SK74AA is a low-inertia brushless AC servo motor designed for high-speed and precise motion control applications. It is part of the MP-Series MPL family and features a 100 mm frame, 5000 RPM rated speed, and high-resolution single-turn encoder feedback. The motor is designed for reliable operation with compatible Allen Bradley motion control systems.

General Information

Part Number: MPL-B330P-SK74AA

Manufacturer: Allen Bradley / Rockwell Automation

Product Series: MP-Series MPL

Motor Type: Low-Inertia Brushless Servo Motor

Motor Configuration: Rotary Servo Motor

Brand: Allen Bradley

Country of Origin: Multiple

Frame Size: 100 mm

Mounting: IEC Metric Flange Mount

Shaft Type: Keyless Shaft Extension

Brake: No Brake

Feedback Type: Single-Turn High-Resolution Encoder

Feedback Protocol: Hiperface

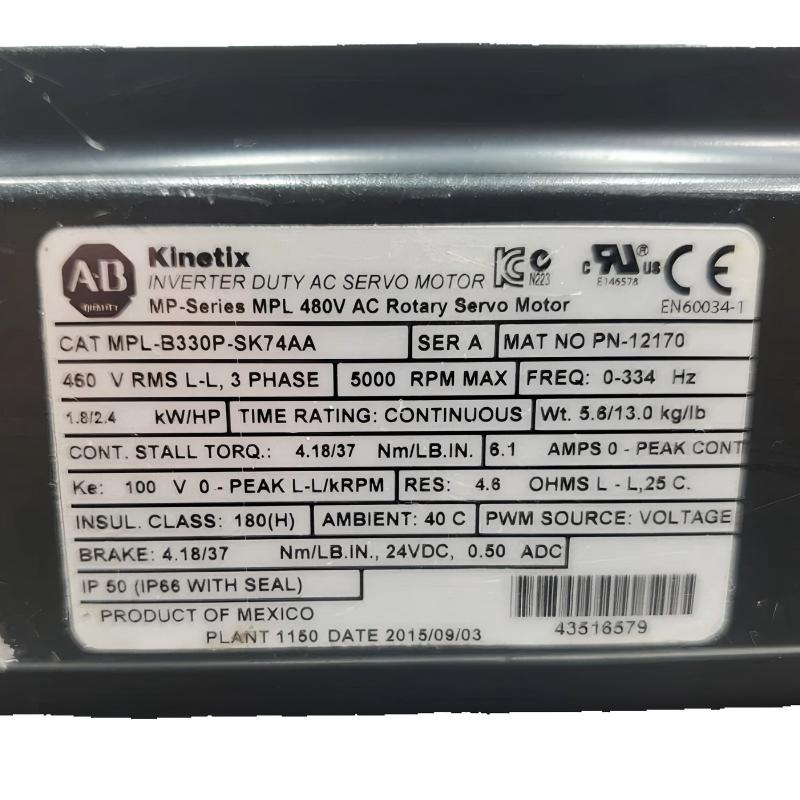

Power Specifications

Voltage Class: 460 V AC

Rated Speed: 5000 RPM

Continuous Rated Power: 1.8 kW

Continuous Stall Torque: 4.18 Nm

Peak Torque: 11.1 Nm

Rotor Inertia: 0.00012 kg·m²

Motor Technology: Permanent-Magnet Brushless AC

Communication & Interface

Feedback Device: Absolute Single-Turn Encoder

Feedback Resolution: 1024 cycles/revolution Sin/Cos

Feedback Protocol: Hiperface

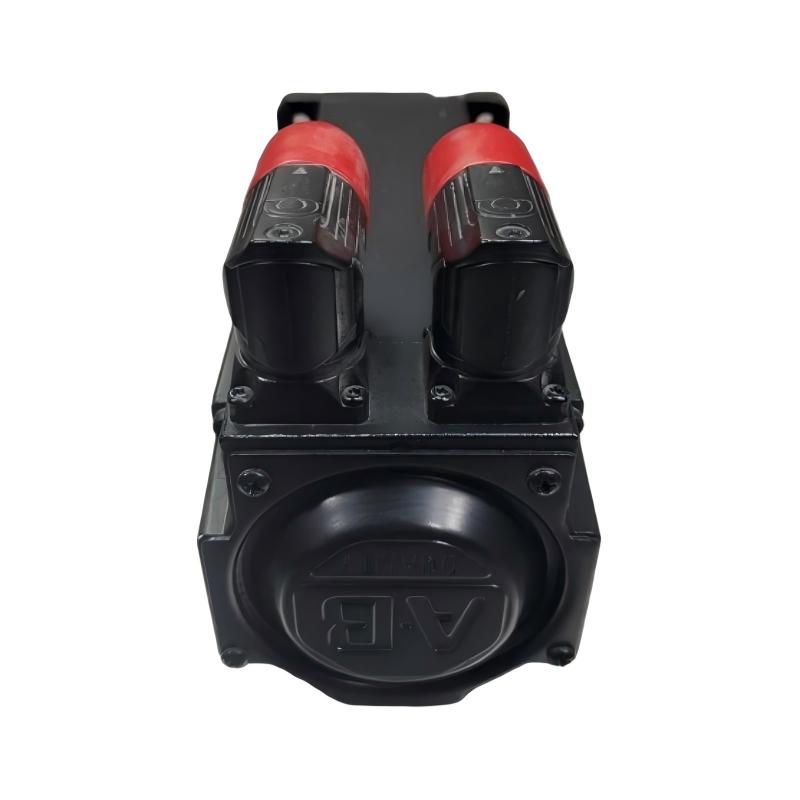

Motor Connector: SpeedTEC DIN

Connector Type: Right-Angle

Connector Rotation: 180° Rotatable

Quick-Connect: Yes

Drive Compatibility: Kinetix and other compatible MP-Series servo drive systems

The integrated encoder provides accurate position feedback to the servo drive for closed-loop motion control and precise positioning.

Environmental

Operating Temperature: 0 to +40 °C

Storage Temperature: −30 to +70 °C

Relative Humidity: 5 to 95% RH

Protection Rating: IP50 minimum without shaft seal

Enhanced Protection: IP66 with optional shaft seal and environmentally sealed cable connectors

Shock Resistance: Up to 20 g for 6 ms

Vibration Resistance: Up to 2.5 m/s²

Shaft Seal: Not included

The motor is suitable for standard industrial environments when installed with appropriate enclosure and cable protection.

Dimensions & Weight

Frame Size: 100 mm

Weight: 4.6 kg
