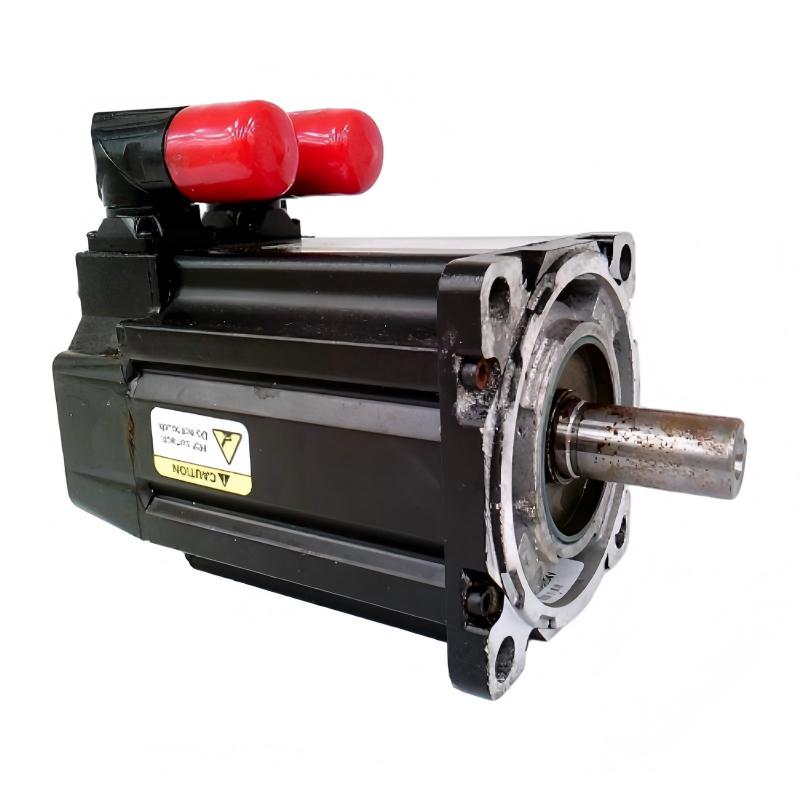

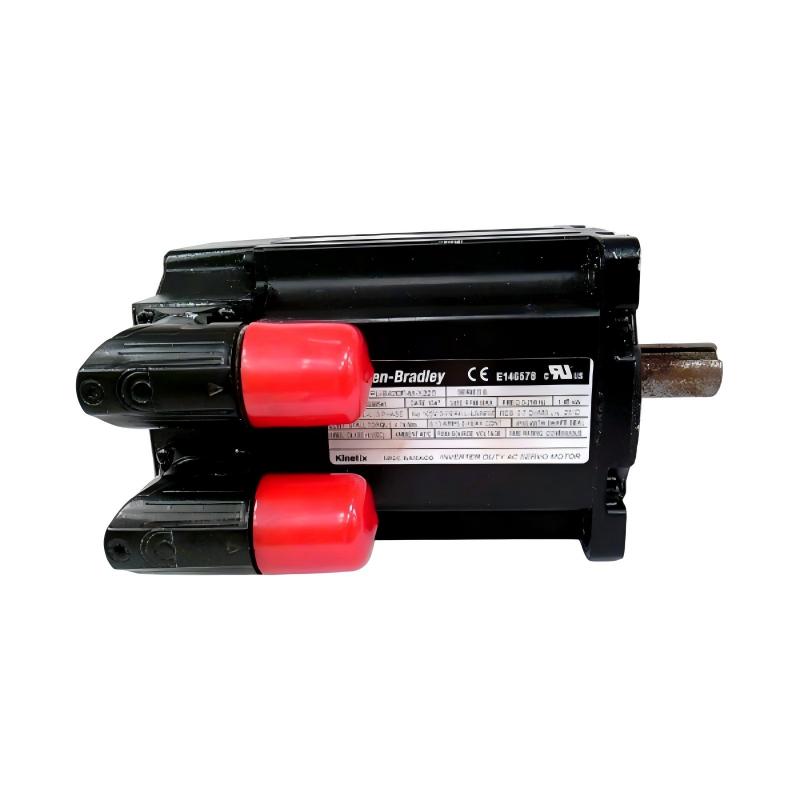

Allen Bradley MPL-B420F-M-X225 Servo Motor

Overview

The Allen Bradley MPL-B420F-M-X225 is a low-inertia brushless AC servo motor designed for precise and responsive motion control. As part of the MP-Series MPL family, it is suited to automation applications that require accurate positioning, reliable speed control, and consistent dynamic performance.

General Information

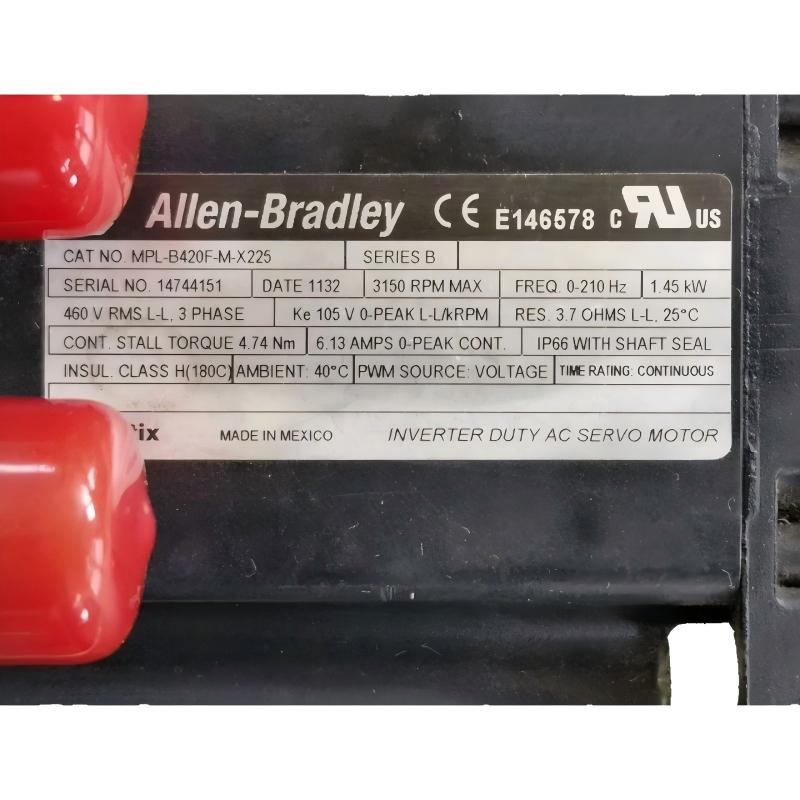

Part Number: MPL-B420F-M-X225

Manufacturer: Allen Bradley / Rockwell Automation

Product Series: MP-Series MPL

Motor Type: Low-Inertia Brushless Servo Motor

Motor Configuration: Rotary Servo Motor

Brand: Allen Bradley

Country of Origin: Multiple

Frame Size: 100 mm

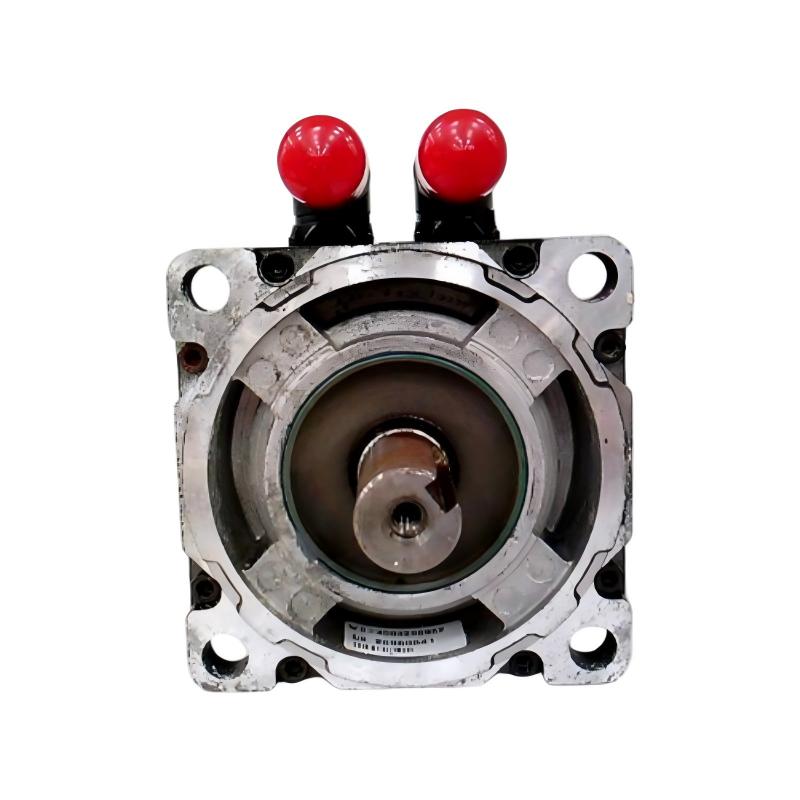

Mounting: IEC Metric Flange Mount

Shaft Type: Keyed Shaft Extension

Feedback Type: High-Resolution Encoder

Brake: No Brake

Power Specifications

Voltage Class: 460 V AC

Rated Speed: 6000 RPM

Motor Technology: Permanent-Magnet Brushless AC

Continuous Rated Power: 2.7 kW

The low-inertia rotor design supports fast acceleration and deceleration, making the motor suitable for demanding cyclic motion applications.

Communication & Interface

Feedback Device: High-Resolution Encoder

Feedback Interface: Digital Feedback

Motor Connector: Industrial Servo Connector

Drive Compatibility: Compatible Allen Bradley motion control and servo drive systems

The integrated feedback system allows the servo drive to continuously monitor motor position and speed for accurate closed-loop control.

Environmental

Operating Temperature: 0 to +40 °C

Storage Temperature: −30 to +70 °C

Relative Humidity: 5 to 95% RH

Protection Rating: IP50

The motor is intended for use in controlled industrial environments and should be installed according to the applicable system and enclosure requirements.

Dimensions & Weight

Frame Size: 100 mm

Weight: 2.81 kg

New In Stock — Ready for Fast and Precise Motion Control.
