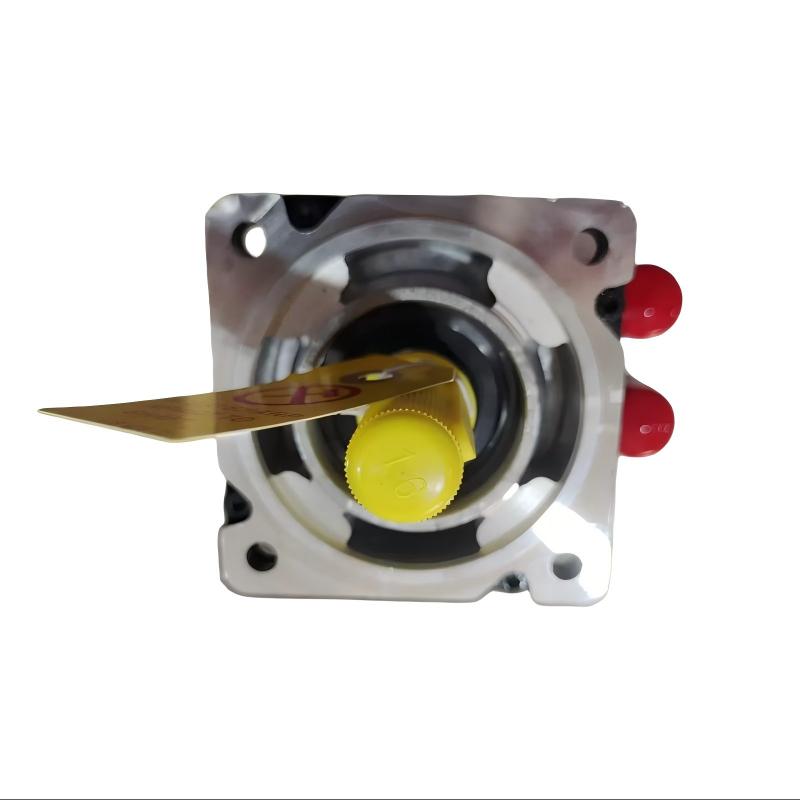

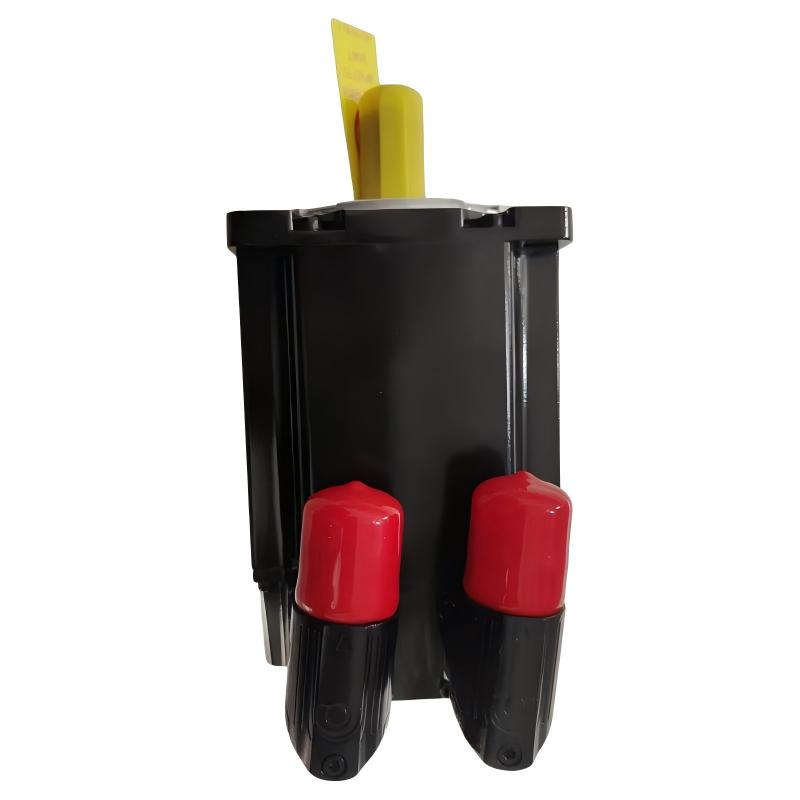

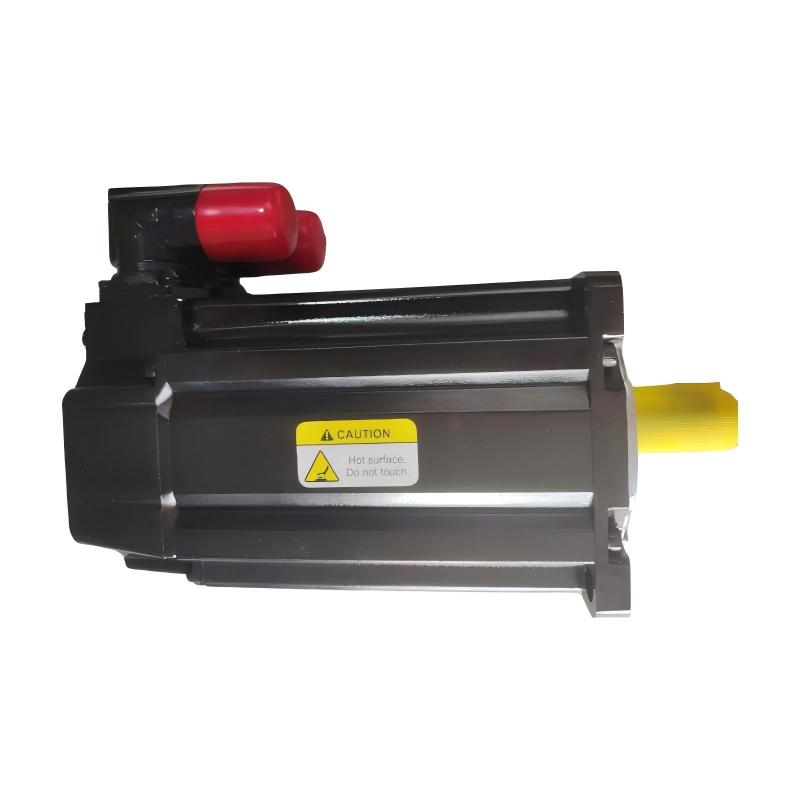

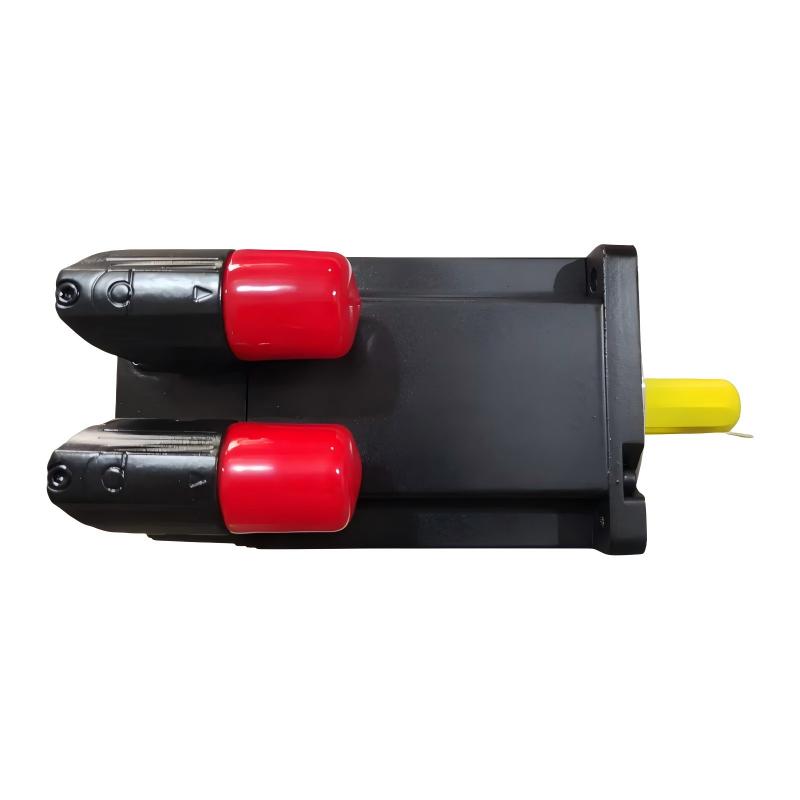

Allen Bradley MPL-B420F-M-X226 Servo Motor

Overview

The Allen Bradley MPL-B420F-M-X226 is a low-inertia brushless AC servo motor designed for high-performance motion control applications. It belongs to the MP-Series MPL family and combines a compact 100 mm frame with responsive acceleration and precise closed-loop positioning. The motor is suitable for demanding industrial automation systems requiring reliable and repeatable motion.

General Information

Part Number: MPL-B420F-M-X226

Manufacturer: Allen Bradley / Rockwell Automation

Product Series: MP-Series MPL

Motor Type: Low-Inertia Brushless Servo Motor

Motor Configuration: Rotary Servo Motor

Brand: Allen Bradley

Country of Origin: Multiple

Frame Size: 100 mm

Mounting: IEC Metric Flange Mount

Shaft Type: Keyed Shaft Extension

Brake: No Brake

Feedback Type: High-Resolution Encoder

Power Specifications

Voltage Class: 460 V AC

Rated Speed: 6000 RPM

Continuous Rated Power: 2.7 kW

Motor Technology: Permanent-Magnet Brushless AC

The low-inertia motor design supports rapid acceleration and deceleration, making it well suited to applications with frequent starts, stops, and position changes.

Communication & Interface

Feedback Device: High-Resolution Encoder

Feedback Interface: Digital Feedback

Motor Connector: Industrial Servo Connector

Drive Compatibility: Compatible Allen Bradley motion control and servo drive systems

The integrated feedback system provides accurate motor position and speed information for stable closed-loop operation.

Environmental

Operating Temperature: 0 to +40 °C

Storage Temperature: −30 to +70 °C

Relative Humidity: 5 to 95% RH

Protection Rating: IP50

The motor is designed for controlled industrial environments and should be installed with suitable enclosure and cable protection based on the application requirements.

Dimensions & Weight

Frame Size: 100 mm

Weight: 6.12 kg

New In Stock — Ready for Reliable Industrial Motion Control.
