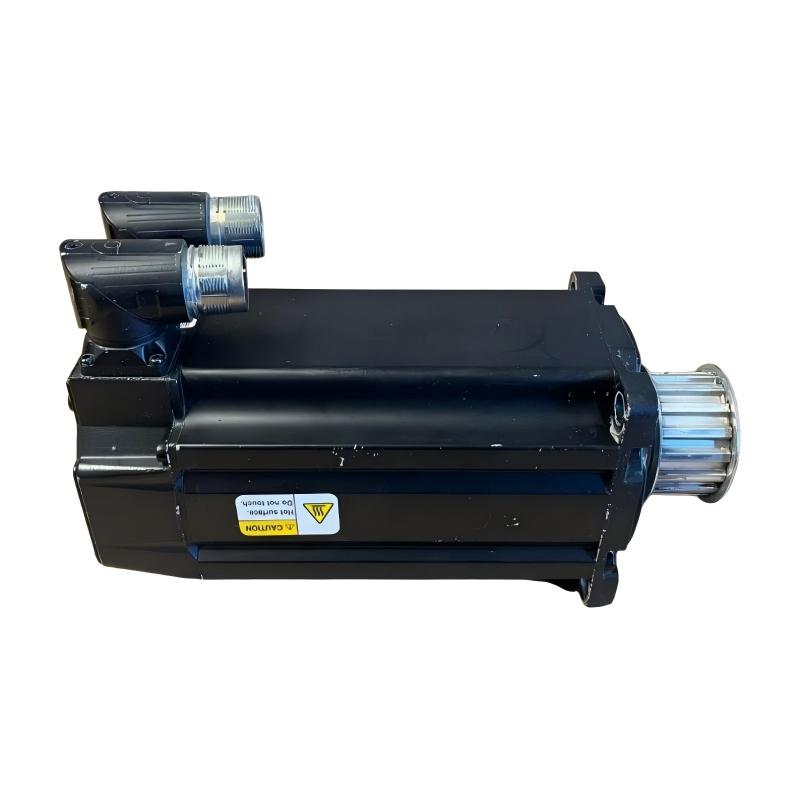

Allen Bradley MPL-B420P-HJ74AA Servo Motor

Overview

The Allen Bradley MPL-B420P-HJ74AA is a low-inertia brushless AC servo motor designed for precise and responsive motion control. It belongs to the MP-Series MPL family and is suitable for industrial automation systems requiring accurate positioning, stable speed control, and fast dynamic response.

General Information

Part Number: MPL-B420P-HJ74AA

Manufacturer: Allen Bradley / Rockwell Automation

Product Series: MP-Series MPL

Motor Type: Low-Inertia Brushless Servo Motor

Motor Configuration: Rotary Servo Motor

Brand: Allen Bradley

Country of Origin: Multiple

Frame Size: 115 mm

Mounting: IEC Metric Flange Mount

Shaft Type: Keyless Shaft Extension

Brake: No Brake

Feedback Type: High-Resolution Encoder

Power Specifications

Voltage Class: 460 V AC

Rated Speed: 5000 RPM

Continuous Rated Power: 2.7 kW

Motor Technology: Permanent-Magnet Brushless AC

The low-inertia design provides quick acceleration and deceleration, making the motor suitable for demanding positioning and cyclic motion applications.

Communication & Interface

Feedback Device: High-Resolution Encoder

Feedback Interface: Digital Feedback

Motor Connector: SpeedTEC DIN

Connector Type: Right-Angle

Connector Rotation: 180° Rotatable

Drive Compatibility: Compatible Allen Bradley motion control and servo drive systems

The integrated encoder supplies accurate position and speed feedback for dependable closed-loop motion control.

Environmental

Operating Temperature: 0 to +40 °C

Storage Temperature: −30 to +70 °C

Relative Humidity: 5 to 95% RH

Protection Rating: IP50

The motor is intended for controlled industrial environments and should be installed with suitable enclosure and cable protection based on application requirements.

Dimensions & Weight

Frame Size: 115 mm

Weight: 4.3 kg

New In Stock — Ready for Reliable and Precise Motion Control.
