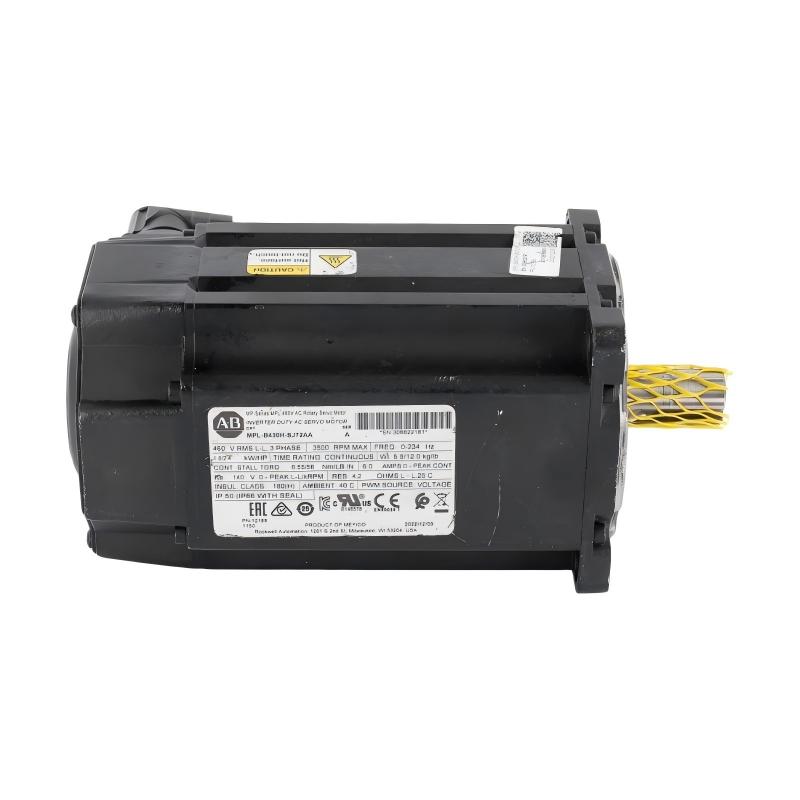

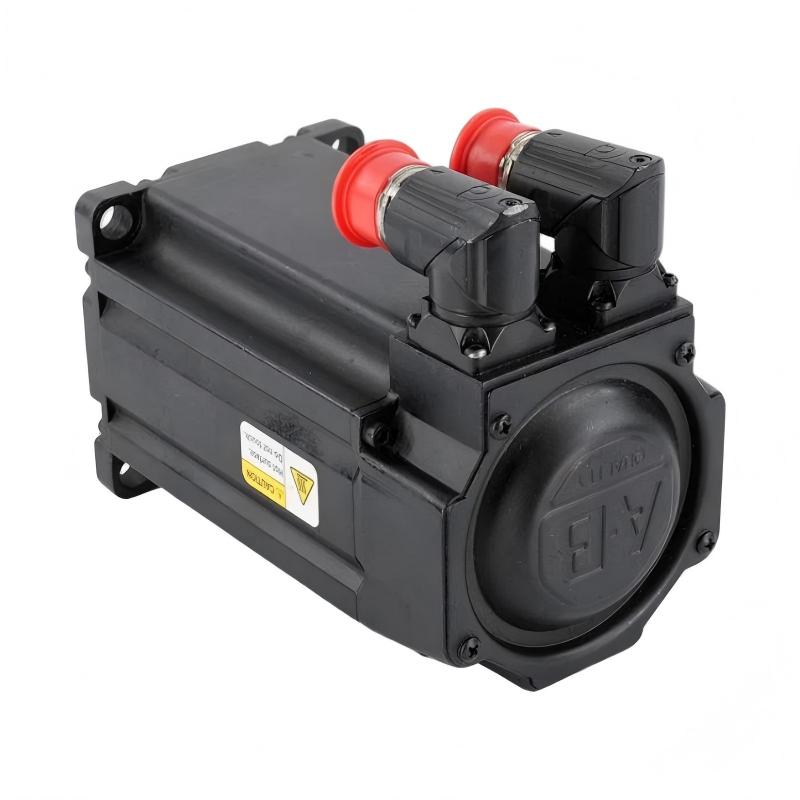

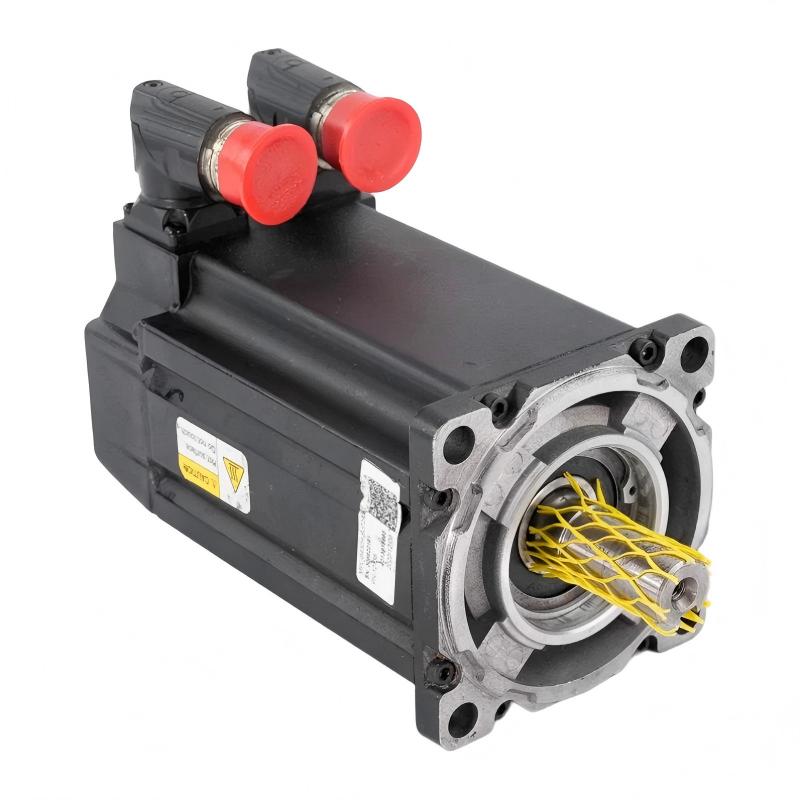

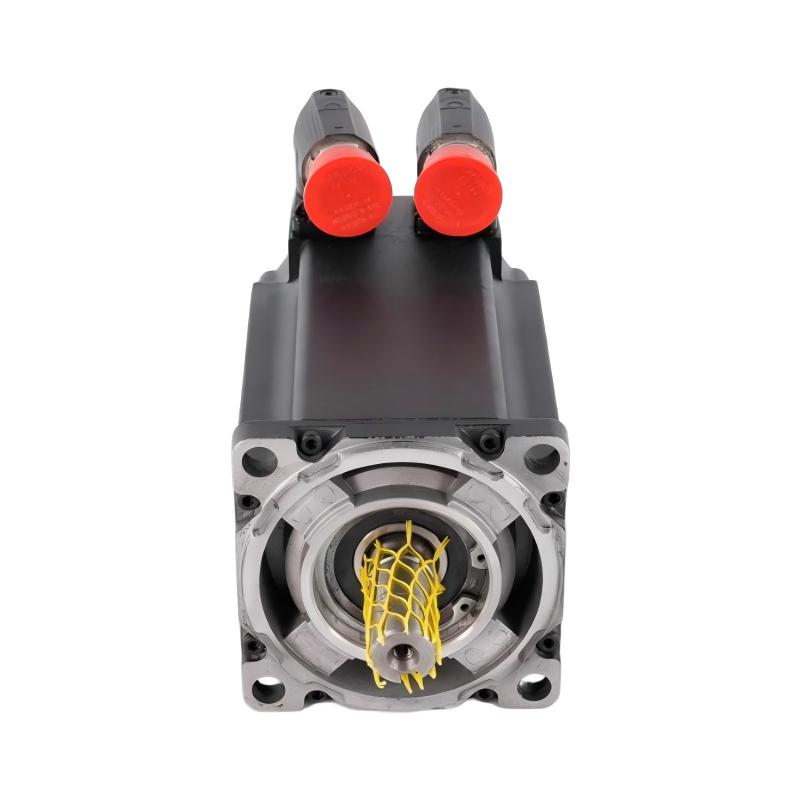

Allen Bradley MPL-B430H-SJ72AA Servo Motor

Overview

The Allen Bradley MPL-B430H-SJ72AA is a low-inertia AC servo motor from the MP-Series MPL family. It is designed for high-performance motion applications that require accurate positioning, fast response, and reliable speed control.

General Information

Part Number: MPL-B430H-SJ72AA

Manufacturer: Allen-Bradley / Rockwell Automation

Series: MP-Series MPL

Type: Low-Inertia Rotary Servo Motor

Motor Technology: Brushless Permanent-Magnet AC Servo

Frame Size: 115 mm

Rated Speed: 3500 RPM

Rated Torque: 6.55 N·m

Feedback: 1024 Sin/Cos Single-Turn Absolute Encoder

Encoder Protocol: Hiperface

Brake: No Brake

Brand: Allen-Bradley

Country of Origin: Mexico

Power Specifications

Motor Type: Three-phase AC synchronous servo motor

Voltage Class: 400 V / 480 V AC

Rated Voltage: 460 V AC

Rated Power: Approximately 2.2 kW

Rated Torque: 6.55 N·m

Maximum Speed: 3500 RPM

Duty: S1 continuous-duty operation

Communication & Interface

Feedback Device: Single-turn high-resolution absolute encoder

Feedback Resolution: 1024 Sin/Cos

Feedback Protocol: Hiperface

Motor Connector: Circular SpeedTec DIN connector

Connector Position: Right-angle configuration

Connector Rotation: 180° rotatable

Drive Compatibility: Compatible with Allen-Bradley motion-control systems

Environmental

Operating Temperature: 0 to +40 °C

Enclosure Rating: IP66

Cooling: Natural convection

Installation Environment: Industrial control cabinets and protected machine environments

Dimensions & Weight

Frame Size: 115 mm

Weight: 5.72 kg

New In Stock — Ready for Industrial Motion Applications
