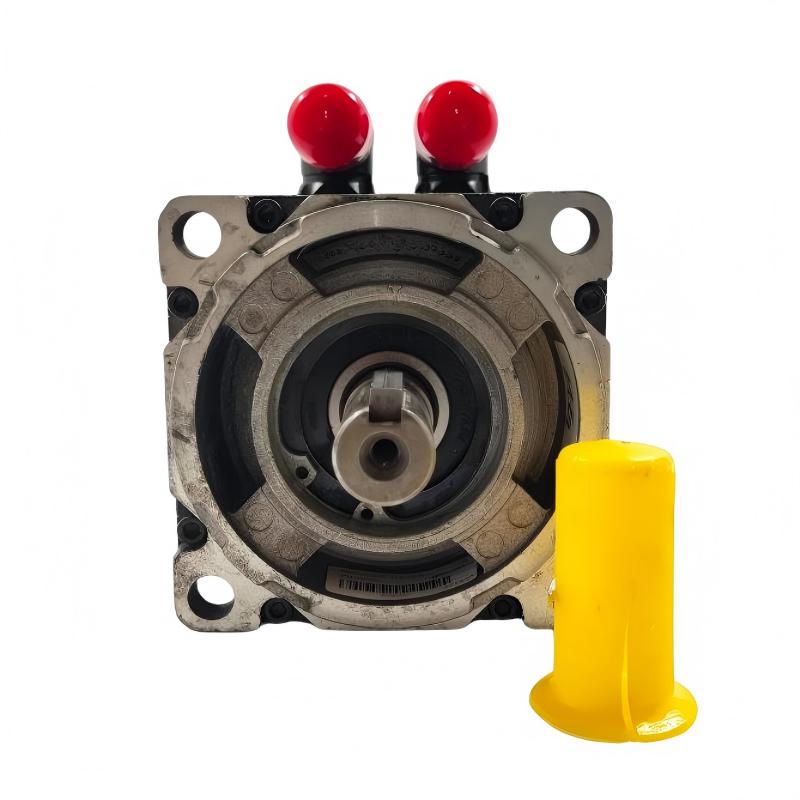

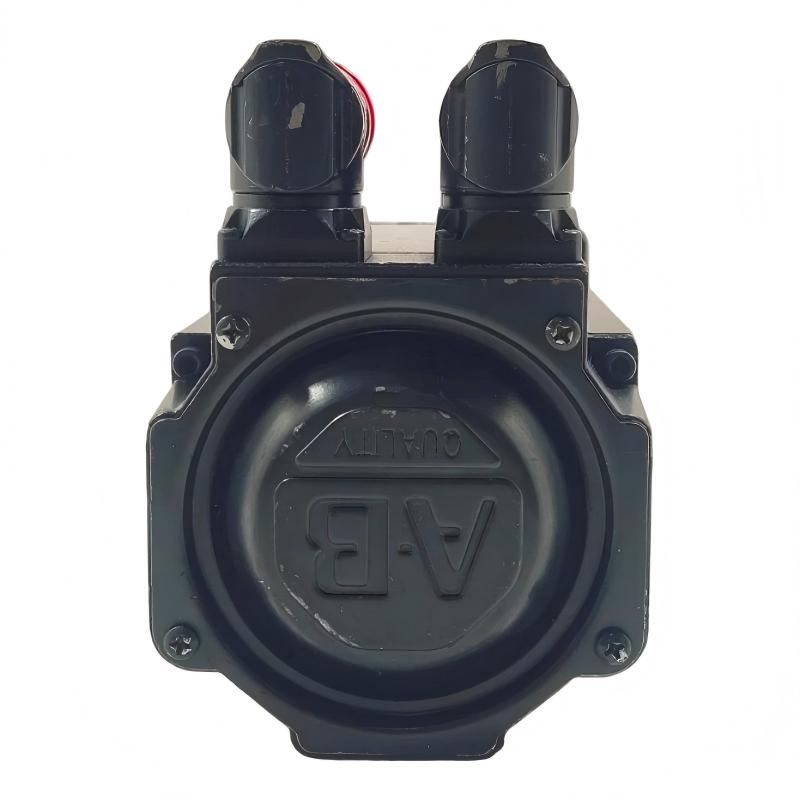

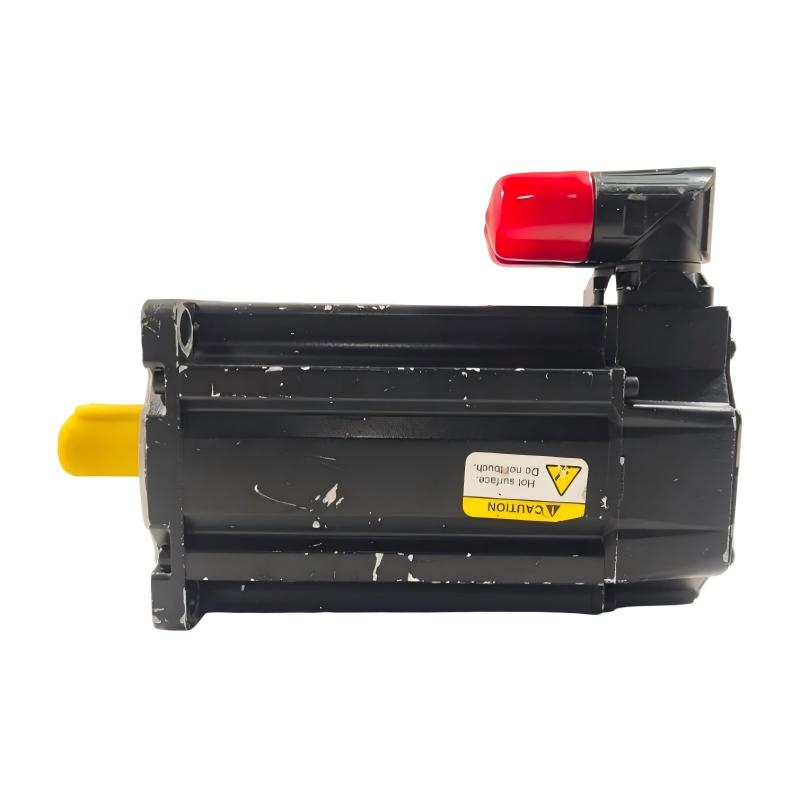

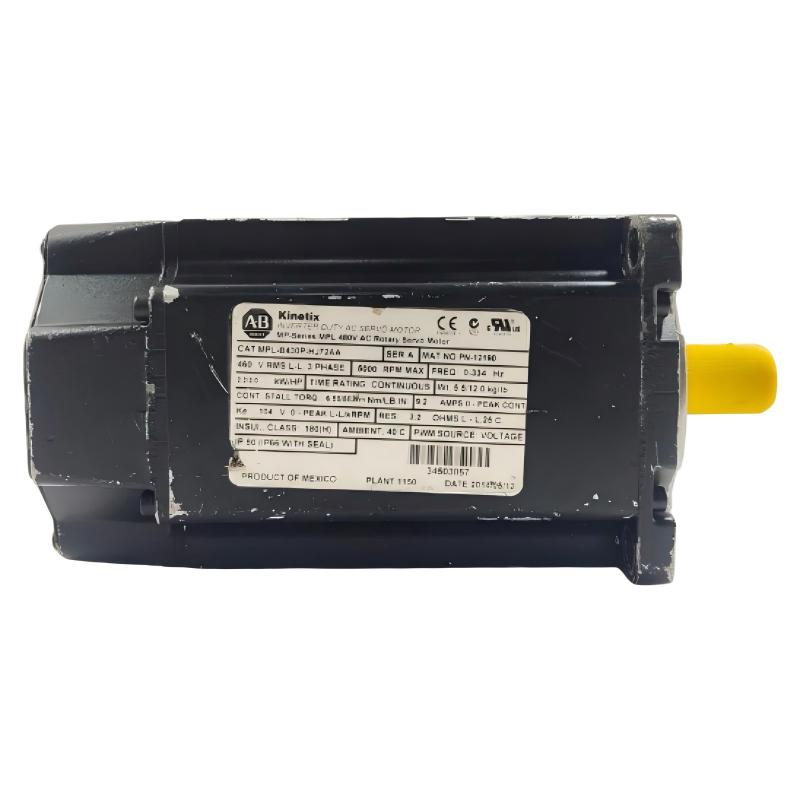

Allen Bradley MPL-B430P-HJ72AA Servo Motor

Overview

The Allen Bradley MPL-B430P-HJ72AA is a low-inertia AC servo motor from the MP-Series MPL family. It is designed for demanding motion-control applications that require precise positioning, responsive acceleration, and reliable continuous operation.

General Information

Part Number: MPL-B430P-HJ72AA

Manufacturer: Allen-Bradley / Rockwell Automation

Series: MP-Series MPL

Type: Low-Inertia Rotary Servo Motor

Motor Technology: Brushless Permanent-Magnet AC Servo

Frame Size: 115 mm

Rated Speed: 5000 RPM

Rated Torque: 7.1 N·m

Feedback: High-Resolution Absolute Encoder

Brake: No Brake

Brand: Allen-Bradley

Country of Origin: Mexico

Power Specifications

Motor Type: Three-phase AC synchronous servo motor

Voltage Class: 400 V / 480 V AC

Rated Voltage: 460 V AC

Rated Power: Approximately 3.0 kW

Rated Torque: 7.1 N·m

Maximum Speed: 5000 RPM

Duty: S1 continuous-duty operation

Communication & Interface

Feedback Device: High-resolution absolute encoder

Feedback Function: Provides accurate rotor position and speed information

Motor Connector: Circular industrial connector

Drive Compatibility: Compatible with Allen-Bradley motion-control systems

Interface Function: Motor power and feedback connection for closed-loop servo control

Environmental

Operating Temperature: 0 to +40 °C

Enclosure Rating: IP66

Cooling: Natural convection

Installation Environment: Industrial machinery and protected control environments

Dimensions & Weight

Frame Size: 115 mm

Weight: 5.5 kg

New In Stock — Ready for Precision Motion Control
