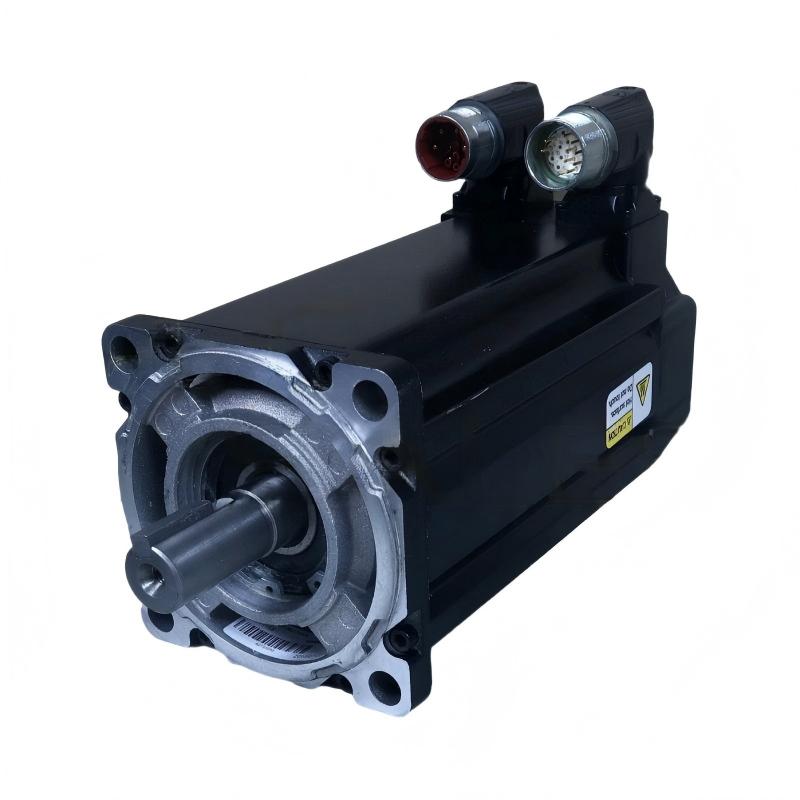

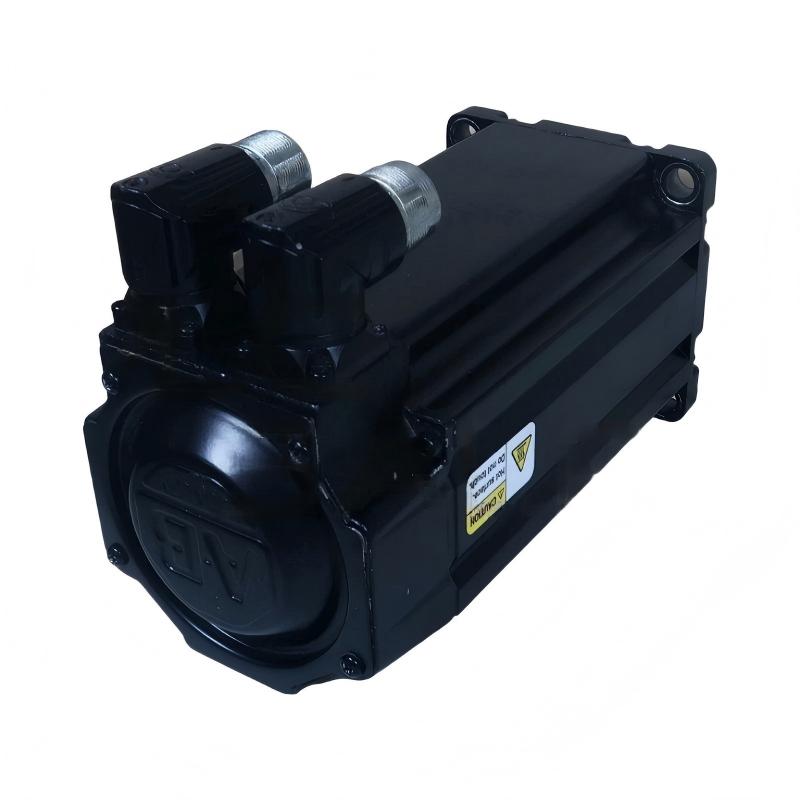

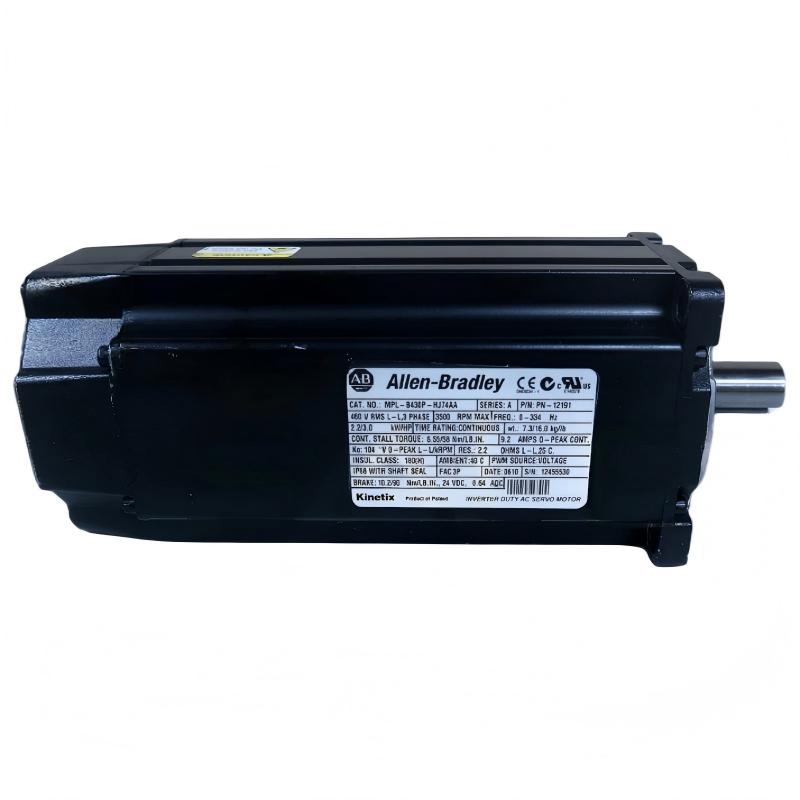

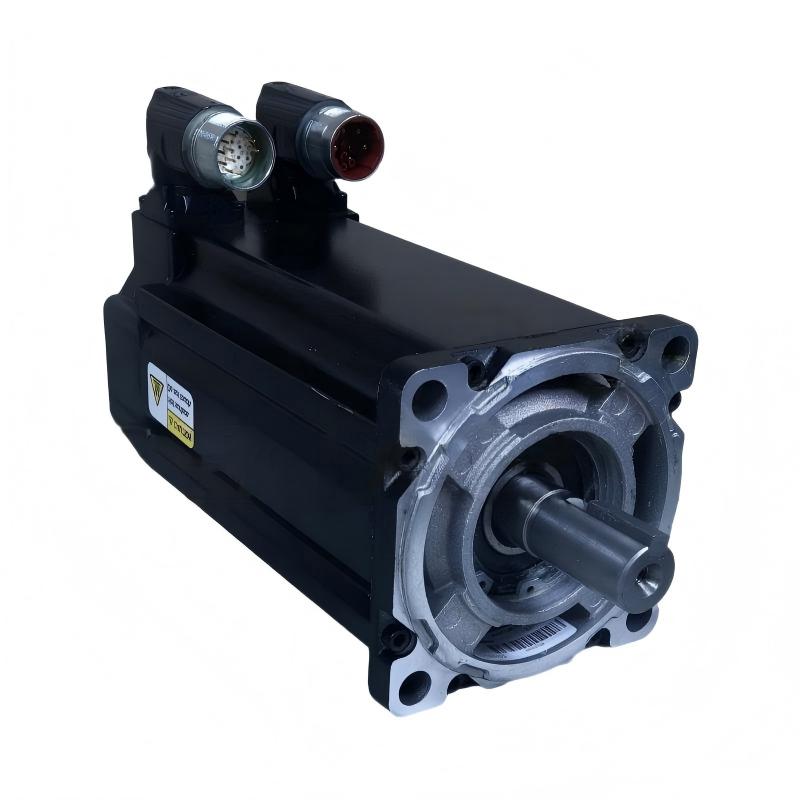

Allen Bradley MPL-B430P-HJ74AA Servo Motor

Overview

The Allen Bradley MPL-B430P-HJ74AA is a high-performance low-inertia AC servo motor from the MP-Series MPL family. It is designed for demanding motion-control applications that require precise positioning, fast acceleration, and stable speed control. Its compact design makes it suitable for industrial machinery, automated production lines, and precision motion systems.

General Information

Part Number: MPL-B430P-HJ74AA

Manufacturer: Allen-Bradley / Rockwell Automation

Series: MP-Series MPL

Type: Low-Inertia Rotary Servo Motor

Motor Technology: Brushless Permanent-Magnet AC Servo

Frame Size: 115 mm

Rated Speed: 5000 RPM

Rated Torque: 7.1 N·m

Feedback: High-Resolution Absolute Encoder

Brake: With Brake

Brand: Allen-Bradley

Country of Origin: Mexico

Power Specifications

Motor Type: Three-Phase AC Synchronous Servo Motor

Voltage Class: 400/480 V AC

Rated Voltage: 460 V AC

Rated Power: 3.0 kW

Rated Torque: 7.1 N·m

Maximum Speed: 5000 RPM

Duty Rating: S1 Continuous Duty

Communication & Interface

Feedback Device: High-Resolution Absolute Encoder

Feedback Function: Rotor Position and Speed Feedback

Motor Connector: Circular Industrial Connector

Drive Compatibility: Allen-Bradley Motion Control Systems

Interface Function: Motor Power and Feedback Connection for Closed-Loop Servo Control

Environmental

Operating Temperature: 0 to +40 °C

Enclosure Rating: IP66

Cooling Method: Natural Convection

Installation Environment: Industrial Machinery and Protected Control Environments

Dimensions & Weight

Frame Size: 115 mm

Weight: 5.5 kg

Ready to Ship — Built for Precision Motion Applications
