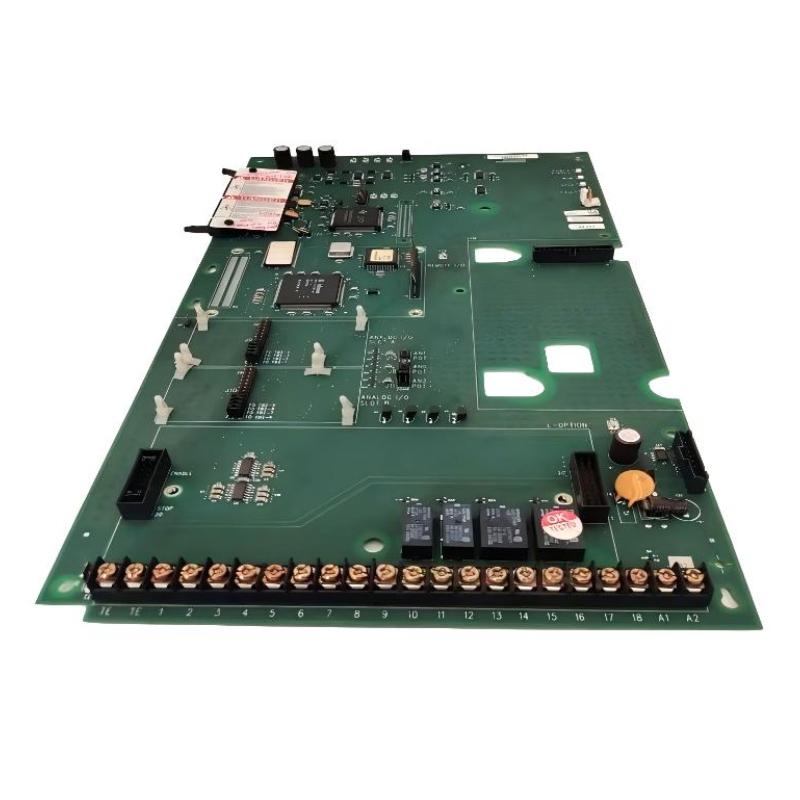

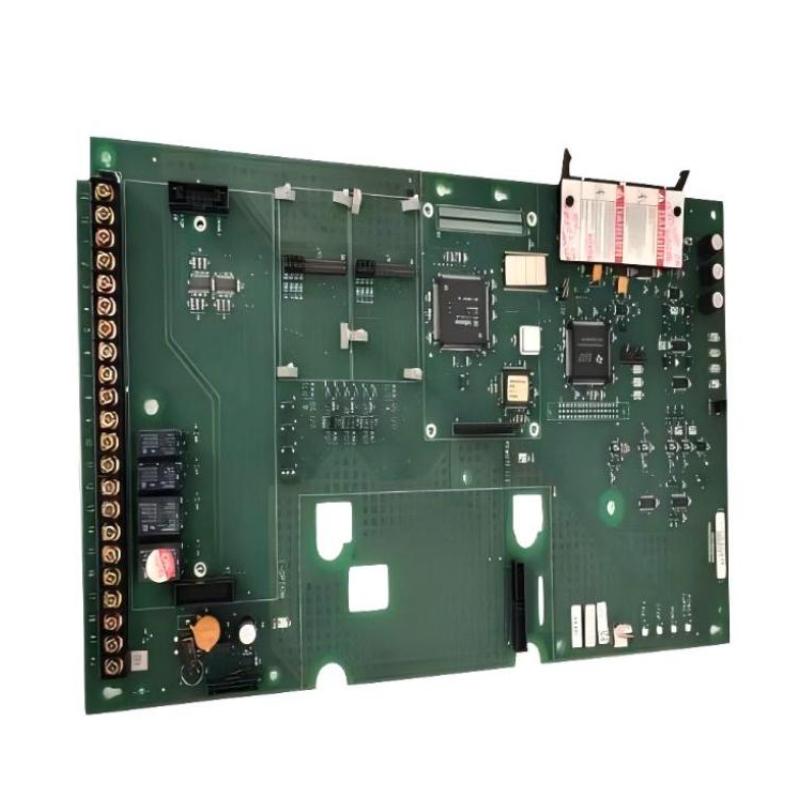

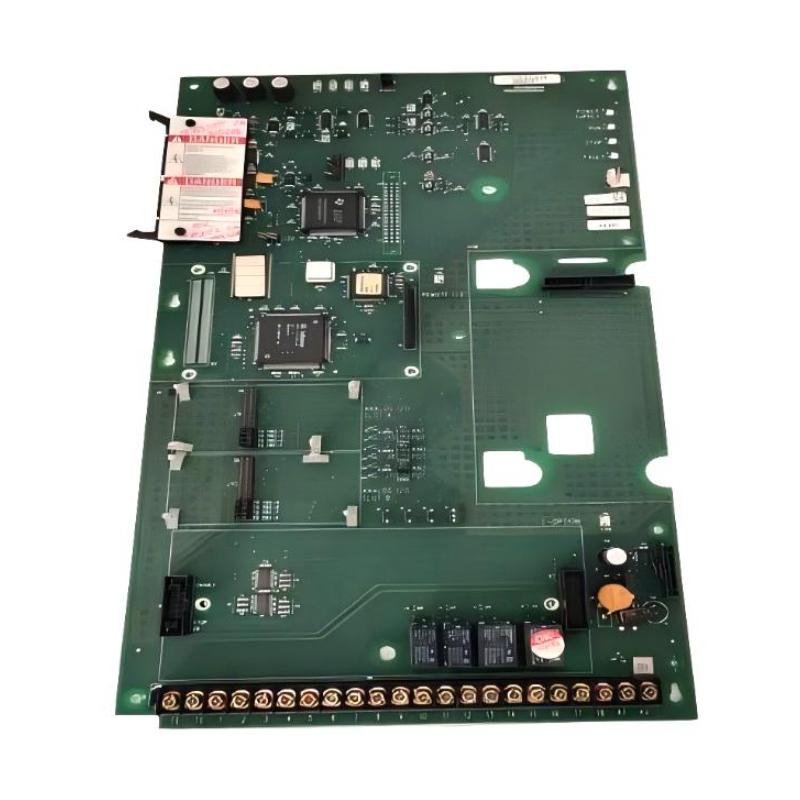

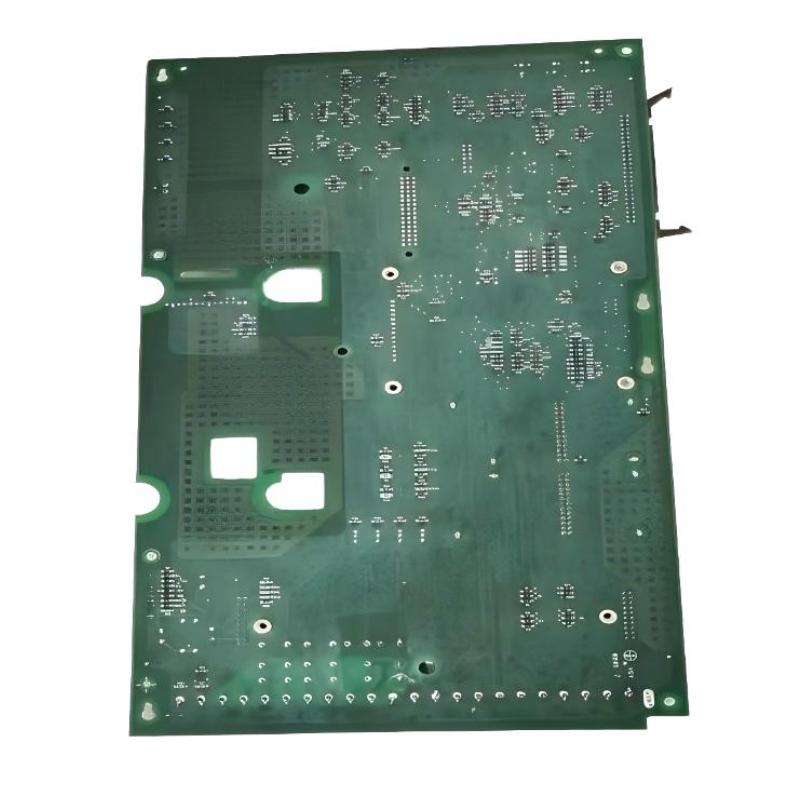

Allen Bradley 1336F-MCB-SP1F Drive Control Board

Overview

The Allen Bradley 1336F-MCB-SP1F is a drive control board designed for precise motor control in industrial automation systems. It manages speed, torque, and operational safety in variable frequency drives (VFDs), ensuring efficient and reliable motor performance across a wide range of applications.

General Information

Part Number: 1336F-MCB-SP1F

Manufacturer: Allen Bradley

Brand / Country of Origin: Rockwell Automation / USA

Type: Drive Control Board / Motor Control Module

Series: 1336F

Mounting: Panel or chassis installation

Technology: Microprocessor-based control, integrated protection, and monitoring functions

Power Specifications

Supply Voltage: 24–48 V DC (control logic)

Power Consumption: ≤ 25 W

Protection: Overcurrent, overvoltage, and thermal monitoring

Indicators: Status LEDs for fault, operation, and communication

Communication & Interface

Interface Type: Digital I/O, analog inputs/outputs, and communication bus for drive integration

Connection: Screw terminals and bus connectors

Application Role: Controls motor speed, torque, and acceleration; interfaces with VFD systems

Diagnostics: Fault detection, status reporting, and real-time monitoring

Environmental

Operating Temperature: −20 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (requires enclosure for industrial use)

Dimensions & Weight

Dimensions (L × W × H): 200 × 50 × 150 mm

Weight: 2.27 kg
