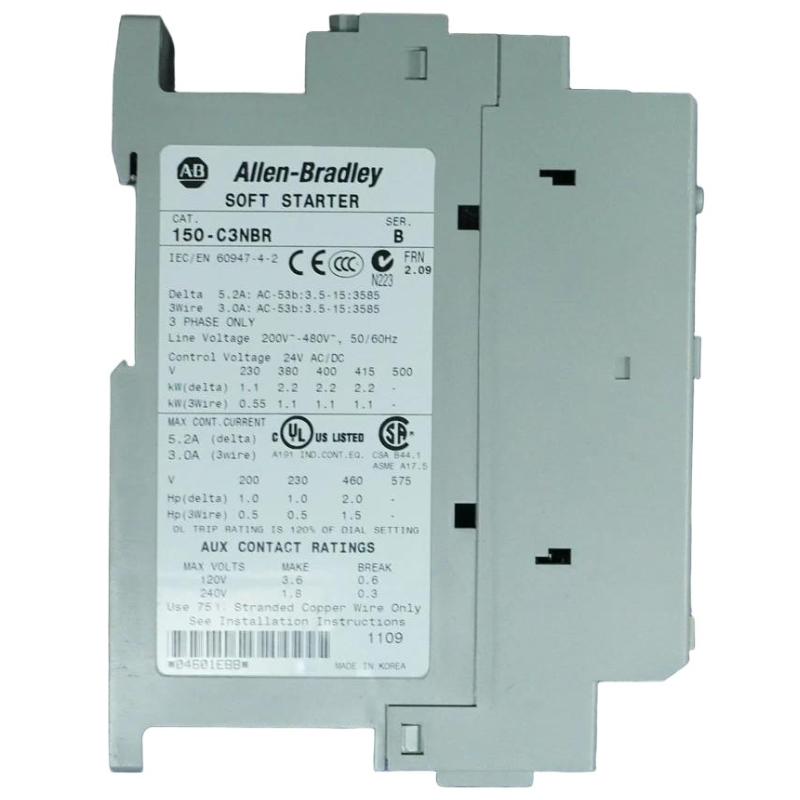

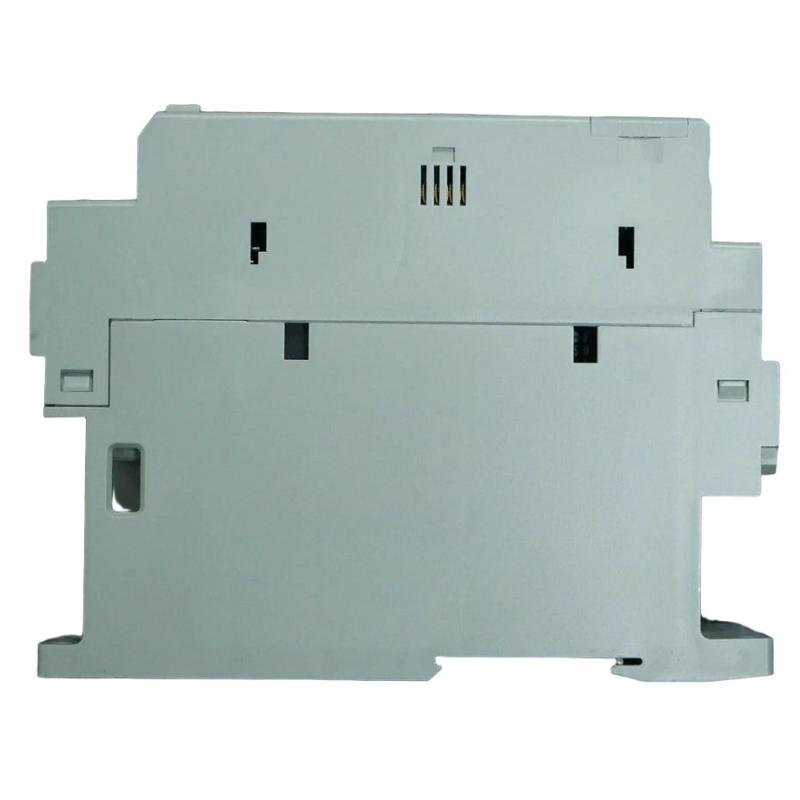

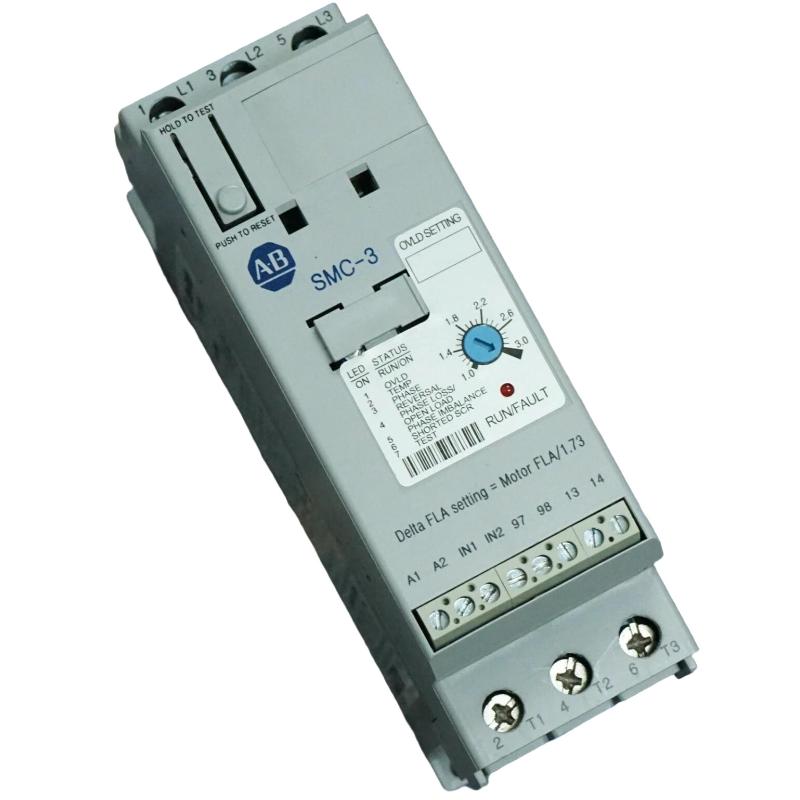

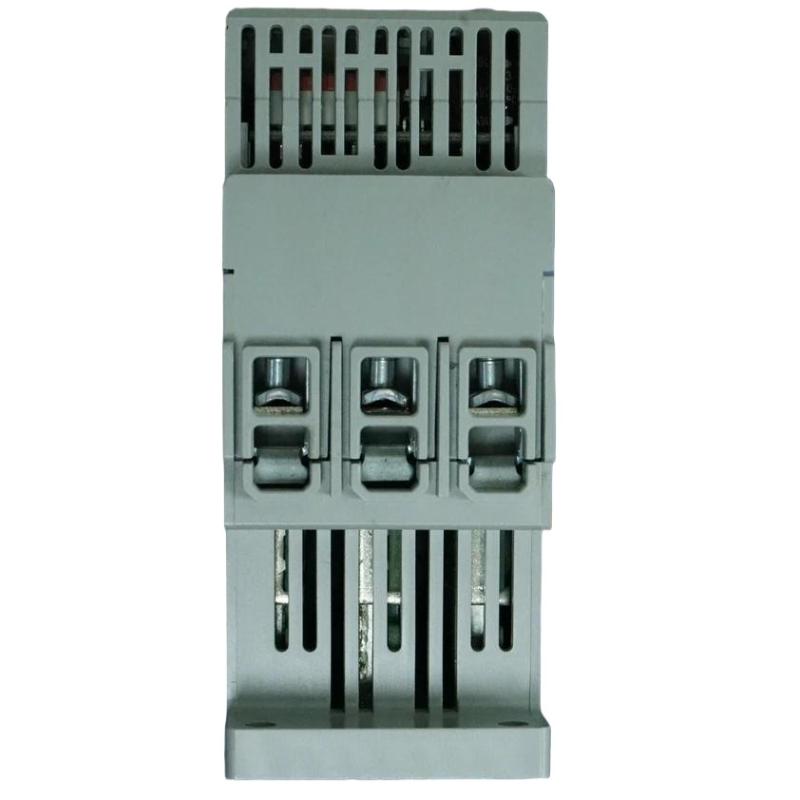

Allen Bradley 150-C3NBR SMC-3 Intelligent Motor Controller

Overview

The Allen Bradley 150-C3NBR is an SMC-3 intelligent motor controller designed to provide reliable control and protection for three-phase motors. It combines precise motor monitoring, overload protection, and seamless integration into automation systems for safe and efficient operation.

General Information

Part Number: 150-C3NBR

Manufacturer: Allen Bradley

Brand / Country of Origin: Allen Bradley / USA

Type: Intelligent Motor Controller

Mounting: Panel or DIN rail mount

Series: SMC-3

Construction: Durable industrial-grade housing with integrated control and monitoring features

Power Specifications

Rated Voltage: 600 V AC max

Rated Current: 30 A

Control Voltage: 120 V AC / 24 V DC

Overload Protection: Adjustable thermal overload relay

Short-Circuit Protection: Integrated short-circuit and phase-failure protection

Indicators: LED status for power, motor running, and fault conditions

Communication & Interface

Interface Type: Electrical control module for motor operation

Control Inputs: Start, stop, reset, and auxiliary contacts

Outputs: Motor status, fault, and auxiliary relay outputs

Diagnostics: Motor overload, phase loss, and fault detection

Compatibility Features: Compatible with Allen Bradley SMC-3 series motor control systems

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Meets industrial standard vibration and shock requirements

Protection Rating: IP20 when installed in enclosure

Dimensions & Weight

Dimensions (L × W × H): 139.7 × 44.8 × 100 mm

Weight: 0.86 kg

Compact Design, Maximum Efficiency!
