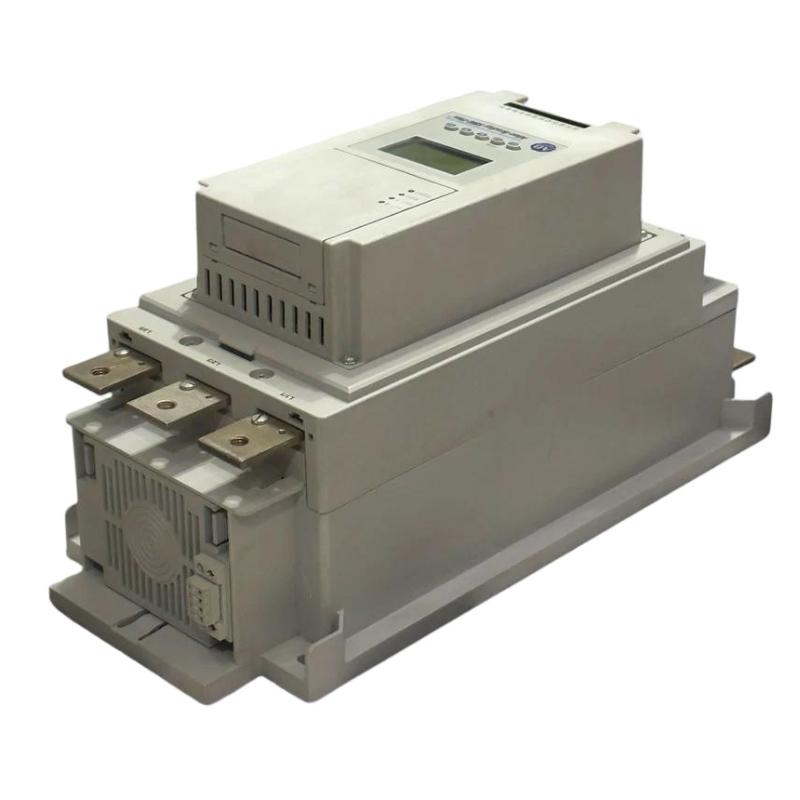

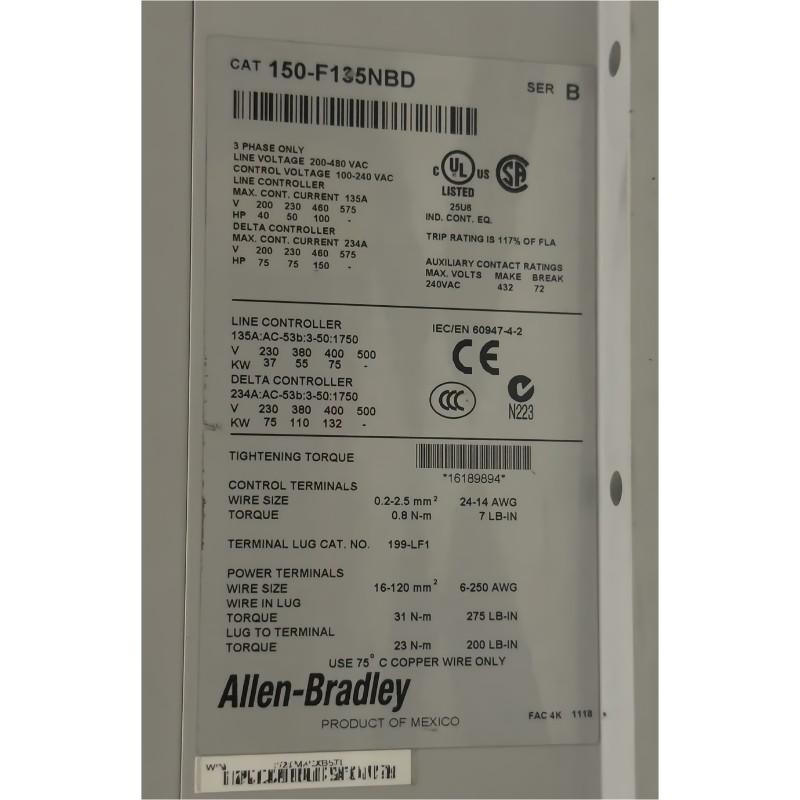

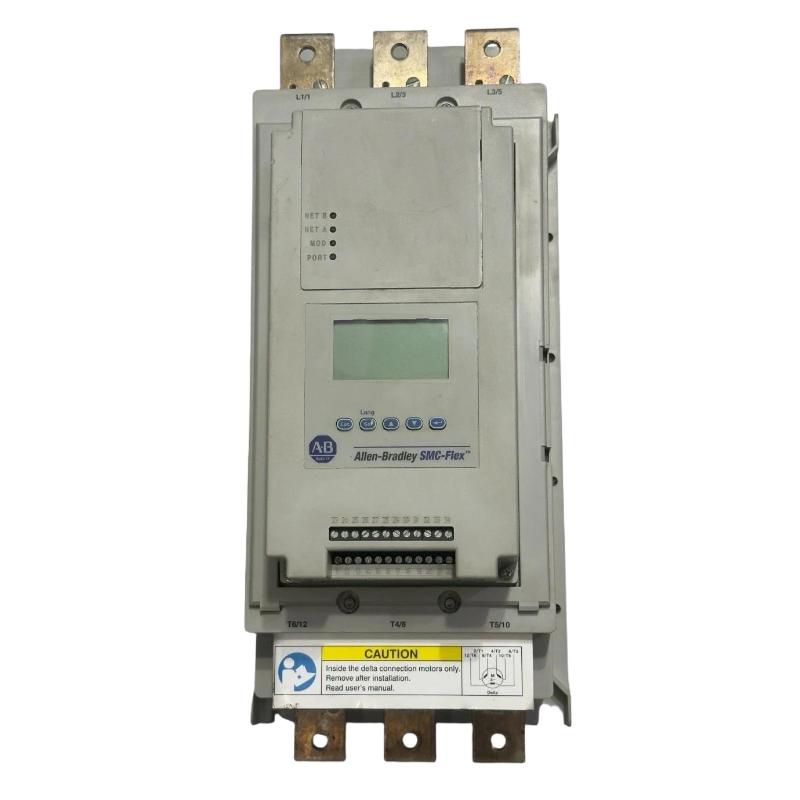

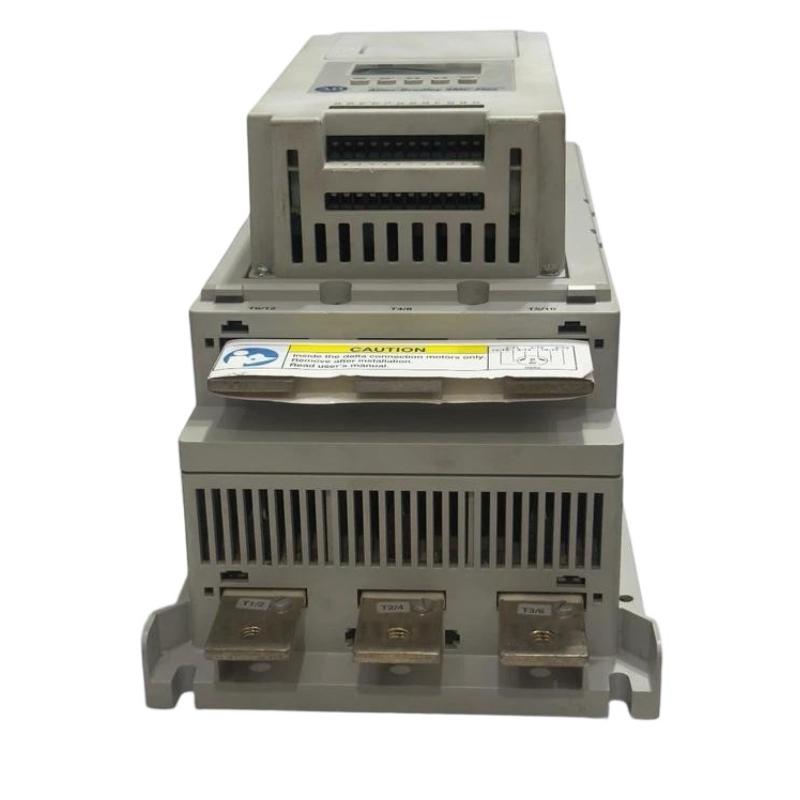

Allen Bradley 150-F135NBD SMC Flex Soft Starter

Overview

The Allen Bradley 150-F135NBD is an SMC Flex soft starter designed to provide smooth motor startup and reduce mechanical stress on equipment. It optimizes motor performance, minimizes energy consumption, and enhances operational reliability in industrial automation systems.

General Information

Part Number: 150-F135NBD

Manufacturer: Allen Bradley

Brand / Country of Origin: Allen Bradley / USA

Type: SMC Flex Soft Starter

Mounting: Panel or DIN rail mount

Series: SMC Flex

Construction: Robust industrial-grade housing with integrated control and protection features

Power Specifications

Rated Voltage: 600 V AC max

Rated Current: 135 A

Control Voltage: 120 V AC / 24 V DC

Overload Protection: Built-in overload relay with adjustable settings

Short-Circuit Protection: Integrated short-circuit and phase-loss protection

Indicators: LED indicators for power, run status, and fault conditions

Communication & Interface

Interface Type: Electrical motor control and protection module

Control Inputs: Start, stop, bypass, and reset

Outputs: Motor status, fault, and auxiliary contacts

Diagnostics: Motor overload, phase failure, and fault detection

Compatibility Features: Compatible with Allen Bradley SMC Flex automation systems

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Meets industrial standard vibration and shock requirements

Protection Rating: IP20 when installed in enclosure

Dimensions & Weight

Dimensions (L × W × H): 443.7 × 196.4 × 212.2 mm

Weight: 15 kg
