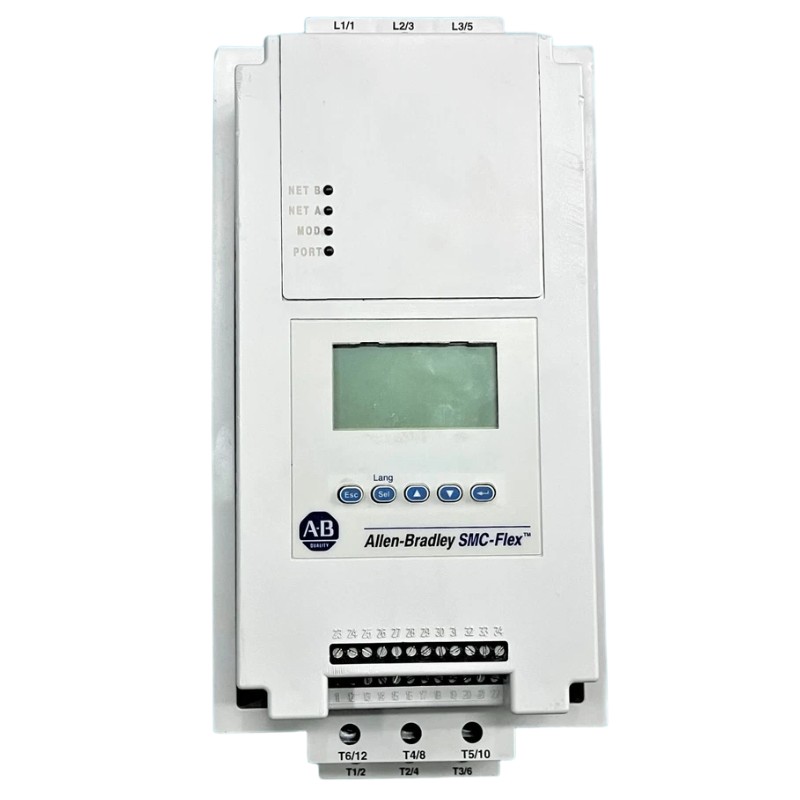

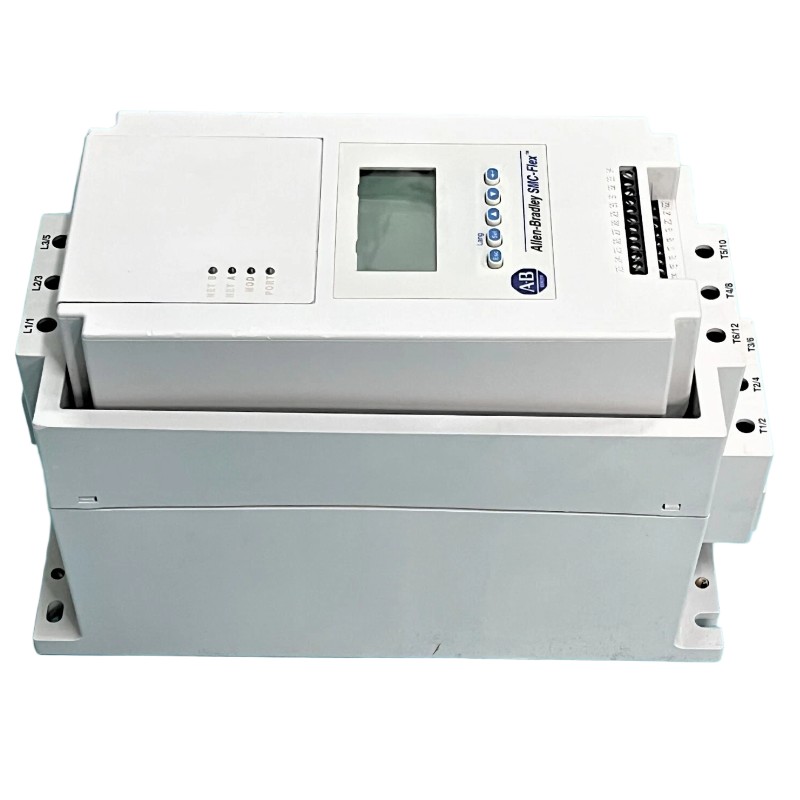

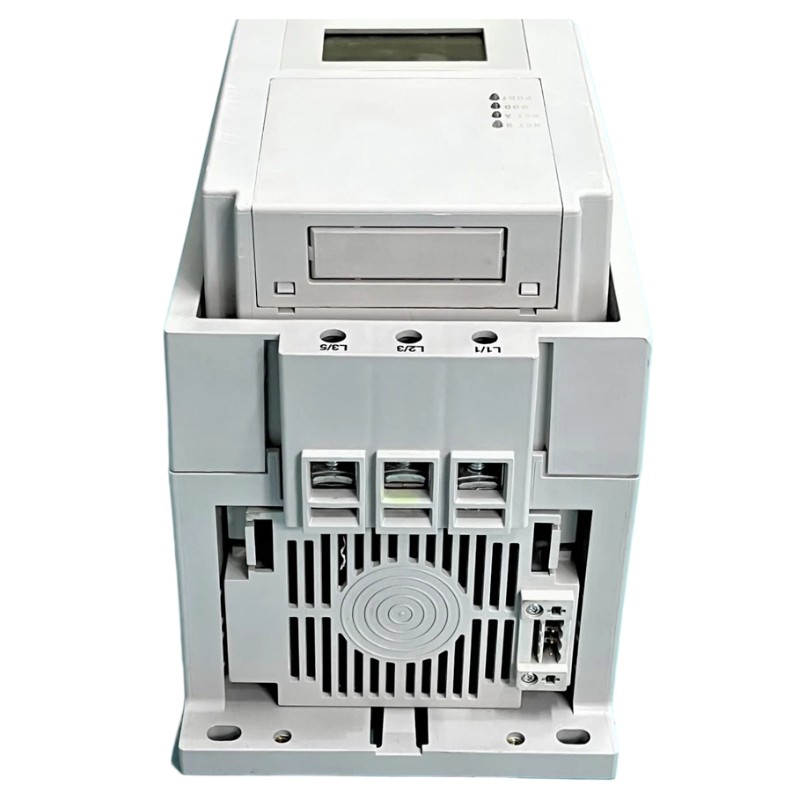

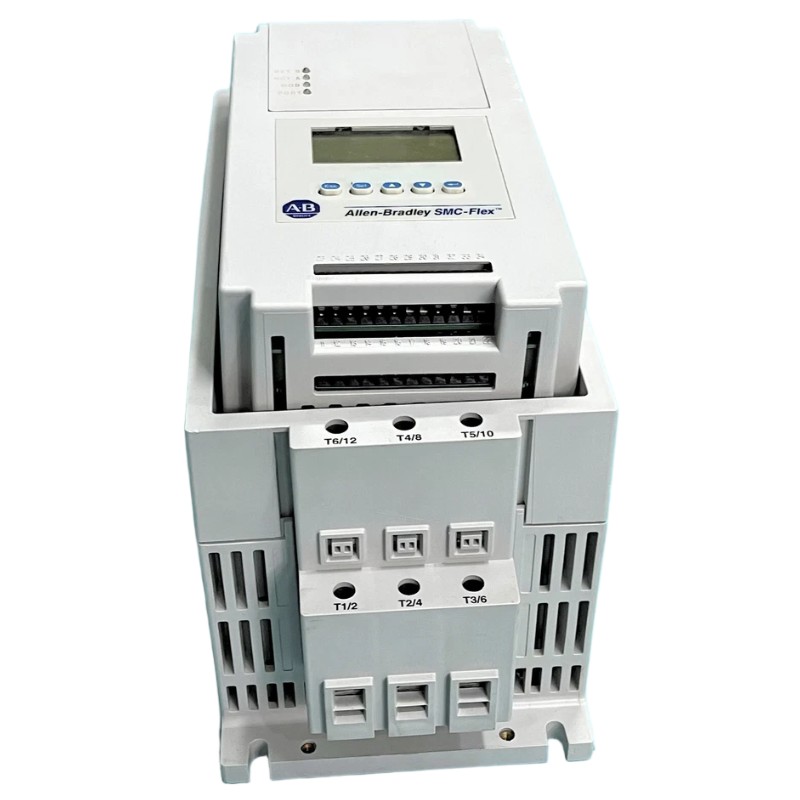

Allen Bradley 150-F85NBDB SMC Flex Smart Motor Controller

Overview

The Allen Bradley 150-F85NBDB is an SMC Flex smart motor controller designed to deliver advanced motor protection and control for industrial applications. It combines precise motor monitoring, energy optimization, and seamless integration into automated systems for improved reliability and efficiency.

General Information

Part Number: 150-F85NBDB

Manufacturer: Allen Bradley

Brand / Country of Origin: Allen Bradley / USA

Type: Smart Motor Controller

Mounting: Panel or DIN rail mount

Series: SMC Flex

Construction: Durable industrial-grade housing with integrated control, protection, and monitoring features

Power Specifications

Rated Voltage: 600 V AC max

Rated Current: 85 A

Control Voltage: 120 V AC / 24 V DC

Overload Protection: Built-in adjustable thermal overload relay

Short-Circuit Protection: Integrated short-circuit and phase-failure protection

Indicators: LED indicators for power, motor operation, and fault conditions

Communication & Interface

Interface Type: Electrical control module for motor operation

Control Inputs: Start, stop, bypass, and reset

Outputs: Motor status, fault, and auxiliary contacts

Diagnostics: Motor overload, phase loss, and fault detection

Compatibility Features: Compatible with Allen Bradley SMC Flex automation systems

Environmental

Operating Temperature: −20 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Meets industrial standard vibration and shock requirements

Protection Rating: IP20 when installed in enclosure

Dimensions & Weight

Dimensions (L × W × H): 321 × 150 × 203 mm

Weight: 5.7 kg
