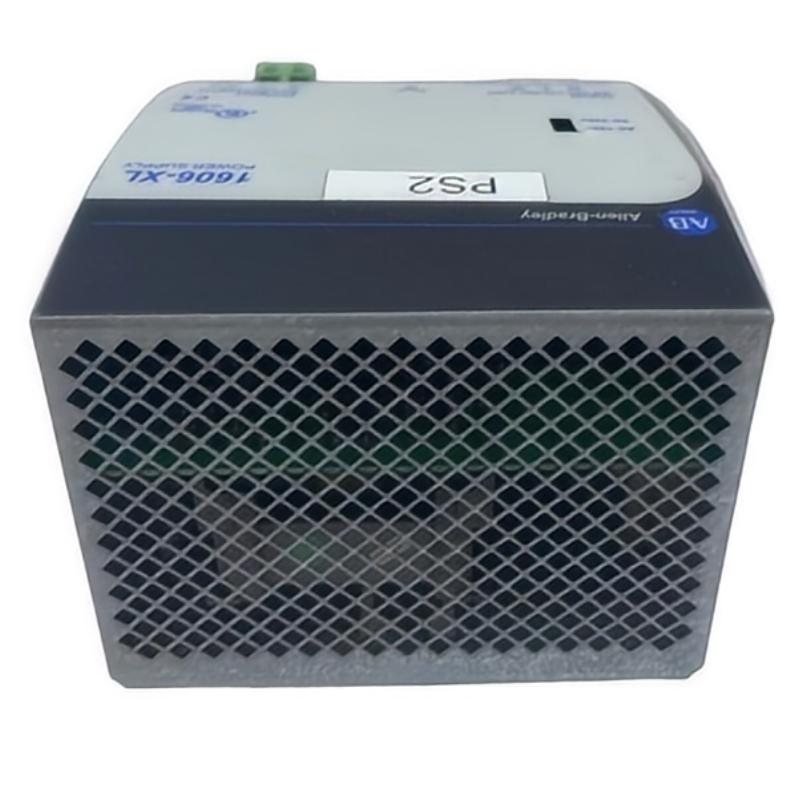

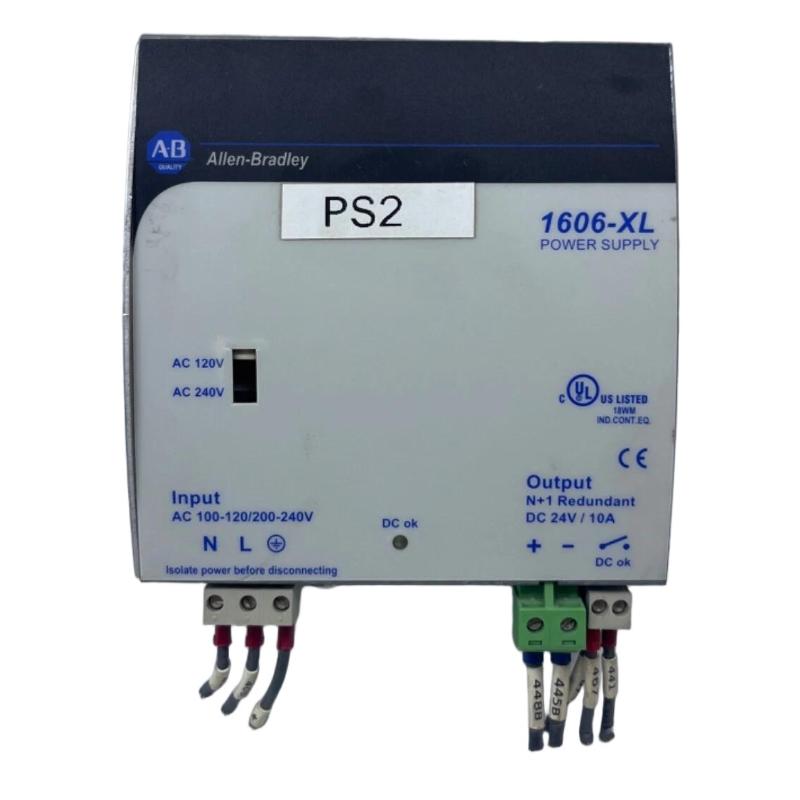

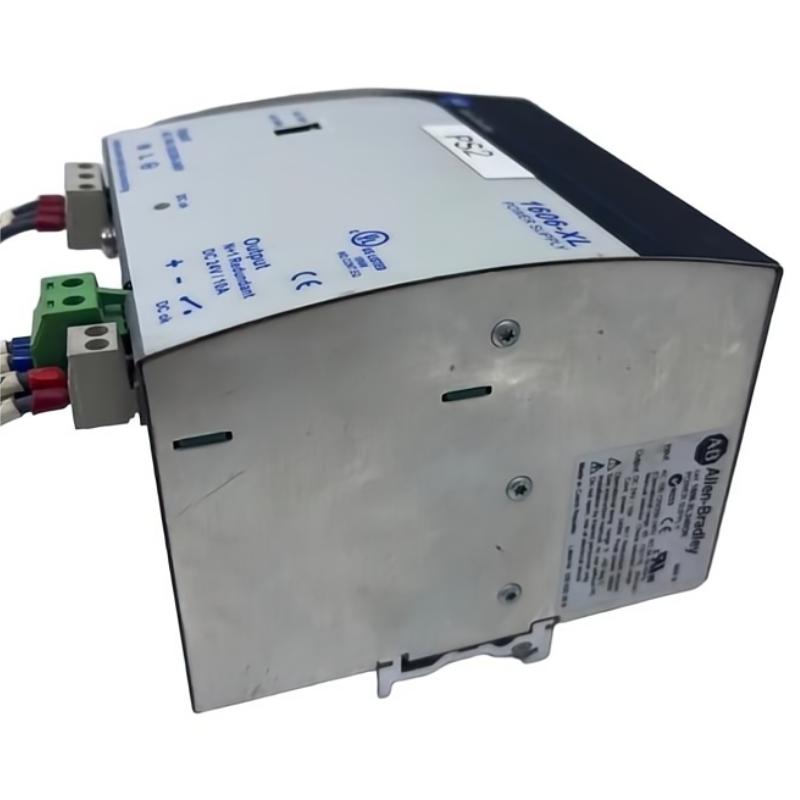

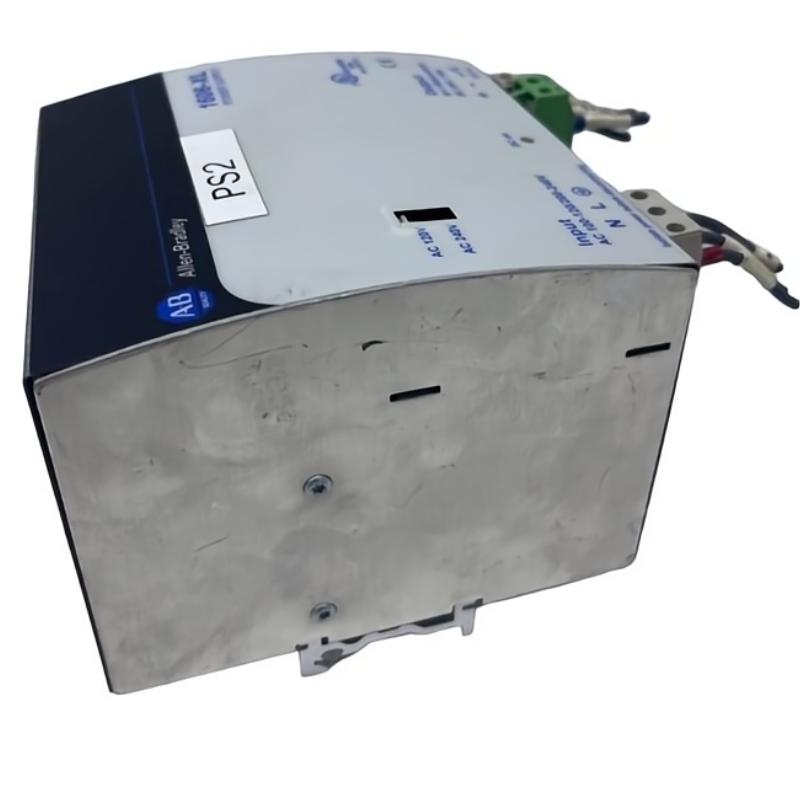

Allen Bradley 1606-XL240DR Redundant Power Supply

Overview

The Allen Bradley 1606-XL240DR is a high-reliability redundant power supply designed for industrial automation and control systems. It ensures uninterrupted operation of critical devices by providing dual-redundant 24 V DC output, enhancing uptime and system stability in demanding environments.

General Information

Part Number: 1606-XL240DR

Manufacturer: Allen Bradley / USA

Series: 1606-XL

Type: Redundant Power Supply

Mounting: DIN rail or panel mounting in industrial enclosures

Technology: Dual-redundant output, hot-swappable modules, load sharing

Power Specifications

Input Voltage: 100–240 V AC, 120–350 V DC

Output Voltage: 24 V DC

Output Current: 20 A (shared across redundant modules)

Power Rating: 480 W

Protection: Overvoltage, overload, short-circuit, and thermal protection

Indicators: LEDs for power, load sharing, and fault

Communication & Interface

Status Interface: LED indicators for output, redundancy, and fault

Redundancy Control: Integrated ORing diodes for automatic load transfer

Monitoring: Optional remote status monitoring modules supported

Operator Interface: Quick-connect terminals for straightforward installation

Reset Features: Automatic recovery after fault clearance

Environmental

Operating Temperature: −25 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: IEC 60068-2-6 compliant

Protection Rating: IP20, suitable for standard industrial cabinets

Dimensions & Weight

Dimensions (L × W × H): 120 × 124 × 102 mm

Weight: 0.98 kg
