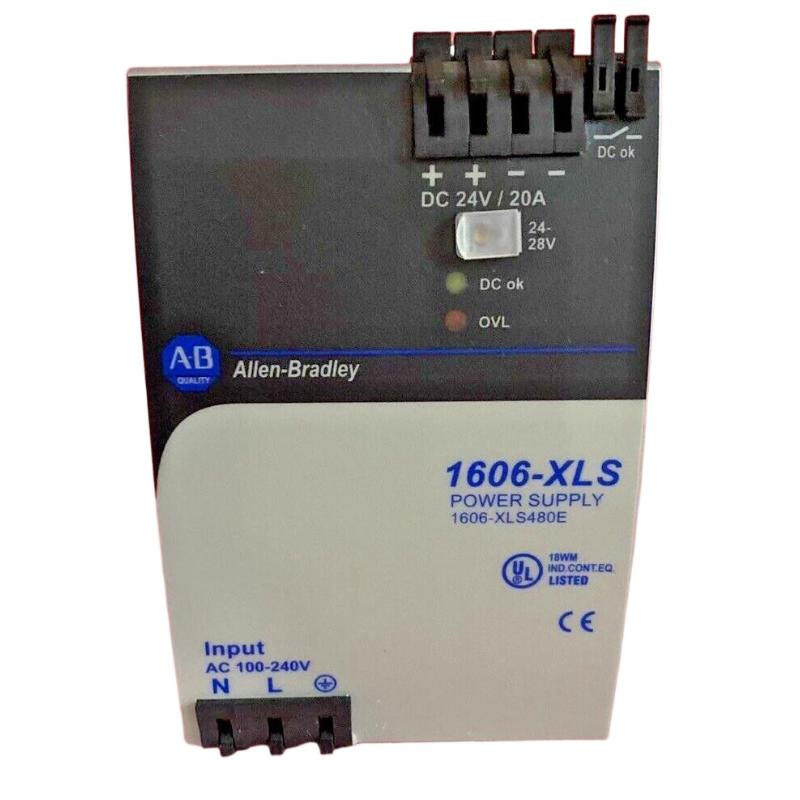

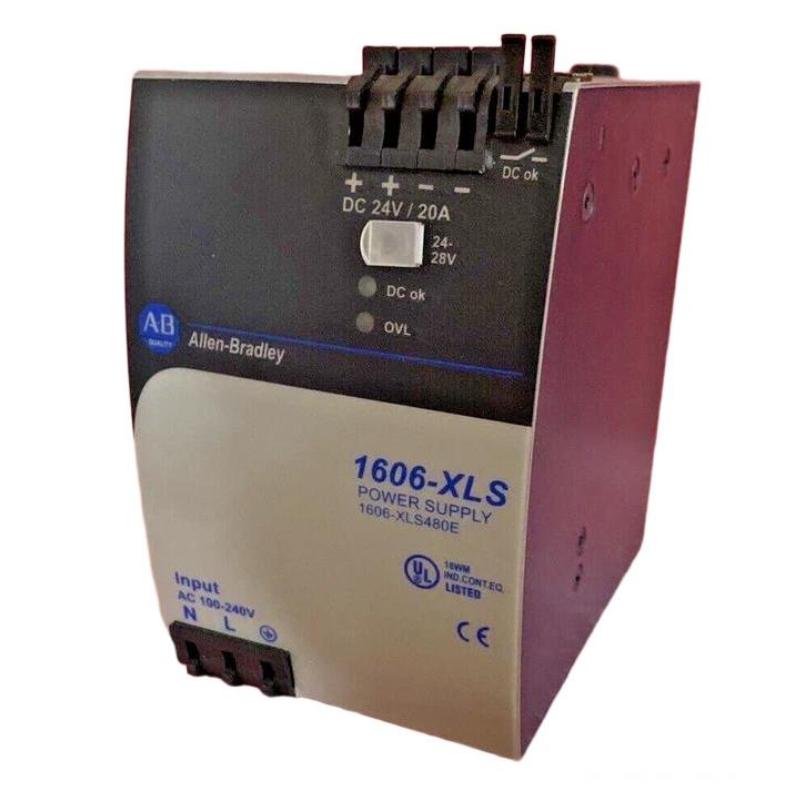

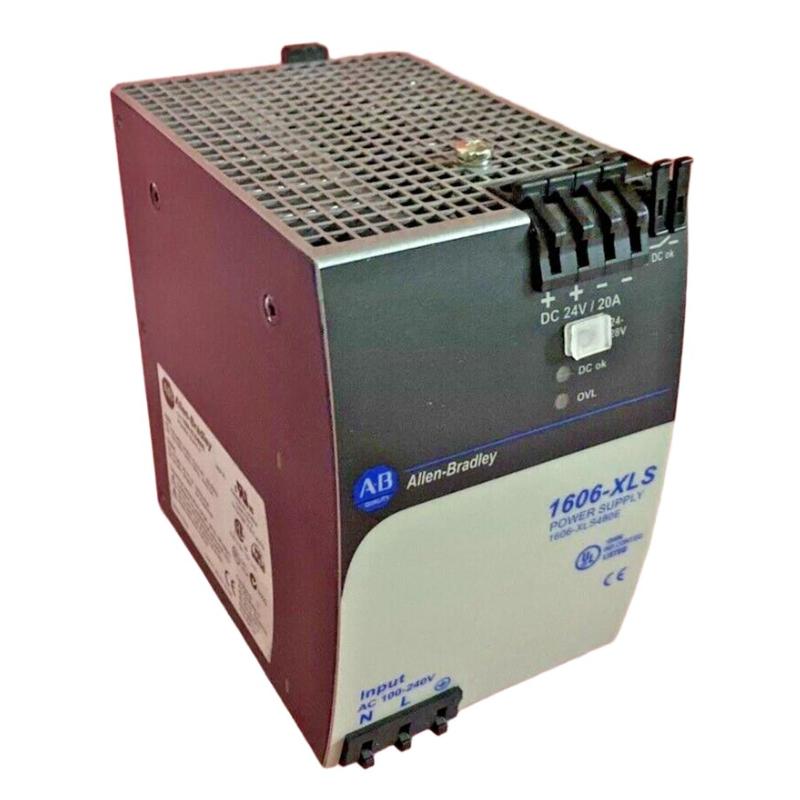

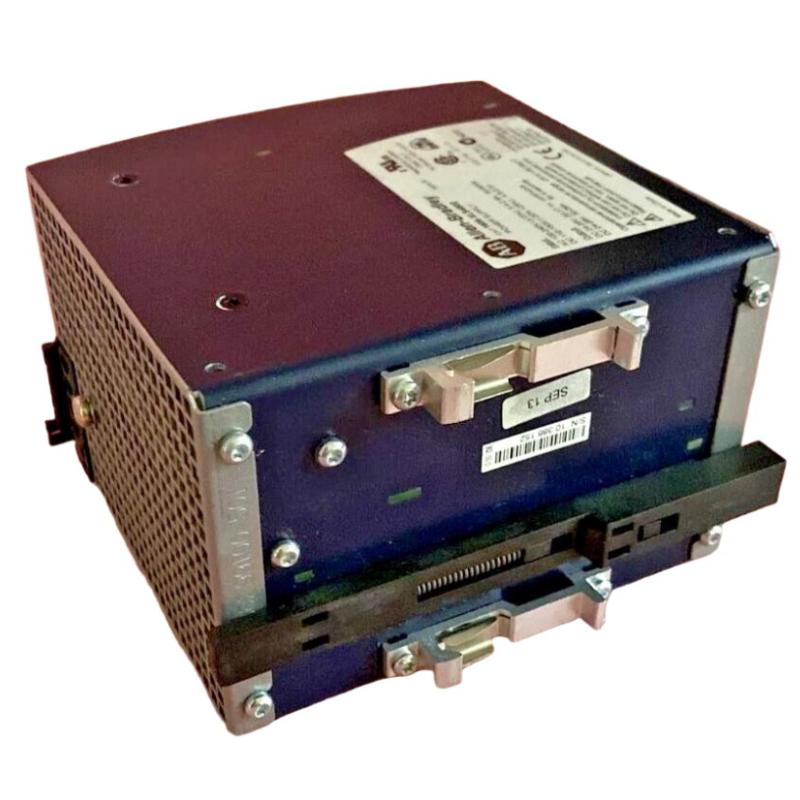

Allen Bradley 1606-XLS480E/A Power Supply

Overview

The Allen Bradley 1606-XLS480E/A is a high-power industrial power supply designed for automation systems. It provides stable 24 V DC output to power control modules, sensors, and peripheral devices, ensuring reliable operation in demanding industrial environments.

General Information

Part Number: 1606-XLS480E/A

Manufacturer: Allen Bradley / Rockwell Automation

Brand / Country of Origin: Allen Bradley / USA

Series: 1606 XLS

Type: DIN-rail or panel-mounted industrial power supply

Application: Automation, control panels, and machinery

Compliance: UL, CE, and IEC standards

Power Specifications

Input Voltage: 85–264 V AC, 47–63 Hz or 120–370 V DC

Output Voltage: 24 V DC

Output Current: 20 A

Power Rating: 480 W

Efficiency: > 90% typical

Protection: Overload, short-circuit, overvoltage, and overtemperature protection

Indicators: LED for power status and fault

Communication & Interface

Status Signals: DC OK relay contact for system monitoring

Control Interface: No digital communication; status output only

Diagnostic Features: Fault relay, LED indicator for troubleshooting

Mounting Interface: DIN-rail or panel with terminal block connections

Environmental

Operating Temperature: −25 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration & Shock: IEC 60068 compliant

Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): 127 × 82 × 124 mm

Weight: ~ 1.2 kg

Reliable high-power supply, ready for immediate shipment!
