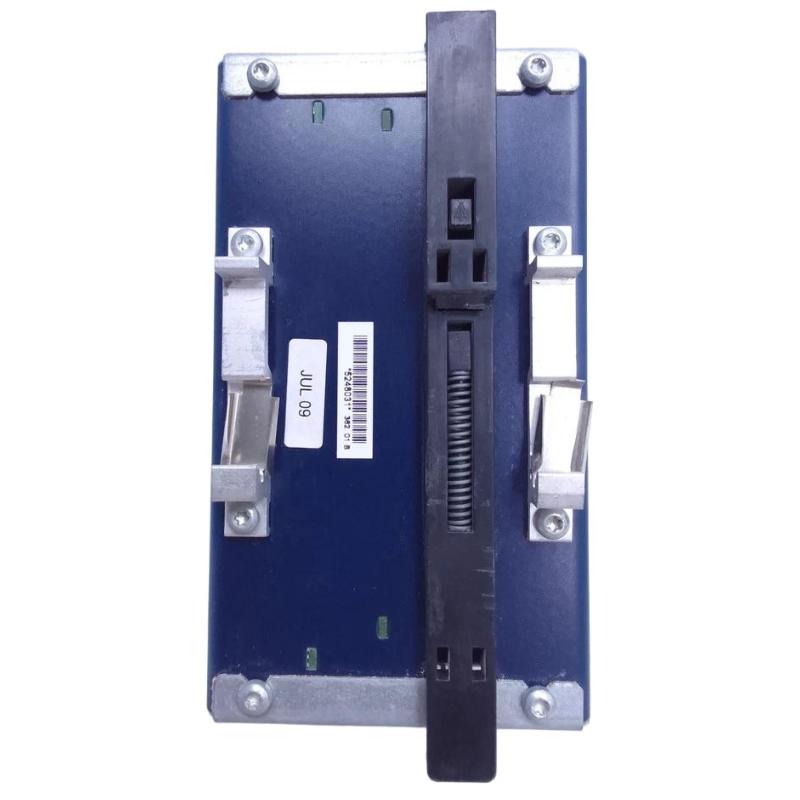

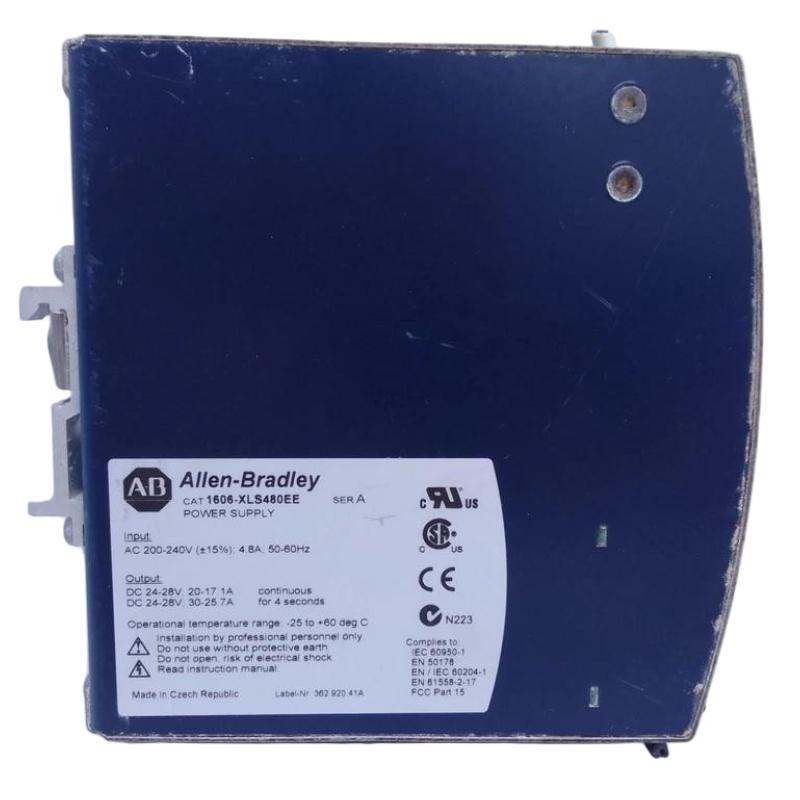

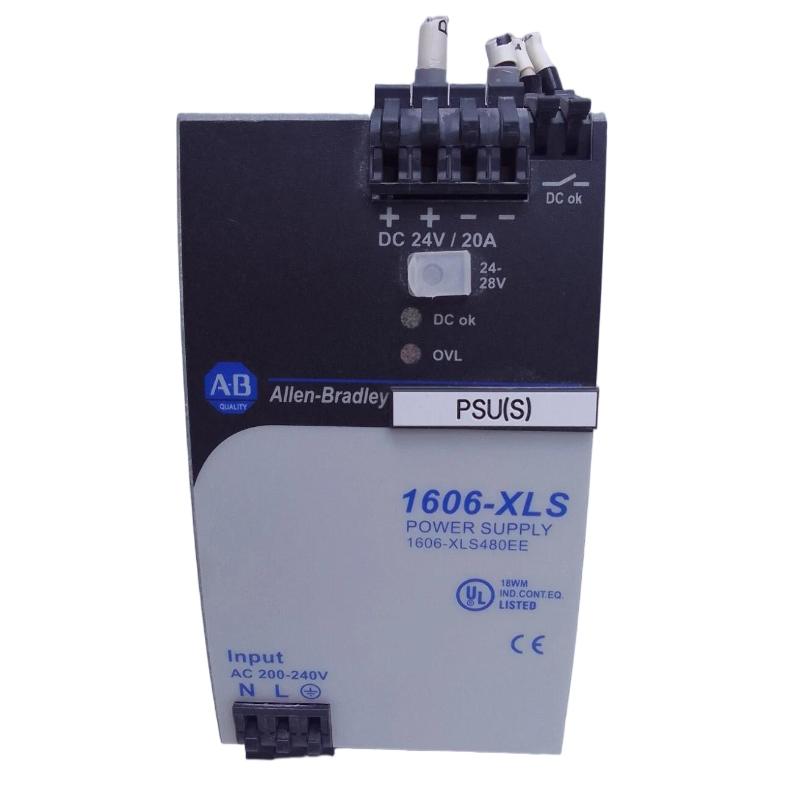

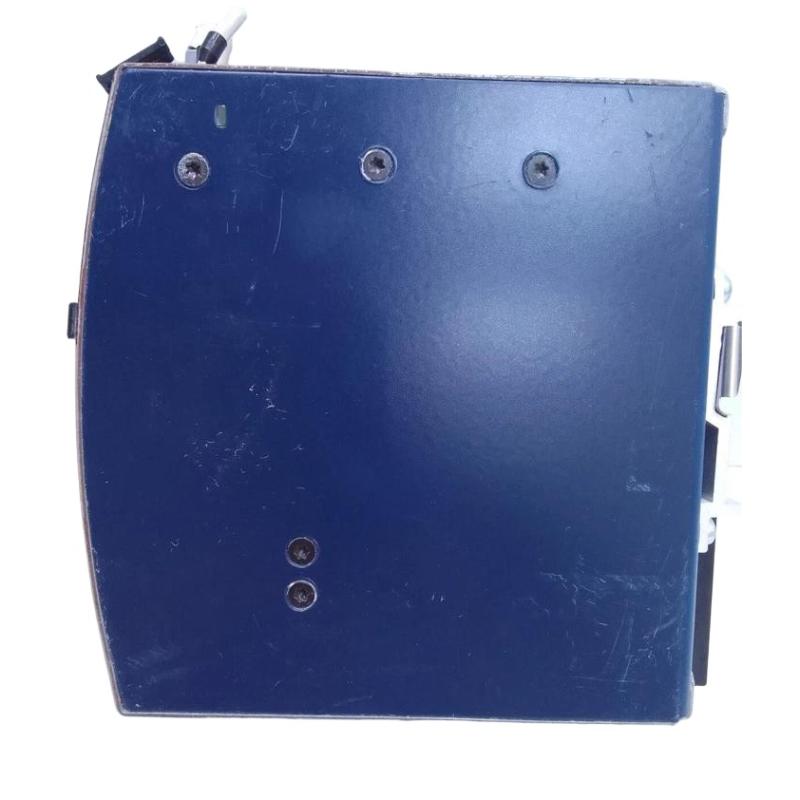

Allen Bradley 1606-XLS480EE Power Supply

Overview

The 1606-XLS480EE is a high-efficiency industrial power supply designed to provide stable 24 V DC output for automation and control systems. Its compact design ensures reliable performance in both standard and space-constrained industrial environments.

General Information

Part Number: 1606-XLS480EE

Manufacturer: Allen Bradley / Rockwell Automation

Brand / Country of Origin: Allen Bradley / USA

Series: 1606-XLS

Type: AC-DC Power Supply

Mounting: DIN rail or panel mount

Technology: Switching mode power supply with active power factor correction

Power Specifications

Input Voltage: 100–240 V AC, 50/60 Hz

Output Voltage: 24 V DC

Output Current: 20 A

Power Rating: 480 W

Efficiency: Up to 94%

Protection: Overvoltage, overcurrent, short-circuit, and thermal protection

Indicators: LED status indicator for output and fault conditions

Communication & Interface

Control Interface: None (standalone power supply)

Diagnostic Features: Output voltage monitoring, fault signaling via LED

Remote Control: Optional remote on/off functionality

Environmental

Operating Temperature: −25 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20 (standard for industrial cabinets)

Vibration: Tested to industrial vibration standards

Dimensions & Weight

Dimensions (L × W × H): 127 × 70 × 124 mm

Weight: 0.88 kg

Compact Design, Maximum Efficiency!
