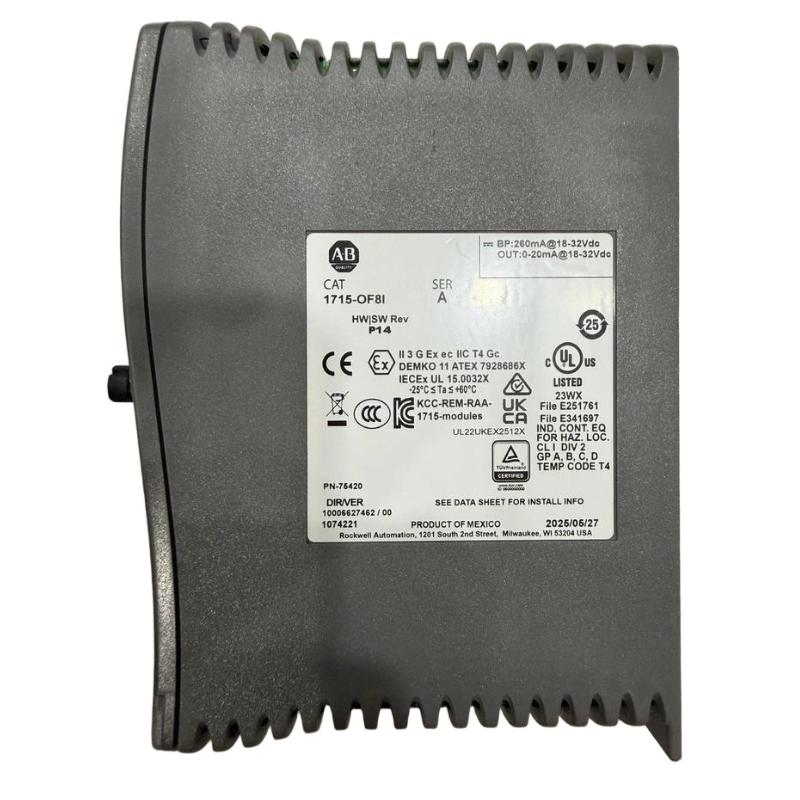

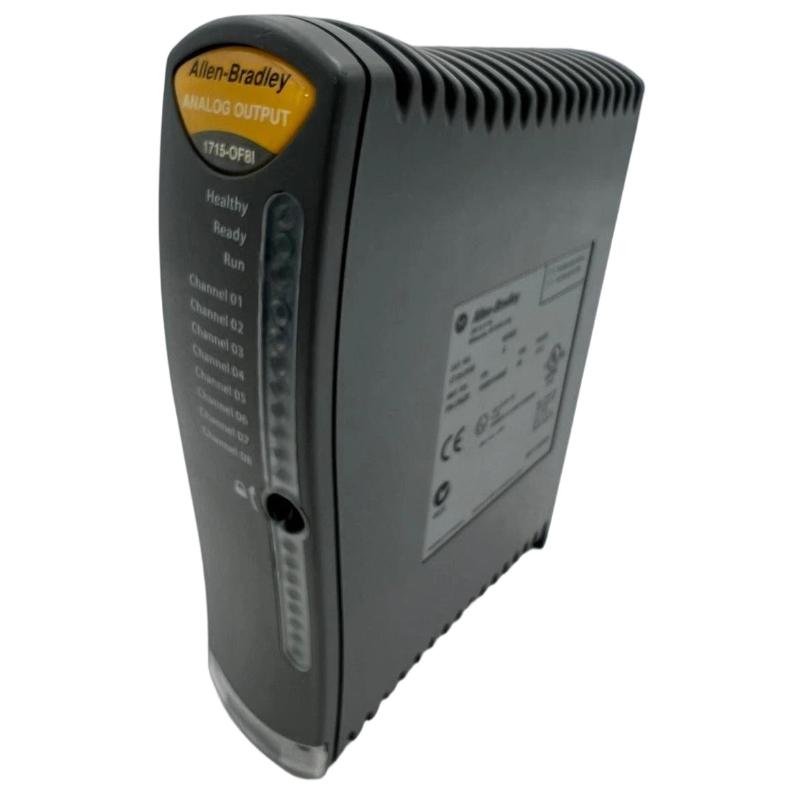

Allen Bradley 1715-OF8I Analog Output Module

Overview

The Allen Bradley 1715-OF8I is an 8-channel analog output module designed for use in Allen Bradley PLC systems. It provides precise voltage or current outputs for controlling field devices, supporting both 4–20 mA and 0–10 V signals. The module ensures reliable performance in industrial automation environments with accurate signal generation and comprehensive diagnostics.

General Information

Part Number: 1715-OF8I

Manufacturer: Allen Bradley

Brand / Country of Origin: Allen Bradley / USA

Series: 1715 I/O Module Series

Type: Analog Output Module

Mounting: DIN rail or panel mounting within control cabinets

Technology: Industrial I/O, signal conditioning, real-time output

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via the I/O backplane

Protection: Overcurrent and short-circuit protection

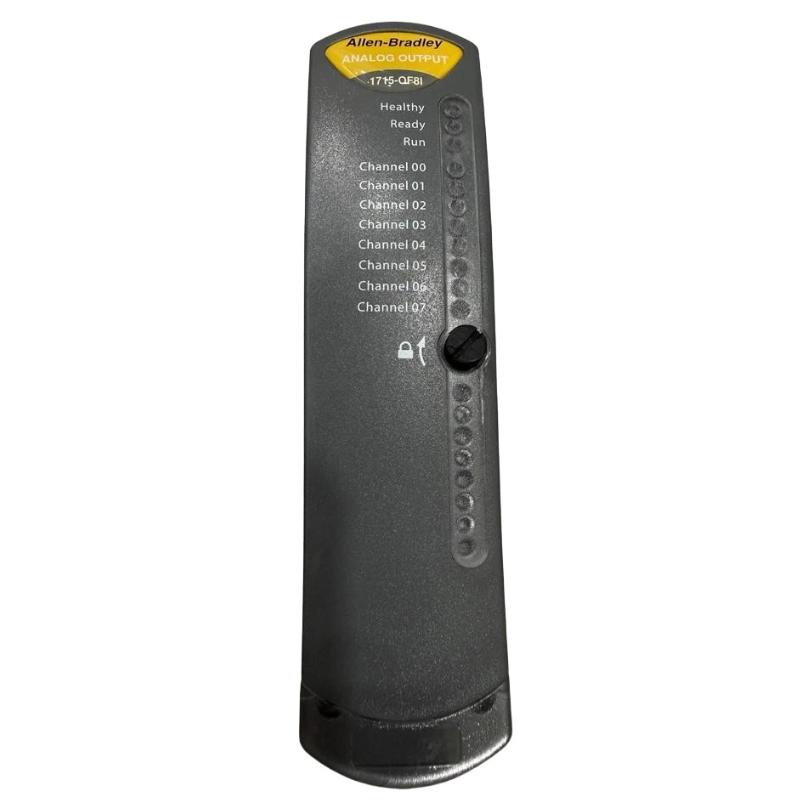

Indicators: Status LEDs for channel operation, module health, and communication

Communication & Interface

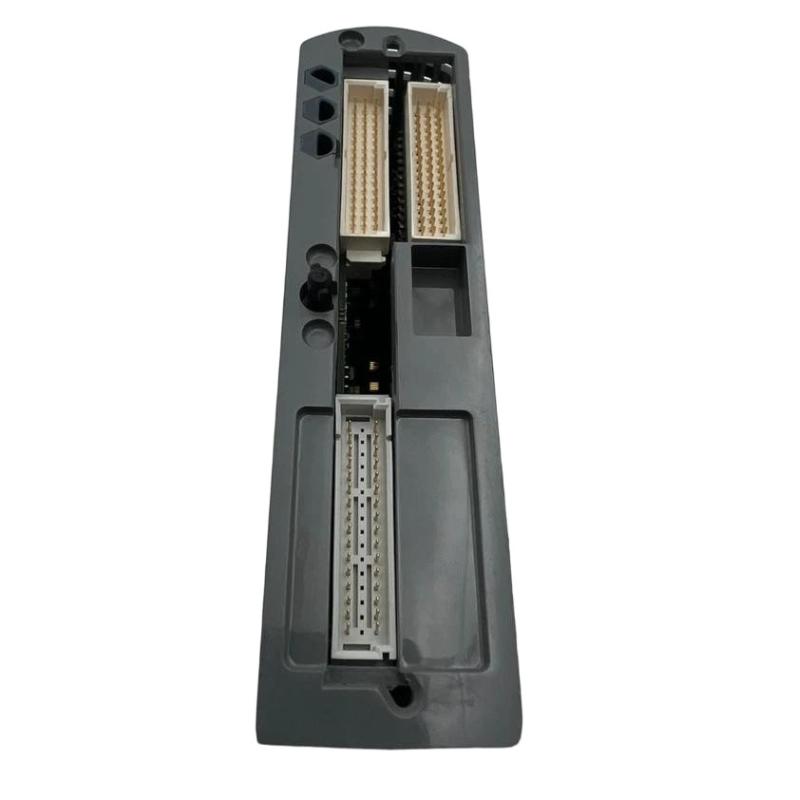

Interface: Connected to 1715 backplane bus

Channels: 8 analog output channels

Output Types: Configurable for voltage (0–10 V) or current (4–20 mA)

Diagnostics: Channel status monitoring, fault detection, error reporting

Reset Features: Supports soft reset via PLC software and hardware reset

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial control cabinets

Dimensions & Weight

Dimensions (L × W × H): 166 × 42 × 118 mm

Weight: ~0.34 kg
