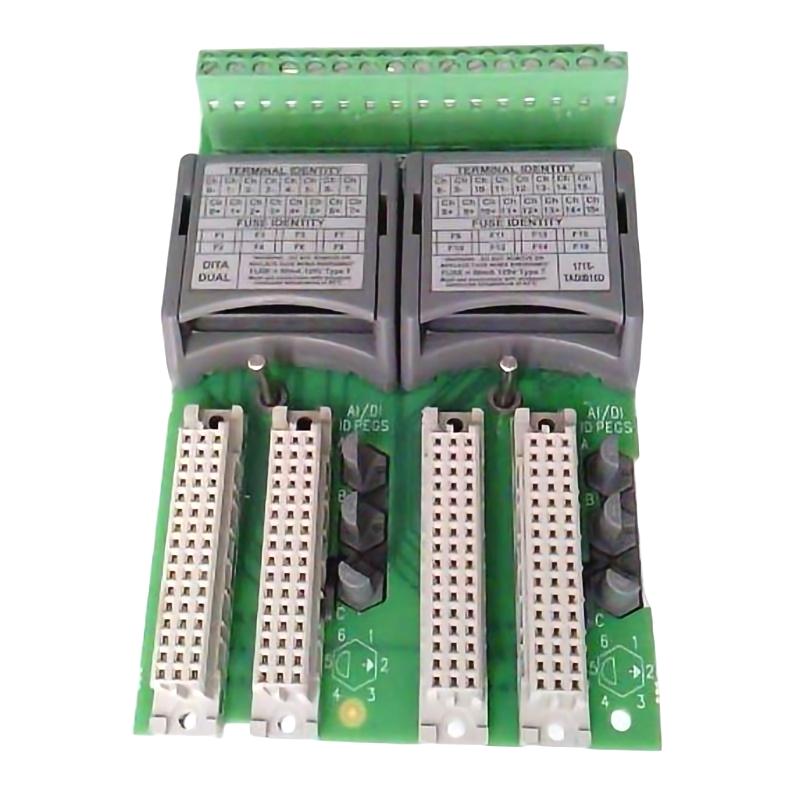

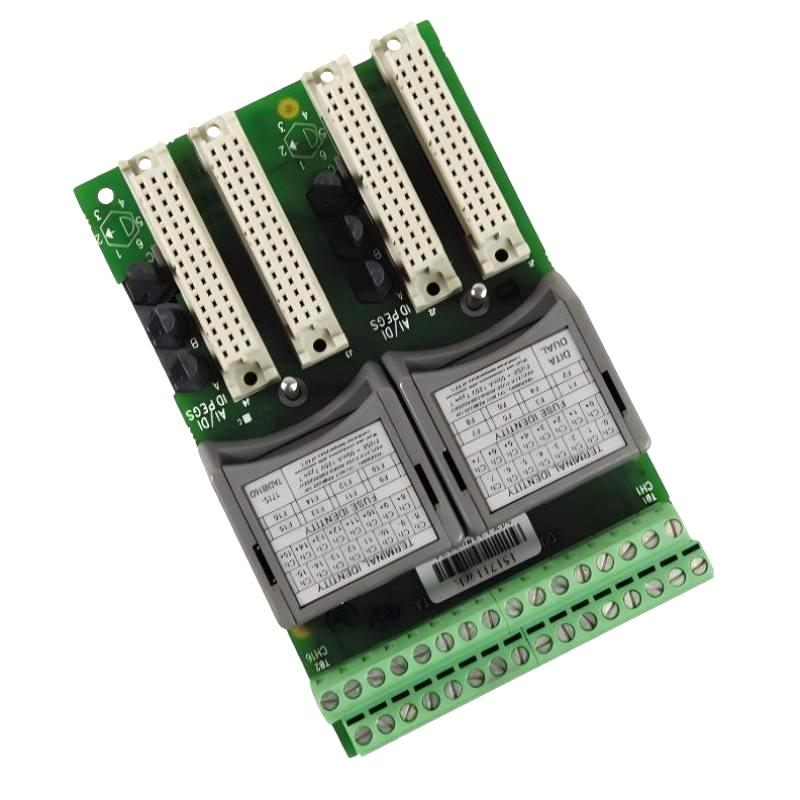

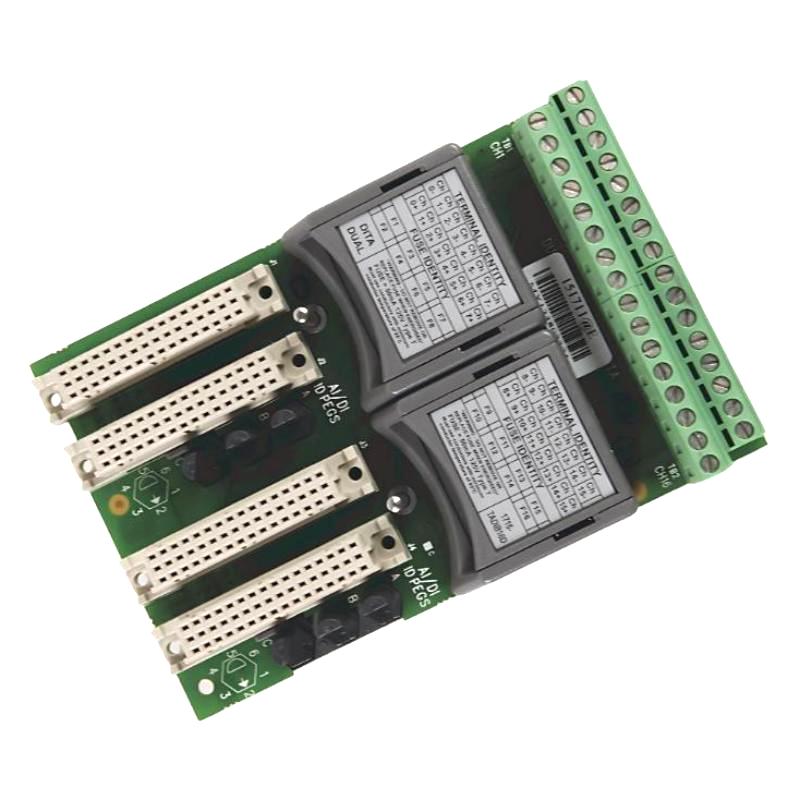

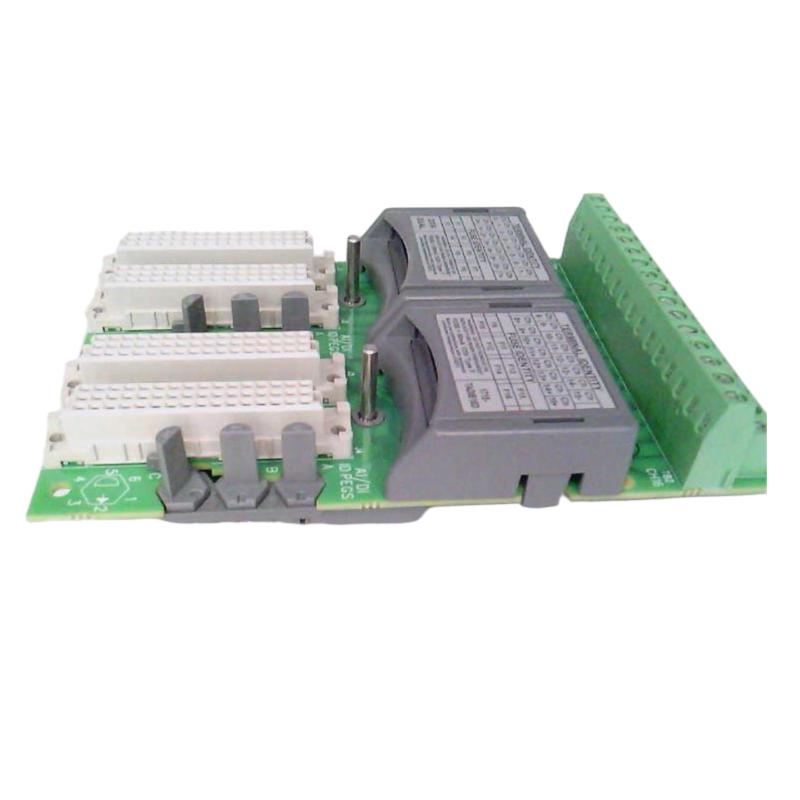

Allen Bradley 1715-TADIB16D Redundant I/O Terminal Components

Overview

The Allen Bradley 1715-TADIB16D is a redundant I/O terminal component designed for use in Allen Bradley PLC systems. It provides reliable signal distribution and ensures uninterrupted operation in critical applications through its redundancy capabilities. This module simplifies wiring while maintaining high system availability and diagnostics support.

General Information

Part Number: 1715-TADIB16D

Manufacturer: Allen Bradley

Brand / Country of Origin: Allen Bradley / USA

Series: 1715 I/O Module Series

Type: Redundant I/O Terminal Component

Mounting: DIN rail or panel mounting within control cabinets

Technology: Redundant I/O, signal routing, fault tolerance

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 3 W

Input: Powered via I/O backplane

Protection: Overcurrent and short-circuit protection

Indicators: Status LEDs for channel operation, redundancy status, and communication

Communication & Interface

Interface: Connected to 1715 backplane bus

Channels: 16 digital I/O points

Diagnostics: Channel status monitoring, redundancy fault detection, error reporting

Reset Features: Supports soft reset via PLC software and hardware reset

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial control cabinets

Dimensions & Weight

Dimensions (L × W × H): 132 × 84 mm

Weight: ~0.133 kg
