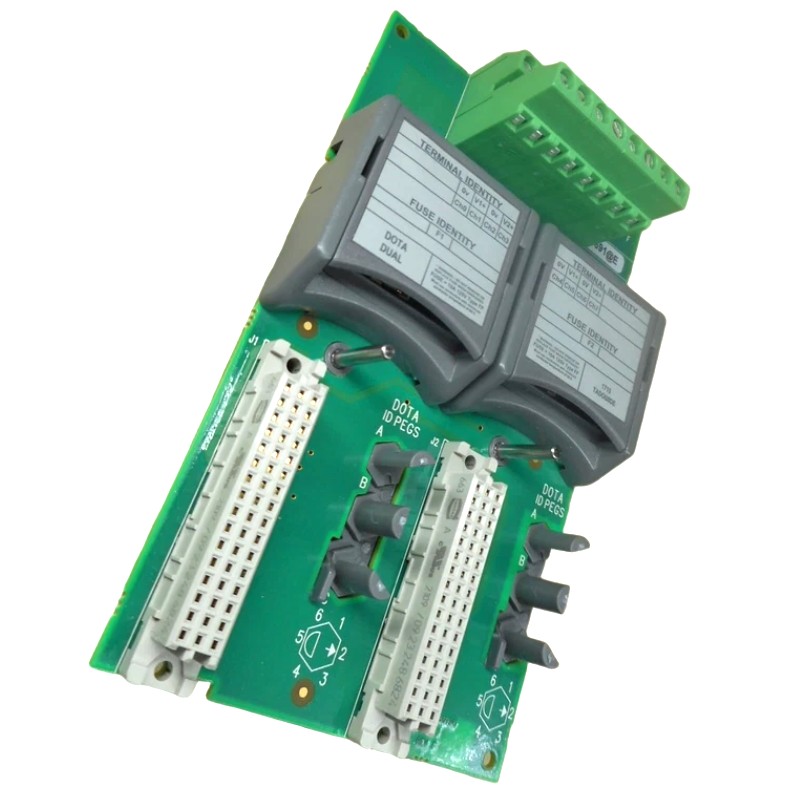

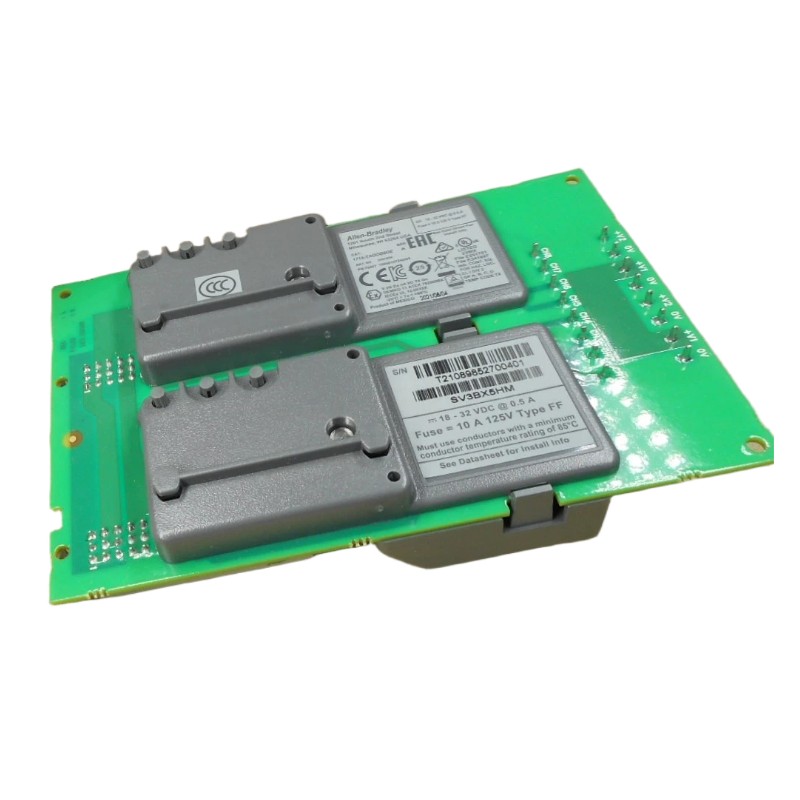

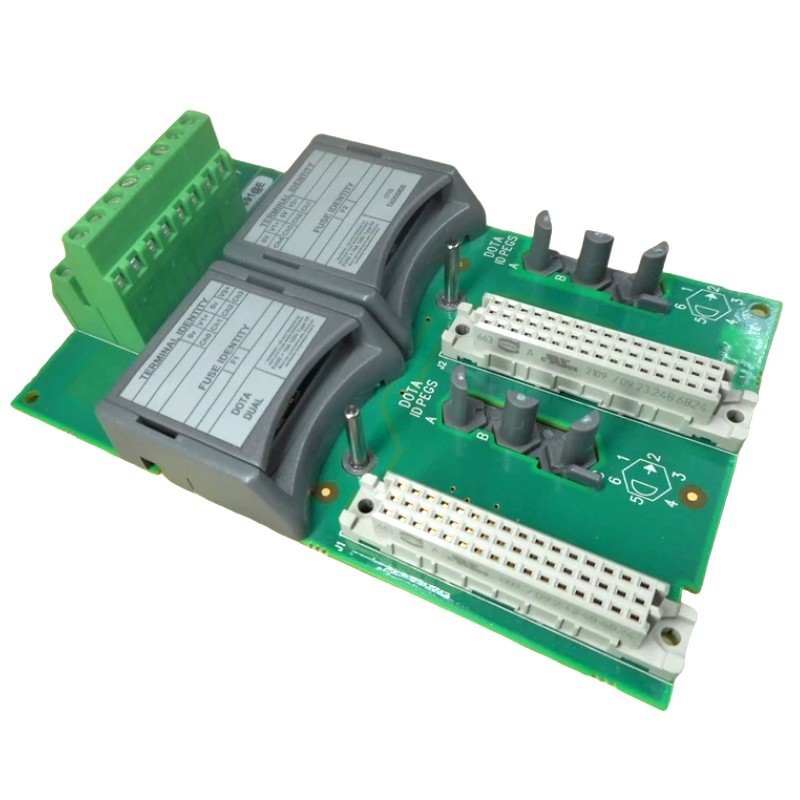

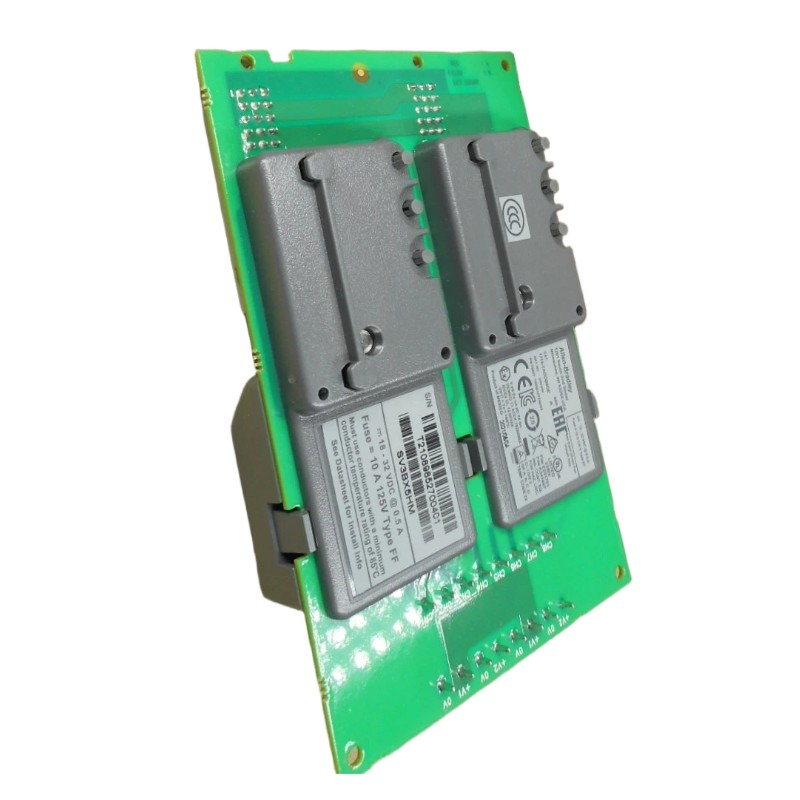

Allen Bradley 1715-TADOB8DE Redundant I/O Termination Components

Overview

The Allen Bradley 1715-TADOB8DE is a redundant I/O termination component for Allen Bradley PLC systems. It provides reliable output signal distribution and supports redundancy to maintain continuous operation in critical industrial applications. The module ensures efficient wiring, fault monitoring, and precise output control for connected devices.

General Information

Part Number: 1715-TADOB8DE

Manufacturer: Allen Bradley

Brand / Country of Origin: Allen Bradley / USA

Series: 1715 I/O Module Series

Type: Redundant I/O Termination Component

Mounting: DIN rail or panel mounting within control cabinets

Technology: Redundant I/O, signal routing, output termination, fault detection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 4 W

Input: Powered via I/O backplane

Protection: Overcurrent and short-circuit protection

Indicators: Status LEDs for channel operation, redundancy health, and communication

Communication & Interface

Interface: Connected to 1715 backplane bus

Channels: 8 digital output points

Diagnostics: Channel status monitoring, redundancy fault detection, error reporting

Reset Features: Supports soft reset via PLC software and hardware reset

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial control cabinets

Dimensions & Weight

Dimensions (L × W × H): 132 × 84 mm

Weight: ~0.26 kg
