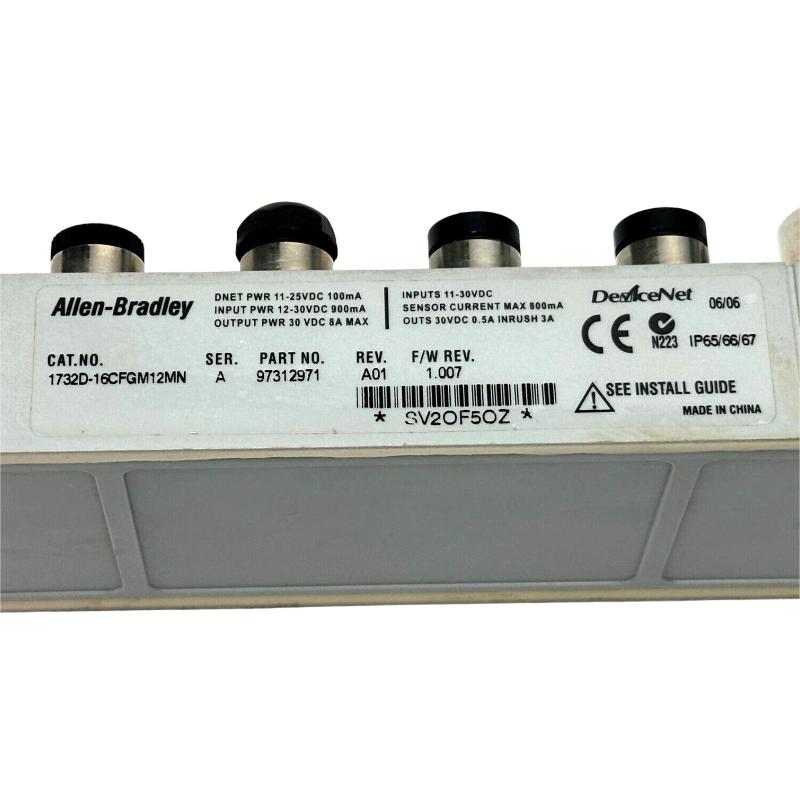

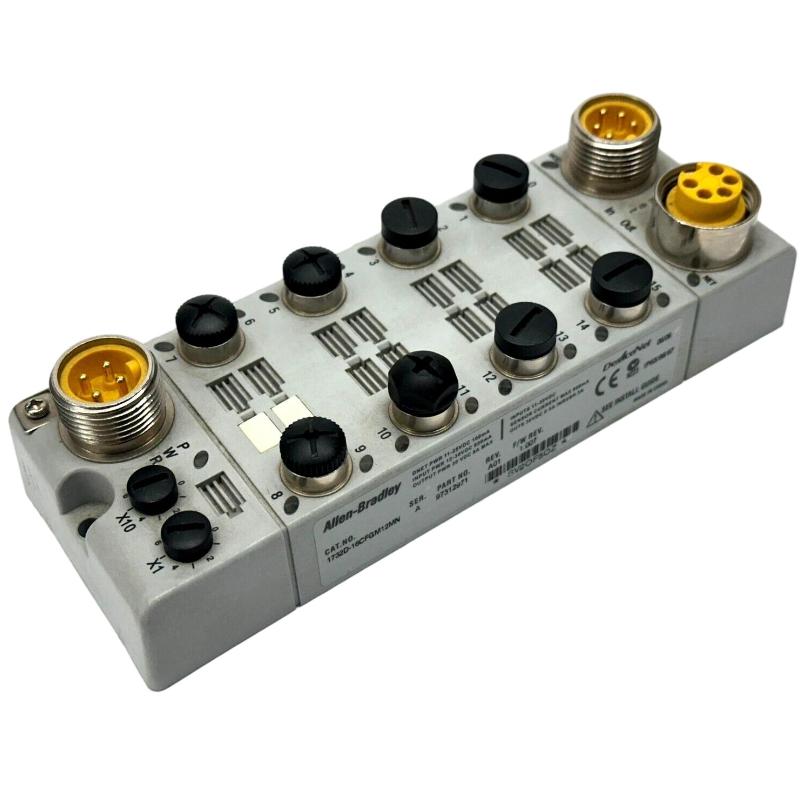

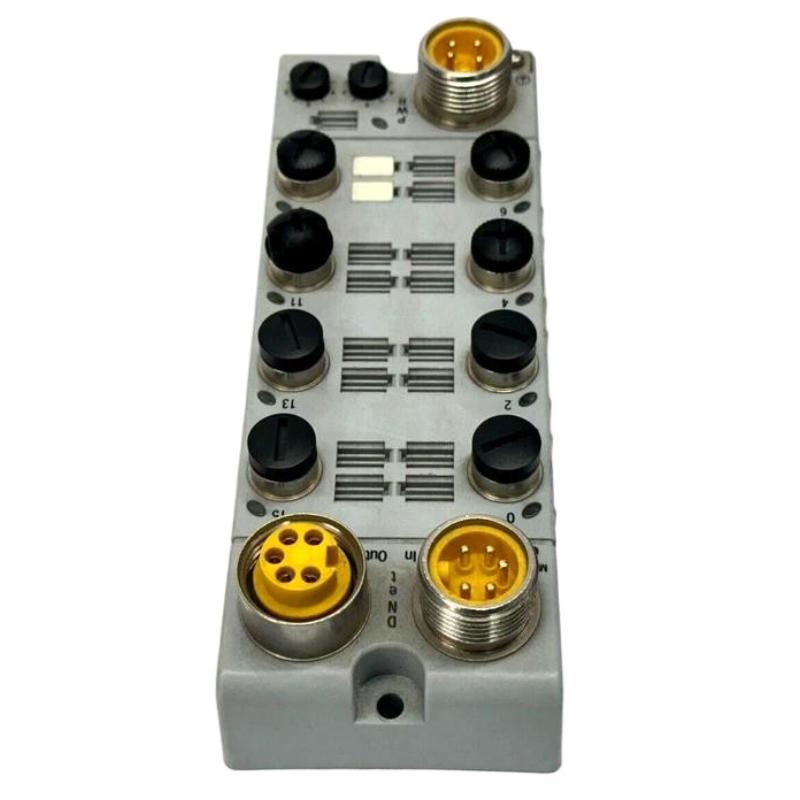

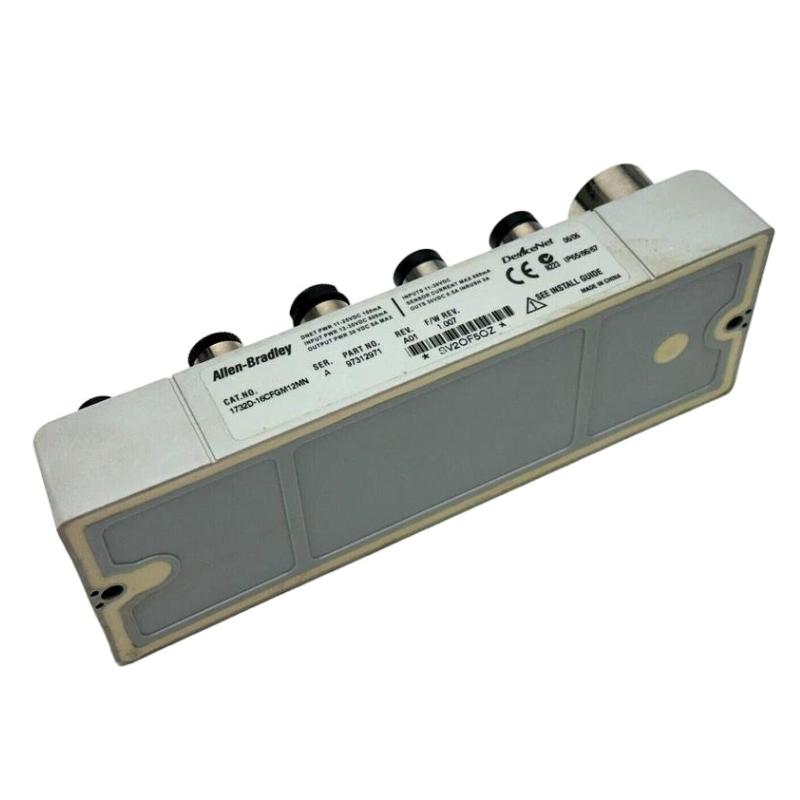

Allen Bradley 1732D-16CFGM12MN DeviceNet I/O Module

Overview

The Allen Bradley 1732D-16CFGM12MN is a 16-channel DeviceNet I/O module designed for the 1732 Compact I/O system. It provides high-speed digital input/output communication over DeviceNet networks, ensuring efficient data exchange between field devices and controllers. The module supports rugged industrial environments with built-in diagnostics and reliable performance.

General Information

Part Number: 1732D-16CFGM12MN

Manufacturer: Allen Bradley

Brand / Country of Origin: Allen Bradley / USA

Series: 1732D Compact I/O Series

Type: DeviceNet I/O Module

Mounting: DIN rail or panel mounting within control cabinets

Technology: DeviceNet communication, digital I/O, industrial signal processing

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 6 W

Input: Powered via backplane

Protection: Overcurrent and short-circuit protection

Indicators: Status LEDs for channel operation, network communication, and fault

Communication & Interface

Interface: DeviceNet network

Channels: 16 digital I/O points

Network Diagnostics: Node status monitoring, communication errors, device faults

Reset Features: Supports soft reset via network configuration and hardware reset

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial control cabinets

Dimensions & Weight

Dimensions (L × W × H): 179 × 65 × 43.25 mm

Weight: ~0.392 kg
