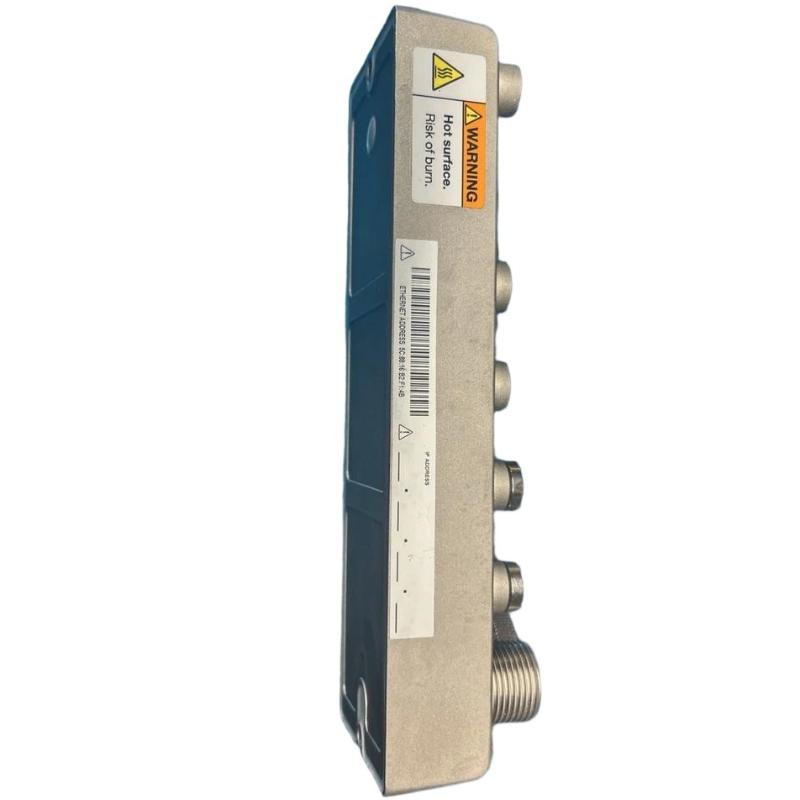

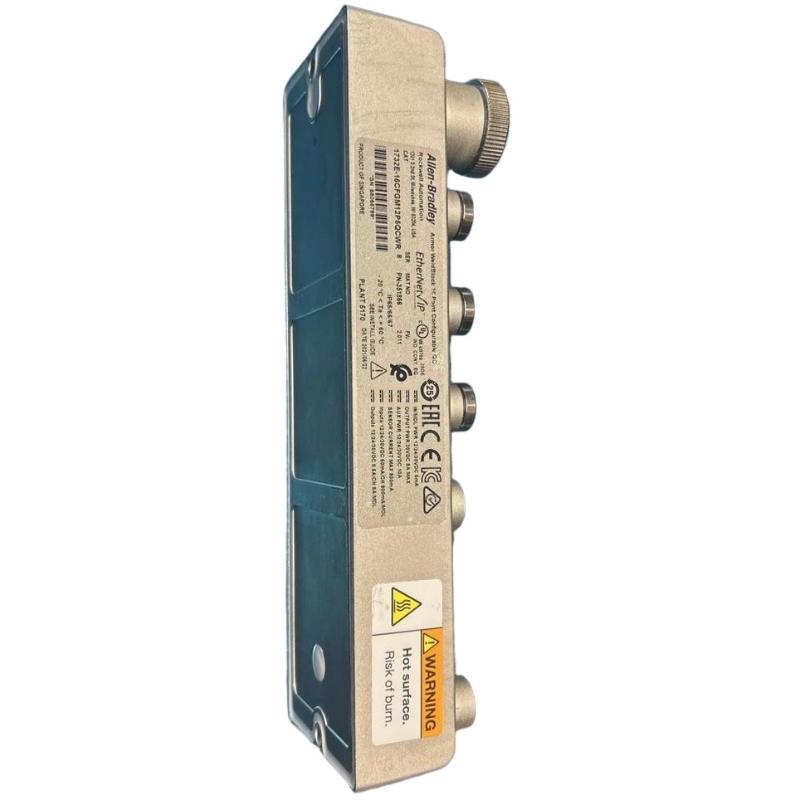

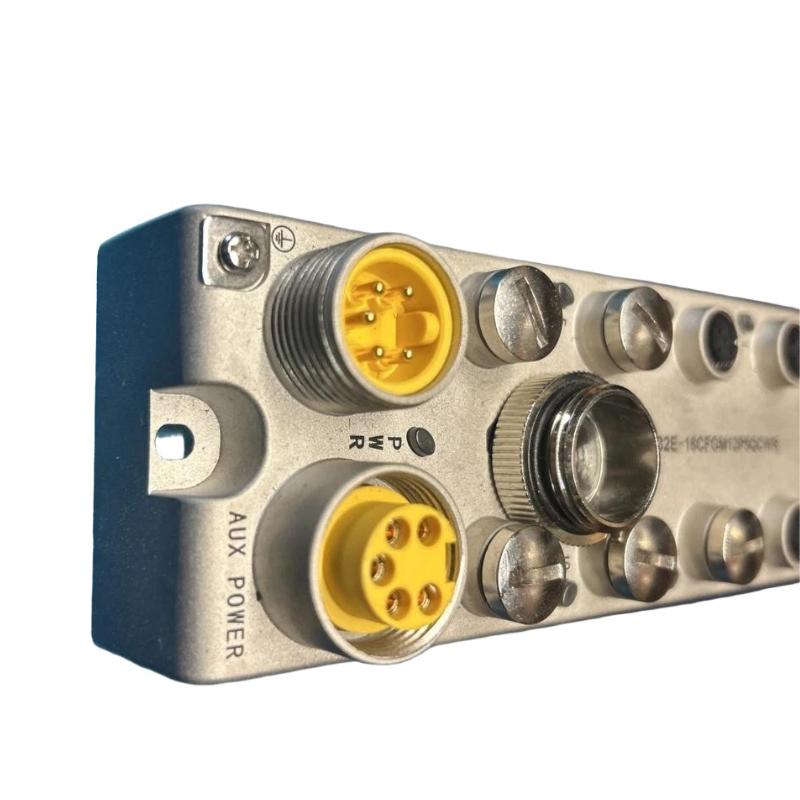

Allen Bradley 1732E-16CFGM12P5QCWR Armor Welded Blocks

Overview

The Allen Bradley 1732E-16CFGM12P5QCWR is a 16-channel Armor I/O module designed for the 1732E Compact I/O system. It provides rugged digital input/output functionality with welded block construction, ensuring durability in harsh industrial environments. The module supports reliable communication, high vibration tolerance, and simplified wiring for efficient installation.

General Information

Part Number: 1732E-16CFGM12P5QCWR

Manufacturer: Allen Bradley

Brand / Country of Origin: Allen Bradley / USA

Series: 1732E Armor I/O Series

Type: Armor Welded Block I/O Module

Mounting: DIN rail or panel mounting within control cabinets

Technology: Ruggedized digital I/O, Armor construction, industrial signal protection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 7 W

Input: Powered via backplane

Protection: Overcurrent, short-circuit, and surge protection

Indicators: LEDs for channel status, module health, and communication

Communication & Interface

Interface: Compact I/O backplane

Channels: 16 digital I/O points

Diagnostics: Channel status monitoring, fault detection, and error reporting

Reset Features: Supports soft reset via PLC software and hardware reset

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP67 (suitable for harsh industrial environments)

Dimensions & Weight

Dimensions (L × W × H): 200 × 60.4 × 45 mm

Weight: ~0.51 kg
