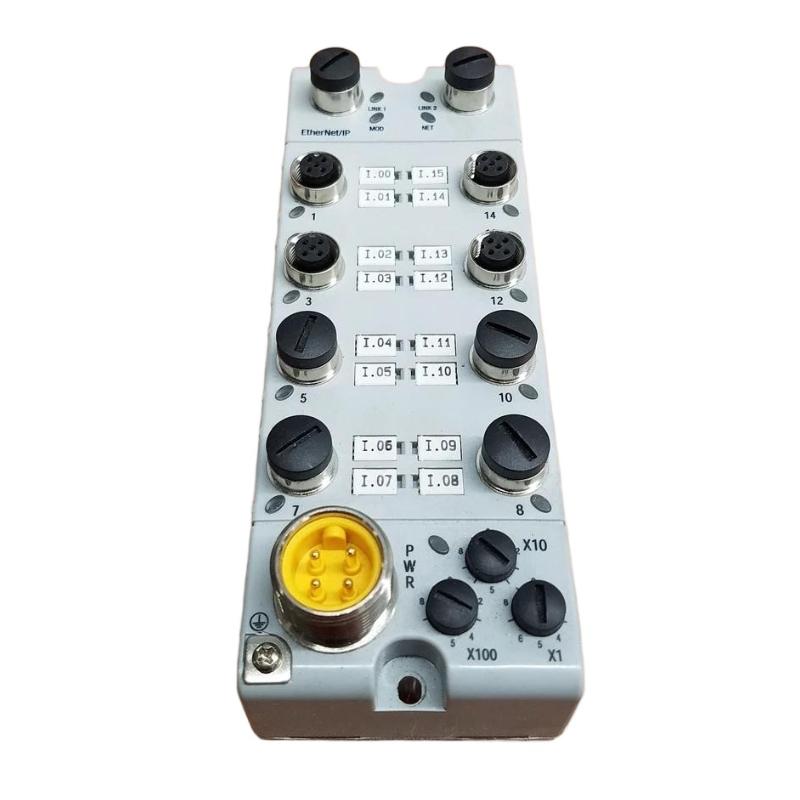

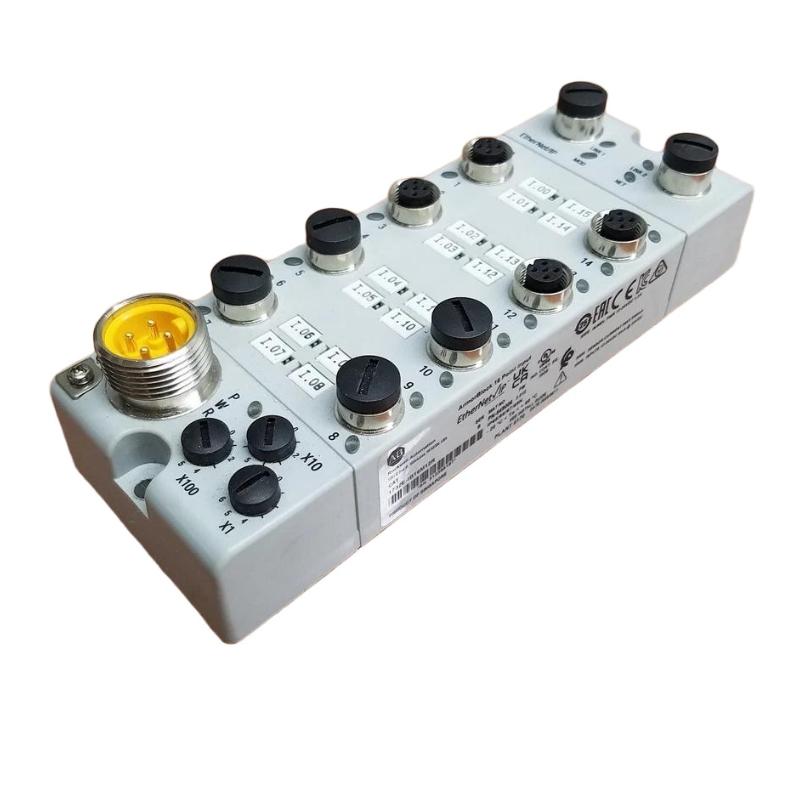

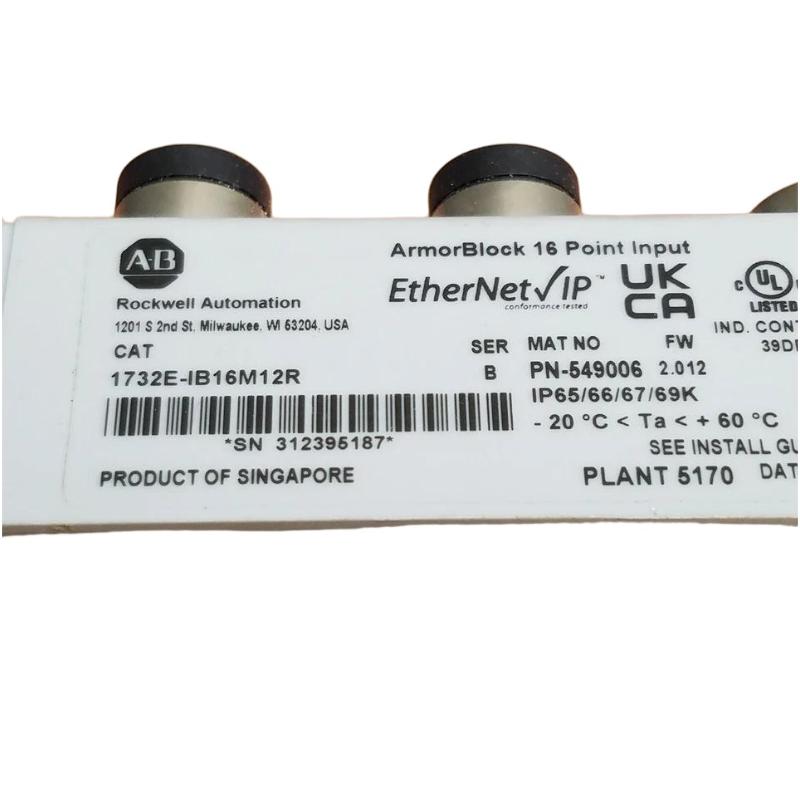

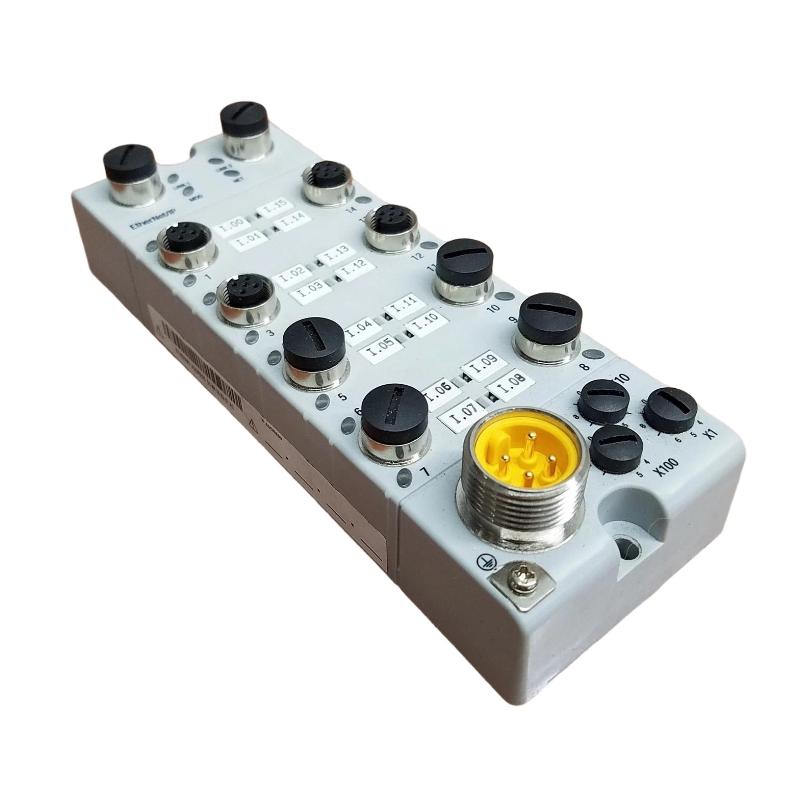

Allen Bradley 1732E-IB16M12R Ethernet/IP ArmorBlock I/O Module

Overview

The Allen Bradley 1732E-IB16M12R is a 16-channel redundant Ethernet/IP ArmorBlock input module designed for the 1732E Compact I/O system. It provides high-speed digital input communication with built-in redundancy, ensuring continuous and reliable data acquisition from field devices in critical industrial applications. The rugged ArmorBlock design guarantees durability in harsh environments.

General Information

Part Number: 1732E-IB16M12R

Manufacturer: Allen Bradley

Brand / Country of Origin: Allen Bradley / USA

Series: 1732E ArmorBlock I/O Series

Type: Redundant Ethernet/IP Digital Input Module

Mounting: DIN rail or panel mounting within control cabinets

Technology: Ruggedized digital I/O, Ethernet/IP network, redundant design for high availability

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via backplane

Protection: Overcurrent, short-circuit, and surge protection

Indicators: LEDs for channel status, redundancy status, network communication, and module health

Communication & Interface

Interface: Ethernet/IP network

Channels: 16 digital input points

Network Diagnostics: Node status, redundancy monitoring, communication errors, and module faults

Reset Features: Supports soft reset via software and hardware reset

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP67, suitable for harsh industrial conditions

Dimensions & Weight

Dimensions (L × W × H): 179 × 65 × 43.25 mm

Weight: ~0.34 kg
