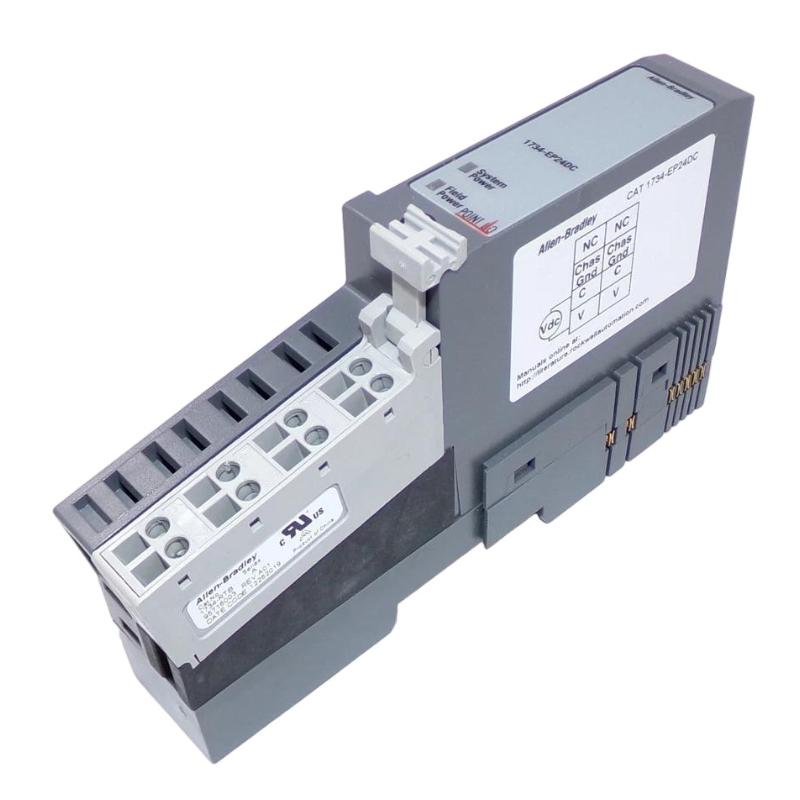

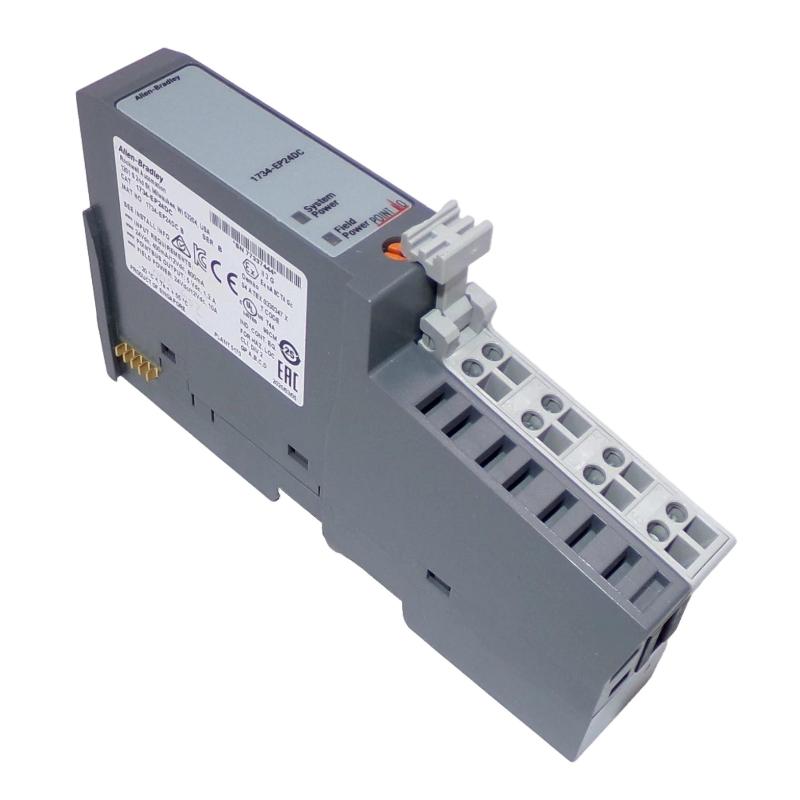

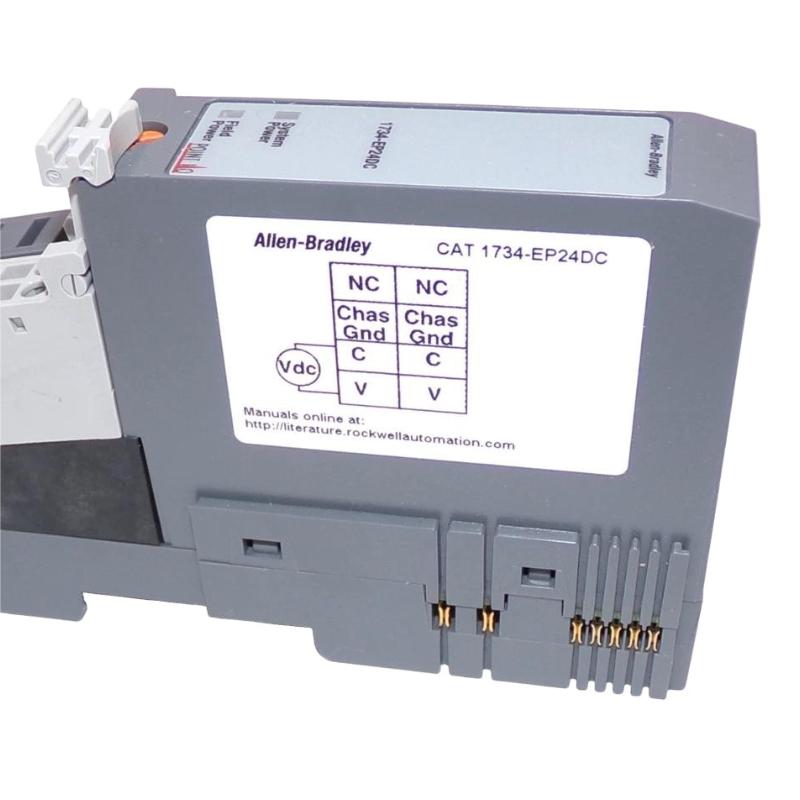

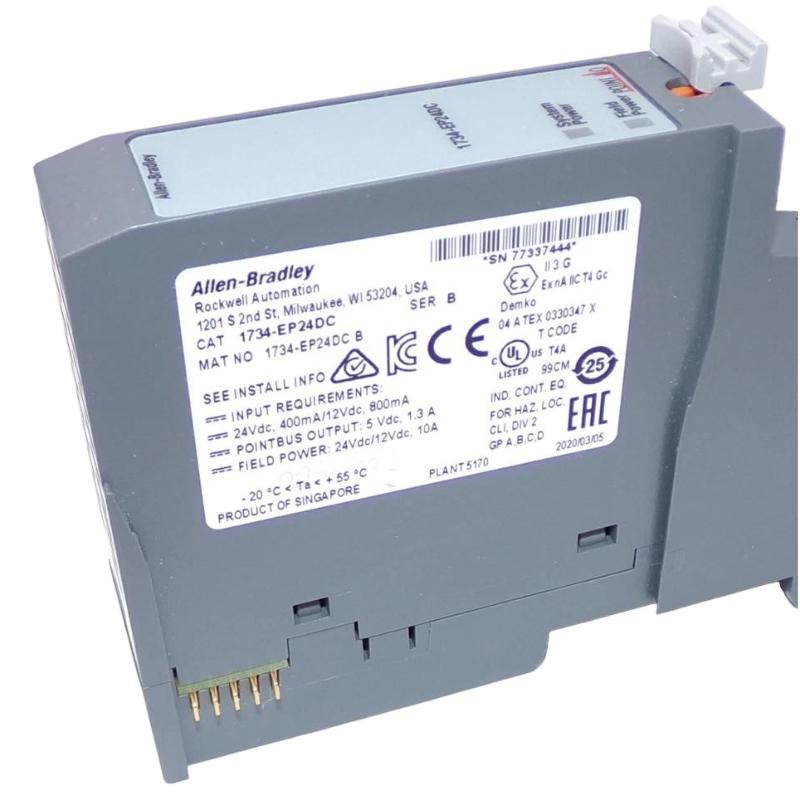

Allen Bradley 1734-EP24DC Point I/O DC Extended Power Supply

Overview

The Allen Bradley 1734-EP24DC is a DC Extended Power Supply for Point I/O systems, providing reliable 24 V DC power to multiple I/O modules. It ensures stable operation under varying loads and supports hot-swappable configurations for minimal system downtime.

General Information

Part Number: 1734-EP24DC

Manufacturer: Allen Bradley / Rockwell Automation

Brand / Country of Origin: Allen Bradley / USA

Series: 1734 Point I/O

Type: DC Extended Power Supply

Mounting: DIN rail or panel installation

Technology: High-efficiency DC power supply, hot-swappable support, short-circuit protection

Power Specifications

Supply Voltage: 24 V DC

Power Output: 24 V DC, up to 2 A

Input: Powered through backplane connection

Protection: Overvoltage, overcurrent, and reverse-polarity protection

Indicators: LEDs for power status

Communication & Interface

Fieldbus Port: Not applicable

Bus Coupler Role: Powers Point I/O modules

Diagnostics: Power status monitoring

Operator Interface: LED indicator for operational status

Reset Features: Supports system-wide power reset

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20

Dimensions & Weight

Dimensions (L × W × H): 133.4 × 25.4 × 76.2 mm

Weight: 0.12 kg
