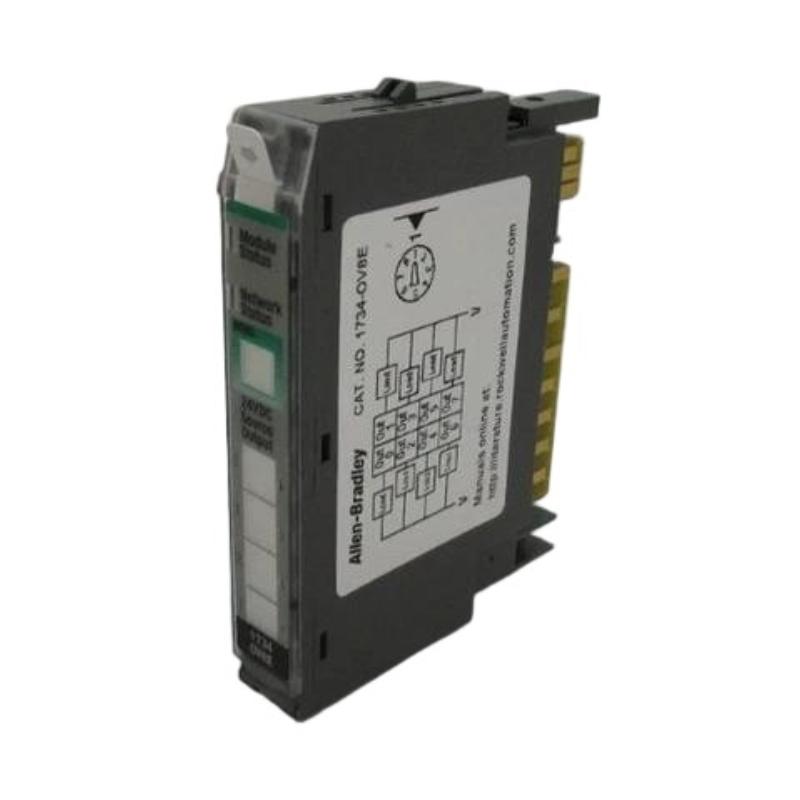

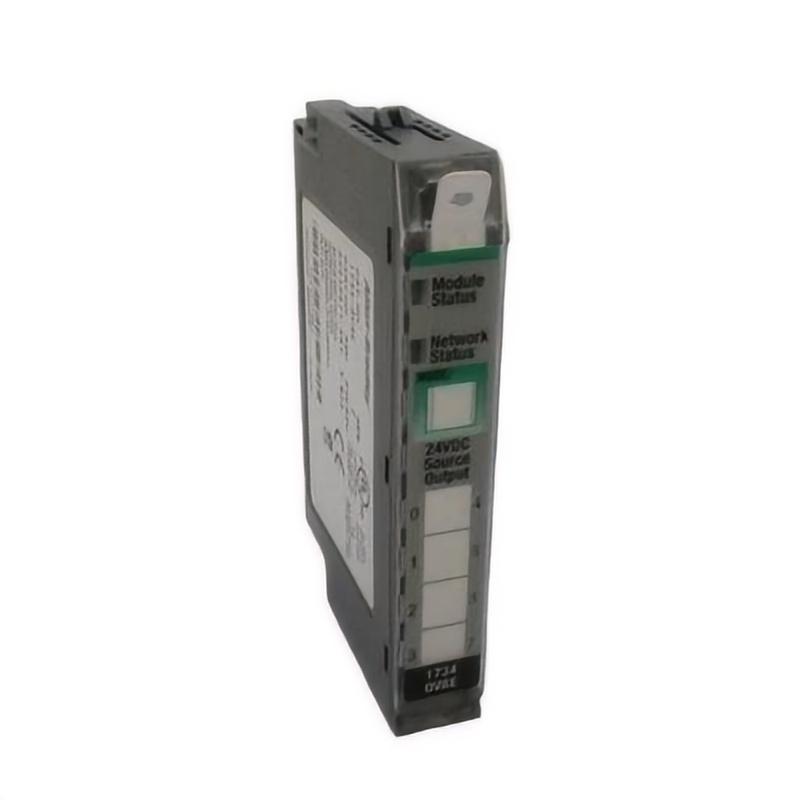

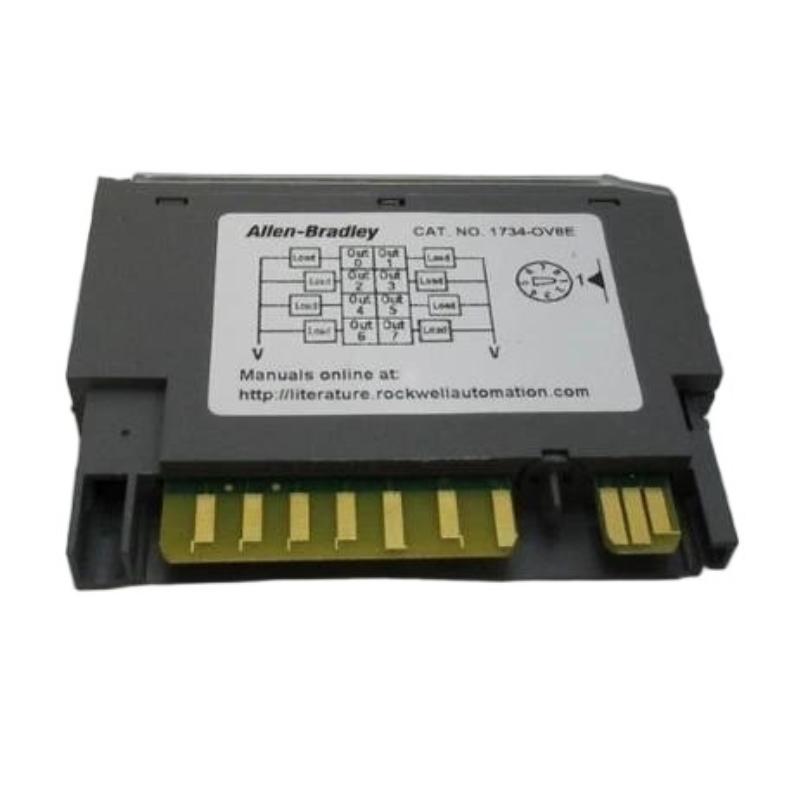

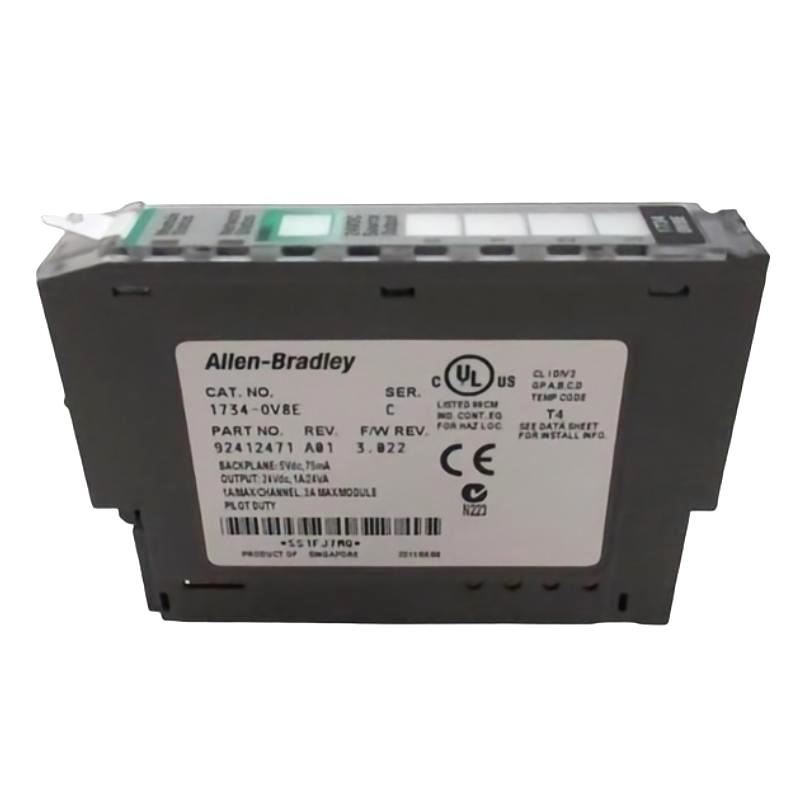

Allen Bradley 1734-OV8E Point I/O 8-Point Digital Output Module

Overview

The Allen Bradley 1734-OV8E is a Point I/O digital output module designed to control eight discrete outputs in industrial automation systems. It provides fast and reliable on/off switching for actuators, relays, and other devices, ensuring precise operation and seamless integration with CompactLogix and other Allen Bradley controllers.

General Information

Part Number: 1734-OV8E

Manufacturer: Allen Bradley

Brand / Country of Origin: Rockwell Automation / USA

Series: Point I/O

Type: 8-Point Digital Output Module

Mounting: DIN rail or standard Point I/O backplane

Technology: Sinking digital output, LED status indication, short-circuit and overload protection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 4 W

Output Protection: Short-circuit and overload protection

Indicators: Status LEDs for each output channel and module health

Communication & Interface

Bus Interface: Point I/O backplane connection

I/O Channels: 8 discrete digital outputs

Output Logic: Sinking

Diagnostics: Channel fault detection and status reporting

Operator Interface: LED indicators for output status and module diagnostics

Reset Features: Supports module reset via software or backplane

Environmental

Operating Temperature: −20 to +70 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20, suitable for industrial enclosure use

Dimensions & Weight

Dimensions (L × W × H): 77.5 × 12.1 × 56.6 mm

Weight: ~0.035 kg
