Allen Bradley 1746-OBP16 SLC 500 Digital DC Output Module

Overview

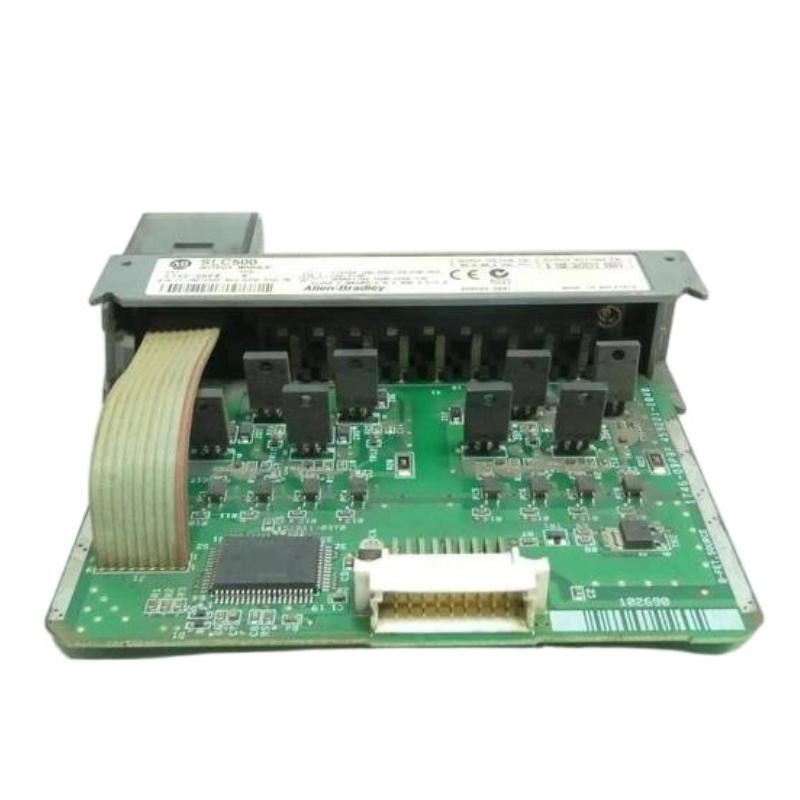

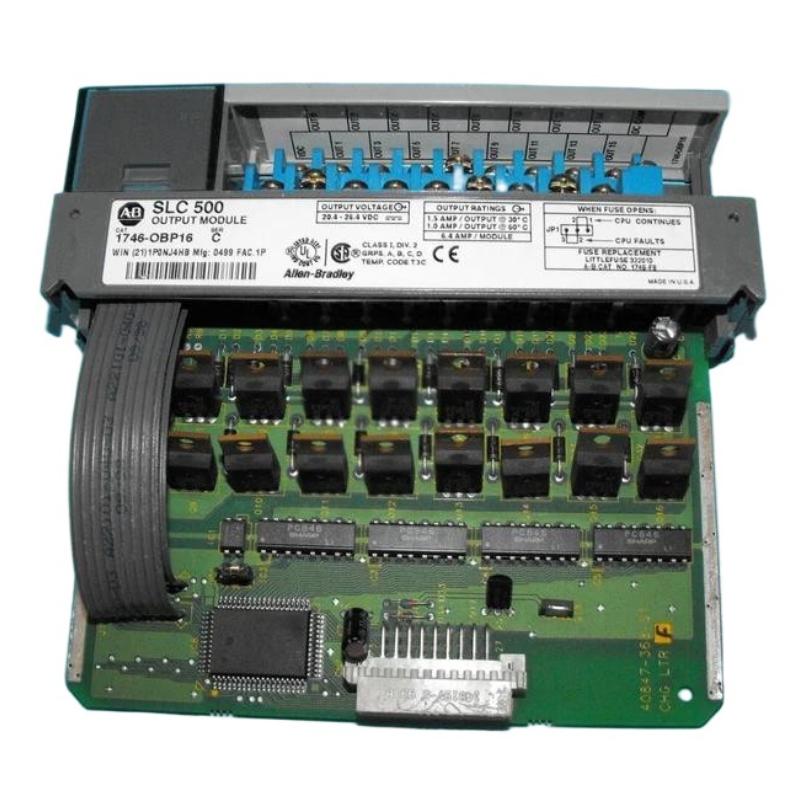

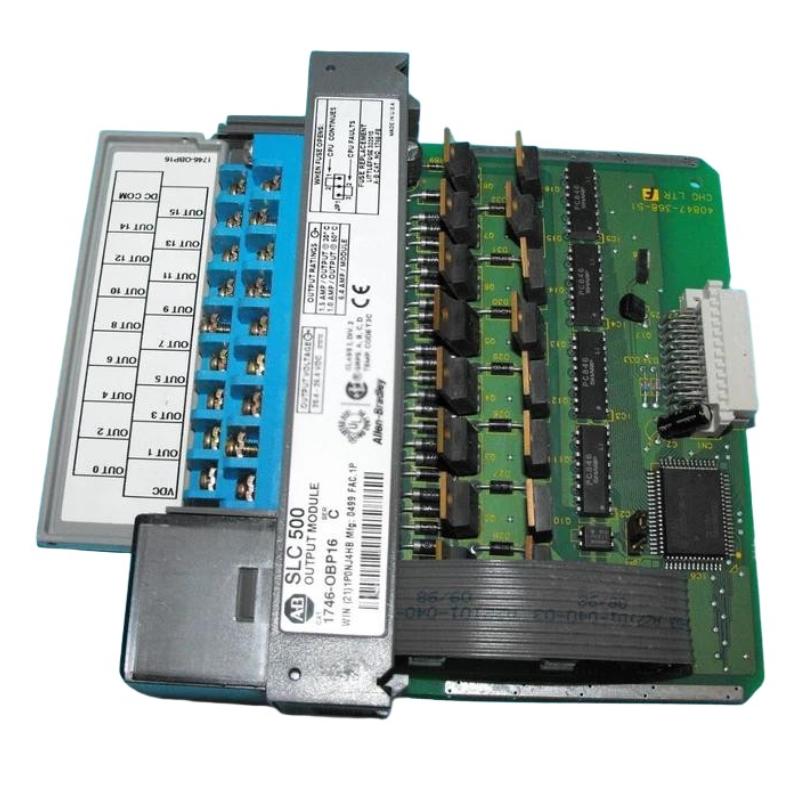

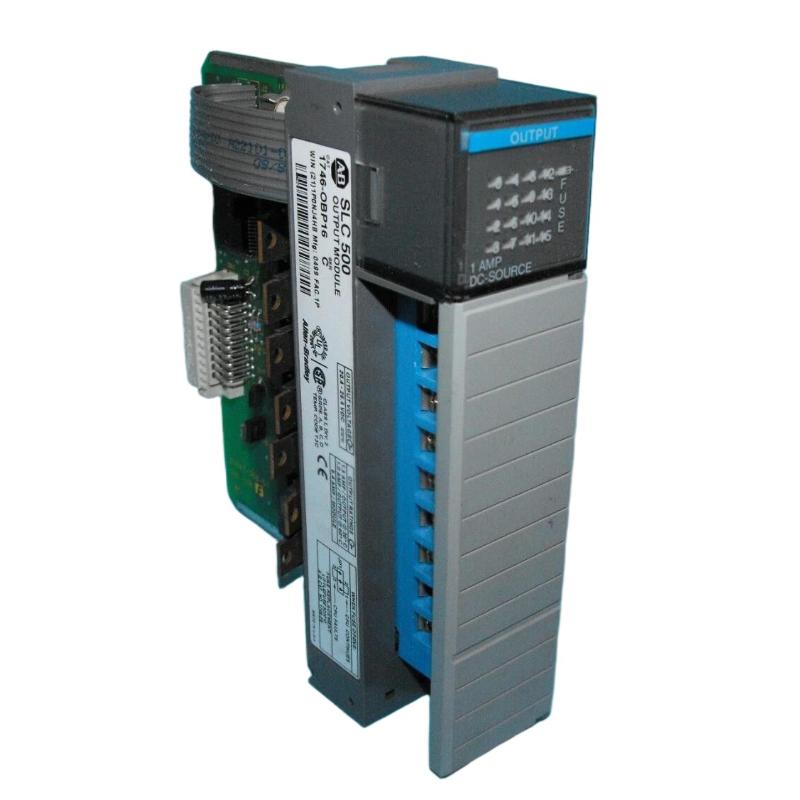

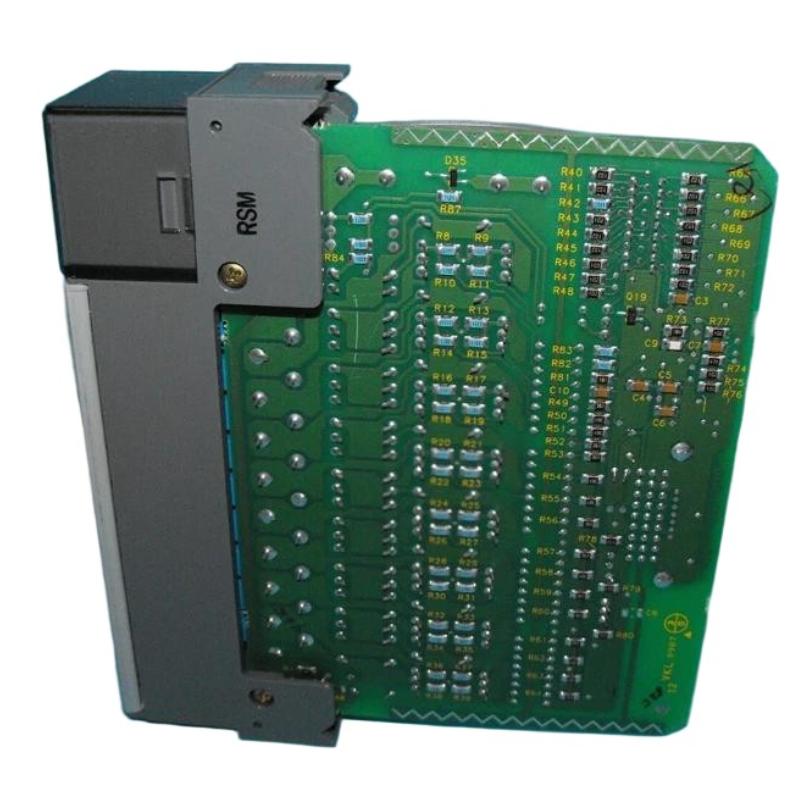

The Allen Bradley 1746-OBP16 is a high-performance digital DC output module developed for the SLC 500 PLC platform. It delivers dependable sourcing output control for industrial automation systems, making it suitable for machine control, manufacturing processes, and automated production environments.

General Information

Part Number: 1746-OBP16

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: SLC 500

Module Type: Digital DC Output Module

Output Configuration: 16-Point PNP Sourcing Output

Application: Industrial automation and discrete signal control

Installation Method: Rack-mounted within SLC 500 chassis

LED Indicators: Individual output status indicators

Power Specifications

Output Voltage Range: 10 to 30 V DC

Nominal Output Voltage: 24 V DC

Backplane Current Consumption: Approx. 0.18 A at 5 V DC

Maximum Current per Output: 0.5 A

Maximum Module Current: 8 A

Isolation Voltage: 1500 V AC

Protection Features: Electronic short-circuit and overload protection

Communication & Interface

Compatible Platform: Allen Bradley SLC 500 PLC systems

Output Channels: 16 digital DC outputs

Connection Type: Removable terminal block

Signal Type: PNP sourcing outputs

Diagnostic Functions: Channel LED monitoring and fault indication

Switching Performance: Fast response for industrial control applications

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Environmental Protection: Suitable for industrial control cabinets

Vibration Resistance: Industrial-grade vibration tolerance

Dimensions & Weight

Dimensions (H × W × D): 144.5 × 34.6 × 130.18 mm

Weight: 0.24 kg

Factory Automation Parts Ready to Ship!
