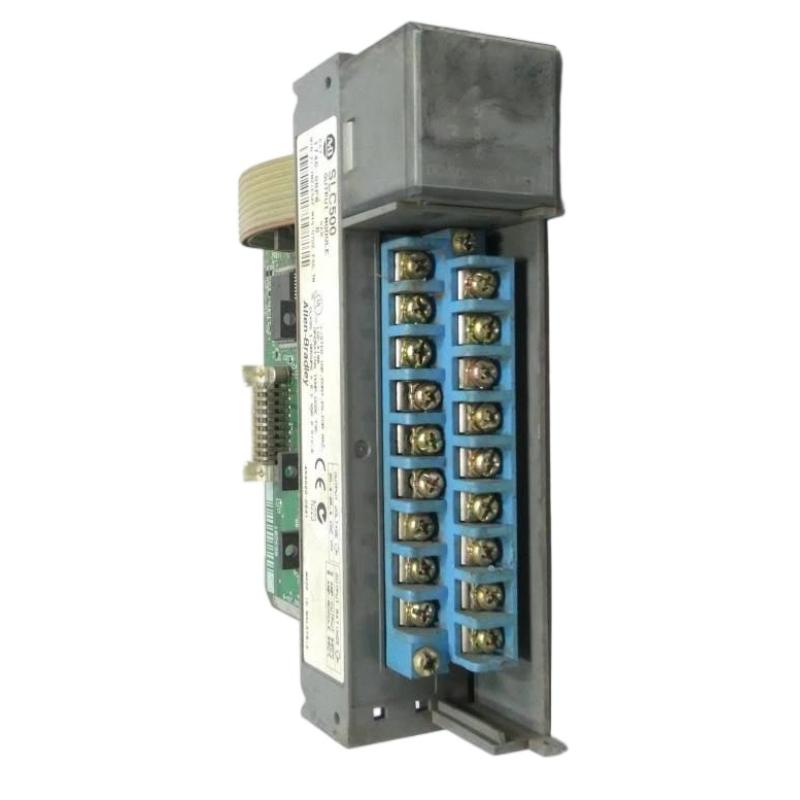

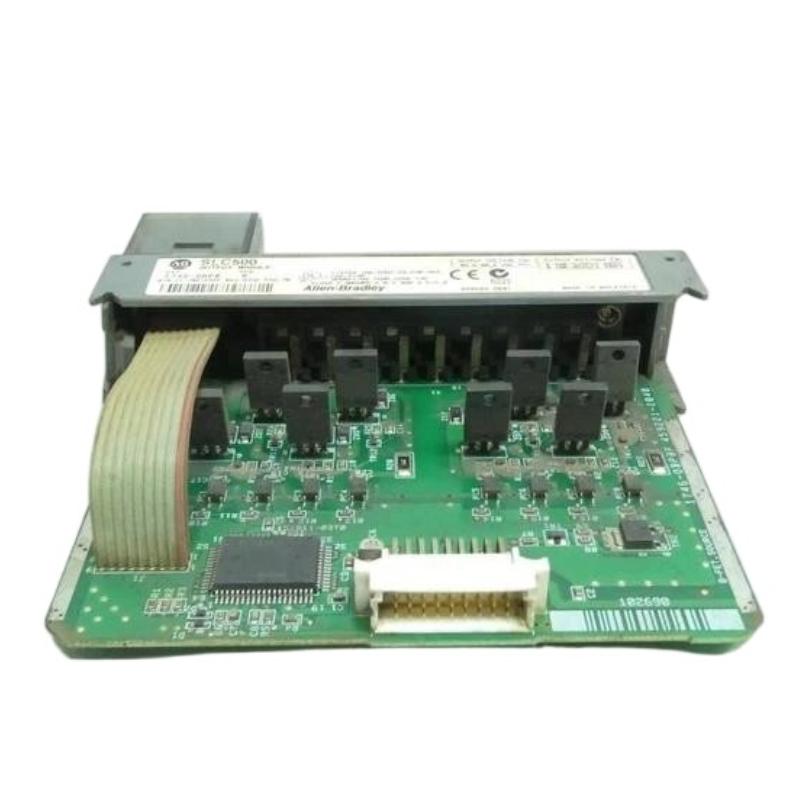

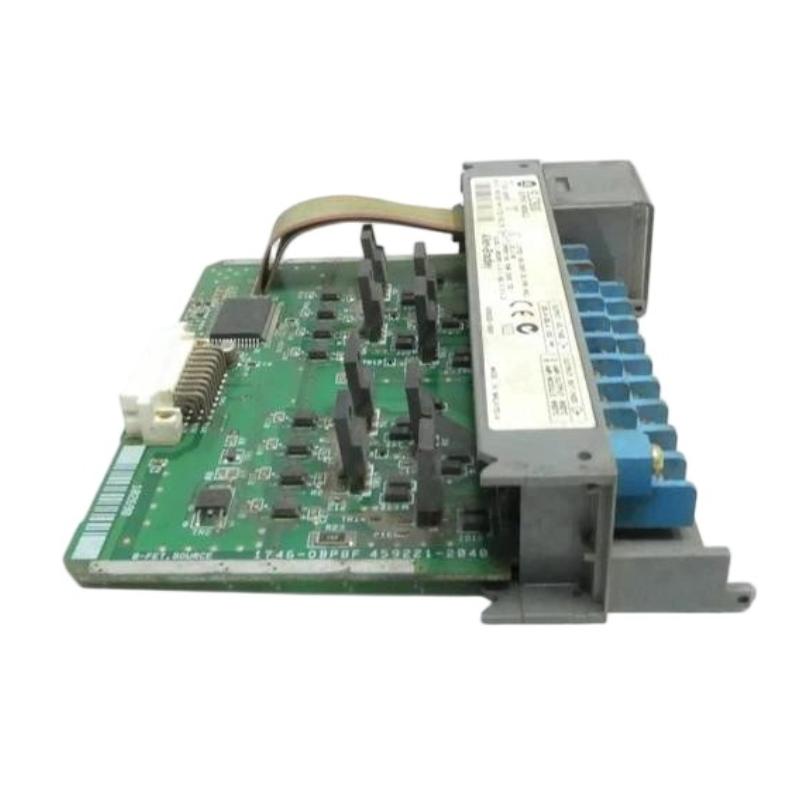

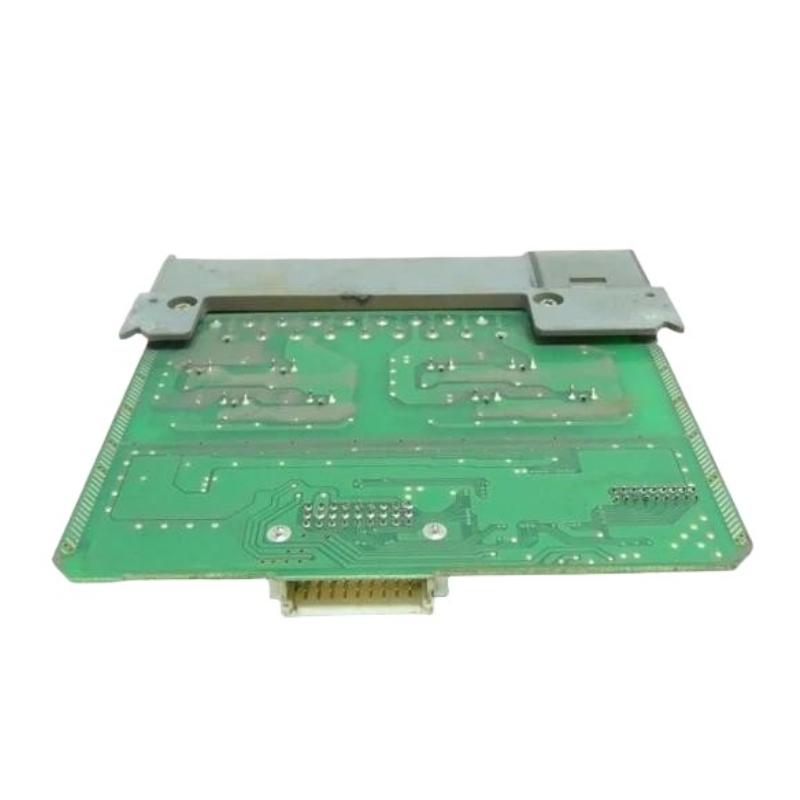

Allen Bradley 1746-OBP8 SLC 500 Digital DC Output Module

Overview

The Allen Bradley 1746-OBP8 is a reliable digital DC output module designed for the SLC 500 programmable controller series. It provides stable sourcing output control for industrial automation systems and is widely used in machine operation, production lines, and process control applications.

General Information

Part Number: 1746-OBP8

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: SLC 500

Module Type: Digital DC Output Module

Output Configuration: 8-Point PNP Sourcing Output

Application: Industrial automation and discrete DC output control

Mounting Method: Rack-mounted installation in SLC 500 chassis

Status Indicators: Individual LED channel indicators

Power Specifications

Output Voltage Range: 10 to 30 V DC

Nominal Output Voltage: 24 V DC

Backplane Current Consumption: Approx. 0.13 A at 5 V DC

Maximum Current per Output: 1 A

Maximum Module Current: 8 A

Isolation Voltage: 1500 V AC

Protection Features: Built-in overload and short-circuit protection

Communication & Interface

Compatible Systems: Allen Bradley SLC 500 PLC platforms

Output Channels: 8 digital DC outputs

Connection Type: Removable terminal block

Signal Type: PNP sourcing outputs

Diagnostic Features: LED status monitoring for each output point

Response Time: Fast switching response for industrial automation

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: Designed for industrial cabinet environments

Shock & Vibration Resistance: Industrial-grade durability

Dimensions & Weight

Dimensions (H × W × D): 144.5 × 34.6 × 130.18 mm

Weight: 0.45 kg
