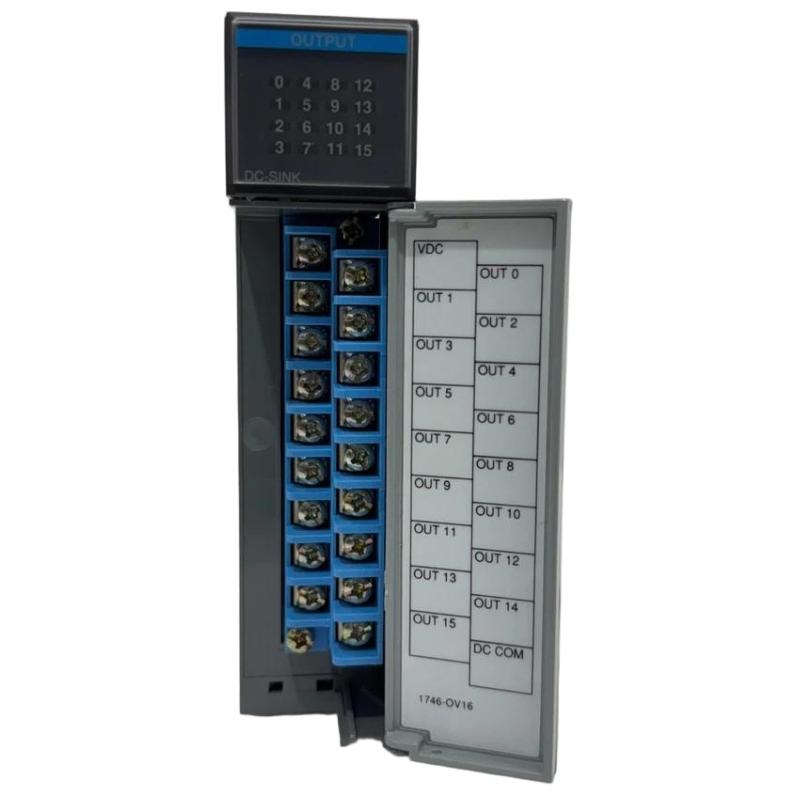

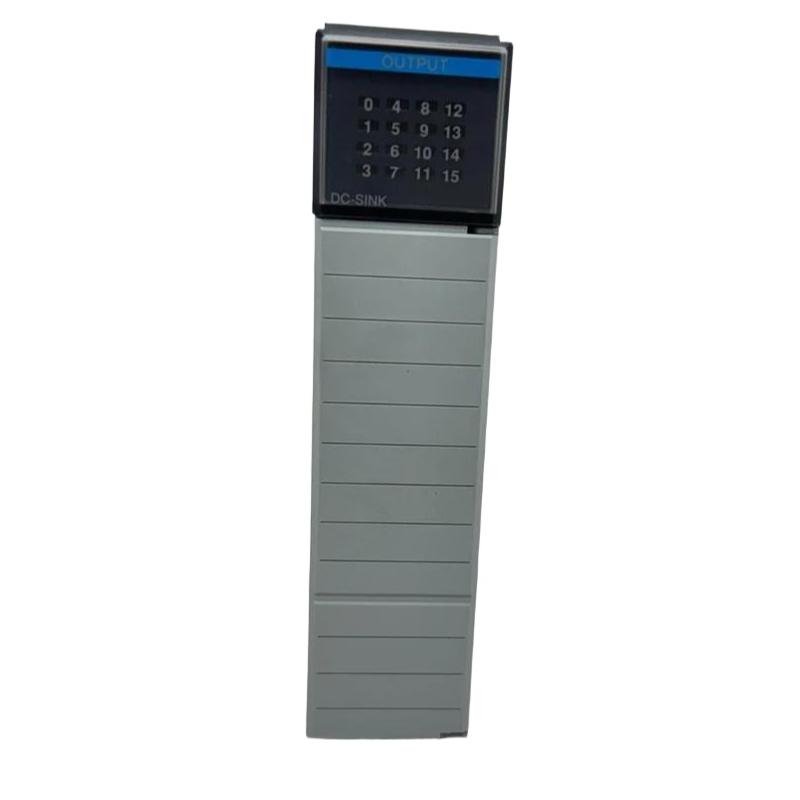

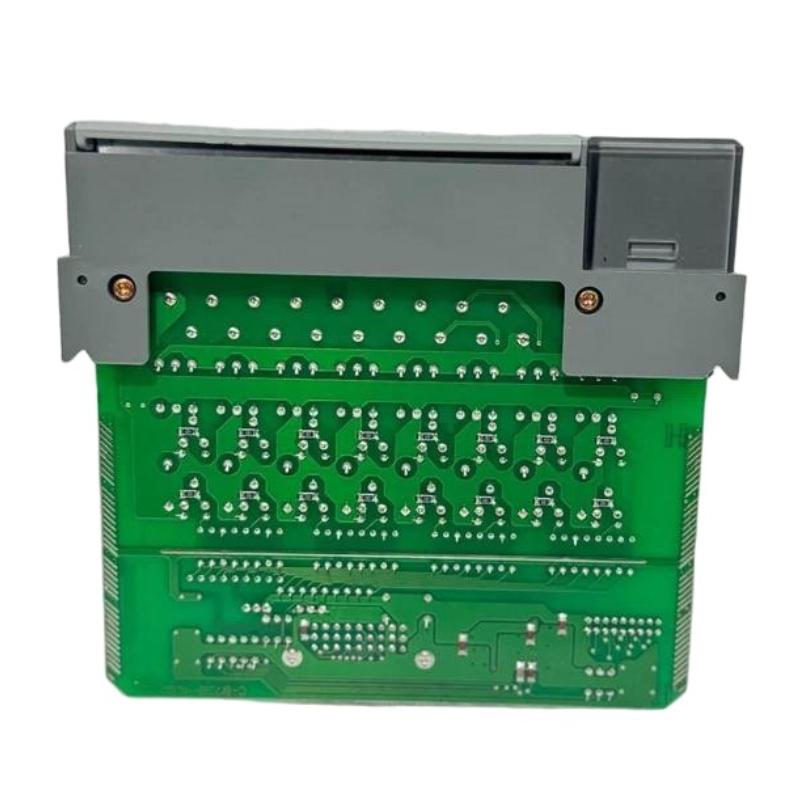

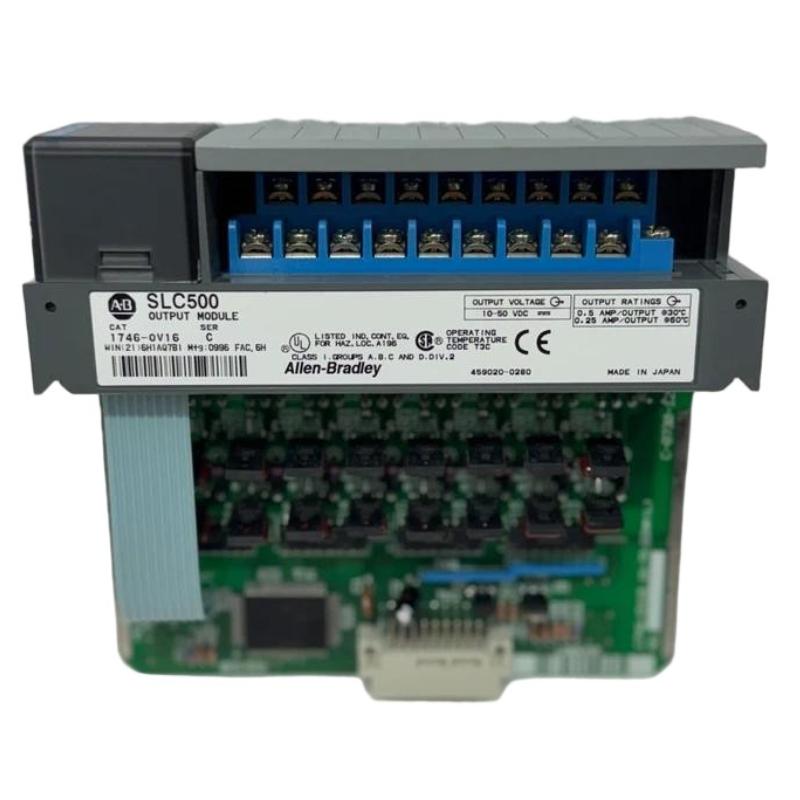

Allen Bradley 1746-OV16 SLC 500 Digital Output Module

Overview

The Allen Bradley 1746-OV16 is a high-performance digital output module designed for the SLC 500 PLC platform. It provides reliable DC output control for industrial automation systems and is widely used in machine automation, process control, and factory applications.

General Information

Part Number: 1746-OV16

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: SLC 500

Module Type: Digital Output Module

Output Configuration: 16-Point DC Output

Application: Industrial automation and discrete output control

Mounting Method: Rack-mounted installation within SLC 500 chassis

Status Indicators: Individual LED channel indicators

Power Specifications

Output Voltage Range: 10 to 50 V DC

Nominal Output Voltage: 24 V DC

Backplane Current Consumption: Approx. 0.27 A at 5 V DC

Maximum Current per Output: 0.5 A

Maximum Module Current: 8 A

Isolation Voltage: 1500 V AC

Protection Features: Electronic overload and short-circuit protection

Communication & Interface

Compatible Controllers: Allen Bradley SLC 500 PLC systems

Output Channels: 16 digital DC outputs

Connection Type: Removable terminal block

Signal Type: Sinking DC outputs

Diagnostic Functions: LED output status monitoring

Switching Speed: Fast response for industrial control applications

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: Suitable for industrial cabinet installation

Shock & Vibration Resistance: Industrial-grade durability

Dimensions & Weight

Dimensions (H × W × D): 144.5 × 34.6 × 130.18 mm

Weight: 0.16 kg
