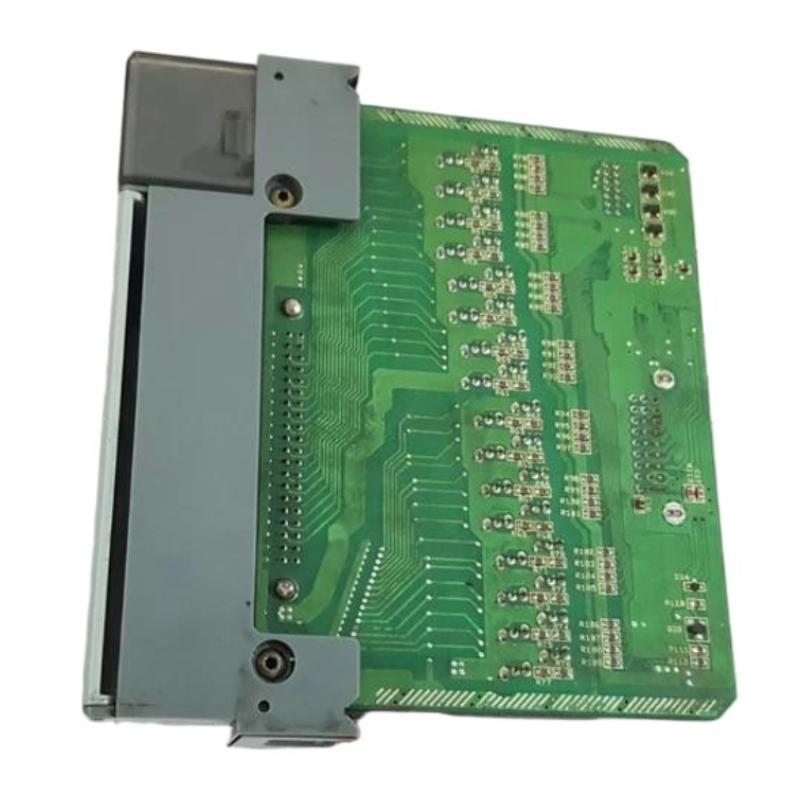

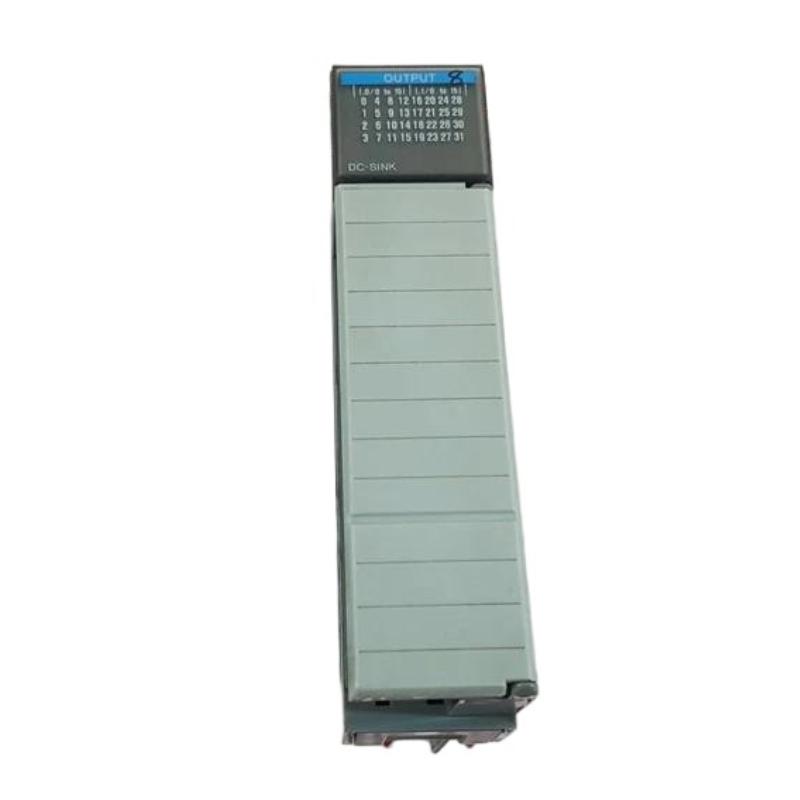

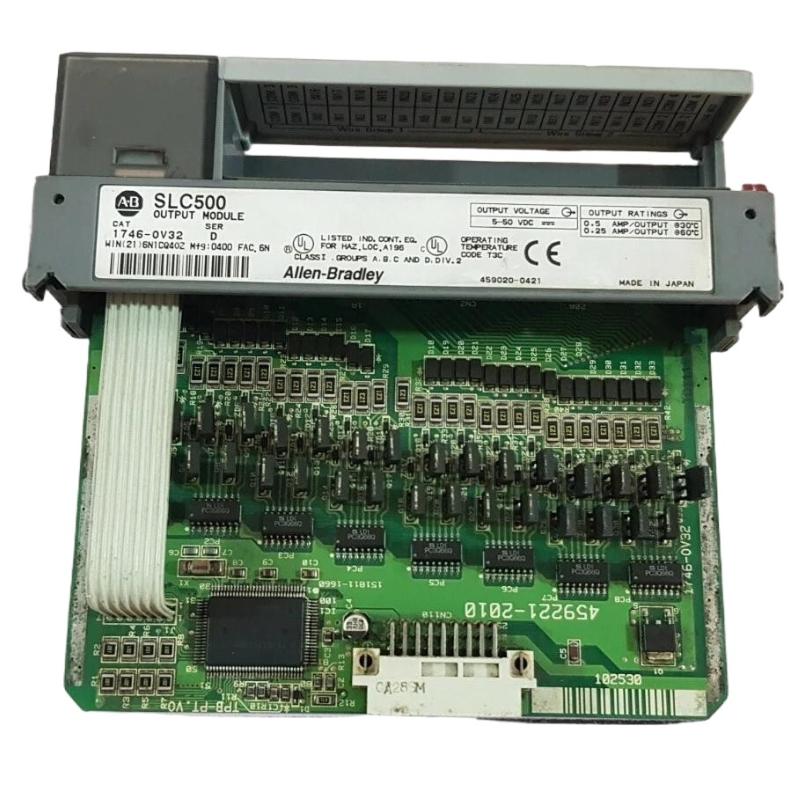

Allen Bradley 1746-OV32 SLC 500 Digital Output Module

Overview

The Allen Bradley 1746-OV32 is a digital DC output module developed for the SLC 500 PLC series. It provides efficient and reliable output switching for industrial automation systems, making it suitable for machine control, assembly lines, and process automation applications.

General Information

Part Number: 1746-OV32

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: SLC 500

Module Type: Digital Output Module

Output Configuration: 32-Point DC Output

Application: Industrial automation and discrete output control

Installation Method: Rack-mounted within SLC 500 chassis

Status Indicators: Individual LED status indicators

Power Specifications

Output Voltage Range: 10 to 50 V DC

Nominal Output Voltage: 24 V DC

Backplane Current Consumption: Approx. 0.32 A at 5 V DC

Maximum Current per Output: 0.5 A

Maximum Module Current: 8 A

Isolation Voltage: 1500 V AC

Protection Features: Built-in overload and short-circuit protection

Communication & Interface

Compatible Platform: Allen Bradley SLC 500 PLC systems

Output Channels: 32 digital DC outputs

Connection Type: Removable terminal block interface

Signal Type: Sinking DC outputs

Diagnostic Features: LED channel monitoring and status indication

Response Time: Fast switching response for automation control

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: Suitable for industrial cabinet environments

Vibration Resistance: Industrial-grade construction for harsh conditions

Dimensions & Weight

Dimensions (H × W × D): 144.5 × 34.6 × 130.18 mm

Weight: 0.231 kg
