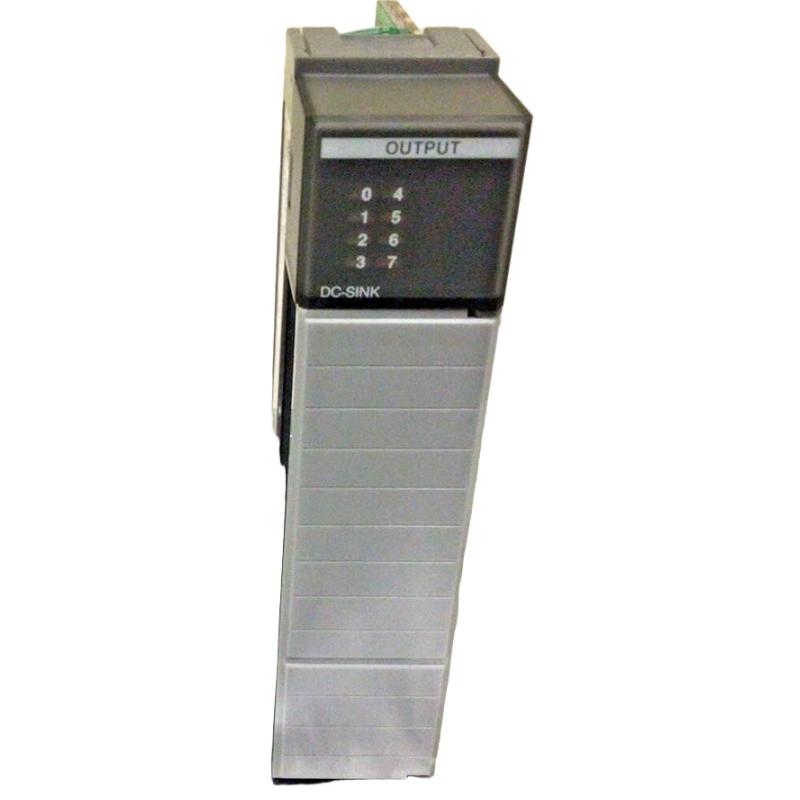

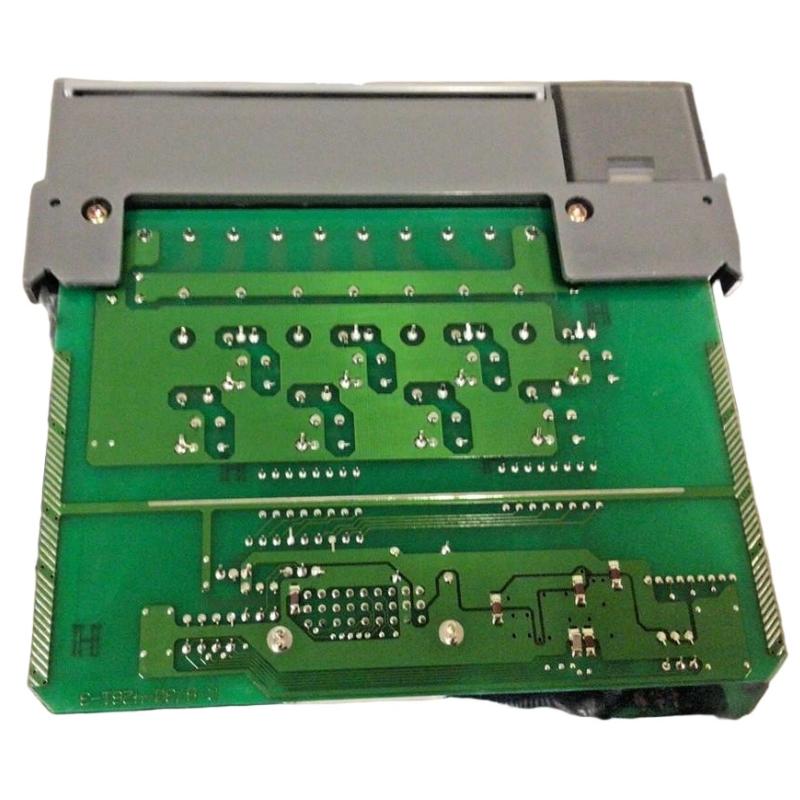

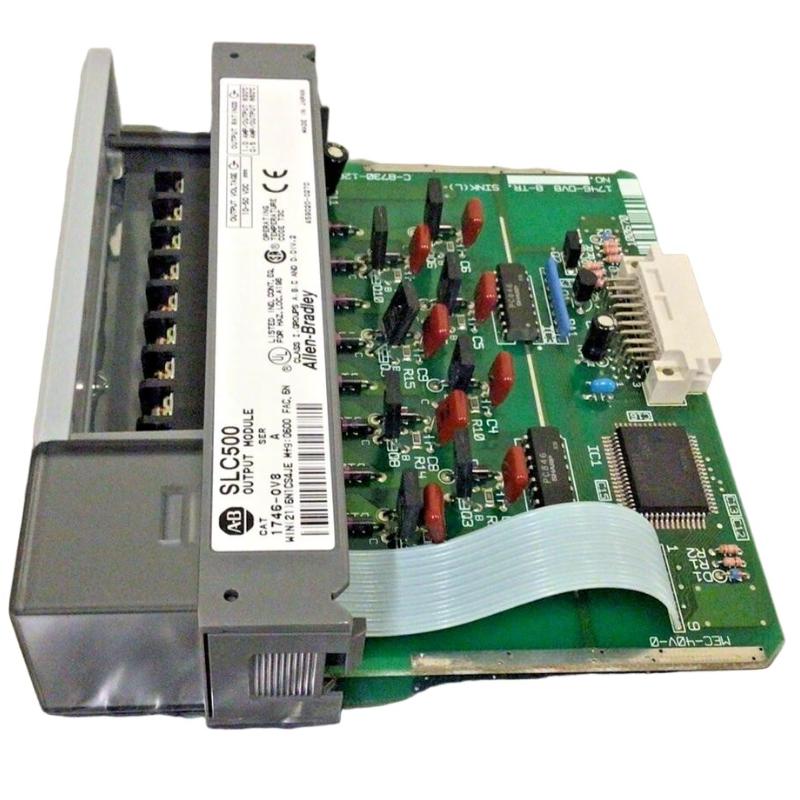

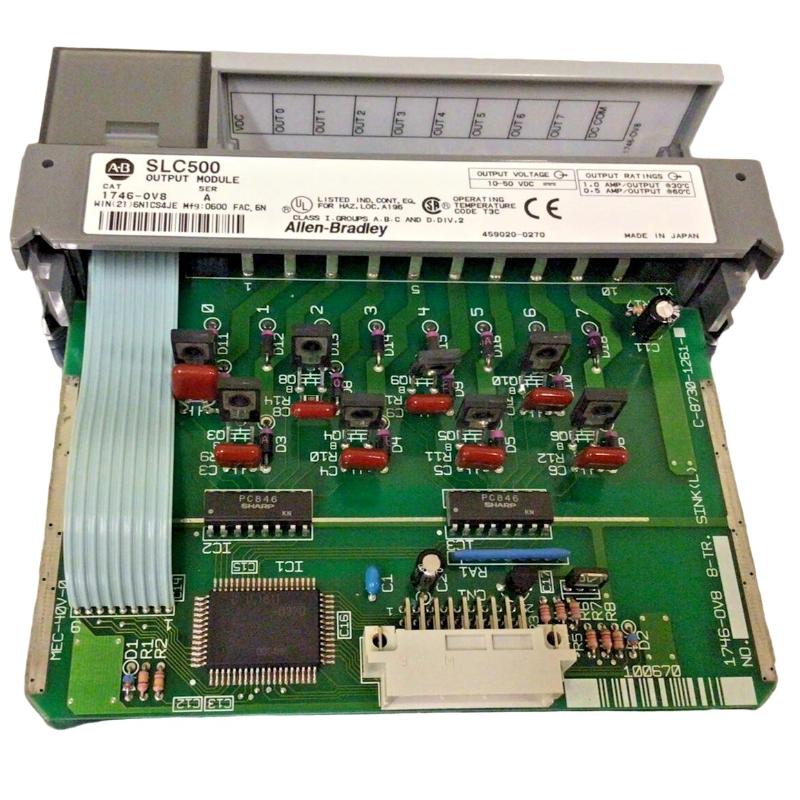

Allen Bradley 1746-OV8 SLC 500 Digital Output Module

Overview

The Allen Bradley 1746-OV8 is a compact digital DC output module designed for the SLC 500 PLC series. It delivers stable and efficient output control for industrial automation systems and is commonly used in machinery operation, manufacturing equipment, and process control applications.

General Information

Part Number: 1746-OV8

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: SLC 500

Module Type: Digital Output Module

Output Configuration: 8-Point DC Output

Application: Industrial automation and discrete output control

Installation Method: Rack-mounted within SLC 500 chassis

Status Indicators: Individual LED output indicators

Power Specifications

Output Voltage Range: 10 to 50 V DC

Nominal Output Voltage: 24 V DC

Backplane Current Consumption: Approx. 0.18 A at 5 V DC

Maximum Current per Output: 2 A

Maximum Module Current: 8 A

Isolation Voltage: 1500 V AC

Protection Features: Electronic overload and short-circuit protection

Communication & Interface

Compatible Controllers: Allen Bradley SLC 500 PLC systems

Output Channels: 8 digital DC outputs

Connection Type: Removable terminal block interface

Signal Type: Sinking DC outputs

Diagnostic Features: LED status indication for each output channel

Response Time: Fast switching for industrial automation processes

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: Designed for industrial cabinet environments

Shock & Vibration Resistance: Industrial-grade durability

Dimensions & Weight

Dimensions (H × W × D): 144.5 × 34.6 × 130.18 mm

Weight: 0.16 kg
