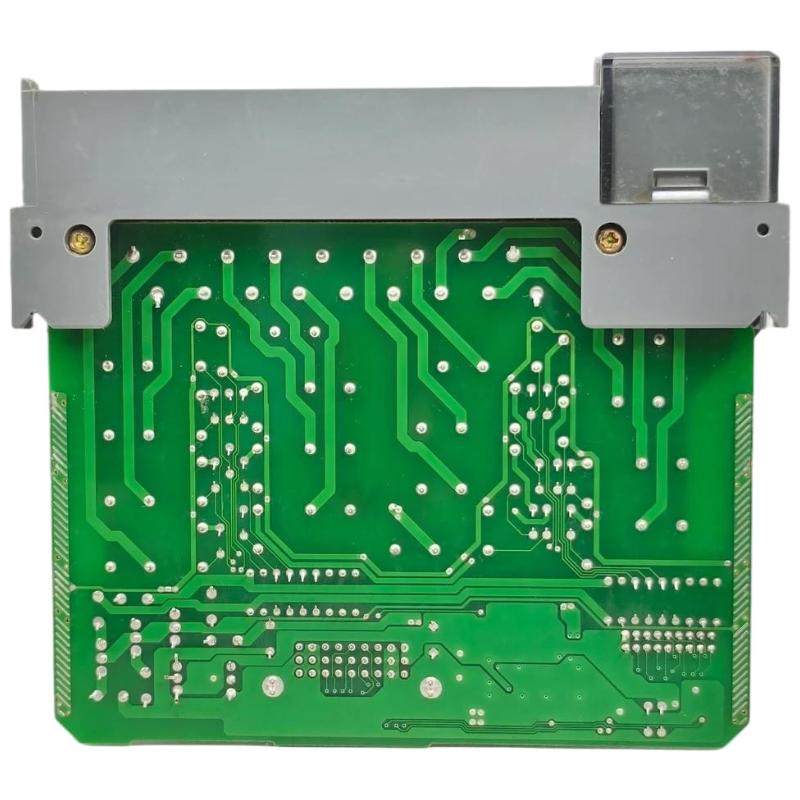

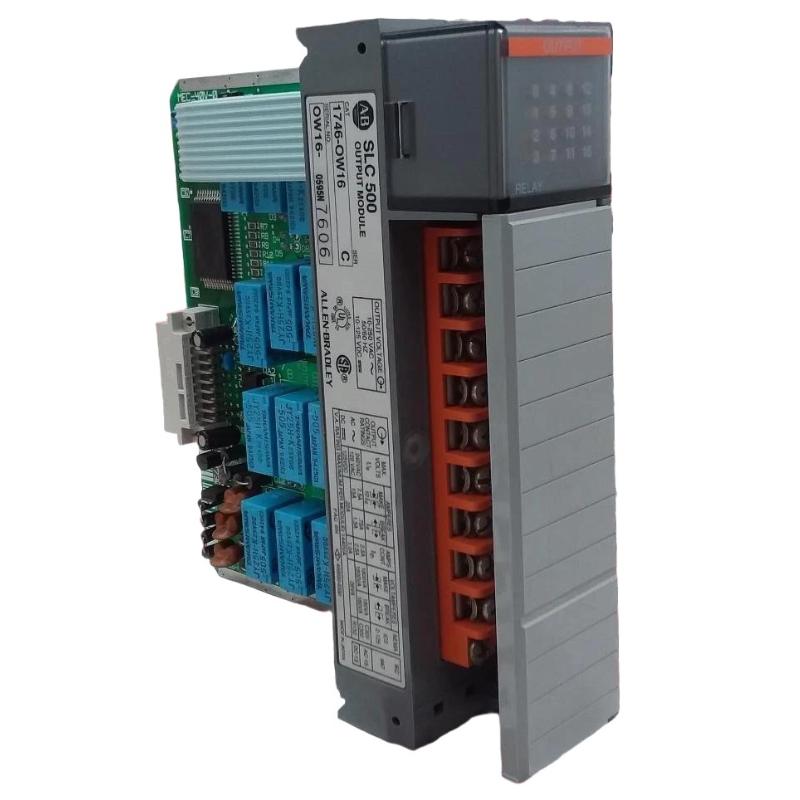

Allen Bradley 1746-OW16 SLC 500 Digital Output Module

Overview

The Allen Bradley 1746-OW16 is a digital relay output module designed for the SLC 500 PLC platform. It provides dependable switching performance for industrial automation systems and is suitable for controlling various AC and DC loads in manufacturing and process control applications.

General Information

Part Number: 1746-OW16

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: SLC 500

Module Type: Digital Relay Output Module

Output Configuration: 16-Point Relay Output

Application: Industrial automation and load switching control

Installation Method: Rack-mounted within SLC 500 chassis

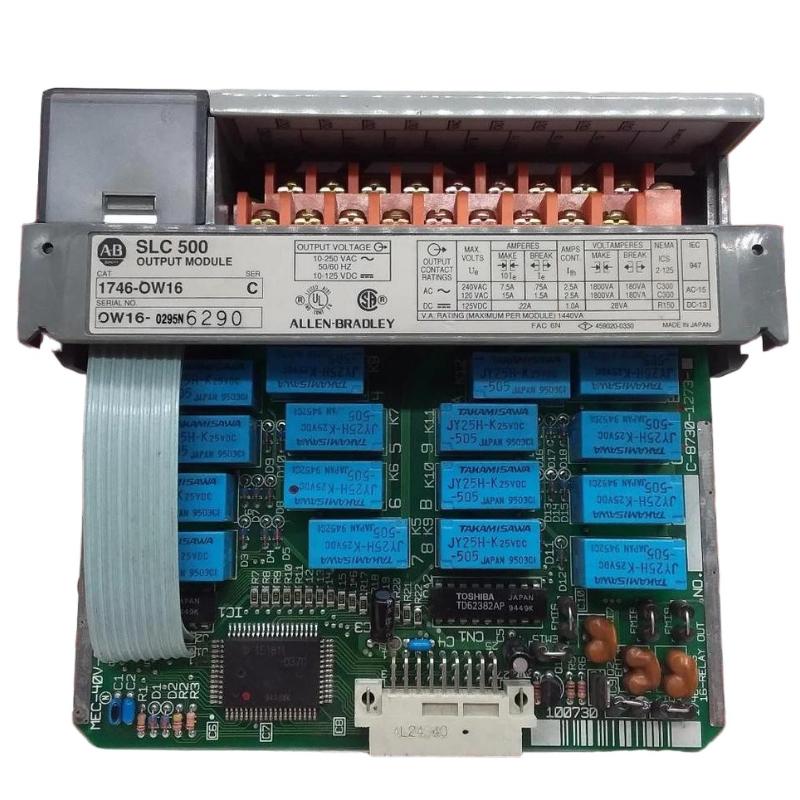

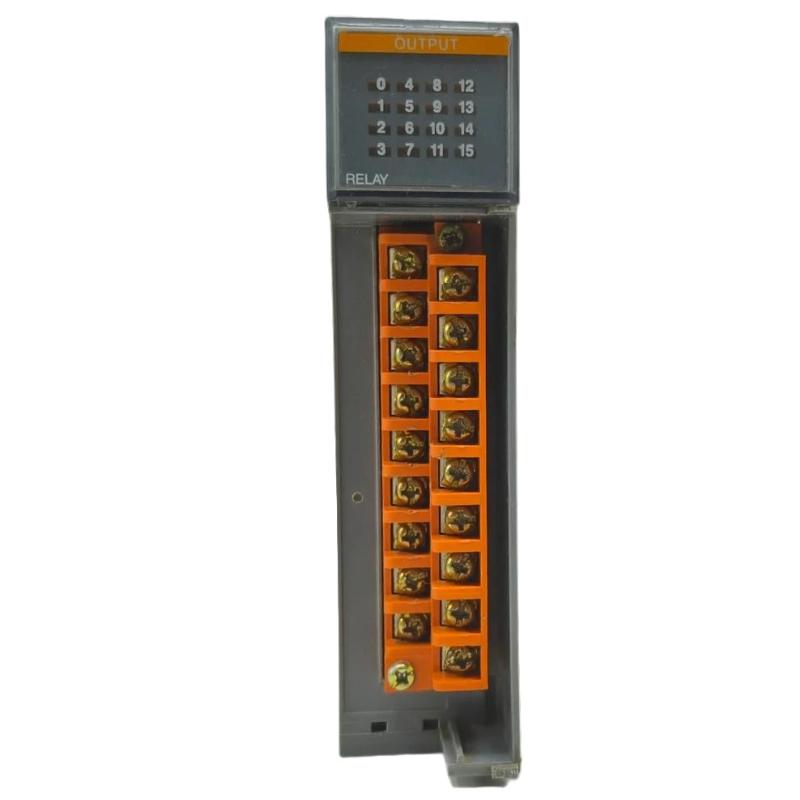

Status Indicators: Individual LED output status indicators

Power Specifications

Output Voltage Range: 5 to 265 V AC/DC

Backplane Current Consumption: Approx. 0.28 A at 5 V DC

Maximum Current per Output: 2 A

Maximum Module Current: 8 A

Relay Type: Electromechanical relay outputs

Isolation Voltage: 1500 V AC

Protection Features: Built-in relay isolation and overload protection

Communication & Interface

Compatible Platform: Allen Bradley SLC 500 PLC systems

Output Channels: 16 relay outputs

Connection Type: Removable terminal block interface

Signal Type: Relay contact outputs

Diagnostic Features: LED channel status indication

Switching Performance: Reliable relay switching for industrial loads

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: Suitable for industrial control cabinet installation

Vibration Resistance: Designed for harsh industrial environments

Dimensions & Weight

Dimensions (H × W × D): 144.5 × 34.6 × 130.18 mm

Weight: 0.29 kg
