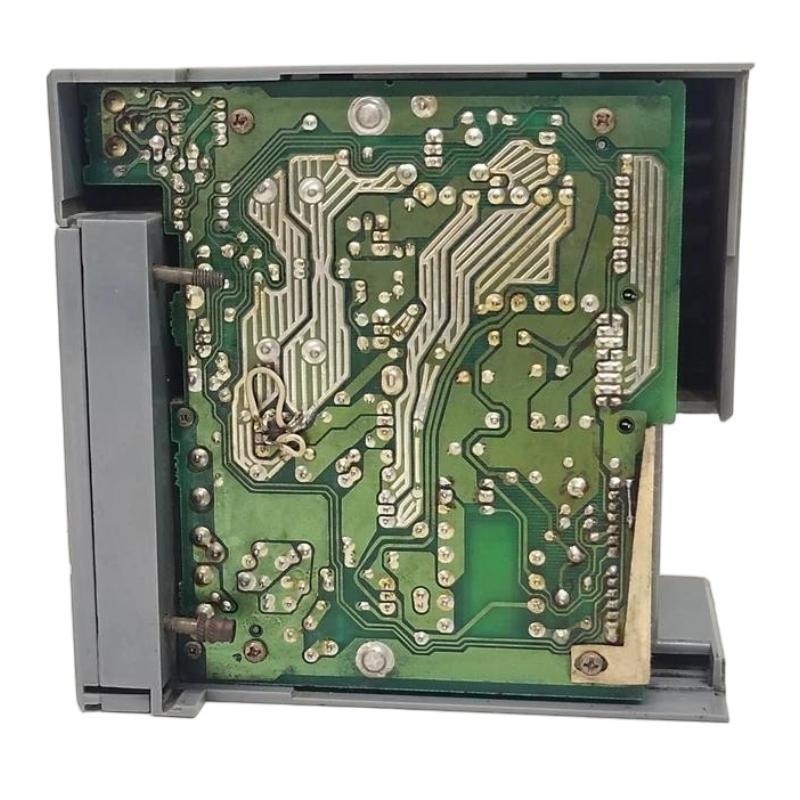

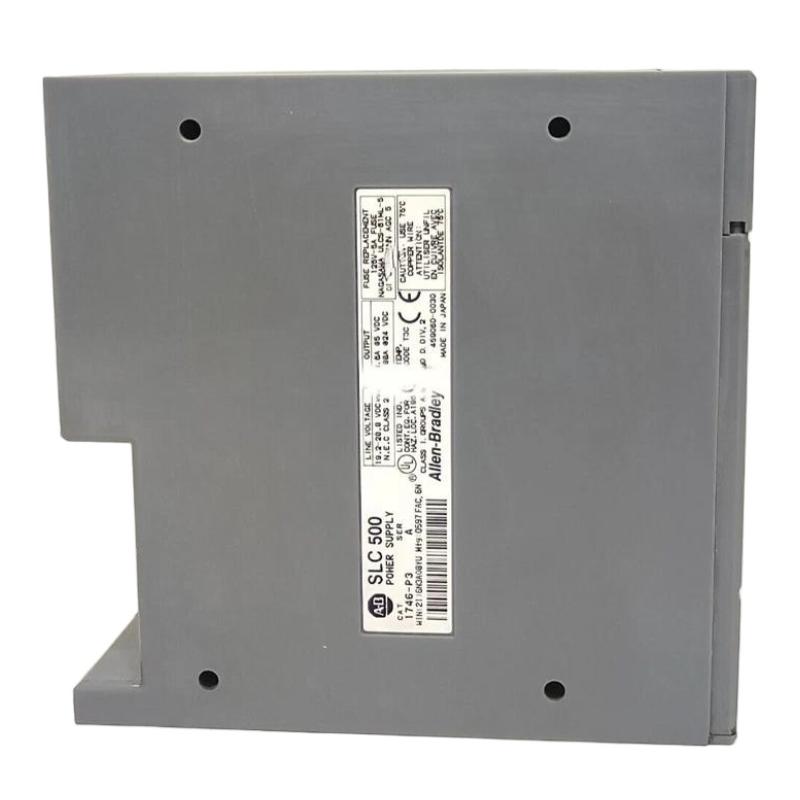

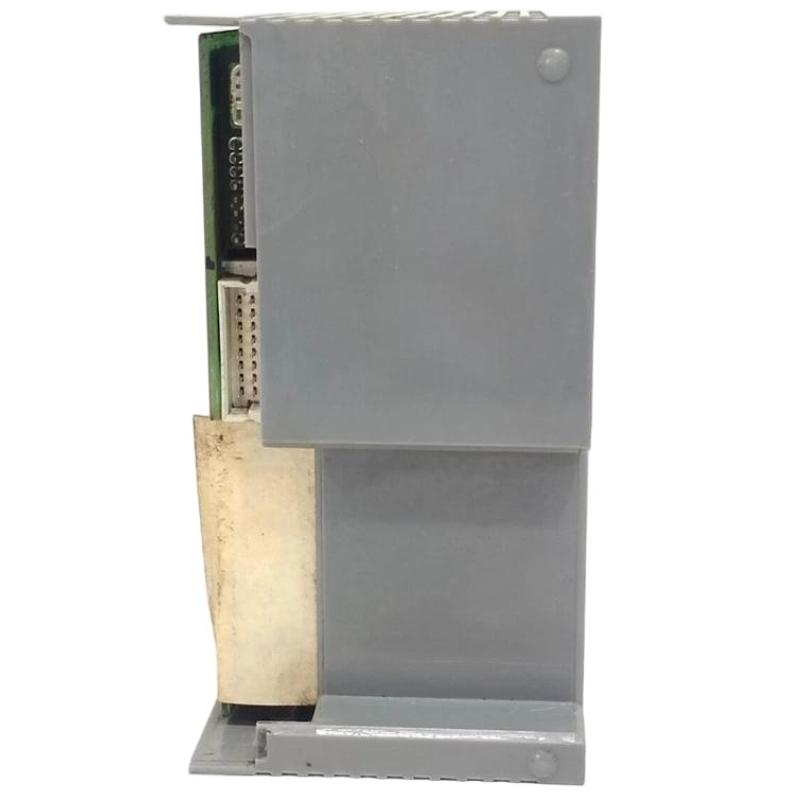

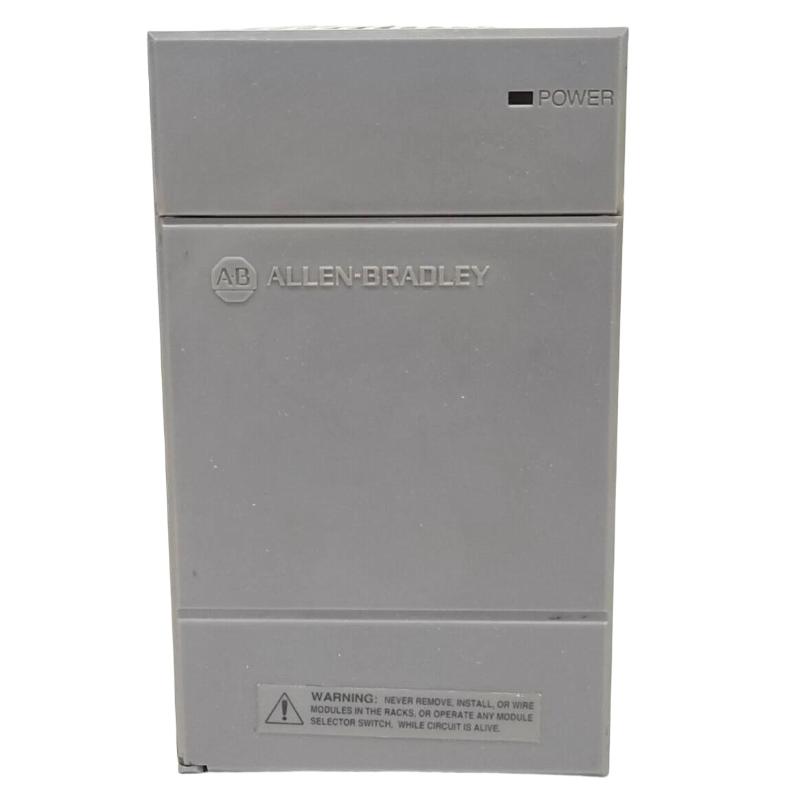

Allen Bradley 1746-P3 SLC 500 Power Supply Module

Overview

The Allen Bradley 1746-P3 is a high-capacity power supply module designed for the SLC 500 PLC platform. It delivers reliable DC power for processors and I/O modules, supporting stable system performance in demanding industrial automation environments. The module is ideal for large-scale control systems requiring dependable power management.

General Information

Part Number: 1746-P3

Manufacturer: Allen Bradley

Brand: Rockwell Automation

Country of Origin: United States

Series: SLC 500

Module Type: Power Supply Module

Input Type: AC power supply

Installation Type: Chassis-mounted module

Application: PLC system power distribution

Compatibility: Allen Bradley SLC 500 systems

Power Specifications

Input Voltage Range: 85 to 132 V AC

Input Frequency: 47 to 63 Hz

Output Current at 5 V DC: 10 A

Output Current at 24 V DC: 1 A

Maximum Power Output: Approx. 174 W

Power Dissipation: Industrial high-efficiency design

Protection Features: Overcurrent and overvoltage protection

Communication & Interface

System Interface: Direct connection to SLC 500 chassis backplane

Power Distribution: Supplies operating power to PLC processors and I/O modules

Status Indicators: LED indicators for power and system status

Cooling Method: Natural convection cooling

Wiring Method: Terminal block power connection

System Compatibility: Supports standard SLC 500 racks and modules

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Relative Humidity: 5% to 95% non-condensing

Shock Resistance: Designed for industrial automation environments

Vibration Resistance: Suitable for continuous factory operation

Protection Rating: Open-style module for cabinet installation

Dimensions & Weight

Dimensions (H × W × D): 140 × 85 × 140 mm

Weight: 1 kg
