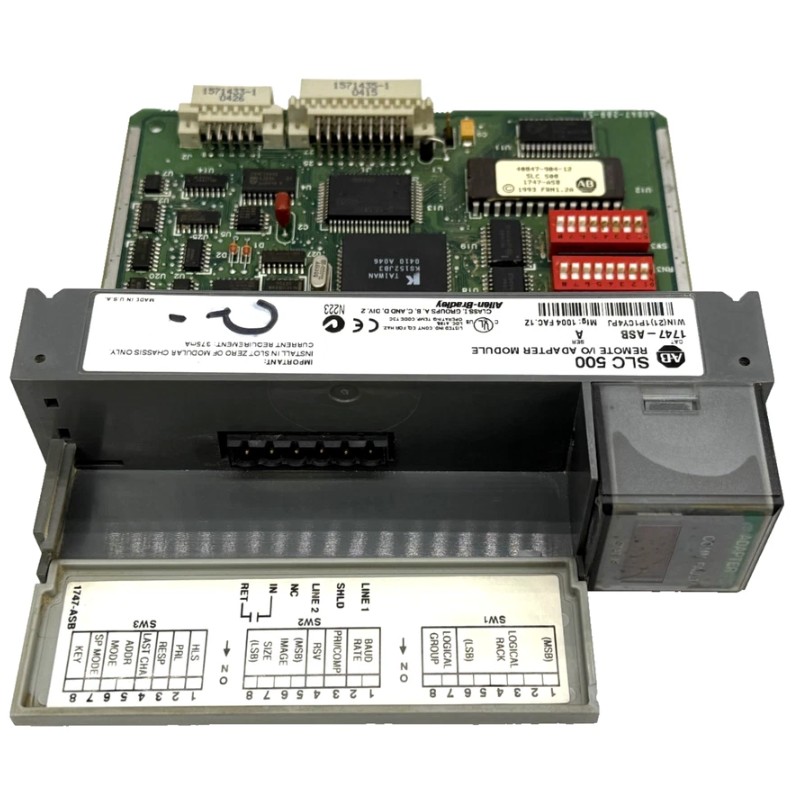

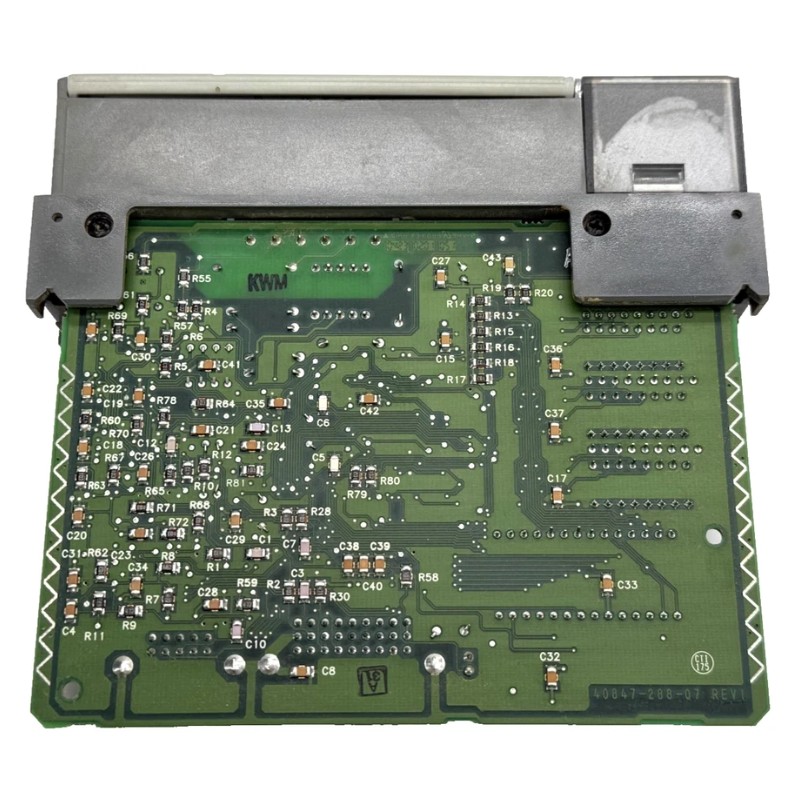

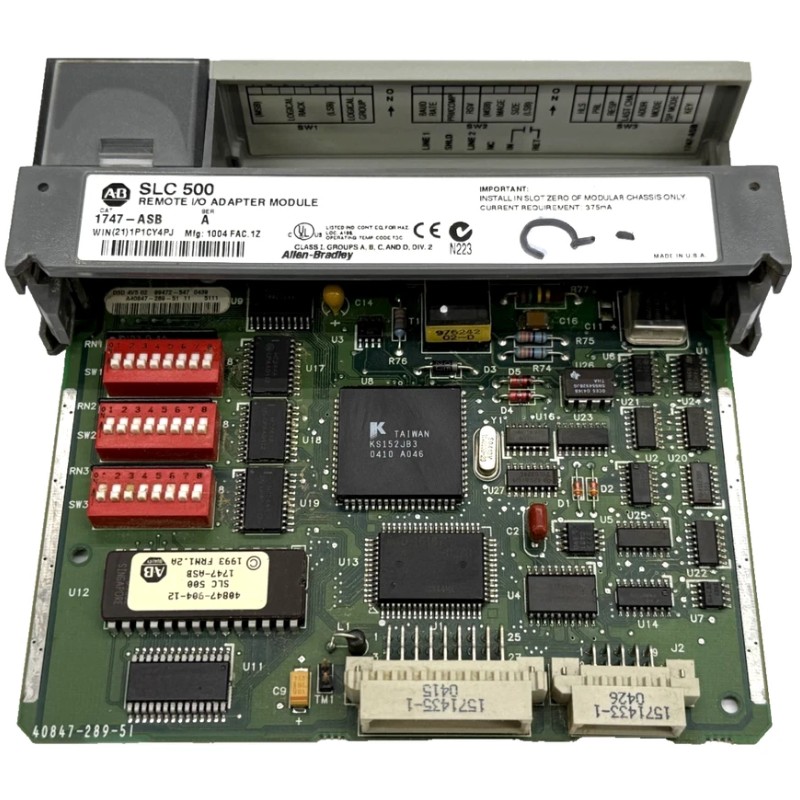

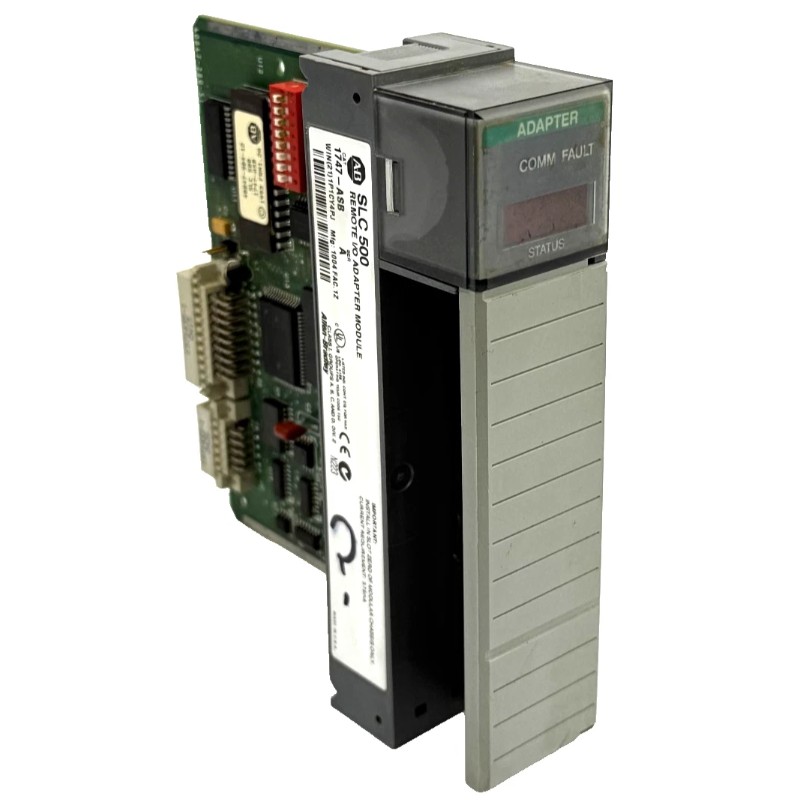

Allen Bradley 1747-ASB/A SLC 500 Remote I/O Adapter Module

Overview

The Allen Bradley 1747-ASB/A is a remote I/O adapter module developed for SLC 500 automation systems. It enables reliable communication between remote field devices and controllers, ensuring stable data transmission and efficient distributed control in industrial applications.

General Information

Part Number: 1747-ASB/A

Manufacturer: Rockwell Automation

Brand: Allen Bradley

Country of Origin: United States

Series: SLC 500

Product Type: Remote I/O Adapter Module

Module Function: Remote device communication and I/O integration

Application: Distributed industrial automation and process control systems

Mounting Method: Rack-mounted installation

Compatibility: Allen Bradley SLC 500 PLC platforms

Power Specifications

Power Supply: Backplane powered

Backplane Current Load: Approx. 125 mA at 5 V DC

Communication Support: Remote I/O network operation

Power Dissipation: Low-power industrial design

Protection Features: Signal filtering and communication protection

LED Indicators: Built-in module and network status LEDs

Isolation: Industrial communication isolation support

Communication & Interface

Communication Protocol: Remote I/O (RIO)

Network Interface: Remote I/O communication connection

Data Transmission: Stable and efficient industrial data exchange

Diagnostics: Real-time communication and module monitoring

Connectivity: Supports remote I/O rack integration

Noise Immunity: Designed for harsh industrial environments

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Environmental Rating: Suitable for industrial control cabinet environments

Vibration Resistance: Engineered for continuous industrial operation

Dimensions & Weight

Dimensions (H × W × D): 144.5 × 34.6 × 130.18 mm

Weight: 0.181 kg
