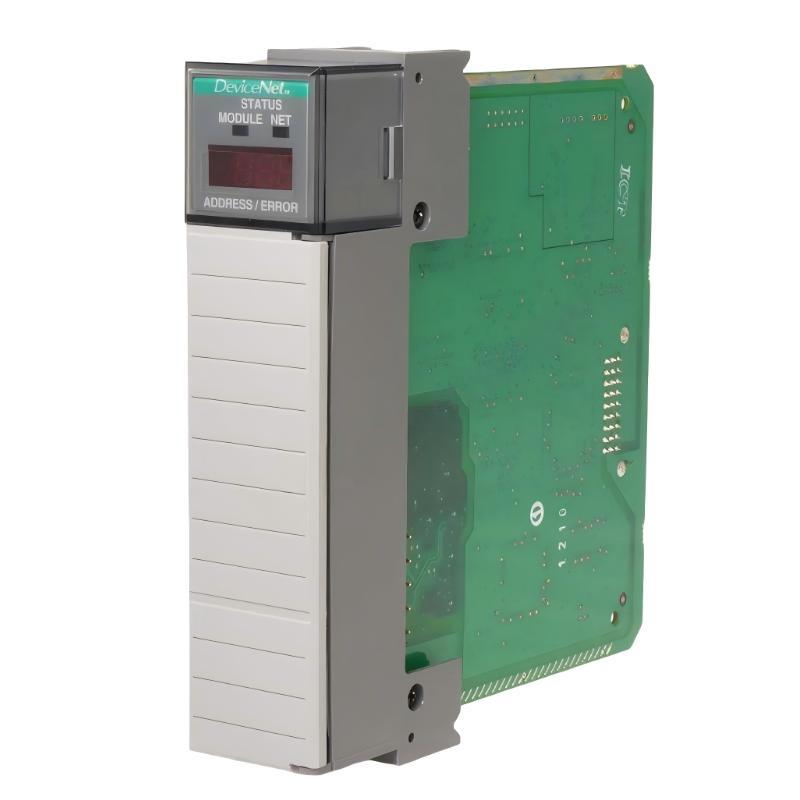

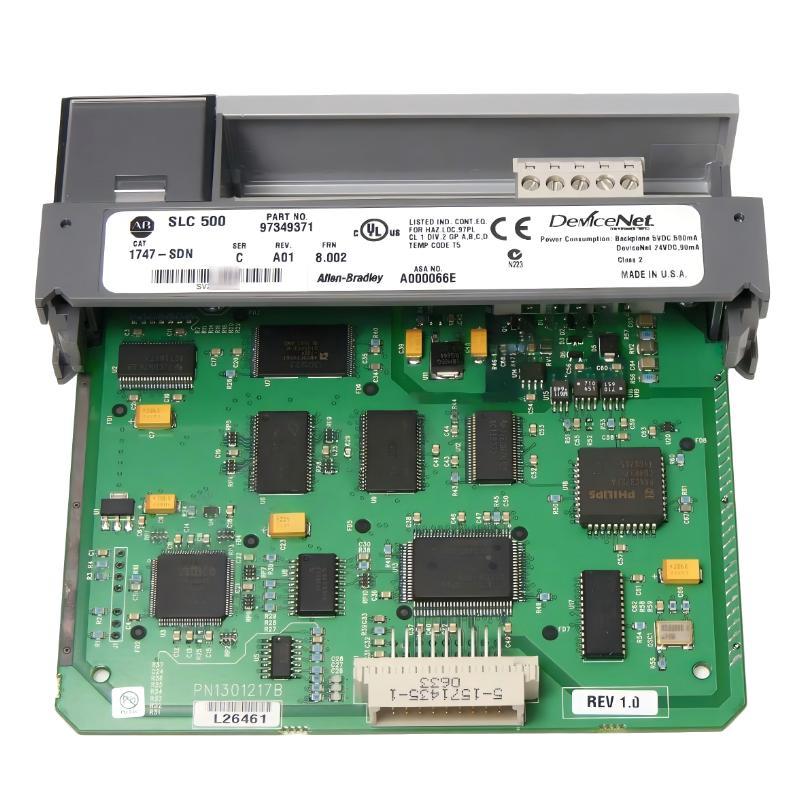

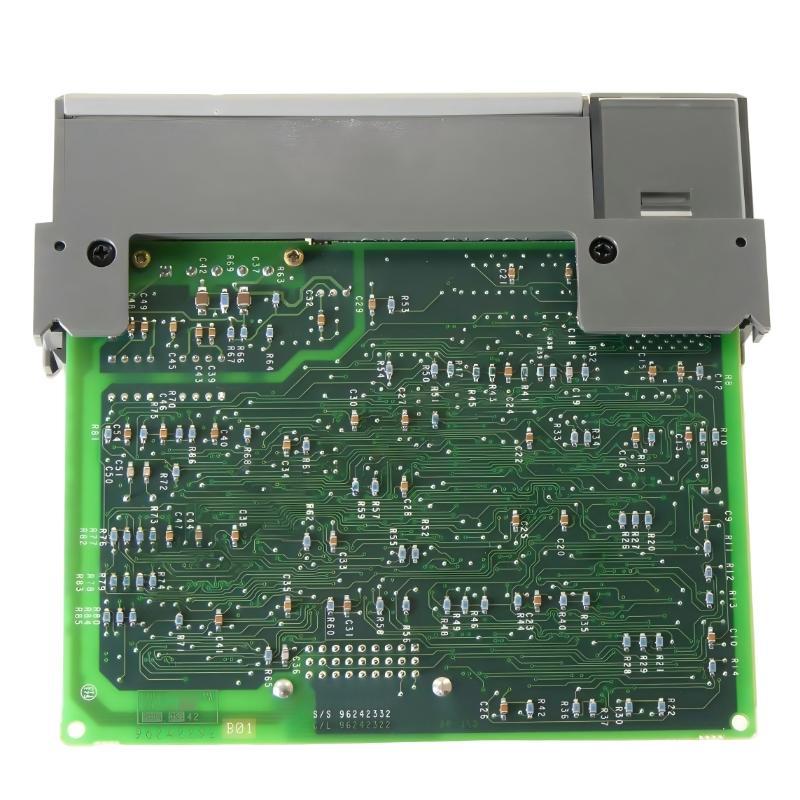

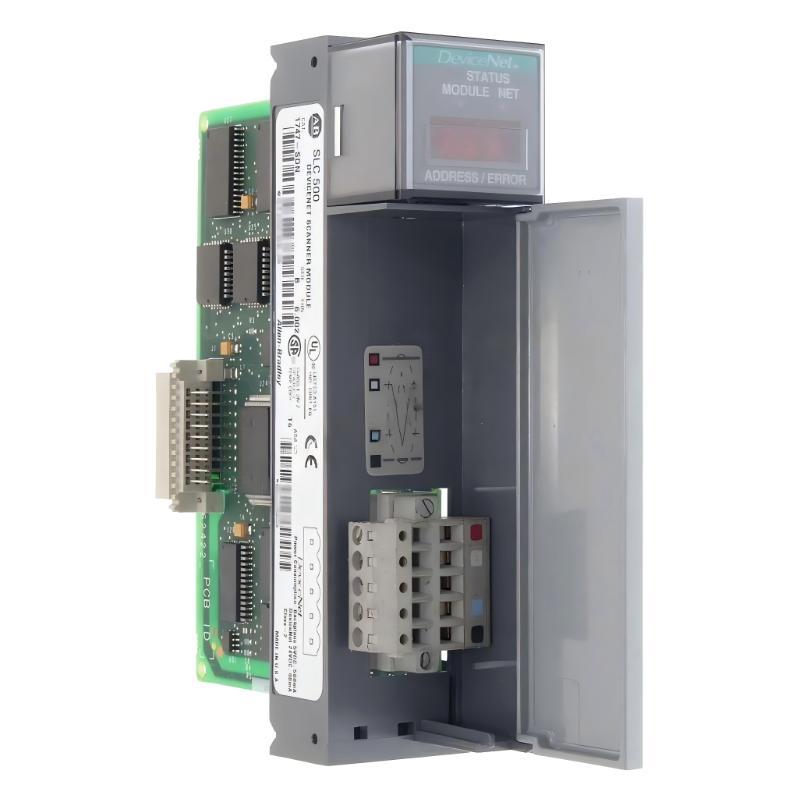

Allen Bradley 1747-SDN SLC 500 DeviceNet Scanner Module

Overview

The Allen Bradley 1747-SDN DeviceNet Scanner Module is a communication device for SLC 500 programmable logic controller (PLC) systems. It allows the SLC 500 processor to interface with DeviceNet networks, providing high-speed, deterministic communication with distributed I/O devices and industrial automation equipment. The module is ideal for monitoring and controlling field devices efficiently in networked applications.

General Information

Part Number: 1747-SDN

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: SLC 500

Type: DeviceNet Scanner Module

Function: DeviceNet network scanner for SLC 500 systems

Application: Distributed I/O management and industrial networking

Compatibility: SLC 500 processors

Installation: Rack-mounted within SLC chassis

Protocol: DeviceNet communication standard

Power Specifications

Supply Voltage: Powered through SLC 500 backplane

External Power Requirement: None

Power Consumption: Low power draw from chassis supply

Isolation: Electrical isolation for network protection

Protection Features: Fault detection and communication error handling

Communication & Interface

Network Interface: DeviceNet network connection

Data Rate: Supports standard DeviceNet speeds up to 500 kbps

Function: Scans and manages remote DeviceNet nodes

Topology Support: Supports linear, star, and trunk-line configurations

Diagnostics: Network status LEDs, node health, and error indicators

Configuration: Addressing and scheduling via DeviceNet configuration tools

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% non-condensing

Shock Resistance: Designed for industrial environments

Vibration Resistance: Suitable for continuous factory-floor operation

Environmental Protection: Intended for installation inside control cabinets

Dimensions & Weight

Dimensions (L × W × H): 144.5 × 34.6 × 130.18 mm

Weight: 0.17 kg
