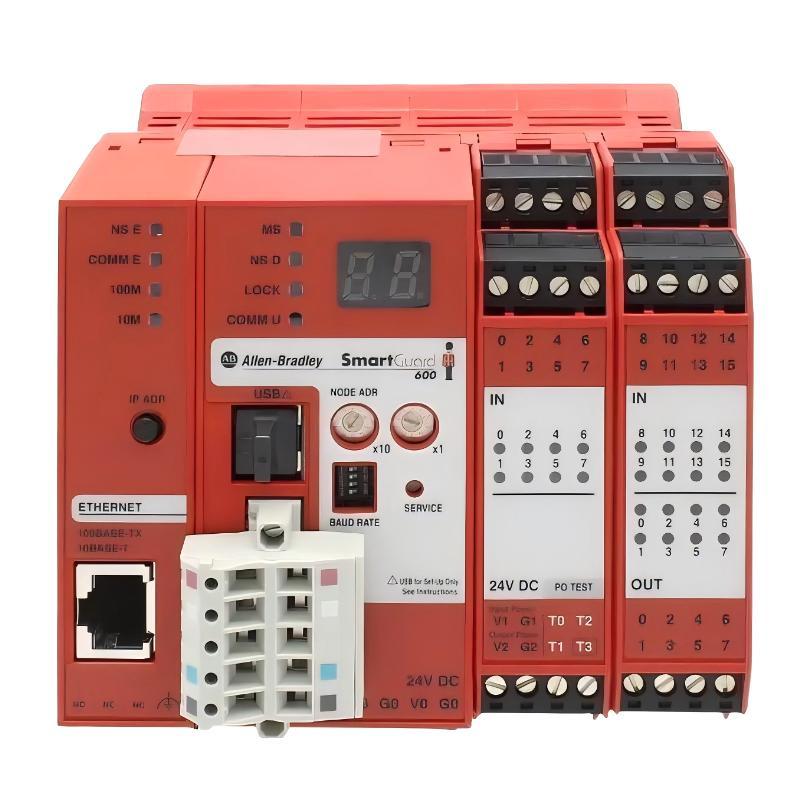

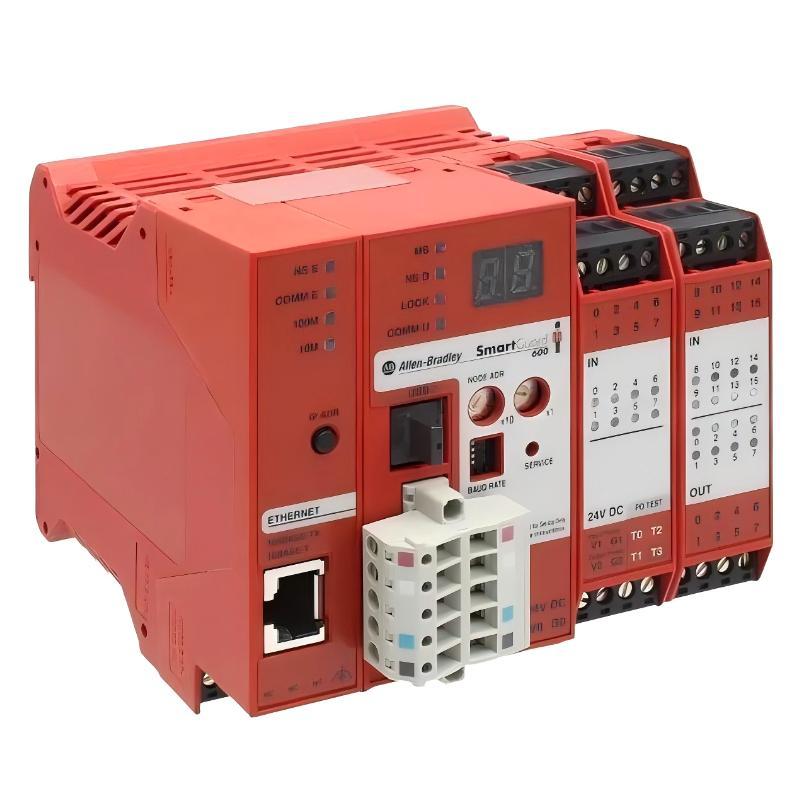

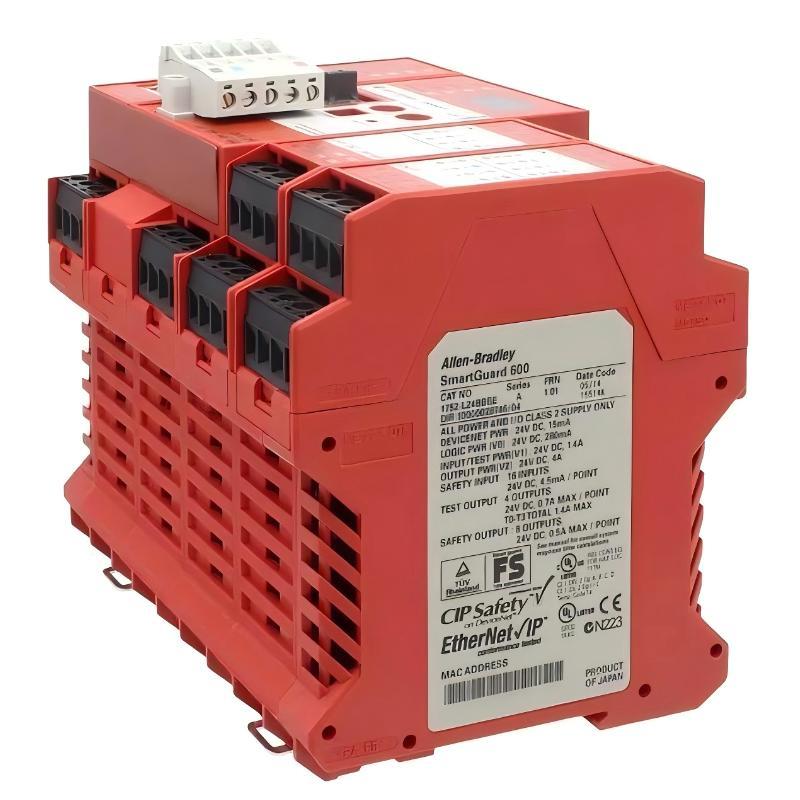

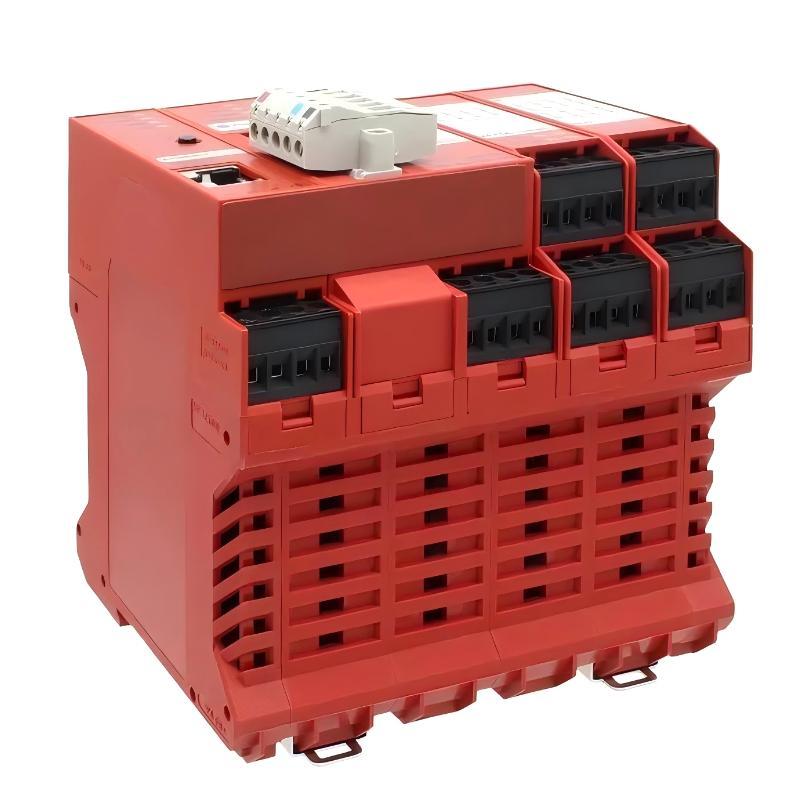

Allen Bradley 1752-L24BBBE SmartGuard 600 Security Controller

Overview

The Allen Bradley 1752-L24BBBE SmartGuard 600 Security Controller is a compact safety controller designed for machine safety and industrial automation systems. It integrates standard control and safety logic in a single unit, enabling monitoring of safety inputs and control of safety outputs for machinery protection. The controller is widely used in applications requiring safety interlocking, emergency stop handling, and risk reduction functions.

General Information

Part Number: 1752-L24BBBE

Manufacturer: Allen Bradley

Brand: Allen Bradley

Country of Origin: United States

Series: SmartGuard 600

Type: Security / Safety Controller

Application: Machine safety control and safety logic processing

Function: Safety monitoring and control for industrial equipment

Programming: Configurable safety logic controller

Installation: DIN-rail or panel-mounted industrial controller

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low power industrial control operation

Input Protection: Reverse polarity and surge protection

Internal Supply Distribution: Supports internal logic and I/O power management

Status Indicators: Power, fault, and safety status LEDs

Communication & Interface

Safety Inputs: Supports multiple safety input channels (E-stop, light curtains, interlocks)

Safety Outputs: Configurable safety relay or transistor outputs

Communication Port: Industrial communication interface for configuration and diagnostics

Networking: Supports integration into safety control architectures

Diagnostics: Real-time fault detection and system status monitoring

Programming Interface: PC-based configuration tools for safety logic setup

Environmental

Operating Temperature: 0°C to +55°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% non-condensing

Shock Resistance: Designed for industrial safety applications

Vibration Resistance: Suitable for continuous machine operation environments

Protection Rating: Industrial cabinet installation environment

Dimensions & Weight

Dimensions (L × W × H): 99 × 113 × 131.4 mm

Weight: 0.575 kg

Safety First – Reliable Control for Critical Applications!
