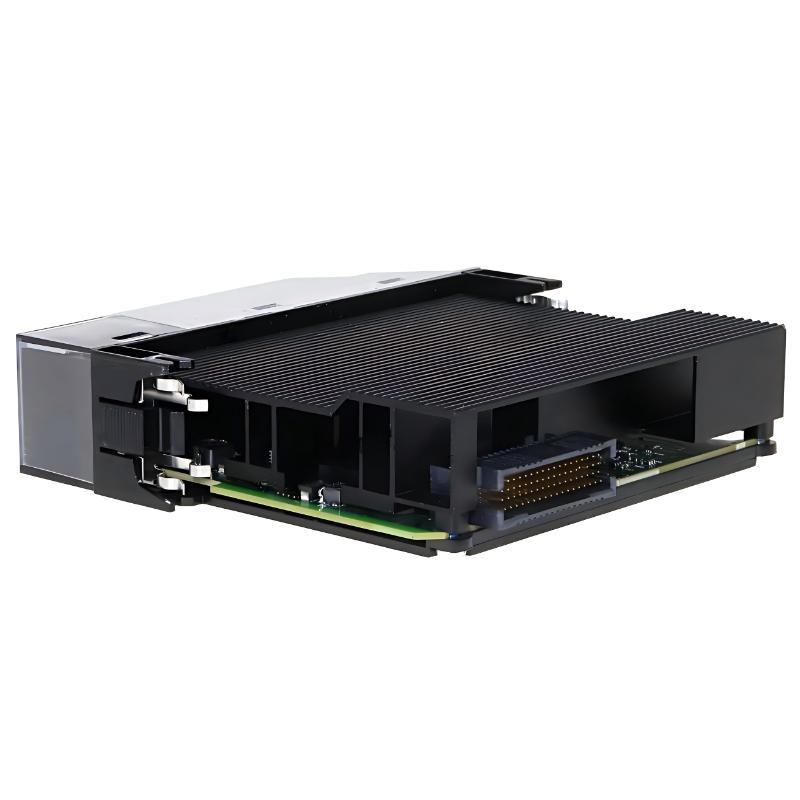

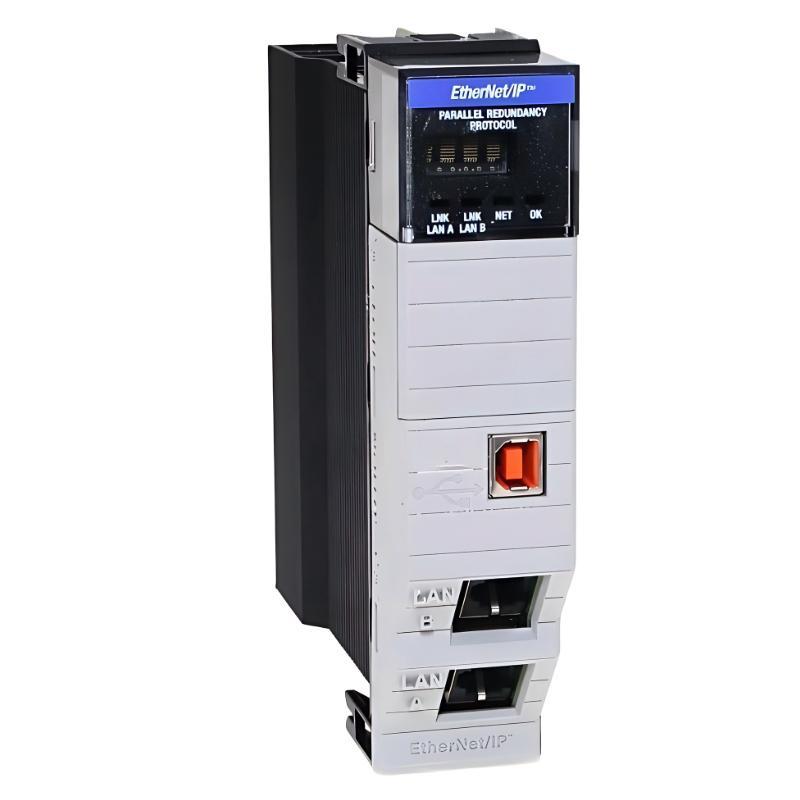

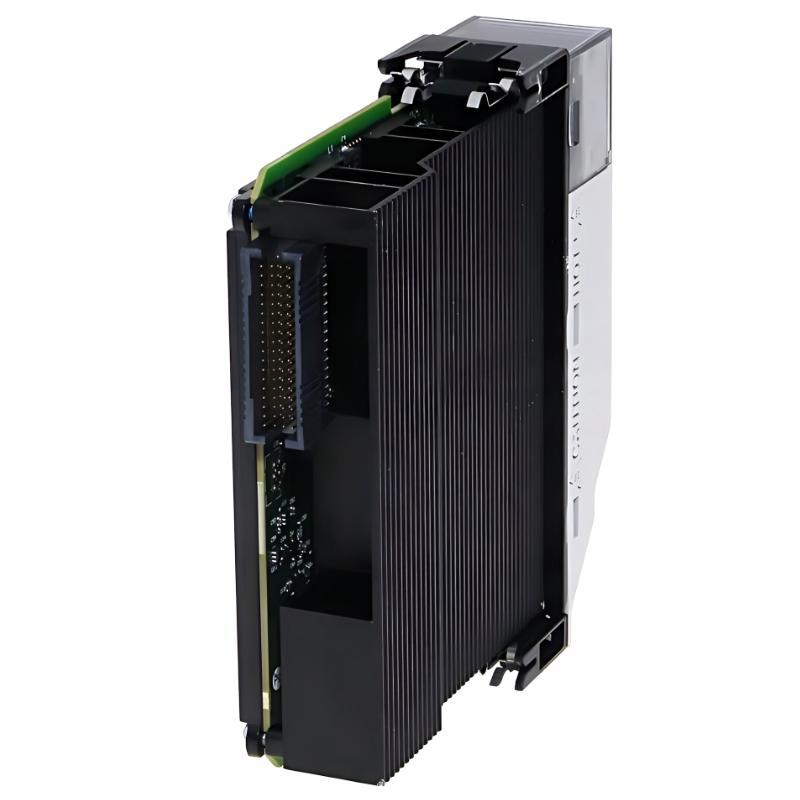

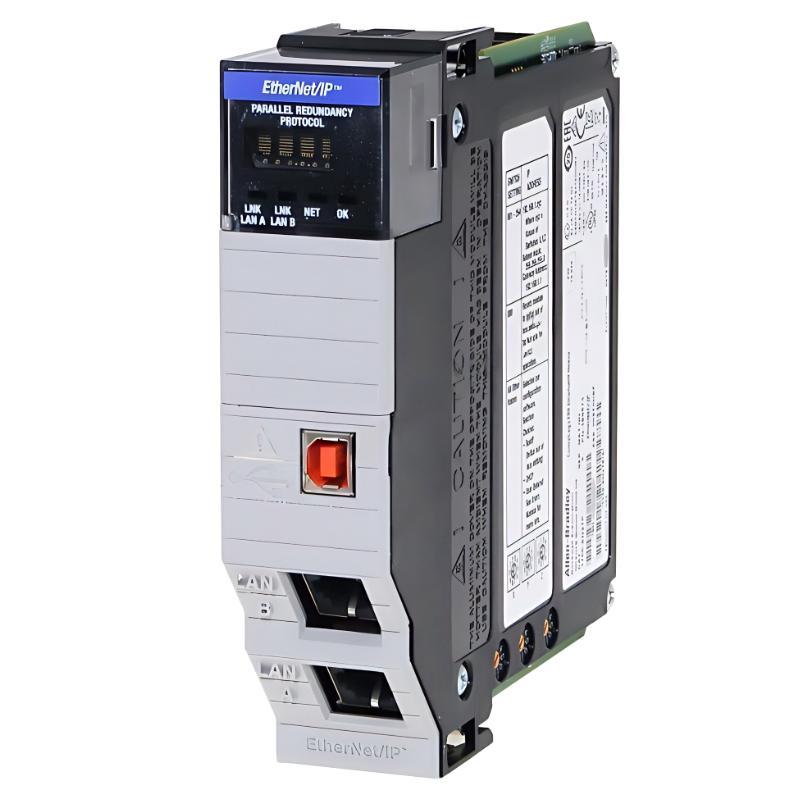

Allen Bradley 1756-EN2TP ControlLogix EtherNet/IP Bridging Module

Overview

The Allen Bradley 1756-EN2TP is a ControlLogix EtherNet/IP bridging module designed to provide high-speed industrial Ethernet connectivity for ControlLogix systems. It allows seamless communication between controllers, I/O devices, and supervisory systems, ensuring reliable data transfer and efficient network integration.

General Information

Part Number: 1756-EN2TP

Manufacturer: Allen Bradley

Brand / Country of Origin: Allen Bradley / United States

Series: ControlLogix

Type: EtherNet/IP Bridging Module

Mounting: Chassis-mounted within ControlLogix system

Technology: EtherNet/IP networking, high-speed bridging, and diagnostics

Power Specifications

Supply Voltage: 5.1 V DC (backplane)

Current Consumption: 1.15 A @ 5.1 V DC

Power Consumption: Approximately 5.9 W

Power Source: ControlLogix backplane

Protection Features: Overcurrent and internal electronic protection

Status Indicators: LEDs for module status, network activity, and fault monitoring

Communication & Interface

Communication Protocol: EtherNet/IP

Network Ports: Dual RJ45 Ethernet ports

Data Transfer: Supports high-speed cyclic and acyclic messaging

Network Functions: Controller communication, I/O control, and network bridging

Diagnostics: Built-in network diagnostics, link supervision, and fault detection

Configuration: Configurable via ControlLogix programming tools and web-based interface

Environmental

Operating Temperature: 0 to +60 °C

Storage Temperature: -40 to +85 °C

Relative Humidity: 5% to 95%, non-condensing

Protection Rating: Industrial cabinet installation environment

Vibration Resistance: Complies with industrial automation standards

Dimensions & Weight

Dimensions (L × W × H): 144.5 × 34.6 × 130.18 mm

Weight: 0.45 kg
