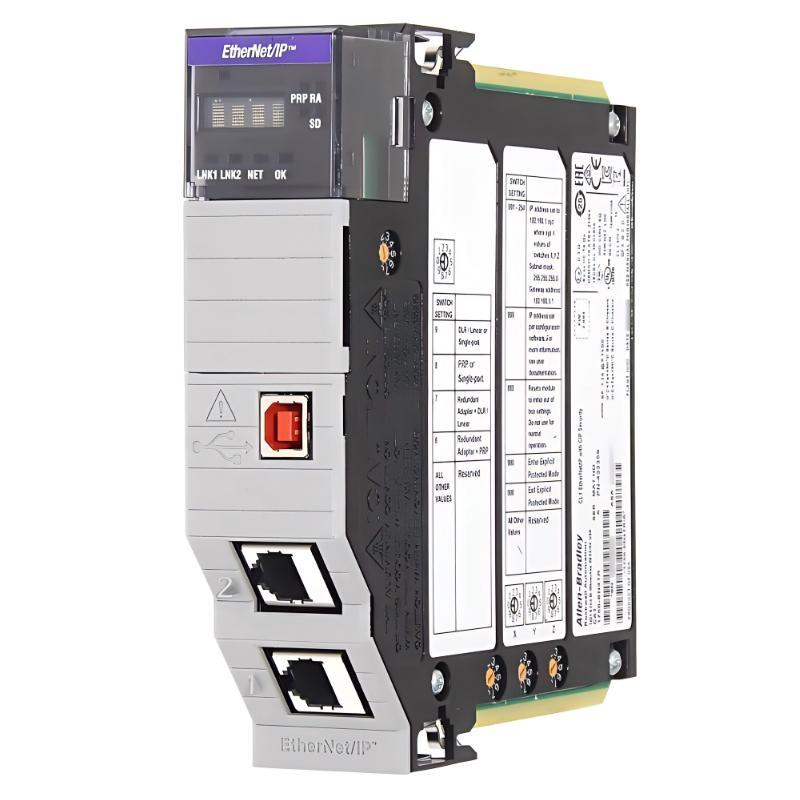

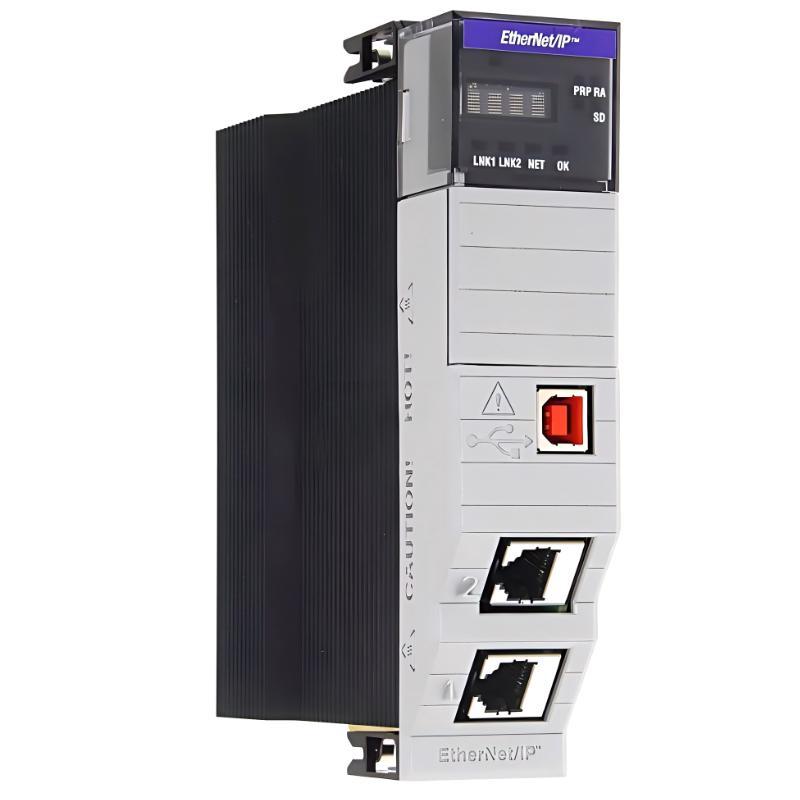

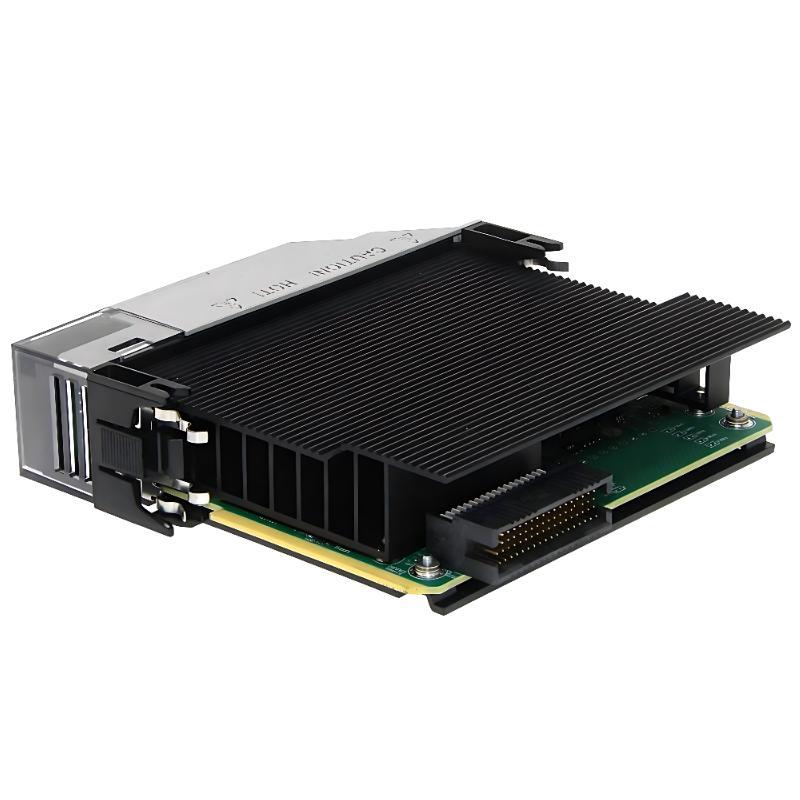

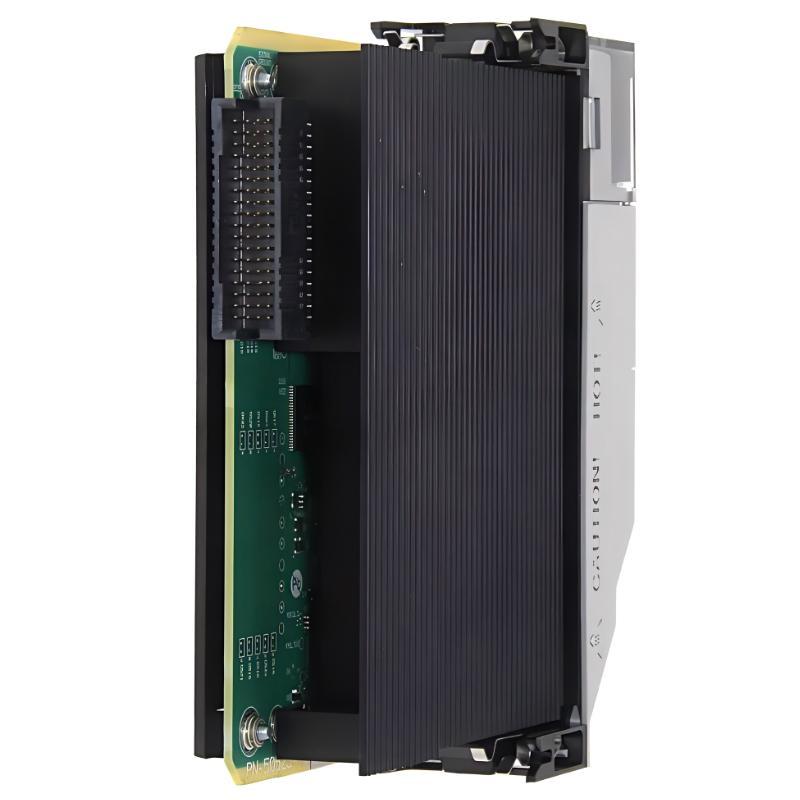

Allen Bradley 1756-EN4TR ControlLogix EtherNet/IP Communication Module
| Release time | Jun 4, 2026 |
|---|---|
| Brand | Allen Bradley PLC |
| Product Numbe | 1756-EN4TR |
| Country Of Origin | USA |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.31 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The Allen Bradley 1756-EN4TR is a high-speed EtherNet/IP communication module designed for the ControlLogix platform. It facilitates seamless data exchange between controllers, distributed I/O, HMIs, and other EtherNet/IP devices. With integrated switch technology and Device Level Ring (DLR) support, the module ensures reliable network performance and enhanced system redundancy in industrial automation applications.
General Information
Part Number: 1756-EN4TR
Manufacturer: Allen Bradley
Brand: Allen Bradley
Country of Origin: United States
Series: ControlLogix
Product Type: EtherNet/IP Communication Module
Network Technology: EtherNet/IP
Ports: Dual RJ45 Ethernet Ports
Redundancy Support: Device Level Ring (DLR)
Mounting: Chassis-Based Installation
Application: Industrial networking, controller communication, remote I/O integration
Power Specifications
Power Supply: ControlLogix Backplane Powered
Backplane Current Draw (5.1 V DC): Approx. 1.0 A
Backplane Current Draw (24 V DC): Approx. 3 mA
Power Dissipation: Approx. 5.1 W
Thermal Dissipation: Approx. 17.4 BTU/hr
Status Indicators: Module Status, Network Status, Link Activity, DLR Status LEDs
Protection Features: Integrated diagnostics and fault monitoring
Communication & Interface
Communication Protocol: EtherNet/IP
Ethernet Ports: 2 × 10/100 Mbps RJ45 Ports
Network Topology: Star, Linear, and Ring
Embedded Switch: Yes
Device Level Ring (DLR): Supported
Messaging Support: CIP Messaging, Produced/Consumed Tags
Configuration Software: Studio 5000 Logix Designer
Diagnostics: Network monitoring, link status, fault detection, and communication diagnostics
Compatibility: ControlLogix Controllers and EtherNet/IP Devices
Environmental
Operating Temperature: 0 to +60 °C
Storage Temperature: -40 to +85 °C
Relative Humidity: 5% to 95% RH, Non-condensing
Vibration Resistance: Designed for Industrial Environments
Shock Resistance: Meets Industrial Standards
Protection Rating: Suitable for Installation Inside Industrial Enclosures
Dimensions & Weight
Dimensions (H × W × D): 144.5 × 34.6 × 130.18 mm
Weight: 0.31 kg
Fast Shipping – Get Your System Connected Today!
QDo you provide technical support or installation services?
QCan I return products if they don’t meet my requirements?
QHow can I ensure compatibility with my existing systems?
QAre there discounts for new wholesale customers?
QCan I purchase different quantities of a product?
QWhat payment methods do you accept for wholesale orders?
QCan I get discounts for bulk purchases?
QWhat is the minimum order quantity (MOQ)?
QHow long does shipping take?
QHow can I verify the product before purchasing?
QDoes this product come with a warranty?
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613620394314 | |||||||
| +8613620394314 | ||||||||
| +8613620394314 | ||||||||
| Add | Room 1102, Jiuzhou Commercial Building, Siming District, Xiamen, China | |||||||
Warranty Conditions
At Qunlebu Co., Ltd., we are committed to ensuring the quality of our products. Our one-year warranty provides coverage for any defects in material or workmanship, excluding damages caused by deliberate misuse.
🛡️Coverage Details:
This warranty encompasses all instances of product malfunction or failure due to inherent manufacturing flaws, with the exception of intentional damage.
📝Claim Process:
To avail of warranty services, please notify us of any quality-related issues within the warranty period. We may conduct online troubleshooting and examination as needed.
🚚Shipping Assistance:
We understand the importance of prompt service. Therefore, we cover return shipping costs for warranty-related returns within the first month of supply. Within three months of supply, we cover one-way shipping costs for warranty-related returns. After three months, the customer is responsible for shipping costs both ways.
🚫Exclusions:
Unauthorized modifications, repairs, or misuse of the product.
Normal wear and tear.
Negligence.
Extreme environmental conditions beyond product specifications.
Previous and next:
Prev：Allen Bradley 1756-EN3TRK ControlLogix EtherNet/IP Bridging ModuleNext：no more
Related Tags:
Allen B radley 1756-EN4TRRelated Products
-
Allen Bradley 1756-EN4TR ControlLogix EtherNet/IP Communication Module
OverviewThe Allen Bradley 1756-EN4TR is a high-speed EtherNet/IP communication m···
More -

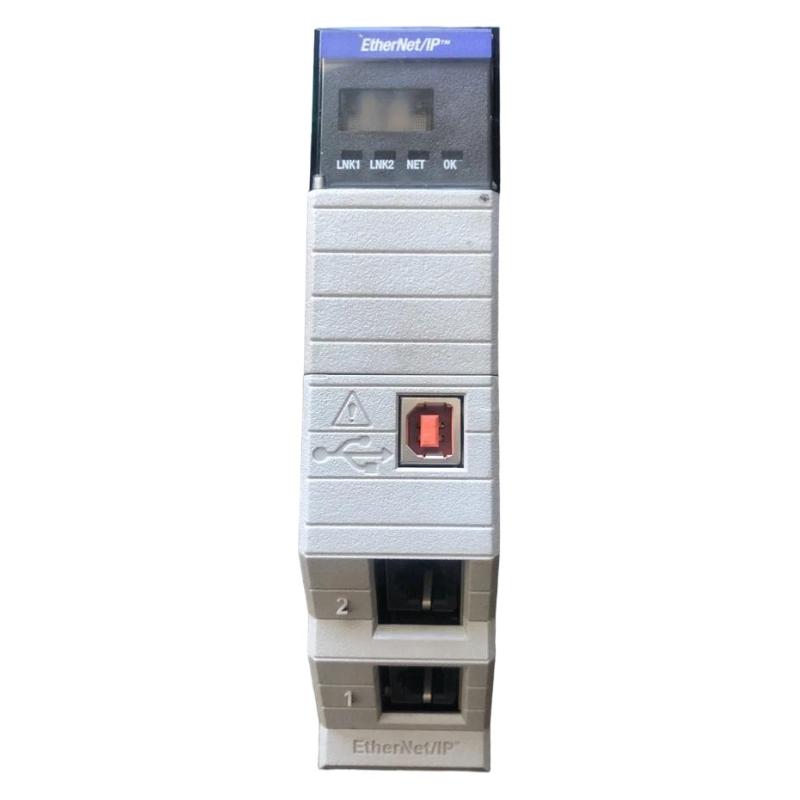

Allen Bradley 1756-EN3TRK ControlLogix EtherNet/IP Bridging Module
OverviewThe Allen Bradley 1756-EN3TRK is a high-performance EtherNet/IP bridging···
More -

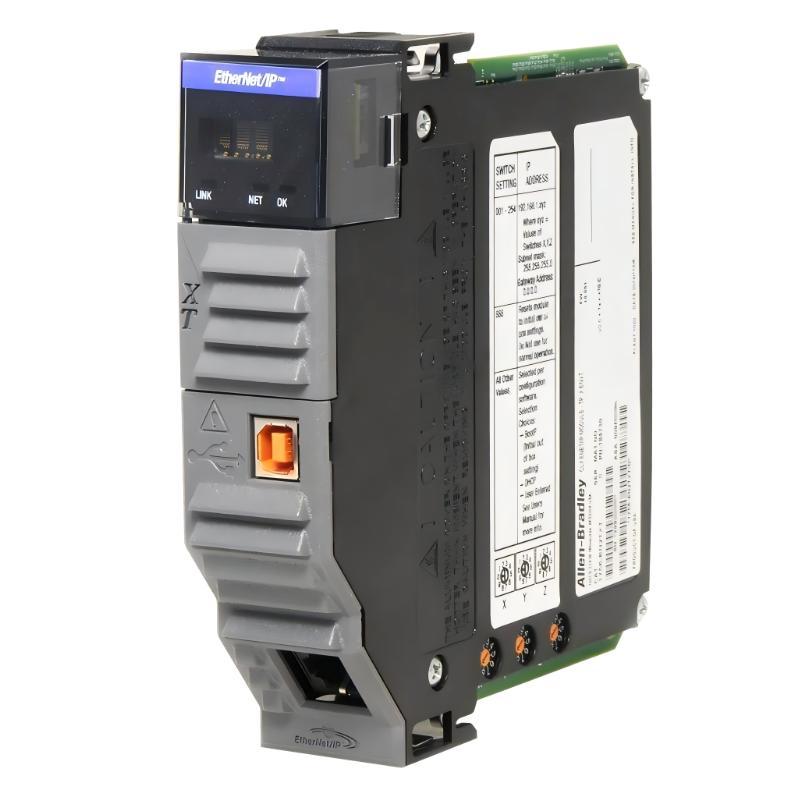

Allen Bradley 1756-EN2TXT ControlLogix-XT EtherNet/IP Bridging Module
OverviewThe Allen Bradley 1756-EN2TXT is an extended-temperature EtherNet/IP bri···
More -

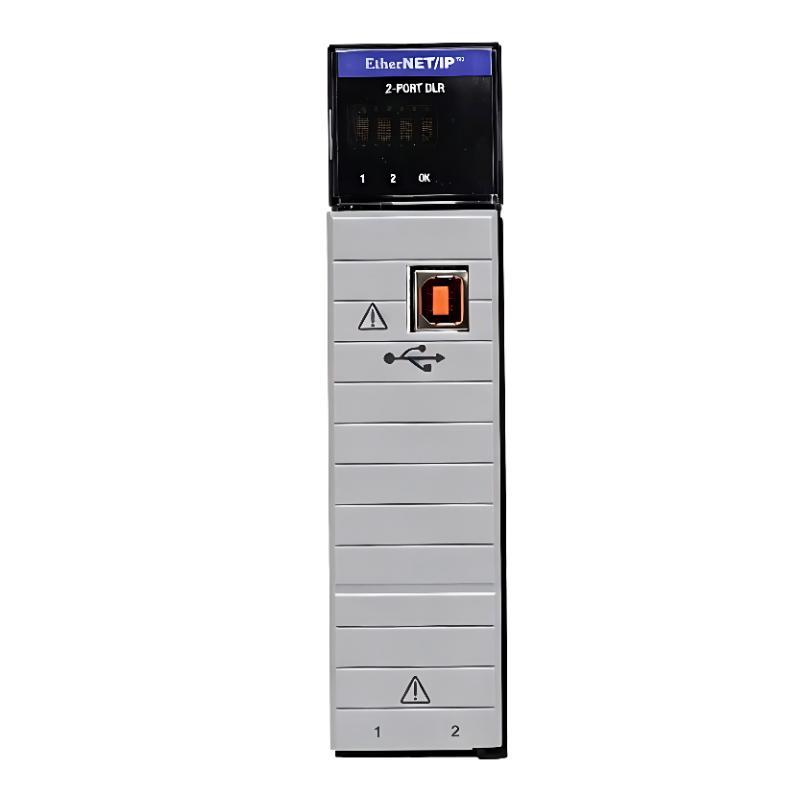

Allen Bradley 1756-EN2TR ControlLogix Ethernet Module
