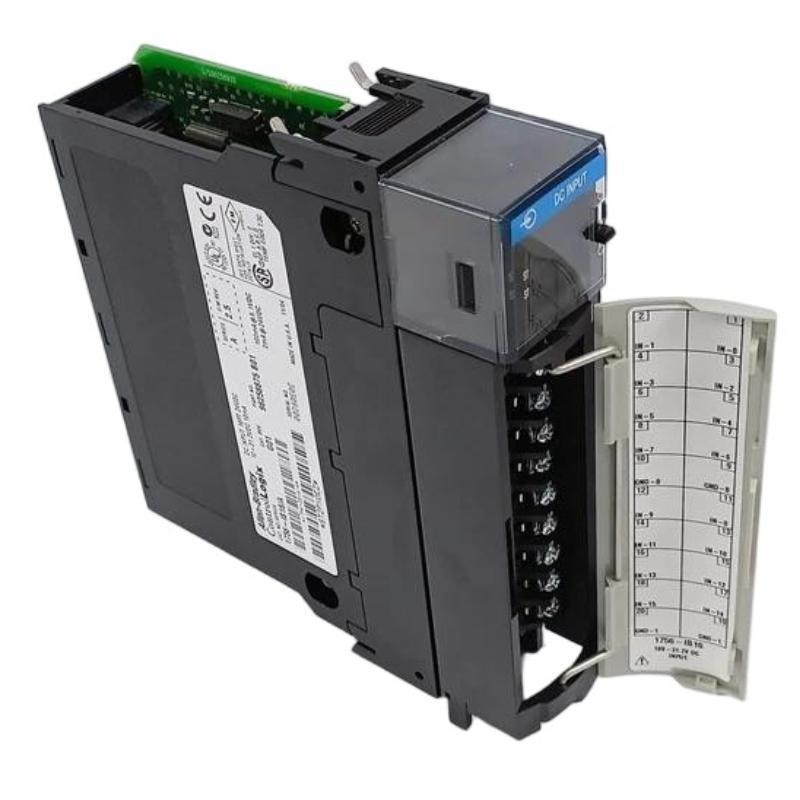

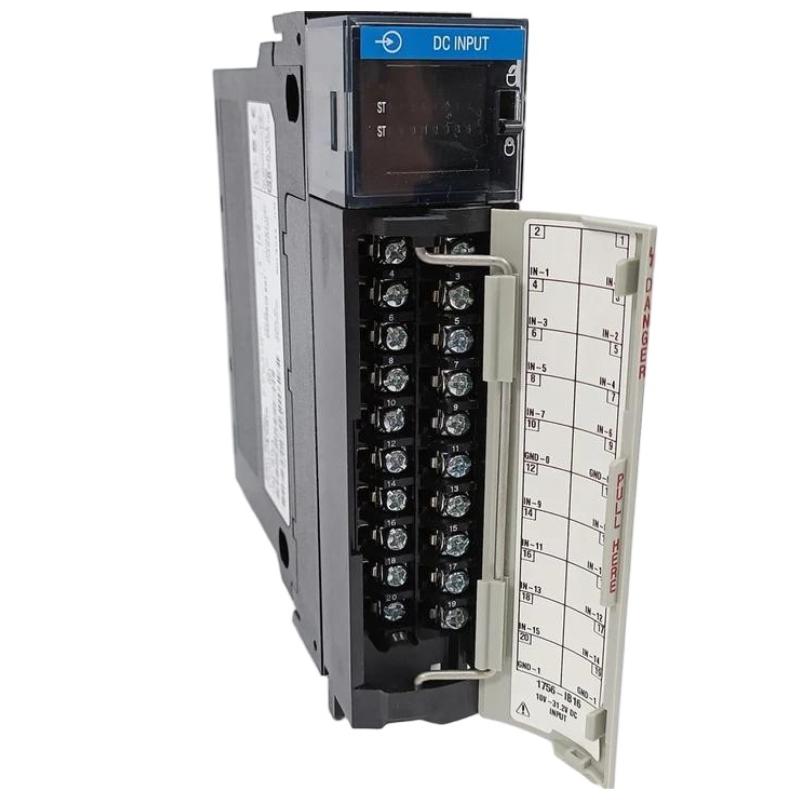

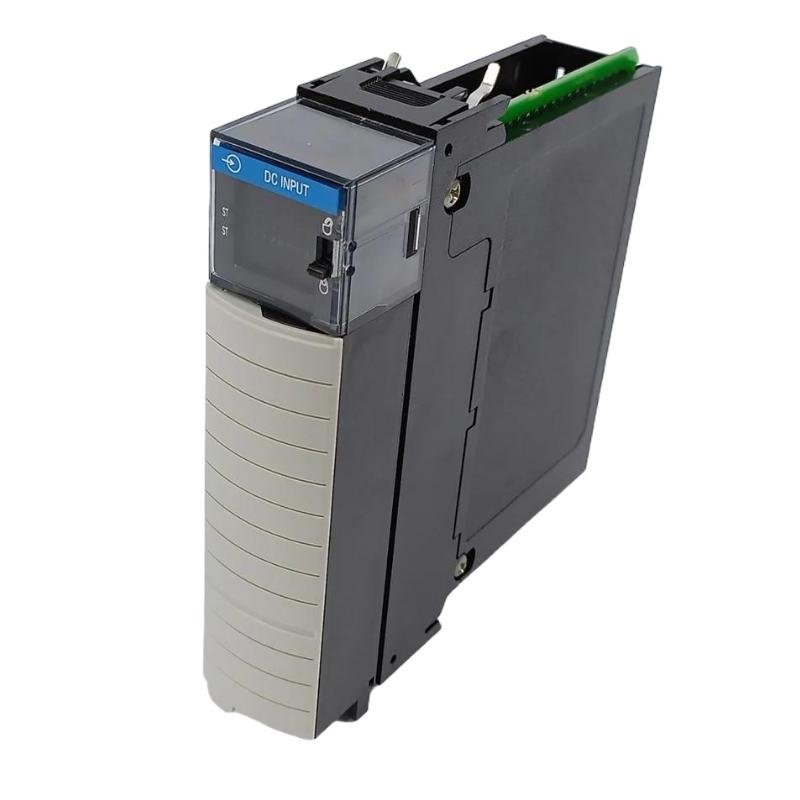

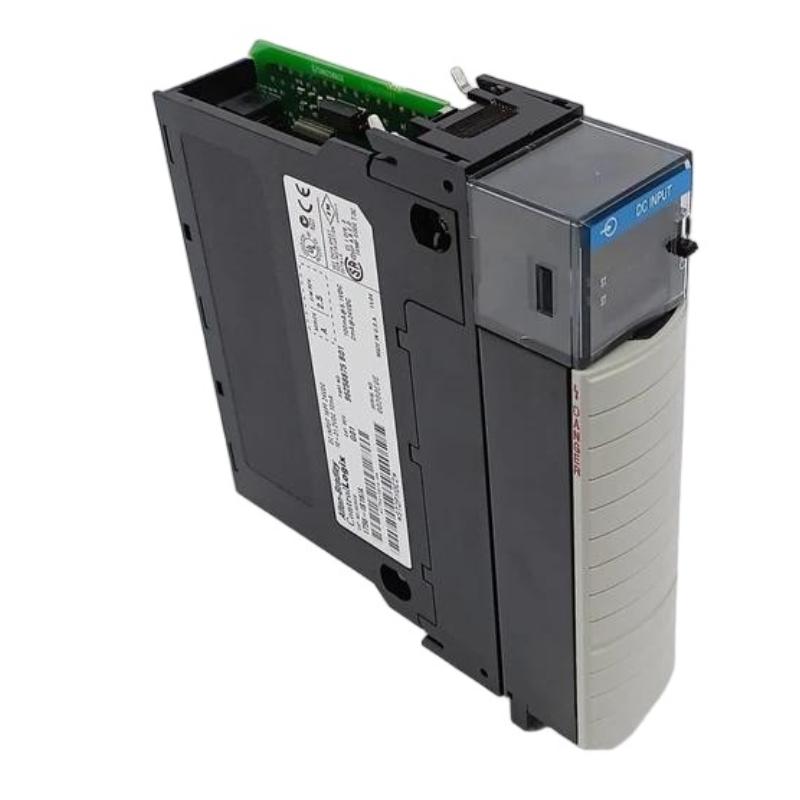

Allen Bradley 1756-IB16 ControlLogix DC Digital Input Module
| Release time | Jun 5, 2026 |
|---|---|
| Brand | Allen Bradley PLC |
| Product Numbe | 1756-IB16 |
| Country Of Origin | USA |
| Dimensions | 144.57 x 22 x 105.42 mm |
| Weight | 0.23 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The 1756-IB16 ControlLogix DC Digital Input Module is designed for reliable monitoring of discrete DC input signals in industrial automation systems. With 16 high-speed DC input channels, it ensures accurate and fast data acquisition for ControlLogix controllers, helping improve system control, diagnostics, and overall efficiency.
General Information
Part Number: 1756-IB16
Manufacturer: Allen Bradley
Brand / Country of Origin: Rockwell Automation / USA
Series: ControlLogix
Type: DC Digital Input Module
Input Channels: 16 DC Inputs
Mounting: ControlLogix Chassis Installation
Technology: Solid-State Digital Input Design
Status Indicators: Individual Channel LEDs and Module Status Indicators
Power Specifications
Input Voltage Range: 10 to 31.2 V DC
Nominal Input Voltage: 24 V DC
Backplane Current Draw: Approx. 110 mA at 5.1 V DC
Power Dissipation: Approx. 4 W
Isolation Voltage: 250 V Continuous
Protection Features: Overvoltage, Short-Circuit, and Electrical Noise Protection
Communication & Interface
System Interface: ControlLogix Backplane
Data Transfer: Real-Time Input Status Communication
Diagnostics: Input Channel Monitoring and Fault Reporting
Status Display: Integrated LED Indicators
Compatibility: Supports ControlLogix Automation Platforms
Signal Processing: Fast Response DC Input Detection
Environmental
Operating Temperature: 0 to 60 °C
Storage Temperature: -40 to 85 °C
Relative Humidity: 5% to 95%, Non-Condensing
Vibration Resistance: Industrial Environment Rated
Shock Resistance: Designed for Harsh Industrial Applications
Environmental Protection: Suitable for Installation Inside Industrial Control Cabinets
Dimensions & Weight
Dimensions (L × W × H): 144.57 × 22 × 105.42 mm
Weight: 0.23 kg
