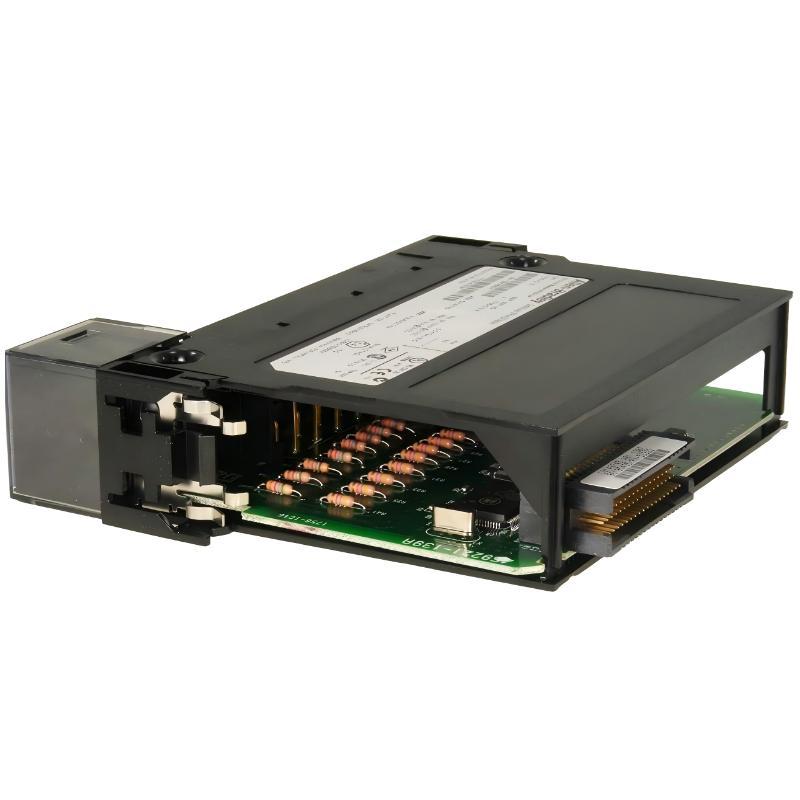

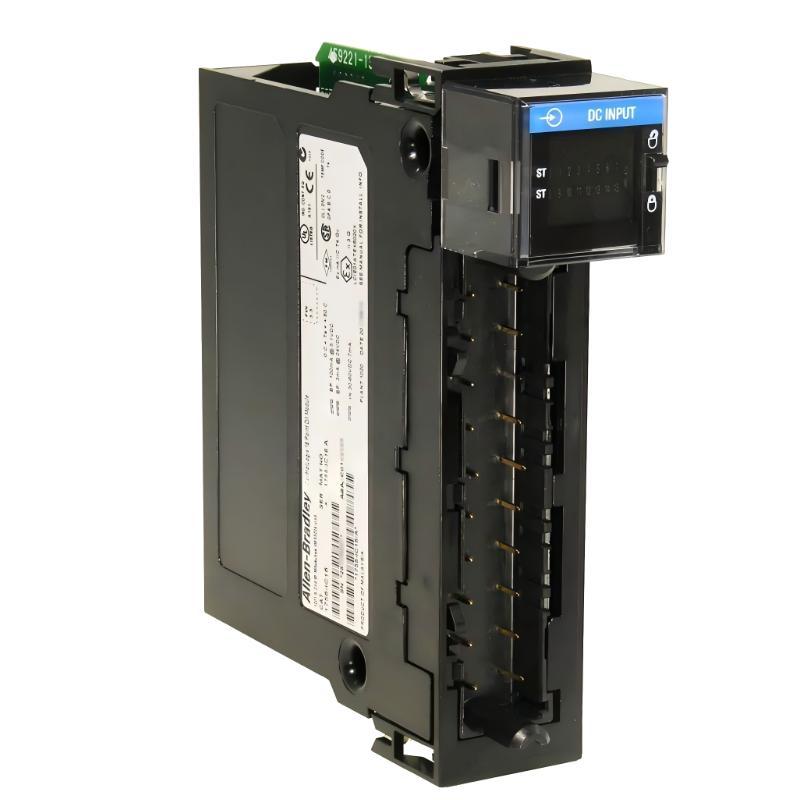

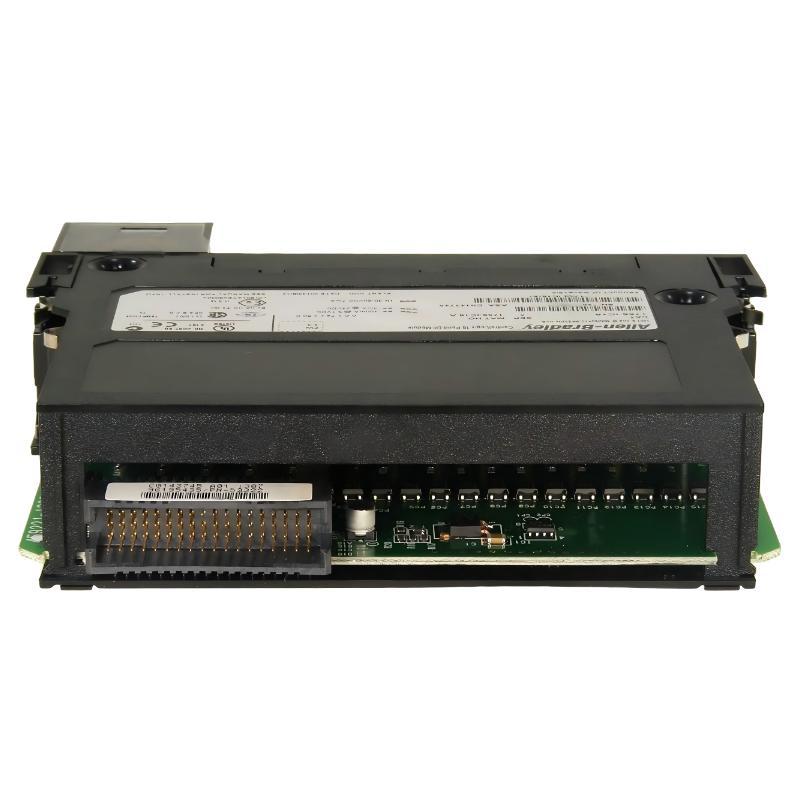

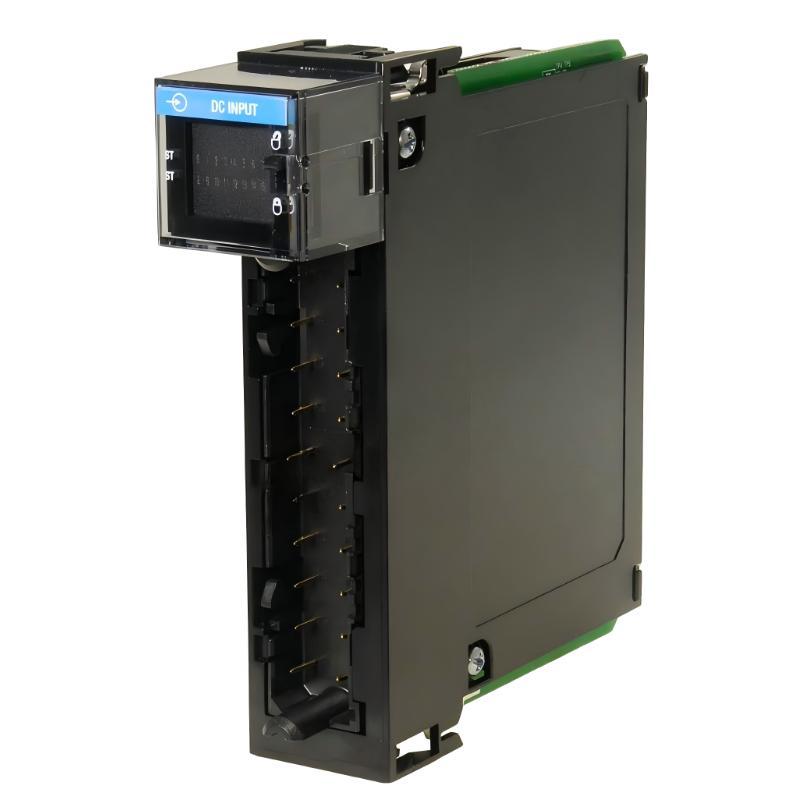

Allen Bradley 1756-IC16 ControlLogix Numeric Input Module

Overview

The 1756-IC16 ControlLogix Numeric Input Module is designed to handle analog and numeric input signals in industrial automation systems. It provides accurate and high-speed data acquisition, allowing ControlLogix controllers to process numeric input values efficiently. The module is ideal for applications requiring precise monitoring and real-time input updates.

General Information

Part Number: 1756-IC16

Manufacturer: Allen Bradley

Brand / Country of Origin: Rockwell Automation / USA

Series: ControlLogix

Type: Numeric Input Module

Input Channels: 16 Analog/Numeric Inputs

Mounting: ControlLogix Chassis Installation

Technology: Solid-State Analog Input Design

Status Indicators: Individual Channel LEDs for Input Monitoring

Power Specifications

Input Voltage Range: 0 to 10 V DC / 0 to 20 mA

Nominal Input Voltage: 5 V DC

Backplane Current Draw: Approx. 50 mA at 5.1 V DC

Power Dissipation: Approx. 2.5 W

Isolation Voltage: 250 V Continuous

Protection Features: Input Isolation, Overvoltage Protection, and Noise Suppression

Communication & Interface

System Interface: ControlLogix Backplane

Data Transfer: Real-Time Numeric Input Data Communication

Diagnostics: Channel-Level Monitoring and Fault Detection

Status Display: LED Indicators for Module and Input Health

Compatibility: Fully Compatible with ControlLogix Controllers and Chassis

Signal Processing: High-Speed Numeric Input Conversion

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: -40 to 85 °C

Relative Humidity: 5% to 95%, Non-Condensing

Vibration Resistance: Industrial-Grade Durability

Shock Resistance: Designed for Harsh Industrial Environments

Environmental Protection: Suitable for Installation in Industrial Control Cabinets

Dimensions & Weight

Dimensions (L × W × H): 144.57 × 22 × 105.42 mm

Weight: 0.118 kg
