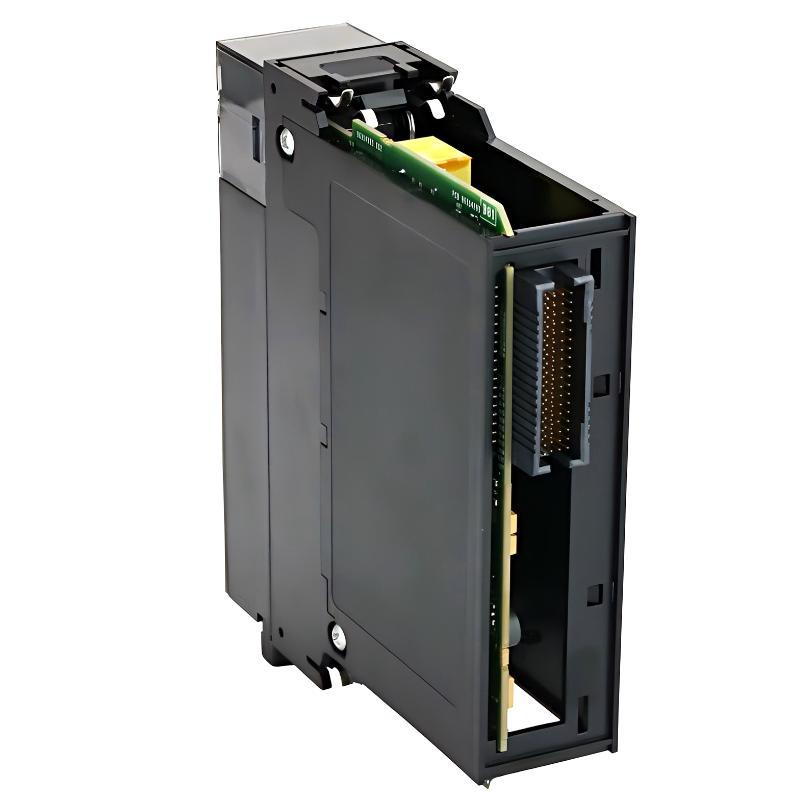

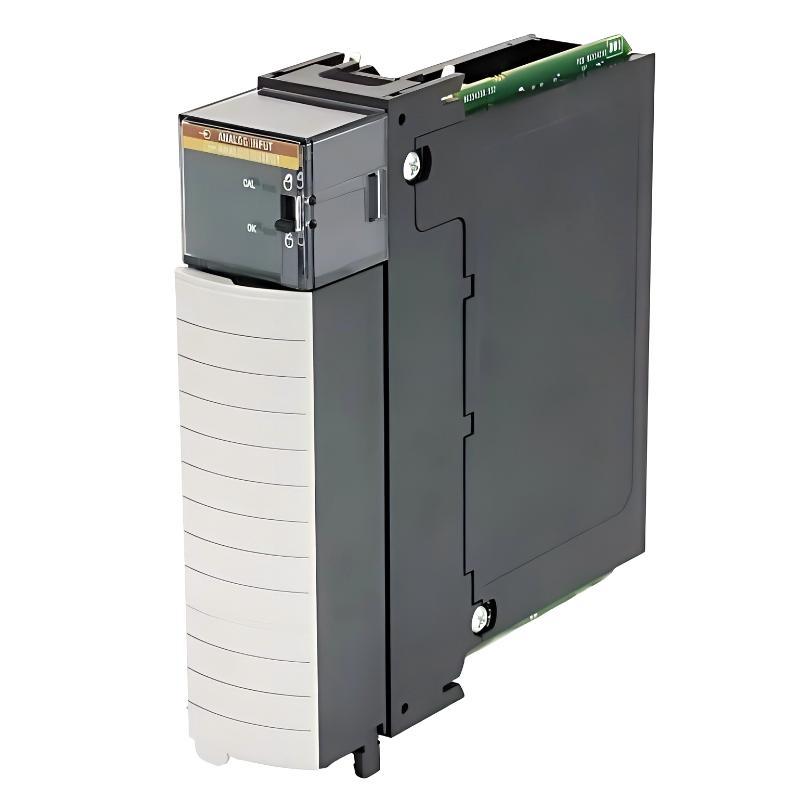

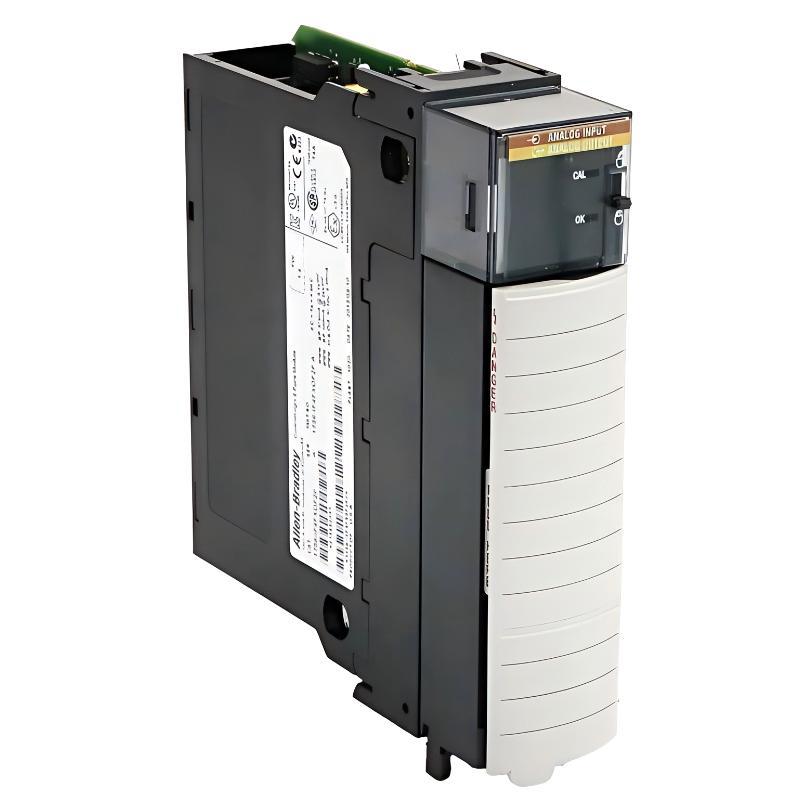

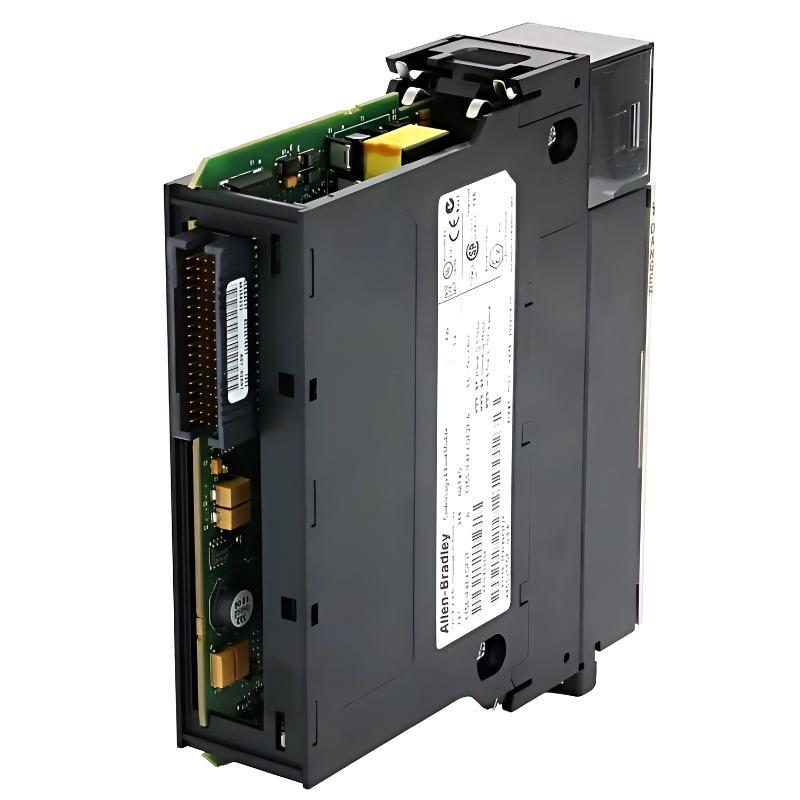

Allen Bradley 1756-IF4FXOF2F ControlLogix Fast I/O Simulation Module

Overview

The 1756-IF4FXOF2F ControlLogix Fast I/O Simulation Module is engineered for high-speed simulation and testing of digital and analog I/O signals. It allows for rapid emulation of field devices in ControlLogix systems, enabling efficient system validation, troubleshooting, and performance testing without connecting to actual process equipment.

General Information

Part Number: 1756-IF4FXOF2F

Manufacturer: Allen Bradley

Brand / Country of Origin: Rockwell Automation / USA

Series: ControlLogix

Type: Fast I/O Simulation Module

Input Channels: 4 Fast Analog Inputs

Output Channels: 2 Fast Analog Outputs

Mounting: ControlLogix Chassis Installation

Technology: High-Speed Solid-State Signal Simulation

Status Indicators: Channel Status LEDs and Module Activity Indicators

Power Specifications

Supply Voltage: 24 V DC

Backplane Current Draw: Approx. 150 mA at 5.1 V DC

Power Dissipation: Approx. 4.5 W

Isolation Voltage: 250 V Continuous

Protection Features: Overvoltage, Short-Circuit, and Input/Output Isolation

Communication & Interface

System Interface: ControlLogix Backplane

Data Transfer: Real-Time Signal Simulation and Communication

Diagnostics: Channel Monitoring, Fault Detection, and Module Health Reporting

Status Display: Integrated LED Indicators for Inputs, Outputs, and Module Status

Compatibility: Supports ControlLogix Controllers and Chassis

Signal Processing: High-Speed Analog and Digital Signal Simulation

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: -40 to 85 °C

Relative Humidity: 5% to 95%, Non-Condensing

Vibration Resistance: Industrial-Grade Reliability

Shock Resistance: Suitable for Harsh Automation Environments

Environmental Protection: Designed for Installation in Industrial Control Cabinets

Dimensions & Weight

Dimensions (L × W × H): 144.57 × 22 × 105.42 mm

Weight: 0.23 kg

Simulate Smarter — Fast Shipping Available!
