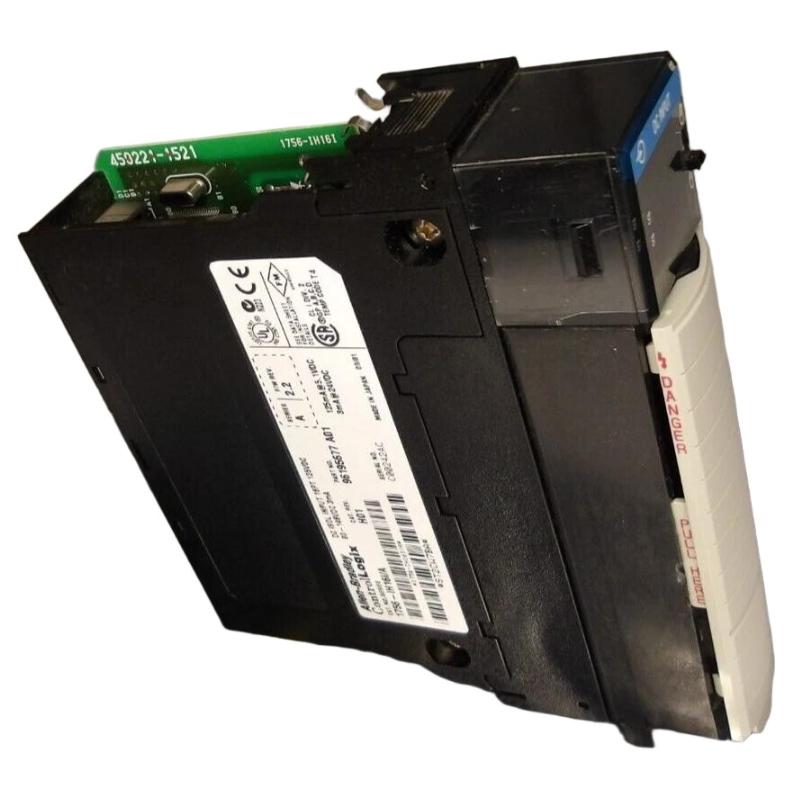

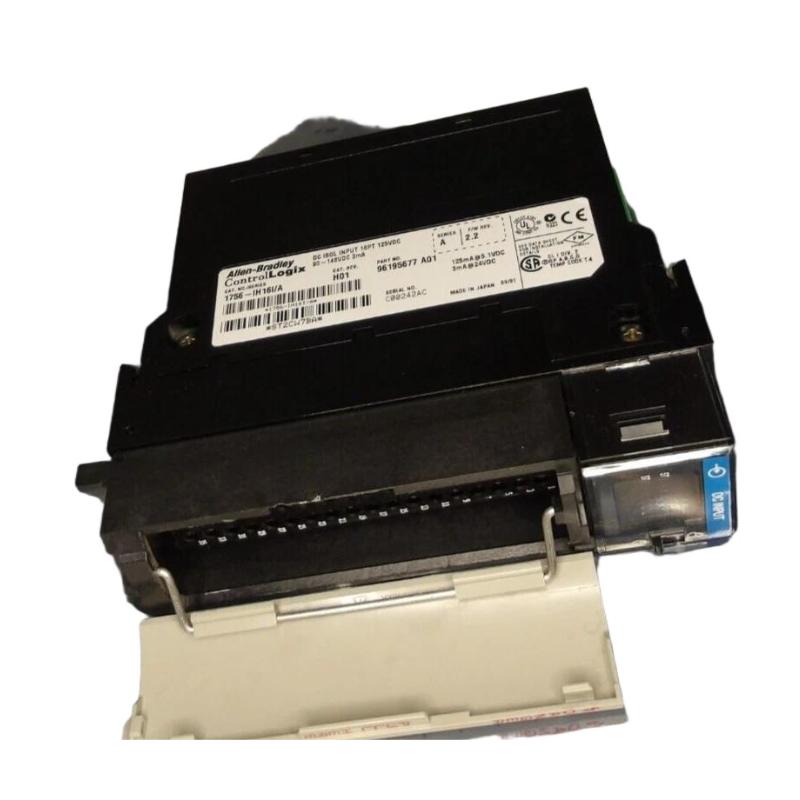

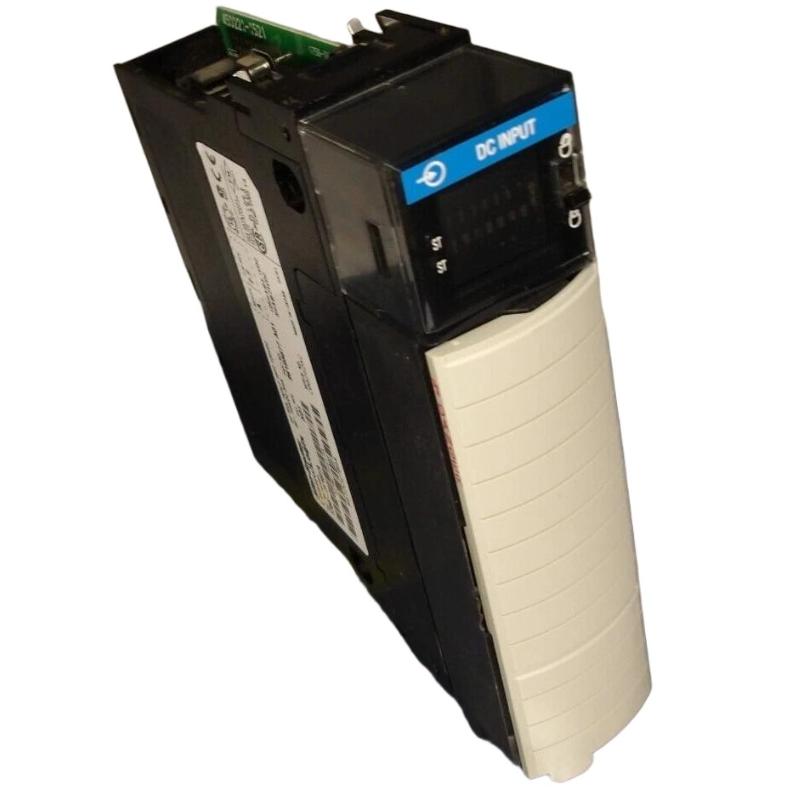

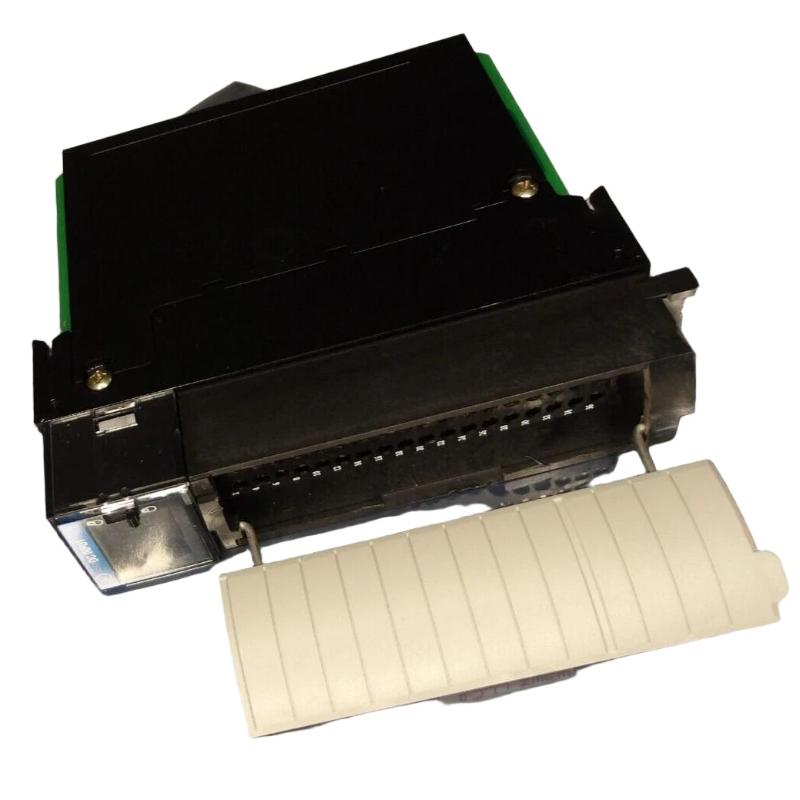

Allen Bradley 1756-IH16I ControlLogix DC Isolated Input Module

Overview

The Allen Bradley 1756-IH16I is a ControlLogix DC isolated input module designed for industrial automation systems that require reliable high-voltage signal monitoring. Featuring 16 individually isolated input channels, the module delivers accurate signal acquisition, excellent electrical noise immunity, and dependable operation in demanding industrial environments. It integrates directly into a ControlLogix chassis through the backplane architecture.

General Information

Part Number: 1756-IH16I

Manufacturer: Allen Bradley

Brand: Allen-Bradley

Country of Origin: United States

Series: ControlLogix

Type: DC Isolated Input Module

Module Category: Digital Input Module

Number of Channels: 16 Individually Isolated Inputs

Nominal Input Voltage: 125 V DC

Input Voltage Range: 90–146 V DC

Mounting: ControlLogix Chassis Installation

Terminal Block Compatibility: 1756-TBCH, 1756-TBS6H

Power Specifications

Input Voltage: 90–146 V DC

Nominal Voltage: 125 V DC

Backplane Current Draw (5.1 V DC): Approx. 125 mA

Backplane Current Draw (24 V DC): Approx. 3 mA

Power Dissipation: Up to 5 W

Isolation Voltage: 250 V Continuous

Power Source: ControlLogix Backplane

Status Indicators: Channel Status and Diagnostic LEDs

Communication & Interface

Input Type: DC Digital Input

Input Channels: 16

Channel Isolation: Individual Isolation Per Channel

Connection Method: Removable Terminal Block

Communication Path: ControlLogix Backplane

Diagnostics: Input Status Monitoring

System Compatibility: ControlLogix Controllers and Chassis

Signal Processing: High-Speed Input Detection and Filtering

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% RH, Non-Condensing

Shock Resistance: Industrial Grade

Vibration Resistance: Suitable for Industrial Environments

Protection Rating: Open-Type Equipment for Enclosed Installations

Dimensions & Weight

Dimensions (H × W × D): 144.57 × 22 × 105.42 mm

Weight: 0.181 kg

Ready to Ship.
