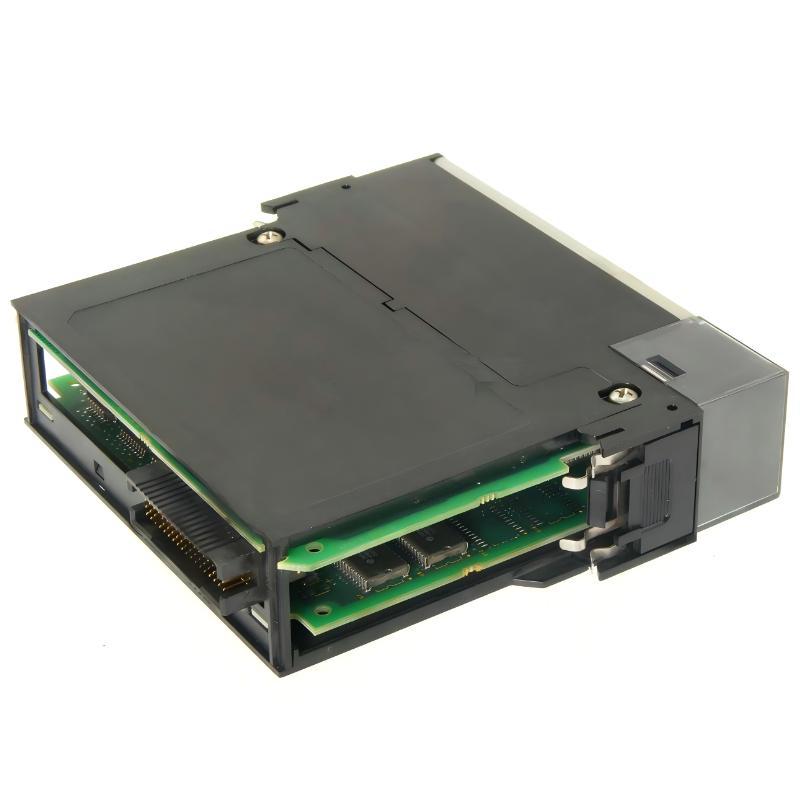

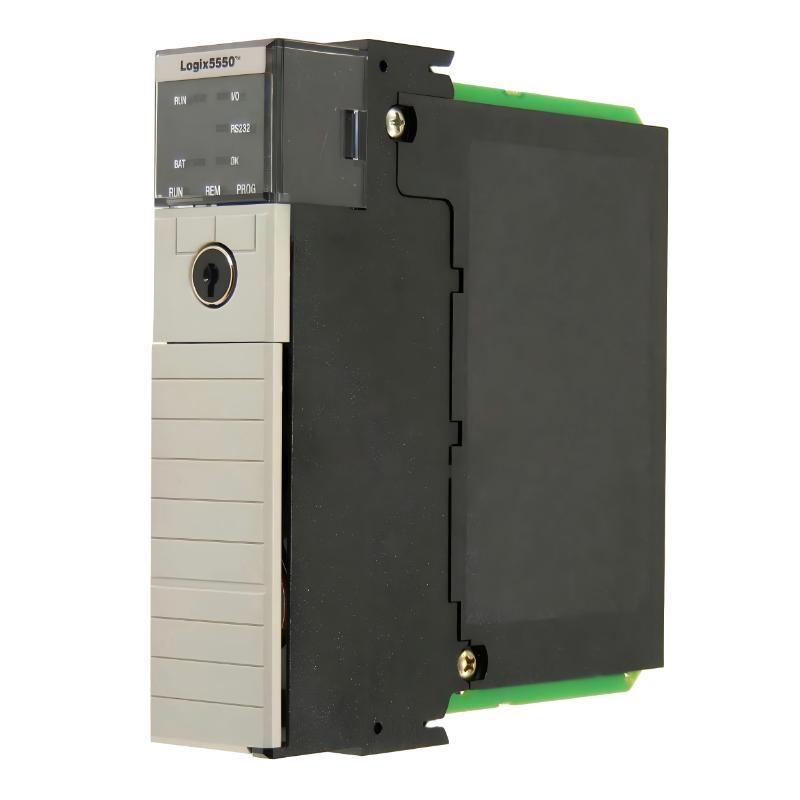

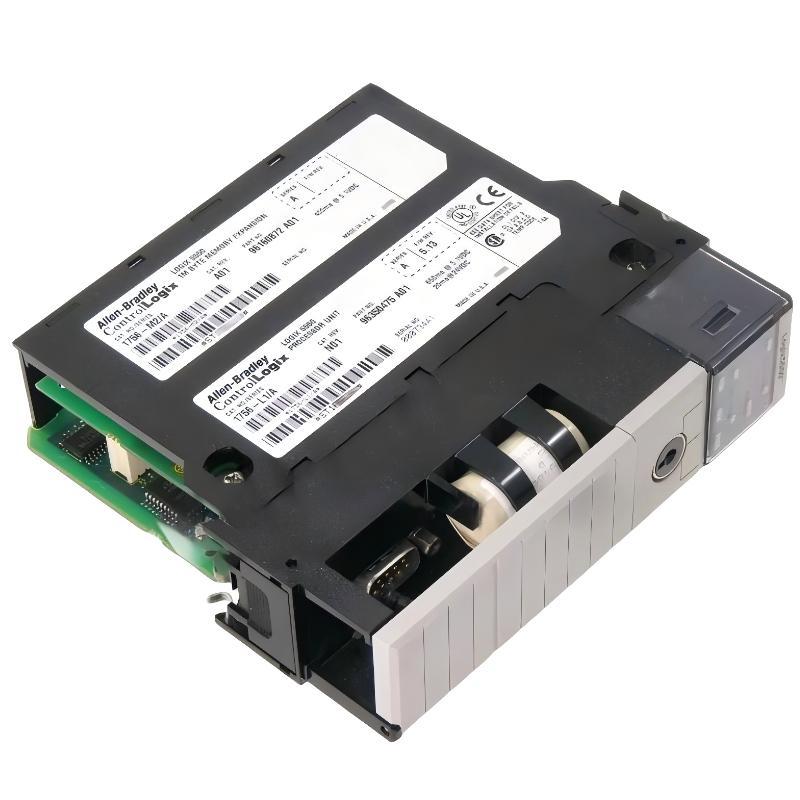

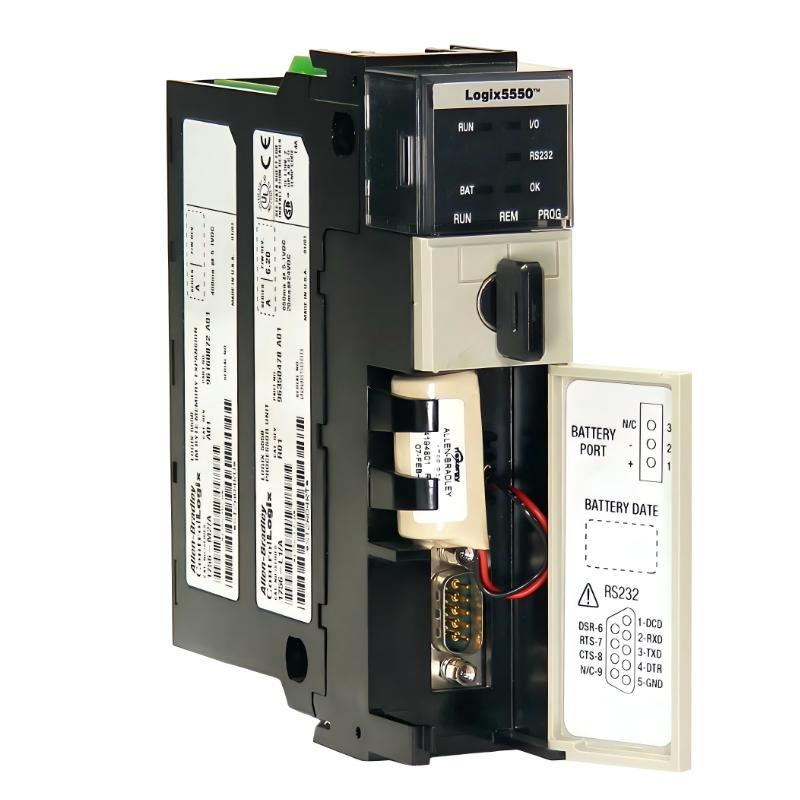

Allen Bradley 1756-L1M2 ControlLogix Logix5550 Processor

Overview

The Allen Bradley 1756-L1M2 is a ControlLogix Logix5550 processor module designed for industrial automation control applications requiring reliable real-time processing and system coordination. It serves as the central controller within a ControlLogix system, handling logic execution, I/O coordination, and communication tasks across the automation network. The processor is commonly used in medium-scale control systems where stable performance and deterministic control are required.

General Information

Part Number: 1756-L1M2

Manufacturer: Allen Bradley

Brand: Allen-Bradley

Country of Origin: United States

Series: ControlLogix

Type: Logix5550 Processor / Controller

Module Category: Programmable Automation Controller (PAC)

Processor Family: Logix5550

Mounting: ControlLogix Chassis Installation

Memory Capacity: Configurable user memory (system dependent)

Supported I/O: ControlLogix I/O modules via backplane

Power Specifications

Input Power: 5 V DC via ControlLogix backplane

Backplane Current Draw (5.1 V DC): Approx. 1.0 A

Backplane Current Draw (24 V DC): Minimal auxiliary consumption

Power Dissipation: Approx. 5–7 W

Battery Backup: Supported (for memory retention)

Isolation Voltage: System-level isolation via chassis design

Status Indicators: RUN, OK, Fault, and communication LEDs

Communication & Interface

Backplane Communication: High-speed ControlLogix bus

Programming Interface: RSLogix / Studio 5000 compatible environment

Network Support: Modular communication via chassis communication modules

I/O Handling: Real-time deterministic control of distributed I/O

Diagnostics: System fault tracking and module-level diagnostics

Task Execution: Multitasking real-time control execution

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% RH, Non-Condensing

Shock Resistance: Industrial Grade

Vibration Resistance: Suitable for Control Cabinet Installation

Protection Rating: Installed within protected control enclosure

Dimensions & Weight

Dimensions (H × W × D): 145.2 × 34.6 × 139.6 mm

Weight: 0.37 kg
