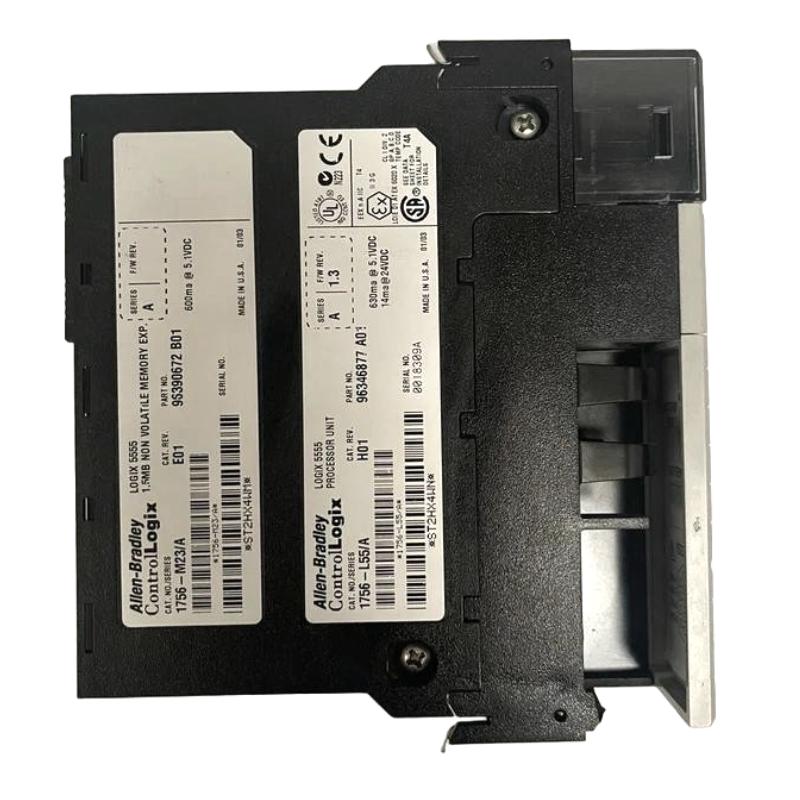

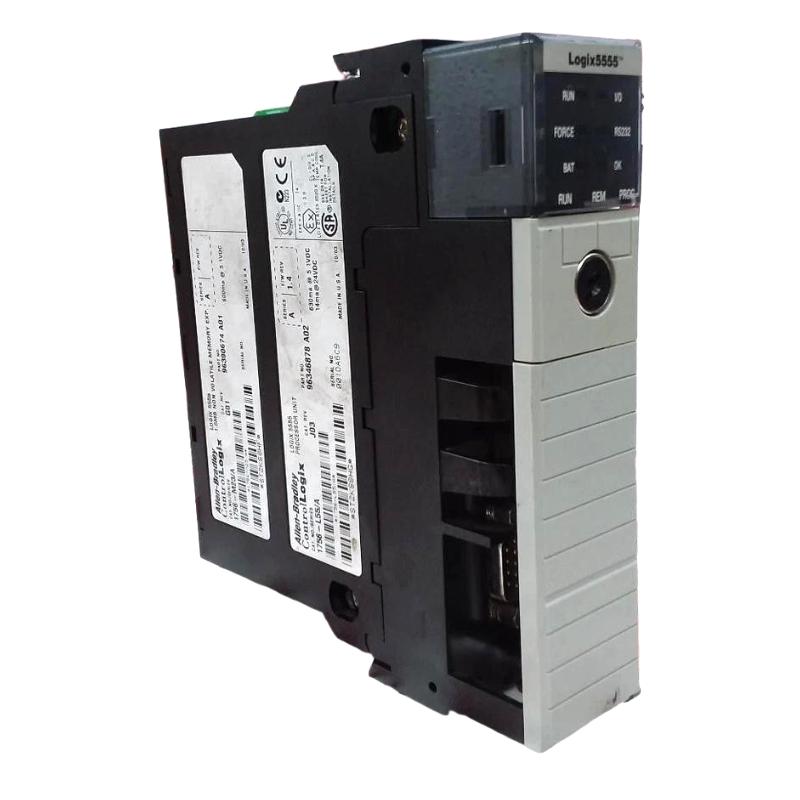

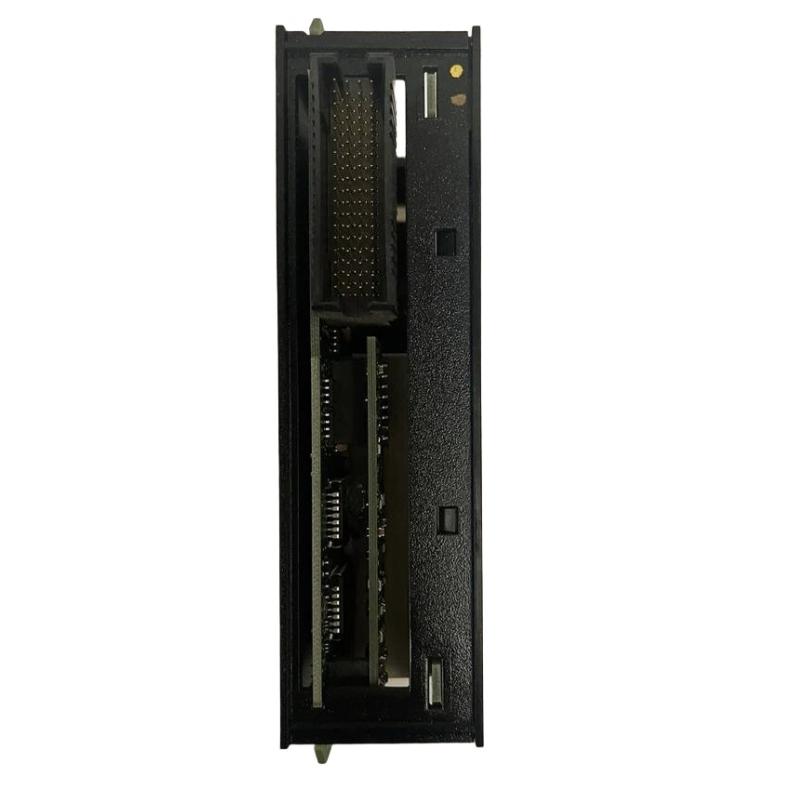

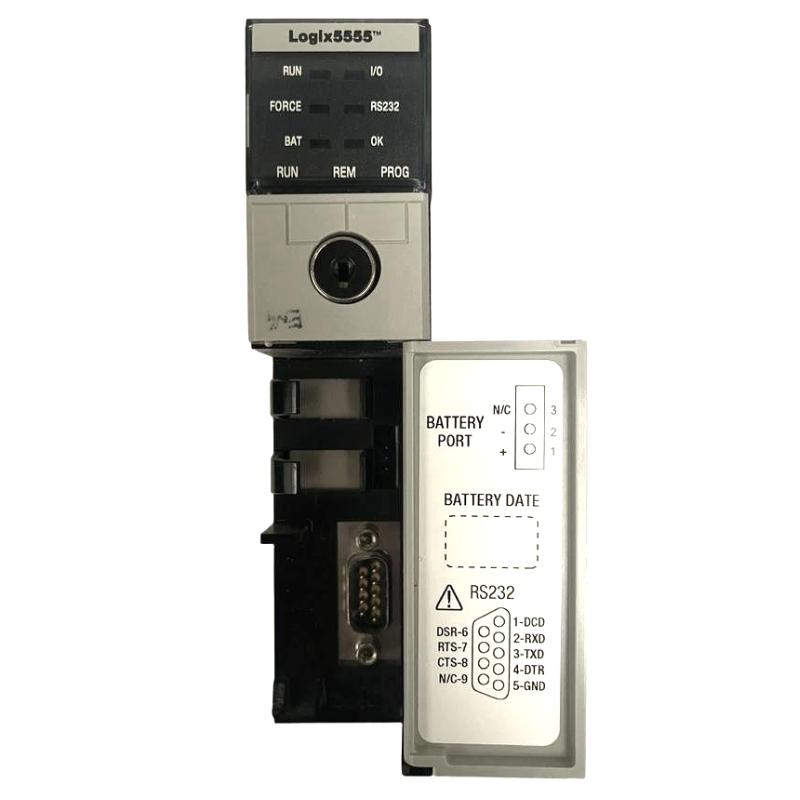

Allen Bradley 1756-L55M23 ControlLogix Logix5555 Processor

Overview

The Allen Bradley 1756-L55M23 is a ControlLogix Logix5555 processor module designed for industrial automation systems requiring stable real-time control and coordinated system management. It functions as the central processing unit within a ControlLogix architecture, handling logic execution, I/O processing, and communication between modules and networks. The controller is suitable for medium-complexity automation applications that demand reliable and deterministic performance.

General Information

Part Number: 1756-L55M23

Manufacturer: Allen Bradley

Brand: Allen-Bradley

Country of Origin: United States

Series: ControlLogix

Type: Logix5555 Processor / Controller

Module Category: Programmable Automation Controller (PAC)

Processor Family: Logix5555

Mounting: ControlLogix Chassis Installation

Memory Capacity: System-dependent user memory

Supported I/O: ControlLogix I/O modules via backplane

Power Specifications

Input Power: 5 V DC via ControlLogix backplane

Backplane Current Draw (5.1 V DC): Approx. 1.0 A

Backplane Current Draw (24 V DC): Minimal auxiliary consumption

Power Dissipation: Approx. 5–7 W

Battery Backup: Supported for program and memory retention

Isolation Voltage: System-level chassis isolation

Status Indicators: RUN, OK, Fault, and communication LEDs

Communication & Interface

Backplane Communication: High-speed ControlLogix bus

Programming Environment: RSLogix / Studio 5000 compatible

Network Support: Expandable via communication modules

I/O Handling: Real-time deterministic control of distributed I/O

Diagnostics: System and module-level fault detection

Task Execution: Multitasking control execution environment

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% RH, Non-Condensing

Shock Resistance: Industrial Grade

Vibration Resistance: Suitable for control cabinet installation

Protection Rating: Installed within protected enclosure

Dimensions & Weight

Dimensions (H × W × D): 145.2 × 34.6 × 139.6 mm

Weight: 0.3 kg
