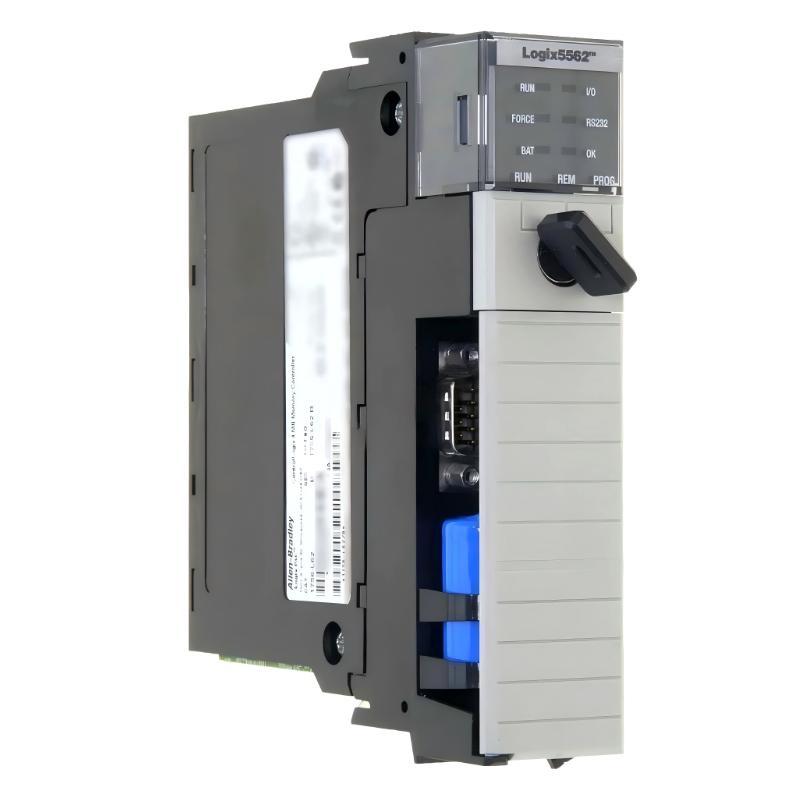

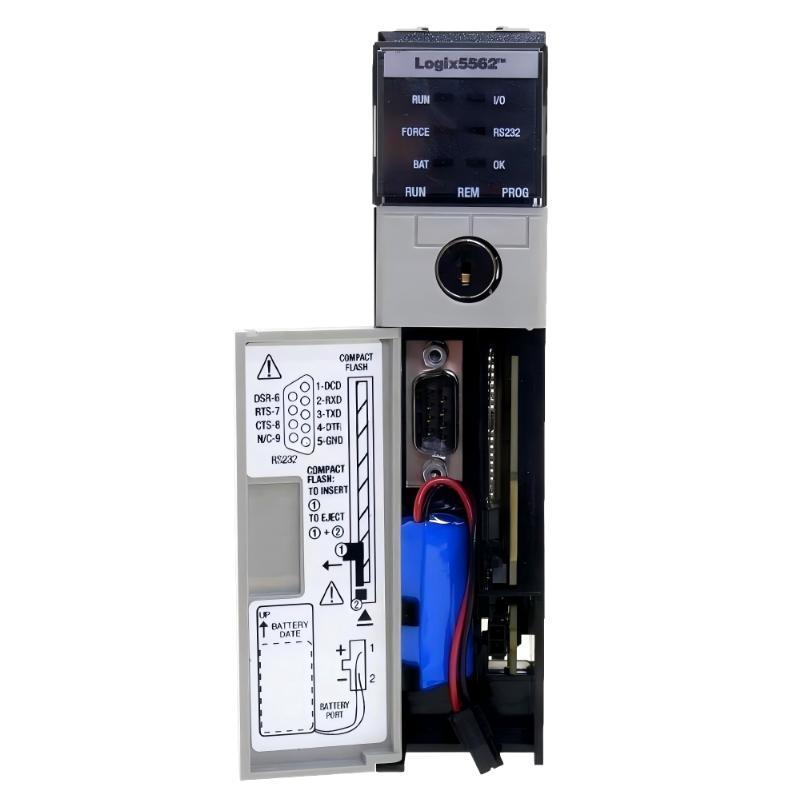

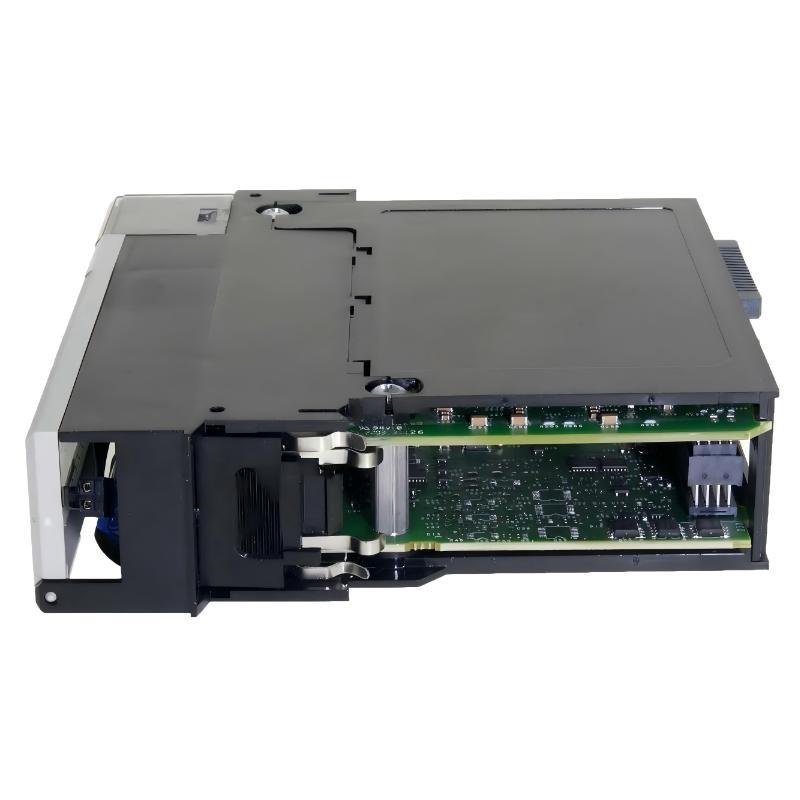

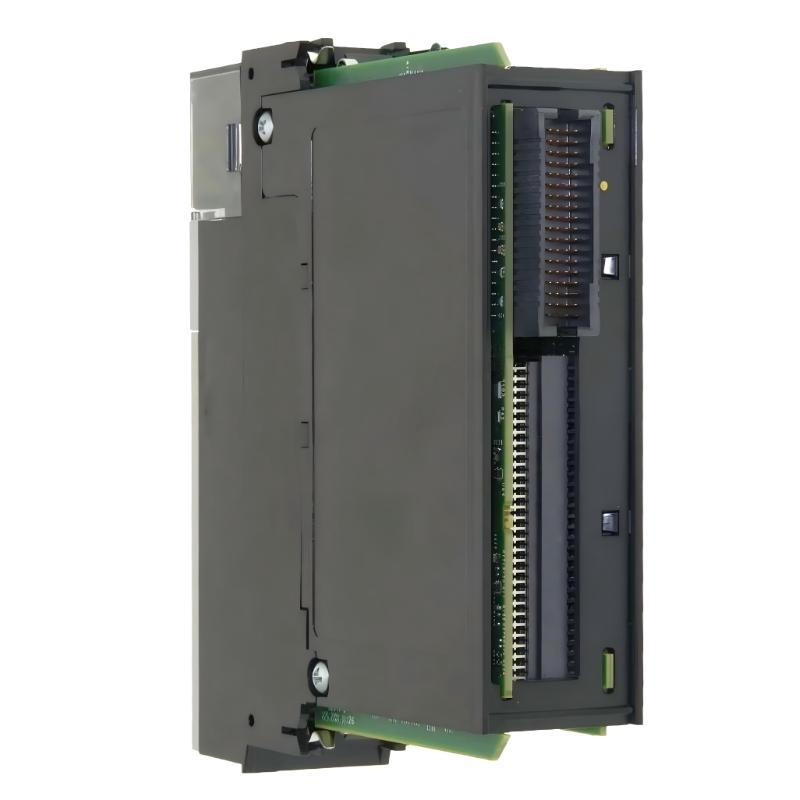

Allen Bradley 1756-L62 ControlLogix Logix5562 Processor

Overview

The Allen Bradley 1756-L62 is a ControlLogix Logix5562 processor module designed for industrial automation systems requiring high-performance and deterministic control execution. It functions as the central processing unit within a ControlLogix architecture, handling logic processing, I/O coordination, and system-wide communication. The controller is commonly used in demanding automation environments where reliable real-time performance and scalable control are required.

General Information

Part Number: 1756-L62

Manufacturer: Allen Bradley

Brand: Allen-Bradley

Country of Origin: United States

Series: ControlLogix

Type: Logix5562 Processor / Controller

Module Category: Programmable Automation Controller (PAC)

Processor Family: Logix5562

Mounting: ControlLogix Chassis Installation

Memory Capacity: System-dependent user memory

Supported I/O: ControlLogix I/O modules via backplane

Power Specifications

Input Power: 5 V DC via ControlLogix backplane

Backplane Current Draw (5.1 V DC): Approx. 1.0–1.2 A

Backplane Current Draw (24 V DC): Minimal auxiliary consumption

Power Dissipation: Approx. 5–7 W

Battery Backup: Supported for program and memory retention

Isolation Voltage: System-level chassis isolation

Status Indicators: RUN, OK, Fault, and communication LEDs

Communication & Interface

Backplane Communication: High-speed ControlLogix bus

Programming Environment: RSLogix / Studio 5000 compatible

Network Support: Expandable via communication modules

I/O Handling: Real-time deterministic control of distributed I/O

Diagnostics: System and module-level fault monitoring

Task Execution: Multitasking control execution environment

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% RH, Non-Condensing

Shock Resistance: Industrial Grade

Vibration Resistance: Suitable for control cabinet installation

Protection Rating: Installed within protected enclosure

Dimensions & Weight

Dimensions (H × W × D): 145.2 × 34.6 × 139.6 mm

Weight: 0.34 kg
