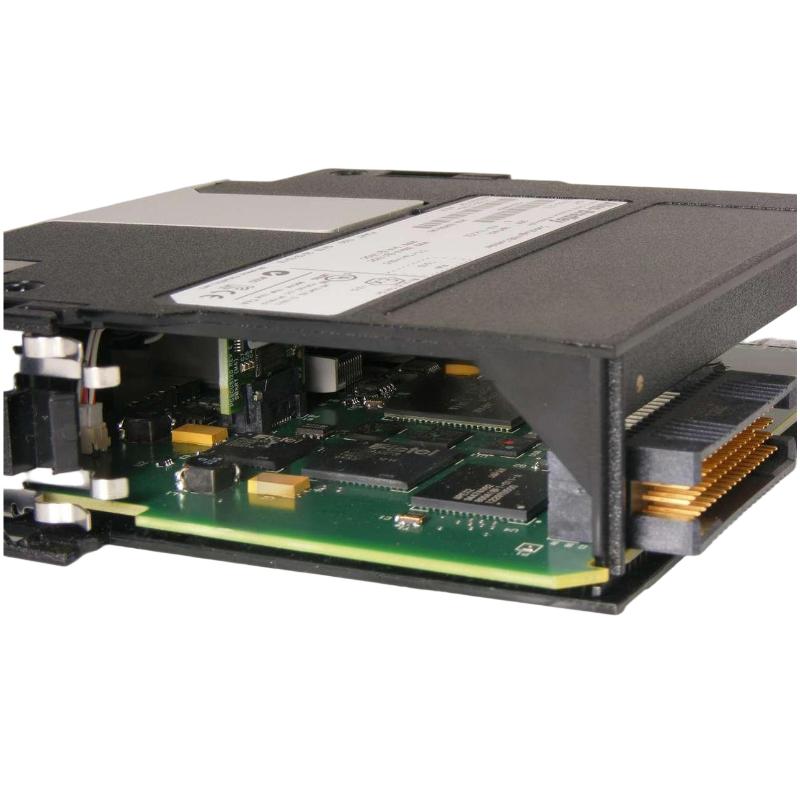

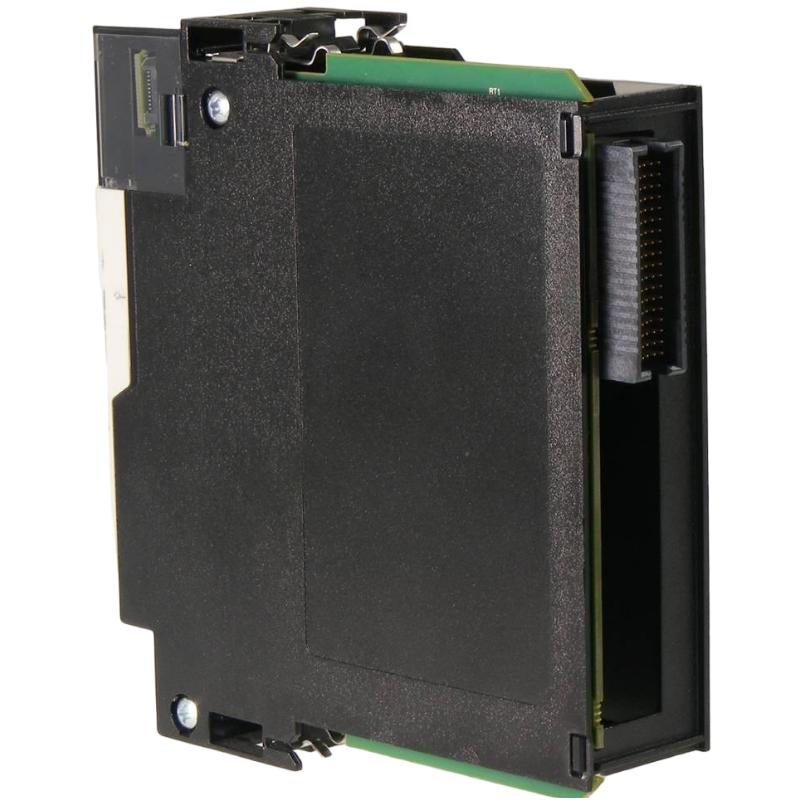

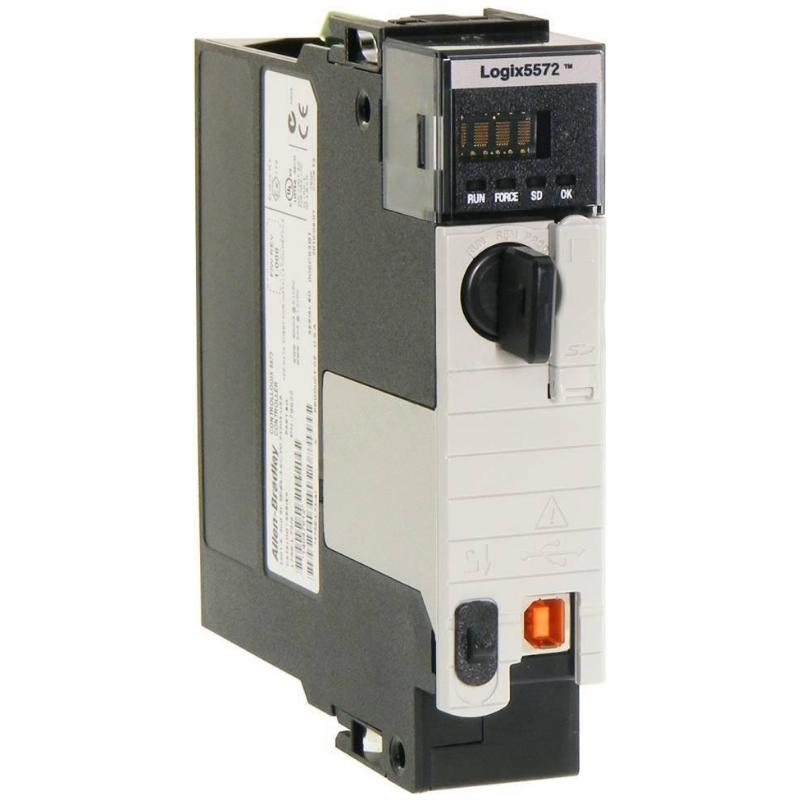

Allen Bradley 1756-L72 ControlLogix Logix5572 Processor

Overview

The 1756-L72 ControlLogix Logix5572 Processor is a high-performance programmable automation controller designed for complex and high-speed industrial control applications. As part of the ControlLogix 5570 series, it delivers strong processing capability, efficient memory handling, and flexible system integration. It is widely used in manufacturing automation, process control, and large distributed control systems requiring stable and scalable performance.

General Information

Part Number: 1756-L72

Manufacturer: Allen Bradley / Rockwell Automation

Brand / Country of Origin: Allen Bradley / USA

Series: ControlLogix Logix5572

Type: Programmable Automation Controller (PAC)

Mounting: Installed in a ControlLogix chassis

Technology: Logix 5570 control architecture with enhanced processing performance

Application: Industrial automation, machine control, process control, and distributed control systems

Power Specifications

Supply Voltage: Powered through the ControlLogix backplane

Power Consumption: Approx. 5 W

Isolation: Backplane isolation design

Protection Features: Built-in diagnostics, fault detection, and system monitoring

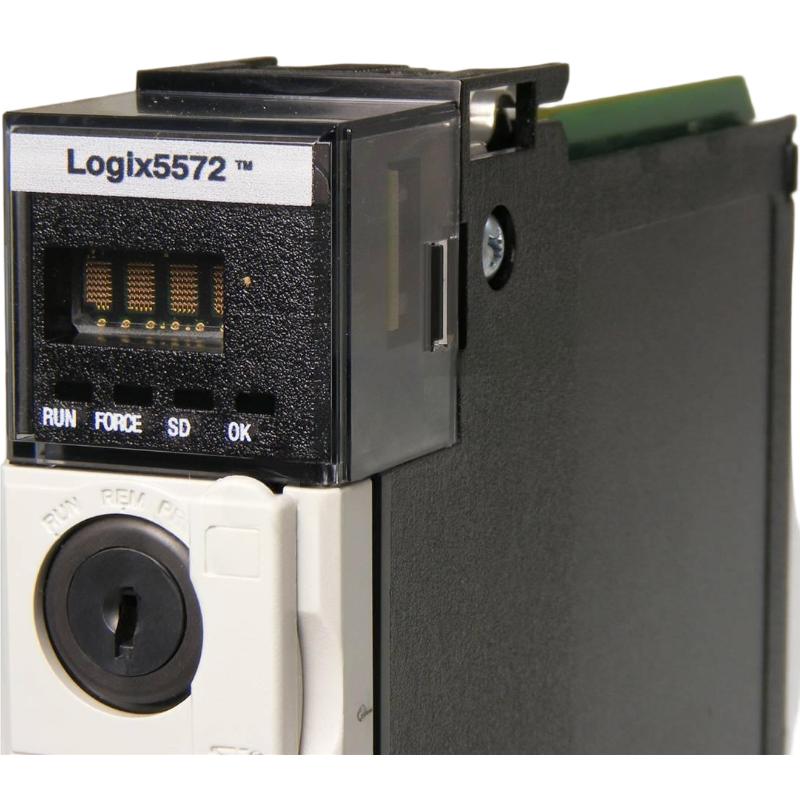

Status Indicators: LED indicators for power, module status, communication, and fault status

Memory: High-capacity user memory for application programs and system data

Communication & Interface

Backplane Interface: High-speed ControlLogix backplane communication

Network Support: Compatible with EtherNet/IP, ControlNet, DeviceNet, and other communication modules

Programming Software: Studio 5000 Logix Designer

Diagnostics: Real-time system diagnostics and fault monitoring

Data Exchange: Supports communication with local and distributed I/O modules

USB Port: Integrated USB interface for programming, configuration, and maintenance

Expansion Capability: Supports multiple ControlLogix communication and I/O modules for flexible system design

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +85°C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Designed for industrial environments with stable operation

Protection Rating: IP20 (when installed in an appropriate enclosure)

Dimensions & Weight

Dimensions (L × W × H): 145.2 × 34.6 × 139.6 mm

Weight: 0.25 kg
