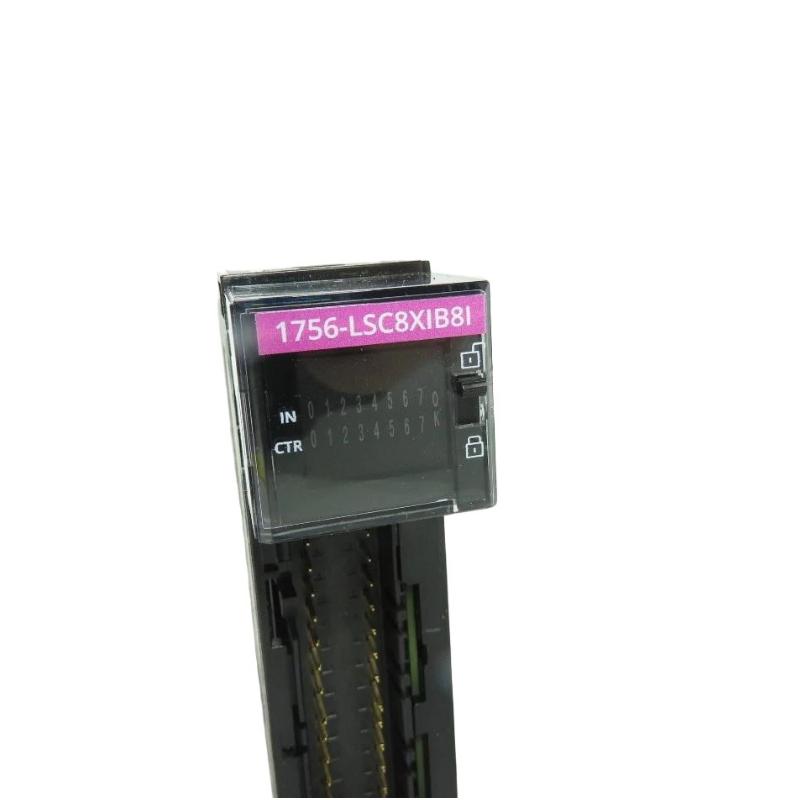

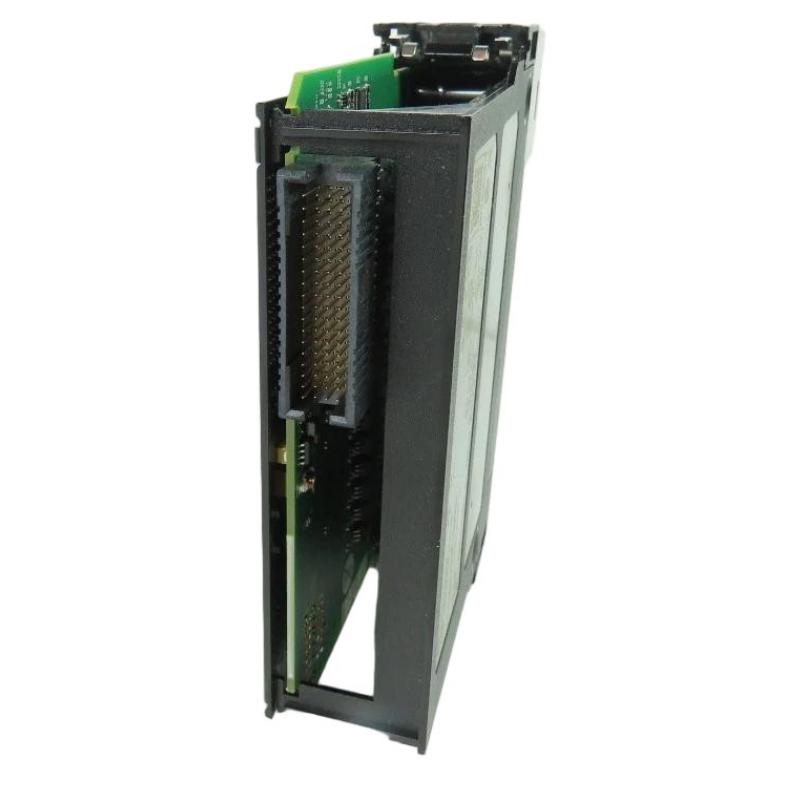

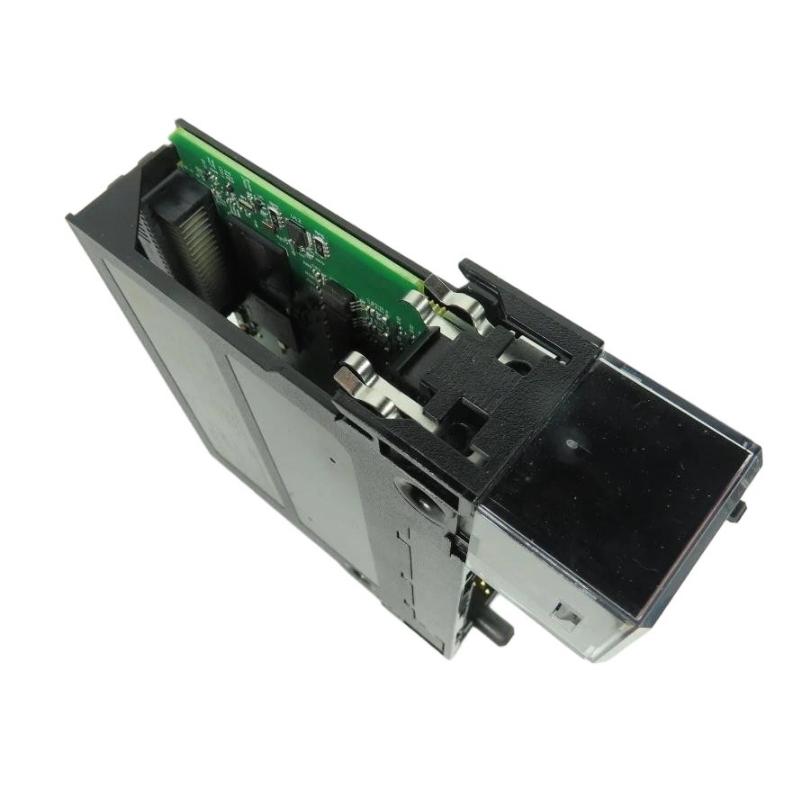

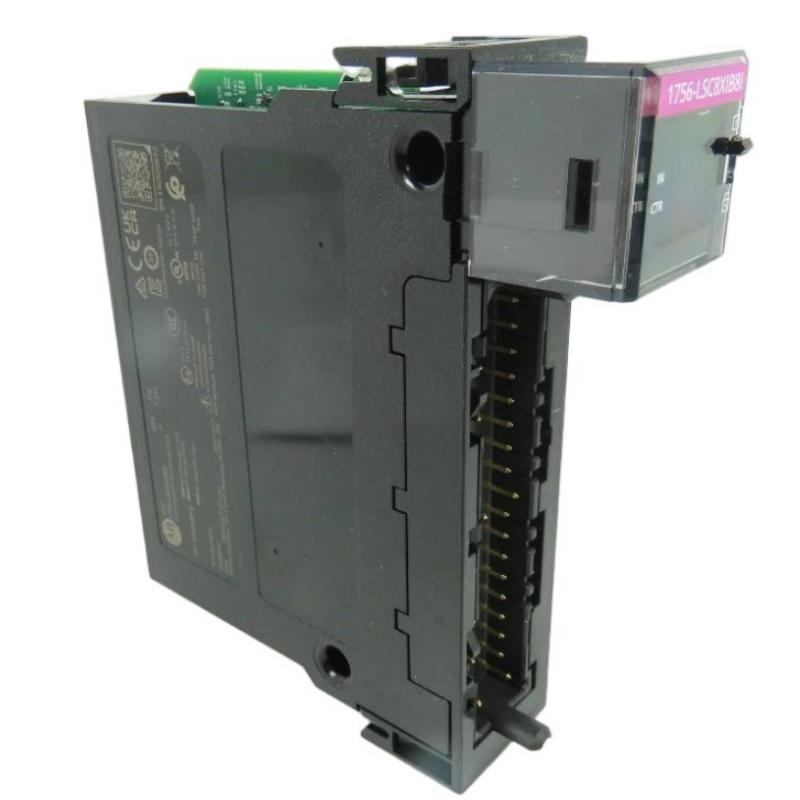

Allen Bradley 1756-LSC8XIB8I ControlLogix Low-Speed ​​Counter Module

Overview

The Allen Bradley 1756-LSC8XIB8I is a low-speed counter module designed for the ControlLogix system. It provides precise counting and monitoring of discrete signals in industrial automation applications, enabling reliable event counting, pulse monitoring, and simple motion control tasks.

General Information

Part Number: 1756-LSC8XIB8I

Manufacturer: Allen Bradley

Brand / Country of Origin: Allen Bradley / USA

Series: ControlLogix

Type: Low-Speed Counter Module

Mounting: Chassis-mounted within a ControlLogix rack

Technology: Digital counting and signal processing for discrete inputs

Application: Event counting, pulse monitoring, and low-speed motion control

Power Specifications

Supply Voltage: Powered via ControlLogix chassis backplane

Power Consumption: Typical module-level consumption

Isolation: Backplane electrical isolation

Protection Features: Industrial-grade protection against voltage spikes

Status Indicators: LEDs for channel status, module health, and fault

Communication & Interface

Input Channels: 8 low-speed input channels

Output Channels: 8 digital output channels

Signal Type: Discrete inputs compatible with standard industrial sensors

Diagnostics: Channel fault detection and status reporting

Controller Integration: Works seamlessly with ControlLogix processors

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: −40°C to +85°C

Humidity: 5% to 95% RH, non-condensing

Environmental Protection: Designed for industrial cabinet installation

Shock Resistance: Meets industrial shock requirements

Vibration Resistance: Compliant with industrial vibration standards

Dimensions & Weight

Dimensions (L × W × H): 144.57 × 22 × 105.42 mm

Weight: 0.272 kg
