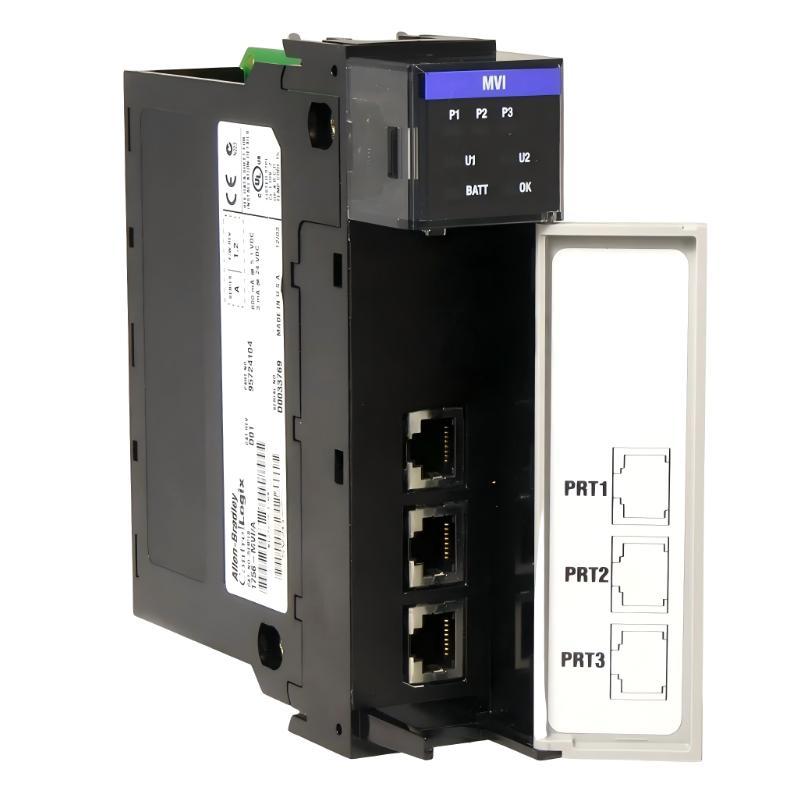

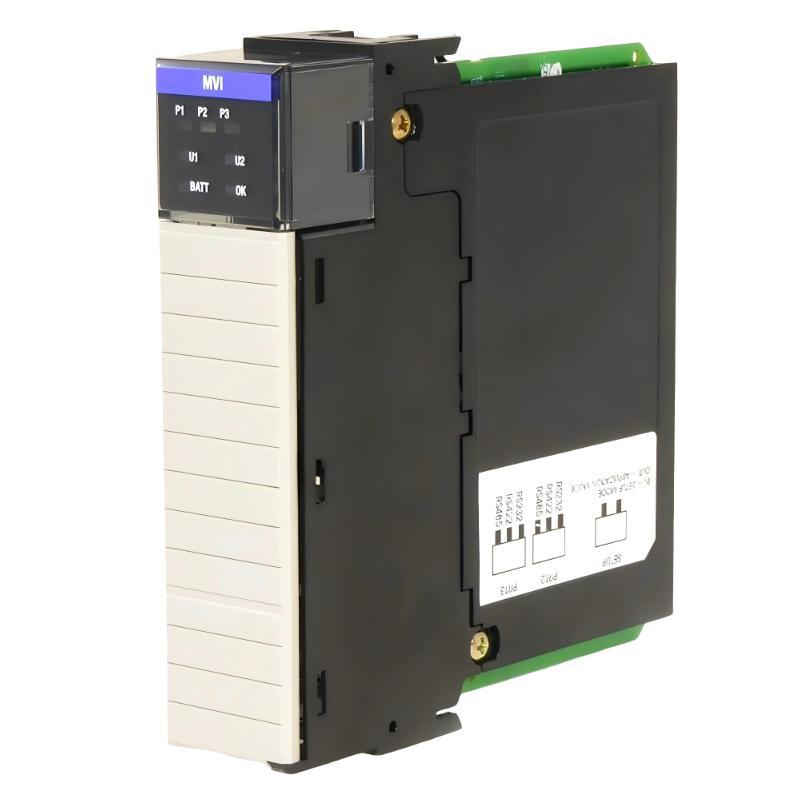

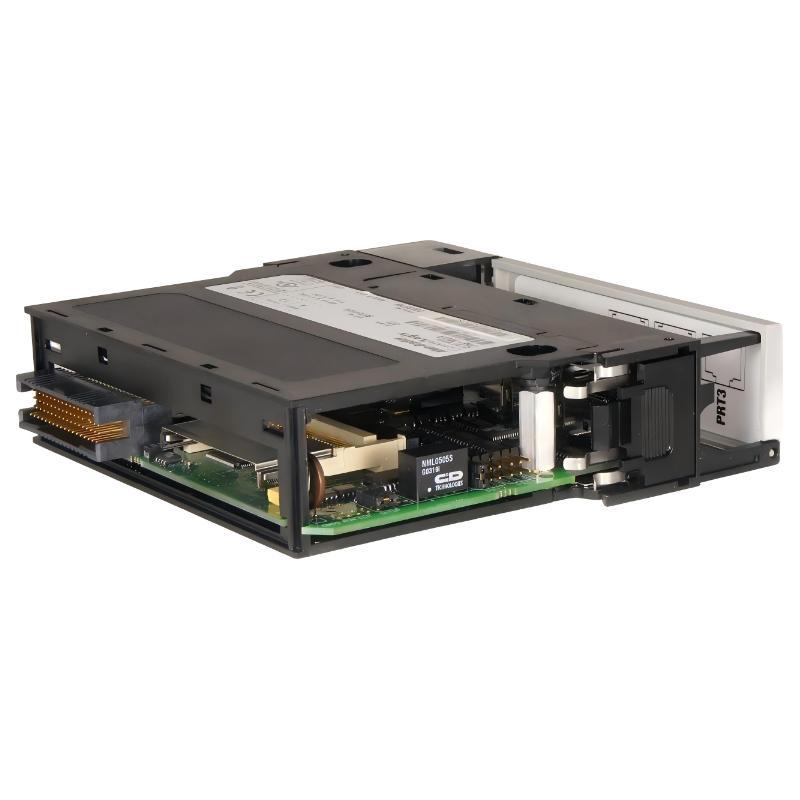

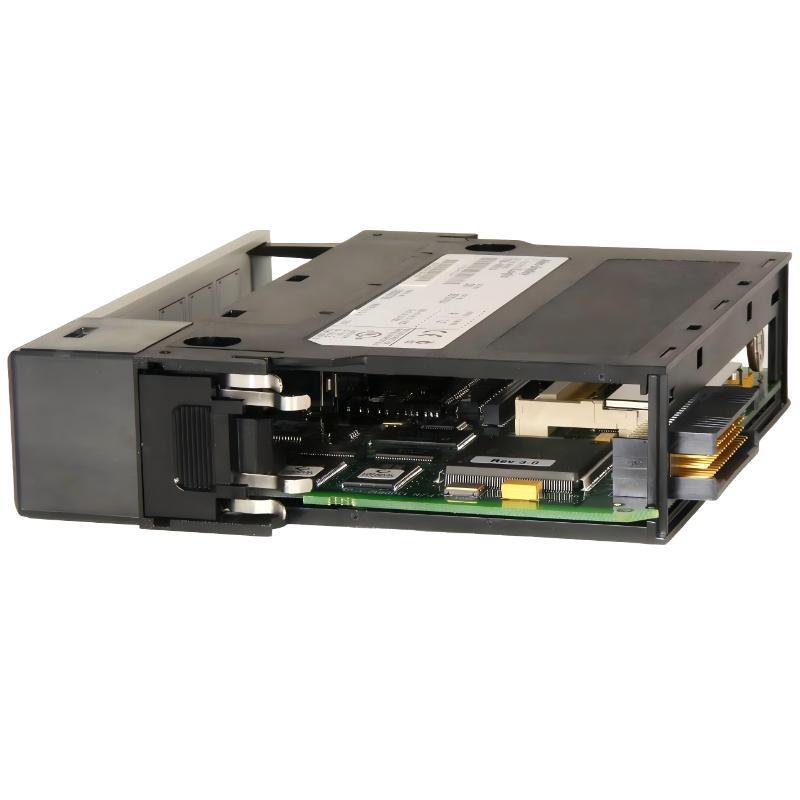

Allen Bradley 1756-MVI ControlLogix Multi-Vendor Interface Module

Overview

The Allen Bradley 1756-MVI is a Multi-Vendor Interface (MVI) module for ControlLogix systems. It provides seamless communication between ControlLogix controllers and third-party devices or networks, supporting multiple industrial protocols for flexible and scalable automation solutions.

General Information

Part Number: 1756-MVI

Manufacturer: Allen Bradley

Brand / Country of Origin: Allen Bradley / USA

Series: ControlLogix

Type: Multi-Vendor Interface (MVI) Module

Mounting: Chassis-mounted within a ControlLogix rack

Technology: Multi-protocol interface enabling connectivity with diverse industrial devices

Application: Cross-vendor device communication, protocol conversion, and network integration

Power Specifications

Supply Voltage: Powered via ControlLogix chassis backplane

Power Consumption: Typical module-level consumption

Isolation: Backplane electrical isolation

Protection Features: Industrial-grade protection against electrical noise and surges

Status Indicators: LEDs for power, communication status, and fault detection

Communication & Interface

Network Compatibility: Supports multiple industrial networks and protocols

Interface Ports: Configurable for EtherNet/IP, DeviceNet, PROFIBUS, or other supported networks

Diagnostics: Network monitoring, link supervision, and fault reporting

Controller Integration: Fully compatible with ControlLogix processors

Security: Provides communication security and error detection

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: −40°C to +85°C

Humidity: 5% to 95% RH, non-condensing

Environmental Protection: Suitable for industrial control cabinet installation

Shock Resistance: Designed for industrial operating conditions

Vibration Resistance: Compliant with industrial vibration standards

Dimensions & Weight

Dimensions (L × W × H): 144.57 × 22 × 105.42 mm

Weight: 0.608 kg
