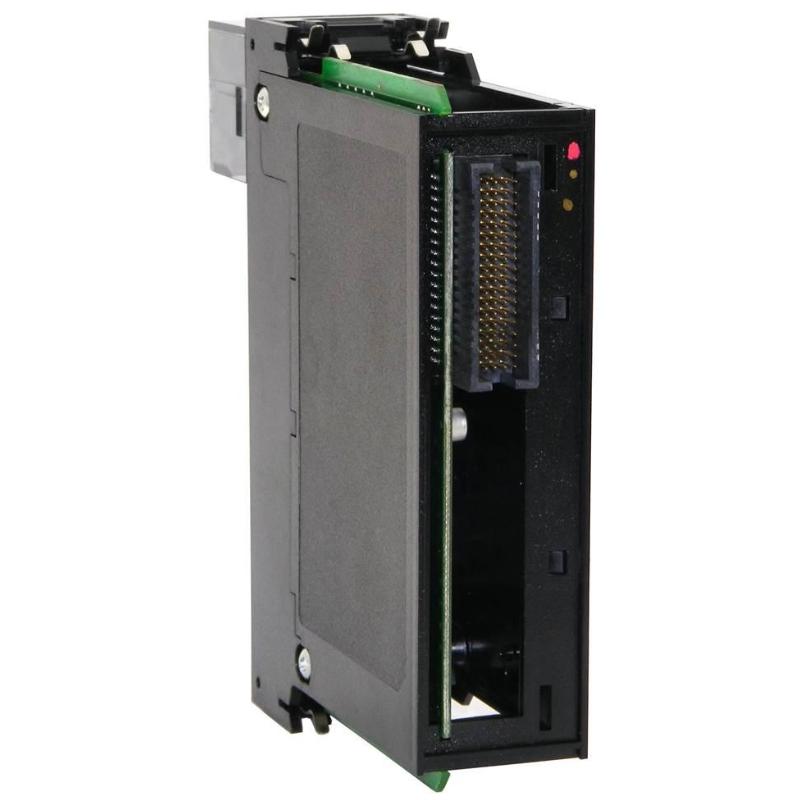

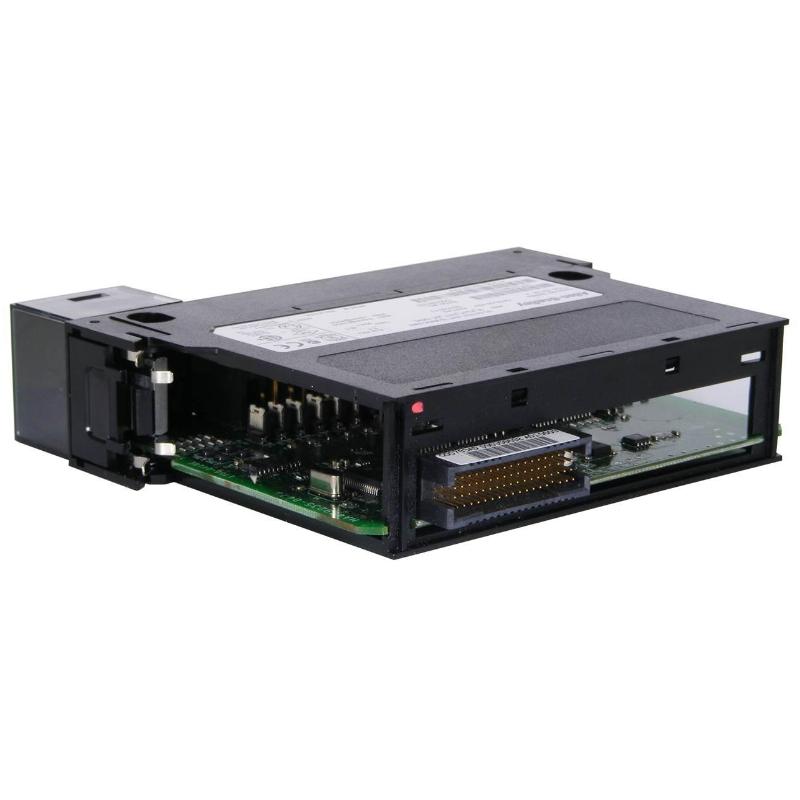

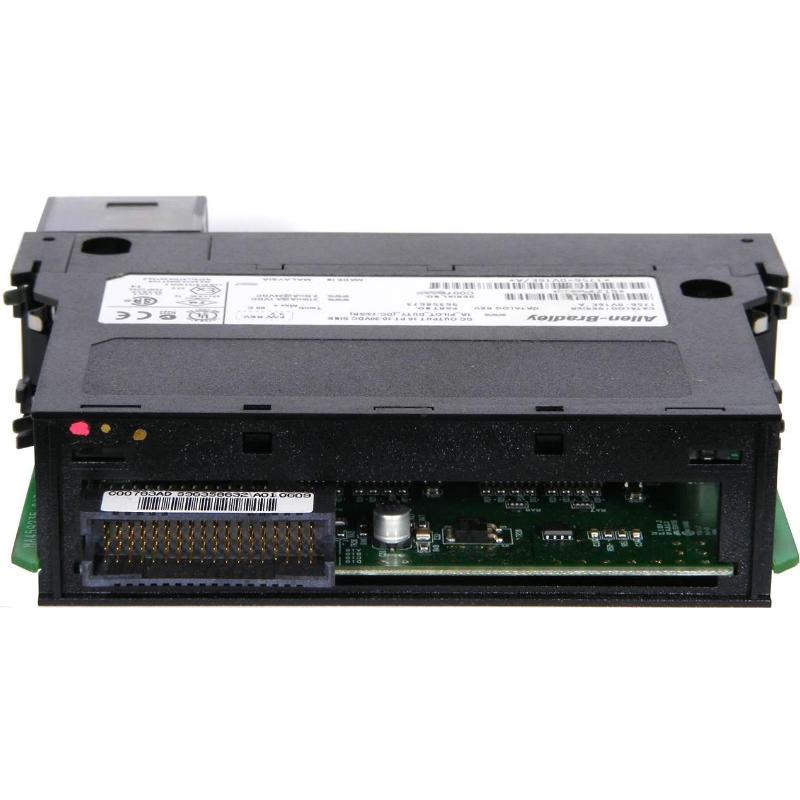

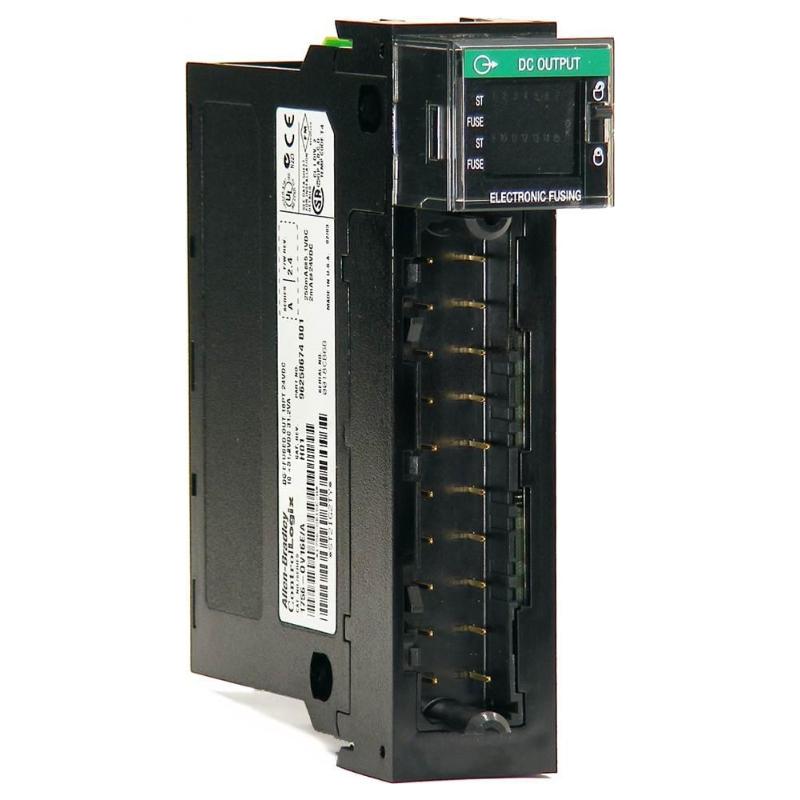

Allen Bradley 1756-OV16E ControlLogix DC Fuse-Type Current Sinking Output Module

Overview

The 1756-OV16E is a ControlLogix DC fuse-type current sinking output module designed for safe and reliable switching of DC loads. With 16 output channels, each protected by fuse-type protection, it provides stable control of industrial devices such as solenoids, relays, and indicators while enhancing system safety and fault isolation.

General Information

Part Number: 1756-OV16E

Manufacturer: Allen Bradley

Brand / Country of Origin: Rockwell Automation / USA

Series: ControlLogix

Type: DC Fuse-Type Current Sinking Output Module

Number of Outputs: 16 DC Current Sinking Output Channels

Mounting: Chassis-based installation in ControlLogix systems

Technology: Solid-state digital output with fuse-type protection and diagnostics

Power Specifications

Operating Voltage Range: 10–30 V DC

Nominal Output Voltage: 24 V DC

Backplane Current: 200 mA at 5.1 V DC

Total Backplane Power: 1.02 W

Maximum Continuous Current per Output: 0.5 A

Protection: Fuse-type protection, overload and short-circuit detection

Status Indicators: Individual channel LEDs and module diagnostics LED

Communication & Interface

System Interface: ControlLogix backplane

Communication Method: High-speed chassis communication

Diagnostics: Channel fuse status monitoring, output fault detection, and module health reporting

Configuration: Software configurable via ControlLogix platform

Operator Interface: Front-panel LED indicators

Wiring Connection: Removable terminal block compatible

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95%, non-condensing

Vibration Resistance: Industrial-grade rated environment

Protection Rating: Open-type module for installation within an enclosure

Dimensions & Weight

Dimensions (L × W × H): 144.57 × 22 × 105.42 mm

Weight: 0.181 kg
