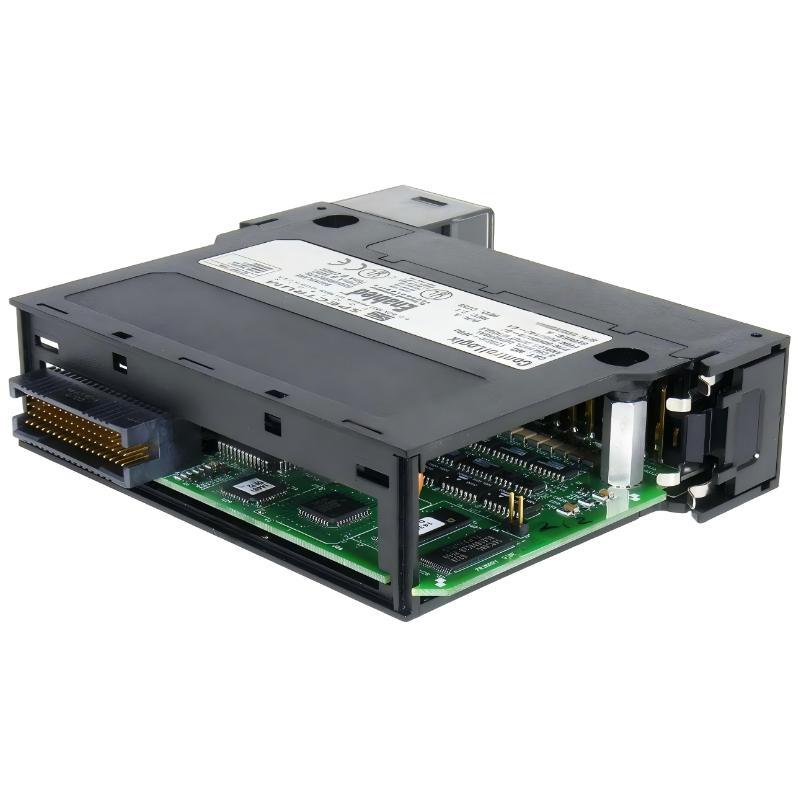

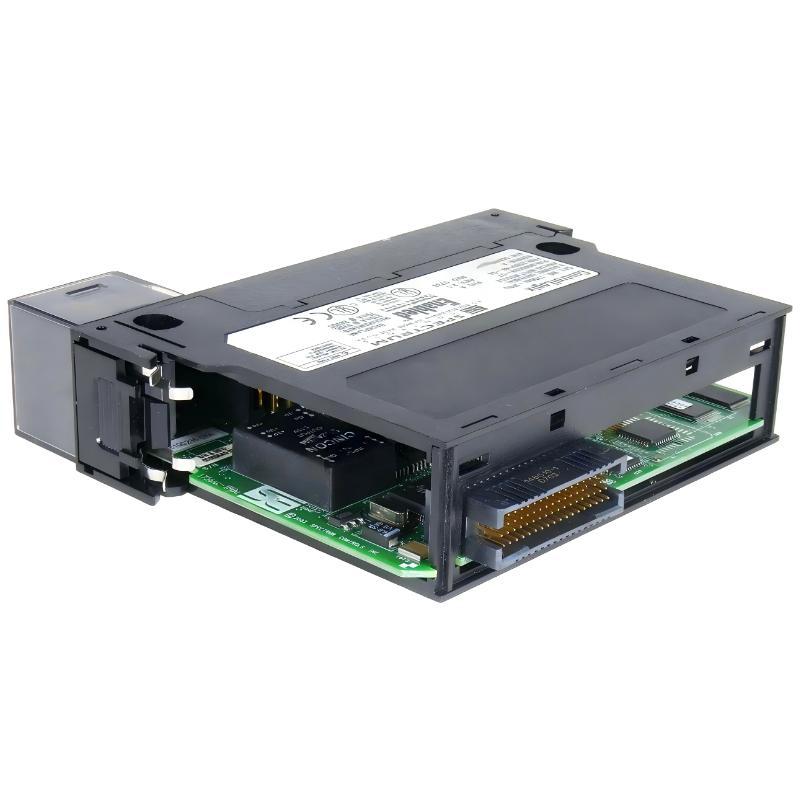

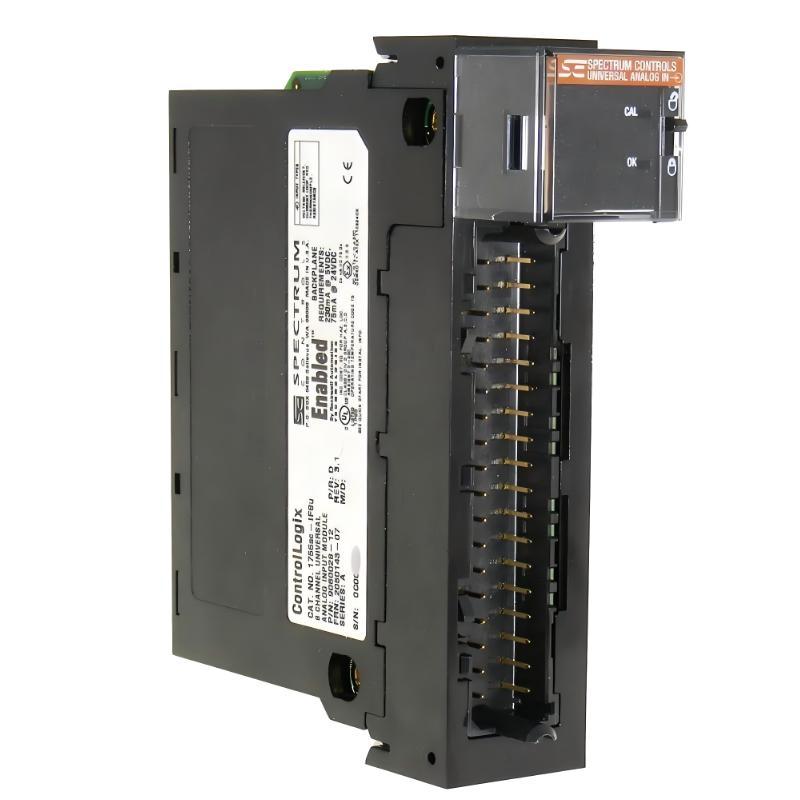

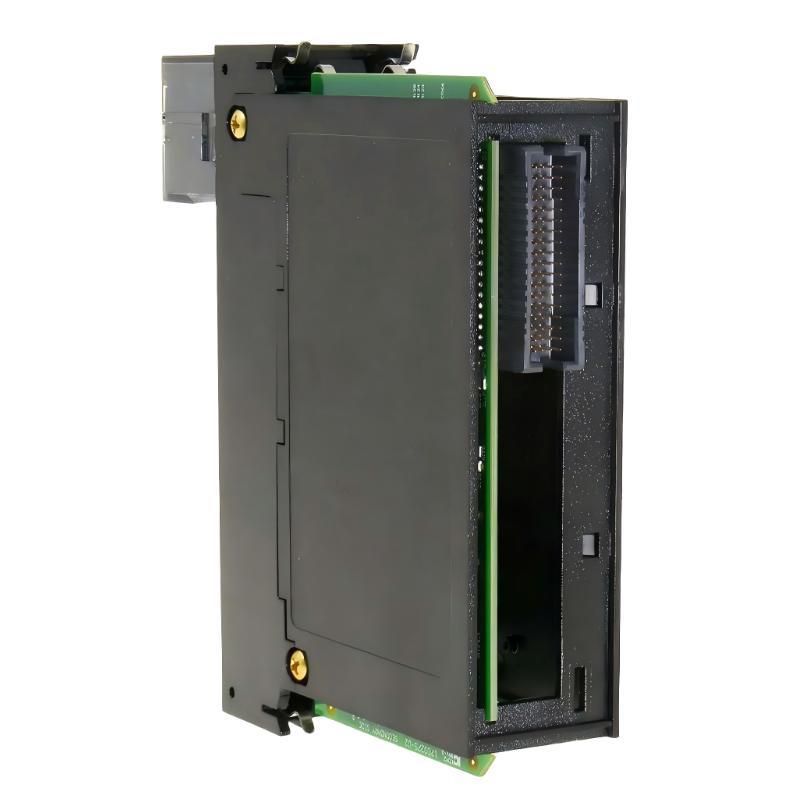

Allen Bradley 1756SC-IF8U ControlLogix Analog General Input Module

Overview

The Allen-Bradley 1756SC-IF8U is a general-purpose analog input module designed for ControlLogix systems. It is used for accurate acquisition of industrial analog signals, supporting flexible input types for process monitoring, automation control, and system integration applications.

General Information

Part Number: 1756SC-IF8U

Manufacturer: Rockwell Automation (Allen-Bradley)

Country of Origin: United States

Series: ControlLogix 1756SC

Type: Analog General Input Module

Application: Industrial process signal acquisition and monitoring

Function: Converts analog field signals into digital data for controller processing

Mounting: ControlLogix chassis-based installation

Power Specifications

Supply Voltage: 24 V DC (via ControlLogix backplane)

Power Consumption: Low power consumption (module dependent)

Input Power: Supplied from system rack backplane

Protection: Overvoltage protection and electrical isolation

Indicators: LED status indicators for module health and channel status

Communication & Interface

Input Channels: Multi-channel analog input

Signal Types: General analog input signals (voltage/current depending on configuration)

Interface Type: ControlLogix backplane communication

Resolution: High-precision signal conversion

Functionality: Real-time analog data acquisition and processing

Diagnostics: Channel diagnostics, fault detection, and status monitoring

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: -40 to 85 °C

Humidity: 5% to 95% non-condensing

Environment: Industrial control cabinet environment

Resistance: High resistance to electrical noise and vibration

Dimensions & Weight

Dimensions (L × W × H): 145.2 × 34.6 × 139.6 mm

Weight: 0.848 kg

Engineered for Precision, Built for Reliable Control!
