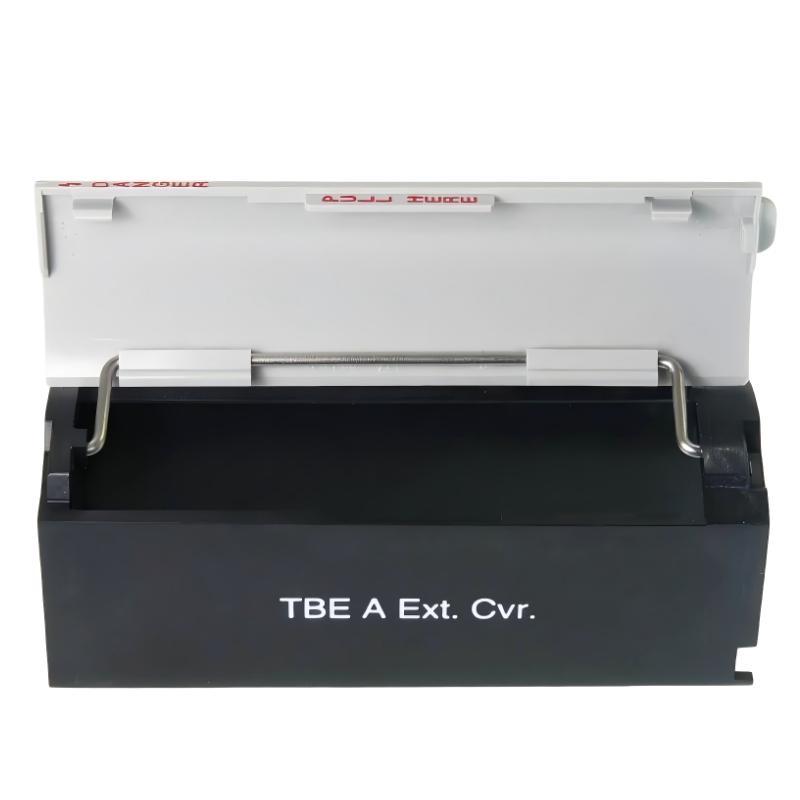

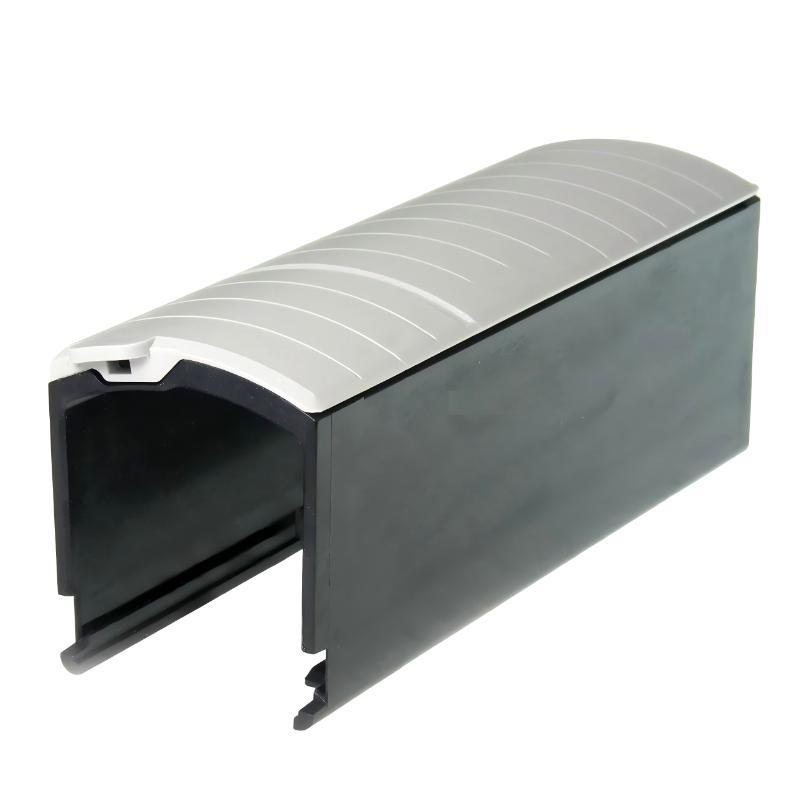

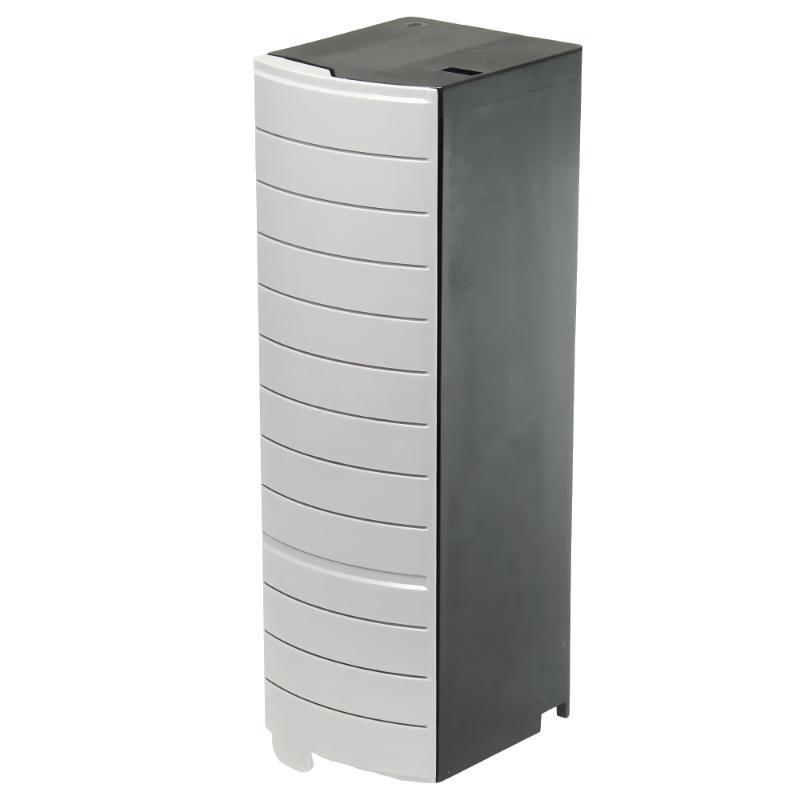

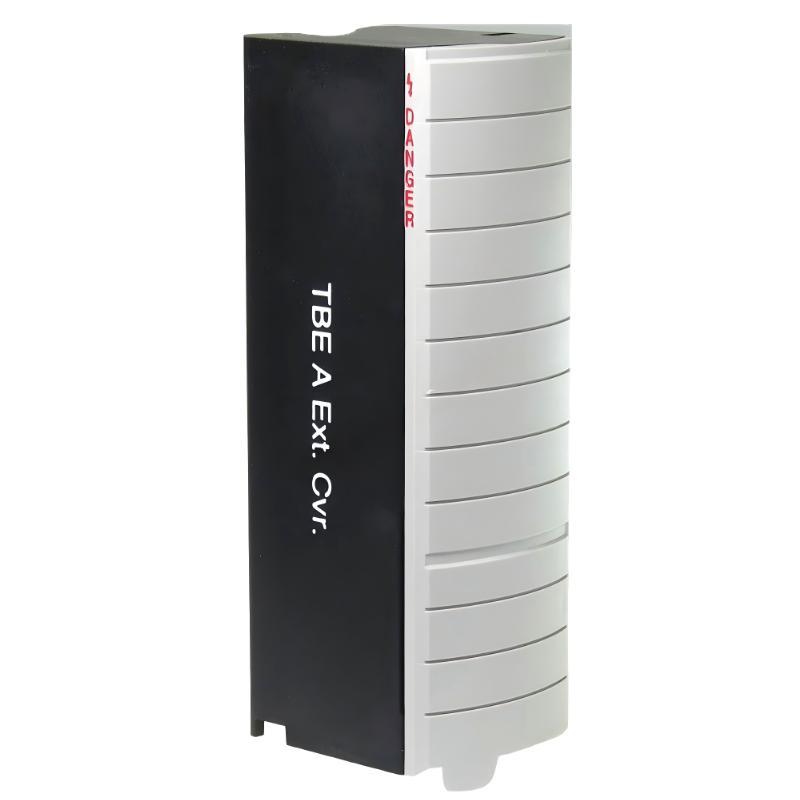

Allen Bradley 1756-TBE ControlLogix Deepened Terminal Block Housing

Overview

The Allen-Bradley 1756-TBE is a deepened terminal block housing designed for ControlLogix systems. It provides mechanical protection and structured support for terminal connections, ensuring stable wiring organization and reliable operation in industrial automation environments.

General Information

Part Number: 1756-TBE

Manufacturer: Rockwell Automation (Allen-Bradley)

Country of Origin: United States

Series: ControlLogix 1756

Type: Terminal Block Housing

Application: Protective housing for ControlLogix terminal block assemblies

Function: Provides mechanical support and wiring protection for I/O terminal connections

Mounting: Direct integration with ControlLogix I/O terminal structures

Power Specifications

Power Requirement: None (passive mechanical component)

Power Consumption: 0 W

Electrical Role: Non-electrical structural housing

Protection: Enhances wiring safety and mechanical stability

Insulation: Industrial-grade enclosure support

Communication & Interface

Interface Type: Mechanical interface for terminal block assembly

Compatibility: ControlLogix I/O terminal systems

Functionality: Supports organized wiring and stable signal termination layout

Diagnostics: None (passive housing component)

Connection Role: Structural support for field wiring terminals

Environmental

Operating Temperature: 0 to 60 °C

Storage Temperature: -40 to 85 °C

Humidity: 5% to 95% non-condensing

Environment: Industrial control cabinet installation

Resistance: High resistance to vibration and mechanical stress

Dimensions & Weight

Dimensions (L × W × H): 132 × 54 × 110 mm

Weight: 0.1 kg

Reliable Structure, Built for Stable Control Systems!
